Zipato SMART SMOKE SENSOR Quick Installation Manual

TRADEMARKS
Zipato and the Zipato logo are registered Trademarks. All other
product names mentioned herein may be trademarks or
SMART SMOKE
registered trademarks of their respective companies.
SENSOR
NOTICE
Although Zipato has attempted to ensure the accuracy of the
QUICK INSTALLATION GUIDE
content of this manual, it is possible that this document may
v1.0
contain technical inaccuracies, typographical, or other errors.
Zipato assumes no liability for any error in this publication, and for
damages, whether direct, indirect, incidental, and consequential
or otherwise, that may result from such error, including, but not
limited to loss of data or profits.
Zipato provides this publication "as is" without warranty of any
kind, either express or implied, including, but not limited to
implied warranties of merchantability or fitness for a particular
purpose. The published information in the manual is subject
to change without notice.Zipato reserves the right to make
changes in the product design, layout, and driver revisions without
notification to its users. This version of the Installation guide
supersedes all previous versions.
INTRODUCTION WARNINGS
This product is a Smart Smoke Sensor, a warning device. It can 1. Specifically designed for home use.
not sense gas, heat, flame and cannot prevent or put out the fire. 2. Avoid installation in bathrooms and other very humid places,
It is capable of real time detection of smoke, visible particles dusty or greasy areas, or very airy place with air conditioning,
(smoldering fire) faster than ionization smoke alarms. Red LED ceiling fans, etc.
flashes rapidly and detectors sound alarm once the smoke/fire 3. Keep Smoke Sensor clean. Recommended to cleane every 6
danager has been detected. Smoke alarms should be installed in months with soft brush.
all rooms where fire may happen. 4. Effective life span is 10 years.
SPECIFICATION
Working voltage: DC3V (CR123A Lithium battery)
Static current: 20uA
Alarm current: 60mA
Alarm
Alarm sound: 85dB/1m
Networking: Z-Wave
INSTALLATION
Working temperature: -10°C~+50°C
Humidity: 95%RH
Dimensions: 60 x 60 x 49.2 mm 1| CEILING MOUNTING
The preffered location to install the sensor is in the centre
of the ceiling becase smoke, heat and combustion products
rise to the ceiling and will lateral spread. Keep at least 30 cm
distance from lights or decoration, and at least 15 cm from
walls. If room is more than 12 meters wide please install at 2
sides of the room.
2| SLOPING CEILING MOUNTING
If ceiling is sloping, please install the smoke alarm at
horizontal distance 90 cm away from the ceiling top.

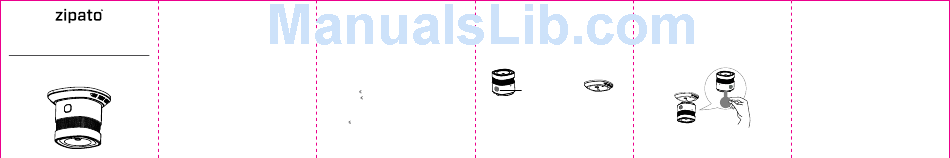

INSTALLATION STEP 1:
Test button and
LED indicator.
Bracket
Anticlockwise rotate the bracket out from the installation
base, then remove the battery insulating strip to make the
sensor to power on.
INSTALLATION STEP 2:
1. DEVICE INCLUSION
- Click [Add] icon in Z-Wave PC Controller Program.
- Press the Net_Button 3 times within 1.5s, Green LED is
blinking 3 times within 1 second.
- If Inclusion Process is successful, Green led will turn off.
2. DEVICE EXCLUSION
- Click [Remove] icon in Z-Wave PC Controller Program
- Press the Net_Button 3 times within 1.5s
- If Exclusion Process is successful, Green led is Blinking 6
times, then turn off.
3. DEVICE TEST MODE
If Inclusion process is successful, Press Test_Button to test if
the device is working normally. Red LED blinks 3 times when
smoke is detected.
4. DEVICE DETECTION MODE
If Inclusion process is successful, the device will report alarm
information if detect the status change of smoke and no smoke.
Red LED blinks quickly when smoke is detected.
