 The unit generates condensate and this should be piped
away from the unit and in to a suitable drain to prevent ice
forming on the area around the unit. This applies to the
water resulting from a defrost cycle.
 There must be enough space around the unit for
plumbing and maintenance works as detailed in the diagram
below.
 The unit MUST be firmly fixed to a secure base using the
rubber anti-vibration feet using suitable fixings. Failure to
secure the unit properly using the rubber feet will mean that
it will fail accreditation.
 To allow precipitation to run off the unit and to ensure
that any water entering the unit can drain through the holes
in the bottom of the unit, allow a 3mm fall left to right as you
look at the fan.

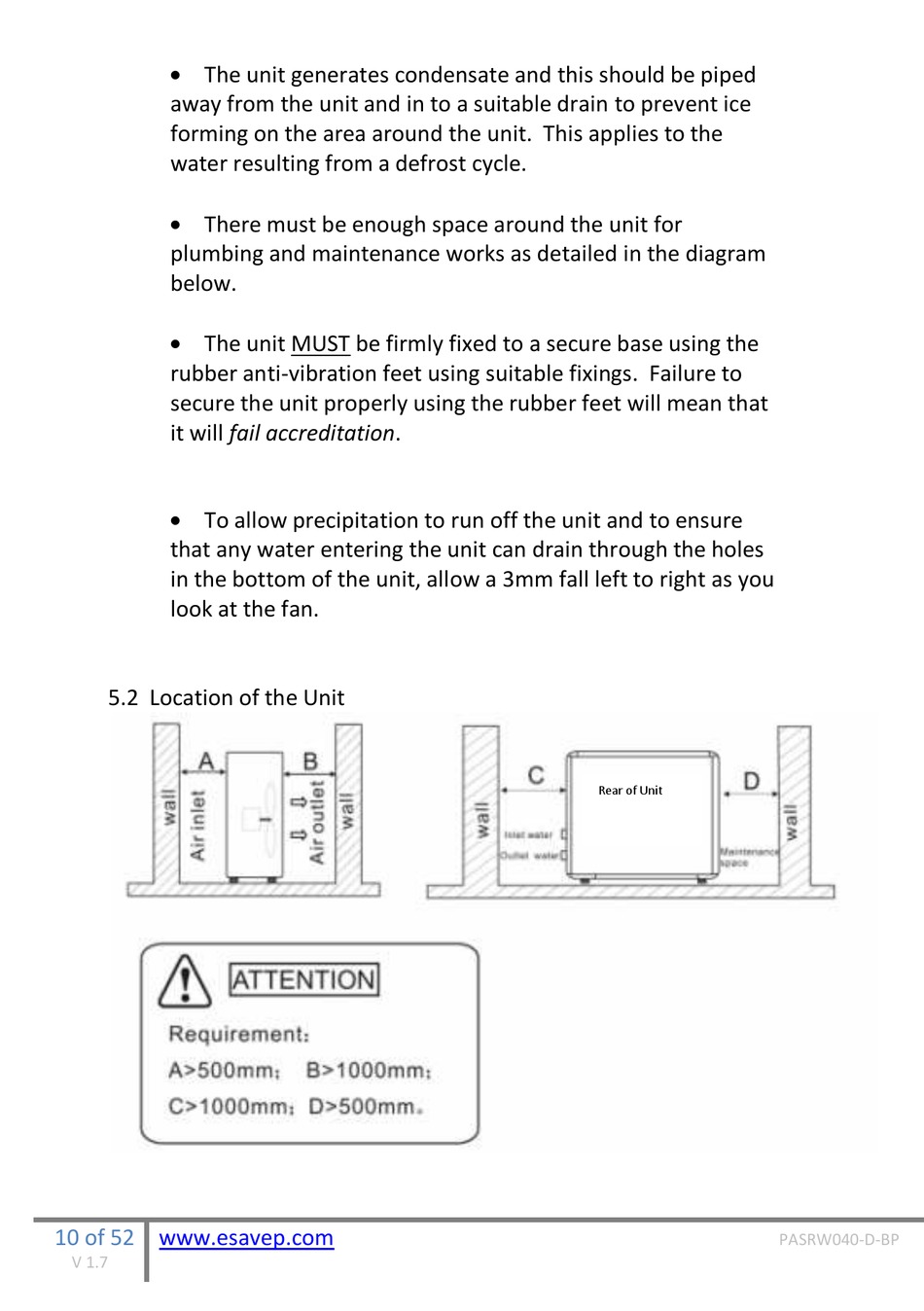

5.2 Location of the Unit

Rear of Unit
