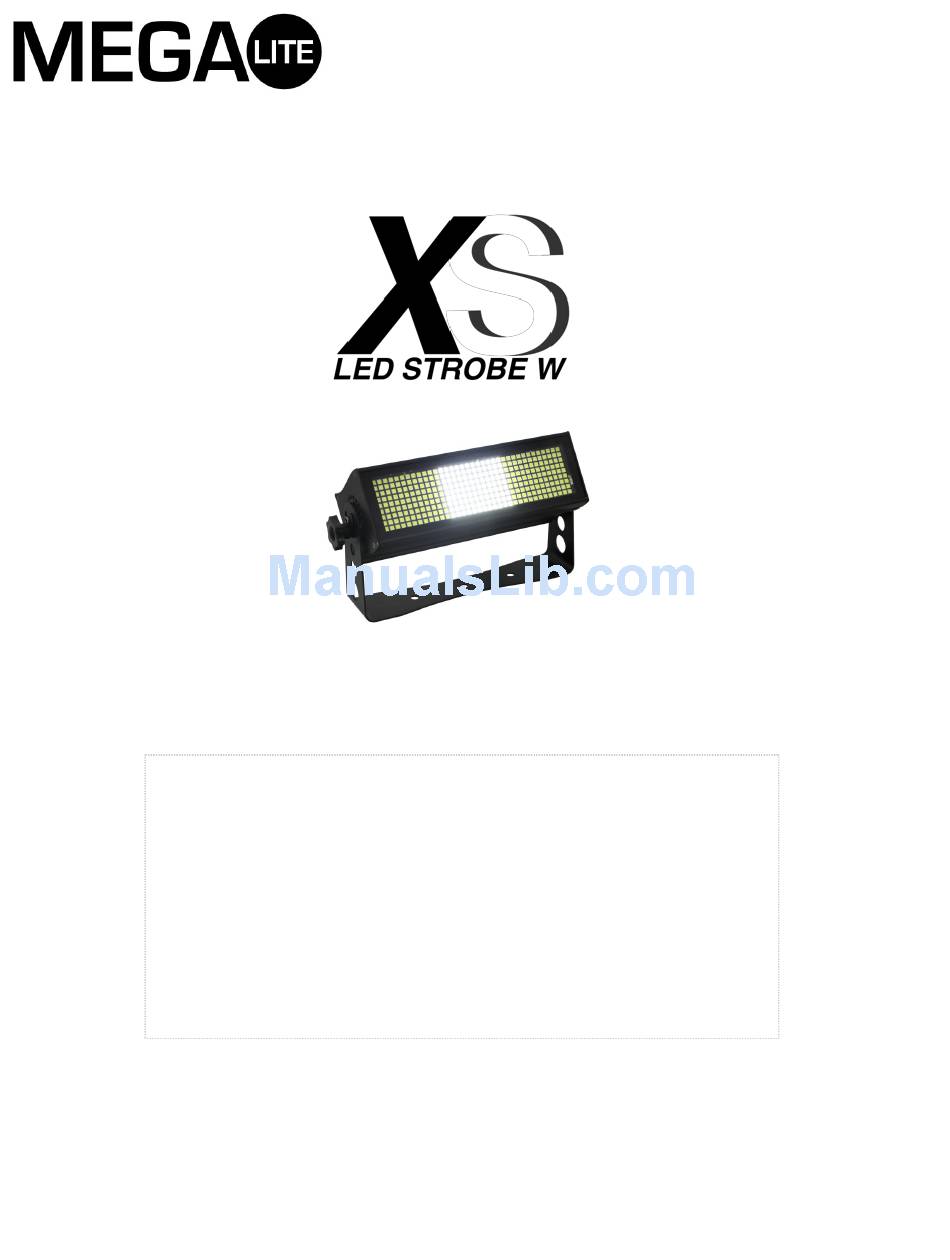

USER MANUAL
Safety Information..............................................................3
Specifications.................................................................... 4
Main Power Connection..................................................... 5
DMX-512 Connection......................................................... 5
Main Control Menu......................................................................... 6
DMX Profile.................................................................................... 8
Rigging the Fixture.............................................................11
Cleaning & Maintenance................................................................11
Parts List........................................................................................11
Advertisement
Table of Contents
Related Manuals for Mega Lite XS Led Strobe W
Summary of Contents for Mega Lite XS Led Strobe W
-
Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information…………………………………………………..…3 Specifications………………………………………………………….. 4 Main Power Connection…………………………………………….. 5 DMX-512 Connection……………………………………………..5 Main Control Menu................. 6 DMX Profile..................8 Rigging the Fixture……………………………...…………………….11 Cleaning & Maintenance..............11 Parts List..................11... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Technical Information Part Numbers 3010– XS Led Strobe White Mechanical Specifications 4” DMX Connectors: 5 pin XLR connectors in and out 13.66” Thermal: Maximum ambient temperature 104° Maximum surface temperature 140° Fastening System: Single Mounting Yoke Display: Digital 4.8” Power connection: Power Con in &... -
Page 5: Main Power Connection
Main Power Connec- Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 220V automatically This unit must be earthed. (electronically grounded) Replace fuse only with the specified type and rating. The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 90V to 240V from 50Hz to Cable (USA) -
Page 6: Main Control Menu
The control board on the fixture base is your interface to access and control all the functions on the unit. Its digital display gives you a code —Mega Lite— view of the options and functions. The following will explain each func- XS LED W tion and its options. - Page 7 This function will give you access to set strobe rate via display. Press Enter. Strobe Use the Down or Up to select the desired color. Press Enter use the Down or Up to select intensity from 0 to 255. You can repeat this process to get any color combination.
-
Page 8: Dmx Profile
DMX Profile XS LED W 1 Ch A Mode DMX Channel Function Description Value No Function Strobe Strobe Rate (slow to fast) 6-249 Blinder (full on) 250-255 XS LED W 3 Ch B Mode DMX Channel Function Description Value Dimmer No Function 0-255 Duration... - Page 9 XS LED W 7 Ch D Mode DMX Channel Function Description Value Dimmer Dimmer 0-255 Full Off 0-126 Blinder Full On 127-255 Duration Flash Duration 0-255 Strobe No Function Strobe Rate 6-255 No Function Ramp Up Effect (slow to fast) 6-42 Ramp Down Effect (slow to fast) 43-85...
-
Page 10: Random Effect (Slow To Fast)
XS LED W 13 Ch E Mode DMX Channel Function Description Value Dimmer Dimmer 0-255 Intensity Segment 1 Intensity 0-255 Intensity Segment 2 Intensity 0-255 Intensity Segment 3 Intensity 0-255 Intensity Segment 4 Intensity 0-255 Intensity Segment 5 Intensity 0-255 Intensity Segment 6 Intensity 0-255... -
Page 11: Rigging The Fixture
Rigging the fixture Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. -
Page 12: Warranty Information
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
