USER MANUAL
Safety Information.............................................................................................3
Specifications...................................................................................................4
Main Power Connection.....................................................................................5
DMX-512 Connection.........................................................................................5
Main Control Menu..............................................................................................................6
DMX Profile.........................................................................................................................8
Rigging the Fixture............................................................................................8
Cleaning & Maintenance.....................................................................................................9
Parts List.............................................................................................................................9
Advertisement
Table of Contents
Related Manuals for Mega Lite Nova-Lite UV200
Summary of Contents for Mega Lite Nova-Lite UV200
-

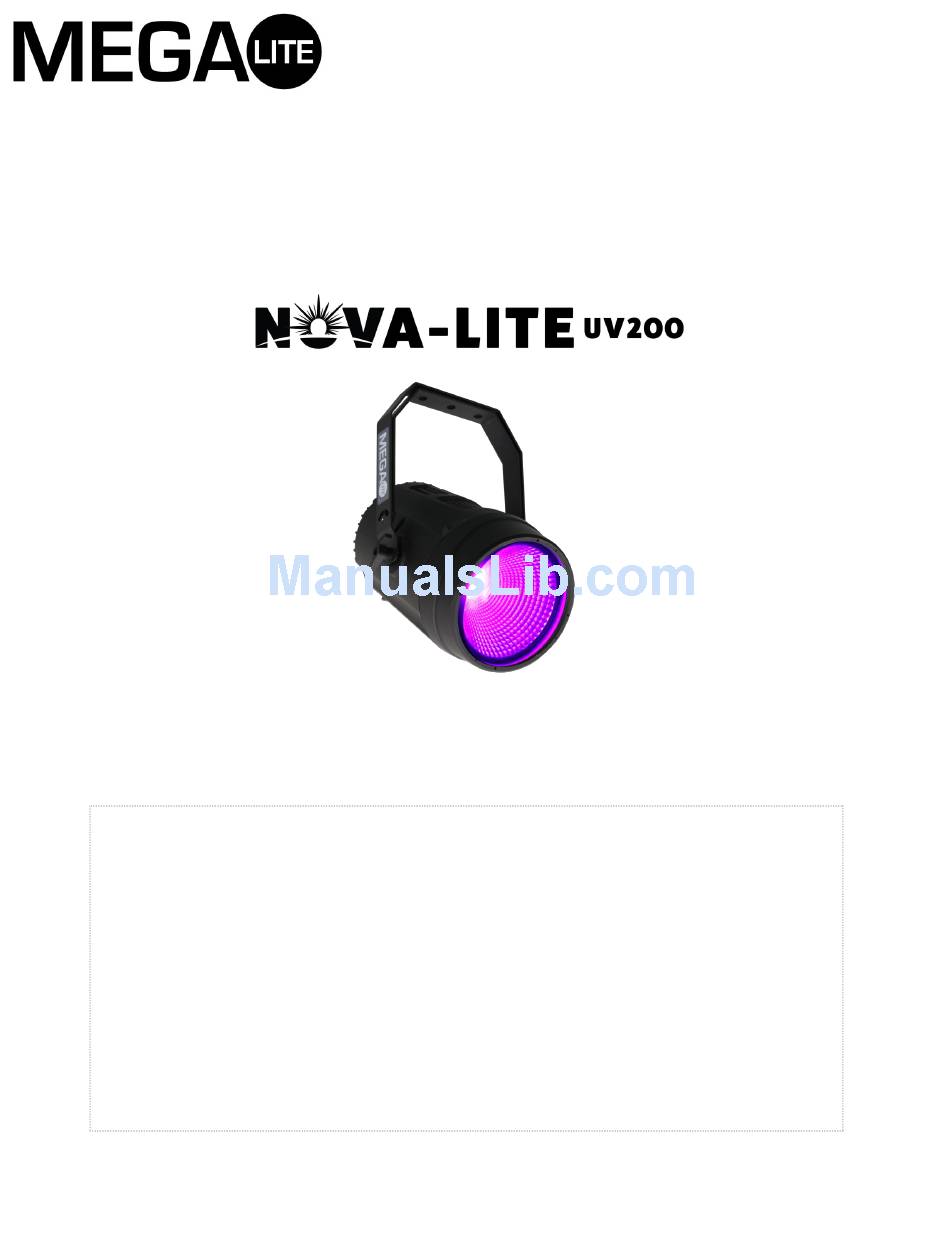

Page 1: Table Of Contents
USER MANUAL Table of Contents Safety Information…………………………………………………………..…………………….3 Specifications……………………………………………………………………………………...4 Main Power Connection………………………………………………………………………….5 DMX-512 Connection…………………………………………………………………...………..5 Main Control Menu......................6 DMX Profile.........................8 Rigging the Fixture………………………………………………………………………………..8 Cleaning & Maintenance.....................9 Parts List..........................9... -
Page 3: Table Of Contents Safety Information
Check that the unit has not been damaged during transport Protection Against Fire 1. Maintain a minimum of 1 foot distance from any type of flame. 3. Replace fuse only with the specified type and rating. 4. Do Not install the unit to close to a heat source. 5. -
Page 4: Specifications
Technical Information Part Numbers 4455– Nova Lite UV200 Mechanical Specifications DMX Connectors: Neutrik 3 & 5 pin Power connection: Neutrik Power Con to Nema 5-15 (cable mounted) Thermal: Maximum ambient temperature 105° Maximum surface temperature 113° 10.25” Fastening System: Dual Yoke Display: Digital Lens Angle:... -
Page 5: Main Power Connection
Main Power Connection Caution! Do not connect fixture to a dimmer system. This unit has Auto switching power supply. It will respond to 110V or 240V automatically This unit must be earthed. (electronically grounded) The occupation of the connection-cable is as follows: This fixture is equipped with an electronic power supply that will let the unit operate from 100V to 240V from 50Hz to 60Hz Cable (USA) Cable (EU) -
Page 6: Main Control Menu
Display Menu CONTROL BOARD MegaLite NovaUV200 Mode Enter Down Address DMX Address Press Set Up to select the DMX start channel use the up/down keys, Press Set Up to confirm the setting Channel Mode DMX Mode This function allows you to select the mode in witch you want to control the fixture. Press Enter use the up/down keys to select desired DMX mode settings. - Page 7 Strobe Mode Strobe This function allows you to select a preprogrammed strobe sequences. Press Enter use the up/down keys to select de- sired strobe speed program (15 options). Press Enter to confirm the settings. (note; Dimmer of selected intensity must be dimmed prior in Dimmer option) Fade Mode Fade...
-
Page 8: Dmx Profile
Nova Lite UV 200 DMX Profile Nova Lite UV200 1Ch DMX Channel Function Description Value Dimmer Dimmer Off to Full 0-255 Nova Lite UV200 2Ch DMX Channel Function Description Value Dimmer Dimmer Off to Full 0-255 Strobe (slow to fast) 0-196 Strobe Random Strobe (slow to fast) -
Page 9: Cleaning & Maintenance
Caution! 1. The installations must be carried out by an authorized dealer or trained professional. 2. Unit may cause severe injures if you have doubts concerning the safety do not install. 3. Unit is to be 24inches away from flammable materials (decoration material) 4. -
Page 10: Warranty Information
Warranty Information Warranty Conditions -Unless otherwise stated in writing, your product is covered by a one year parts and labor limited warranty. -LEDs are not guaranteed to match in color temperature or output. -It is the owner’s responsibility to furnish receipts or invoices for verification of purchase, date, and reseller or distributor. If purchase date cannot be provided, date of manufacture will be used to determine warranty period.
