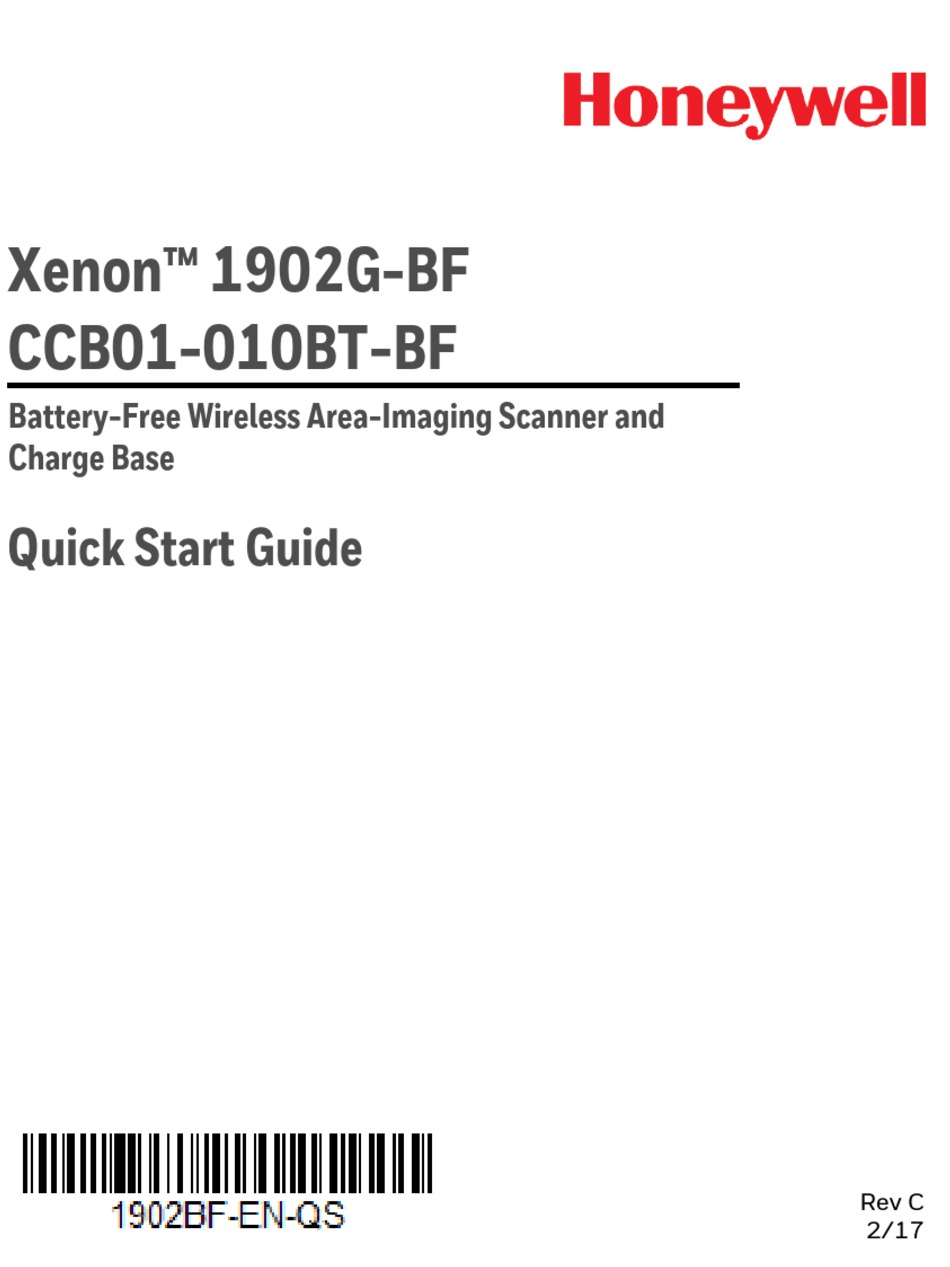

Xenon™ 1902G-BF
CCB01-010BT-BF
Battery-Free Wireless Area-Imaging Scanner and 
Charge Base
Quick Start Guide
Rev C
2/17

Advertisement

   Also See for Honeywell XENON 1902G-BF

   Related Manuals for Honeywell XENON 1902G-BF

   Summary of Contents for Honeywell XENON 1902G-BF

  • Page 1: Quick Start Guide

    Xenon™ 1902G-BF CCB01-010BT-BF Battery-Free Wireless Area-Imaging Scanner and  Charge Base Quick Start Guide Rev C 2/17...

  • Page 2: Getting Started

    Note: Refer to your user’s guide for information about cleaning your device. Getting Started Turn off the computer’s power before connecting the base, then power up the computer once the base is fully connected. When the base is connected and powered up, put the scanner in the base to establish a link.

  • Page 3: Connecting The Scanner

    Connecting the Scanner USB: Note: If you are charging the scanner using the USB cable, the current available for charging is reduced and charge times are increased. Charging via the power supply is faster.

  • Page 4

    Keyboard Wedge: RS232 Serial Port:...

  • Page 5: Led Sequences And Meaning

    RS485: LED Sequences and Meaning When charging, the base indicates the progress while the scan- ner resides in the base. Approximate Base Button/LED Charge Level Expected Scans* Green on 100% Green slow blink 50-99% Green fast blink 30-50% Yellow fast blink 0-30% Charging - do not scan...

  • Page 6: Reading Techniques

    The following feedback is provided by the scanner when the scanner is out of the base and has been idle for 5 seconds. Approximate Charge Scanner LED Scanner Beep Expected Level Scans* Yellow  2 short beeps per 3 sets of flashes flash Red ...

  • Page 7

    If the bar code is highly reflective (e.g., laminated), you may need to tilt the scanner at an angle so the bar code can be scanned. Note: If the scanner beeps 3 times when scanning a bar code, the link has not been established. If the scanner beeps once, the link has been established.

  • Page 8: Usb Serial

    USB Serial Scan the following code to program the scanner to emulate a regular RS232-based COM Port. If you are using a Microsoft® Windows® PC, you will need to download a driver from the Hon- eywell website (www.honeywellaidc.com). The driver will use the next available COM Port number.

  • Page 9

    Country Code Scan Country Code Scan Arabia Korea Belgium Portugal China Russia France Spain Germany/Austria Sweden/Finland Great Britain Switzerland Hungary Thailand IBM Financial Turkey (Q) Italy USA (Default) Japan Vietnam Save Note: For a complete list of country codes, see the User’s Guide for your product at our website, www.honeywellaidc.com.

  • Page 10: Override Locked Scanner

    To use a different scanner, you need to unlink the original scan- ner by scanning the Unlink Scanner bar code. Override Locked Scanner If you need to replace a broken or lost scanner that is linked to a base, scan the Override Locked Scanner bar code with a new scanner, and place that scanner in the base.

  • Page 11

    Trigger The following bar codes will allow you to use the scanner in Manual Trigger - Normal Mode (need to press the trigger to read) or Presentation mode (the scanner is activated when it “sees” a bar code). Note: Presentation Mode continuously draws power, so use of the external power supply is recommended for this mode.

  • Page 12

    When the scanner is out of the base, the page button pages the scanner, causing it to beep until the trigger is pressed. Suffix If you want a carriage return after the bar code, scan the Add CR Suffix bar code. To add a tab after the bar code, scan the Add Tab Suffix bar code.

  • Page 13: Function Code Transmit

    Function Code Transmit When this selection is enabled and function codes are con- tained within the scanned data, the scanner transmits the func- tion code to the terminal. Charts of these function codes are provided in your User’s Guide. When the scanner is in keyboard wedge mode, the scan code is converted to a key code before it is transmitted.

  • Page 14

    Programming Chart...

  • Page 15: Technical Assistance

    Save EZConfig-Scanning To access additional features for the scanner use EZConfig-Scanning, an online configuration software tool, available from our website at www.honeywellaidc.com. Technical Assistance Contact information for technical support, product service, and repair can be found at www.honeywellaidc.com.

  • Page 16: Limited Warranty

    For localized versions of this document, and to download the User’s Guide, go to www.honeywellaidc.com. Disclaimer Honeywell International Inc. (“HII”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult HII to determine whether any such changes have been made.
