Reference8 Pro music player Fast Operation Guide
Introduction

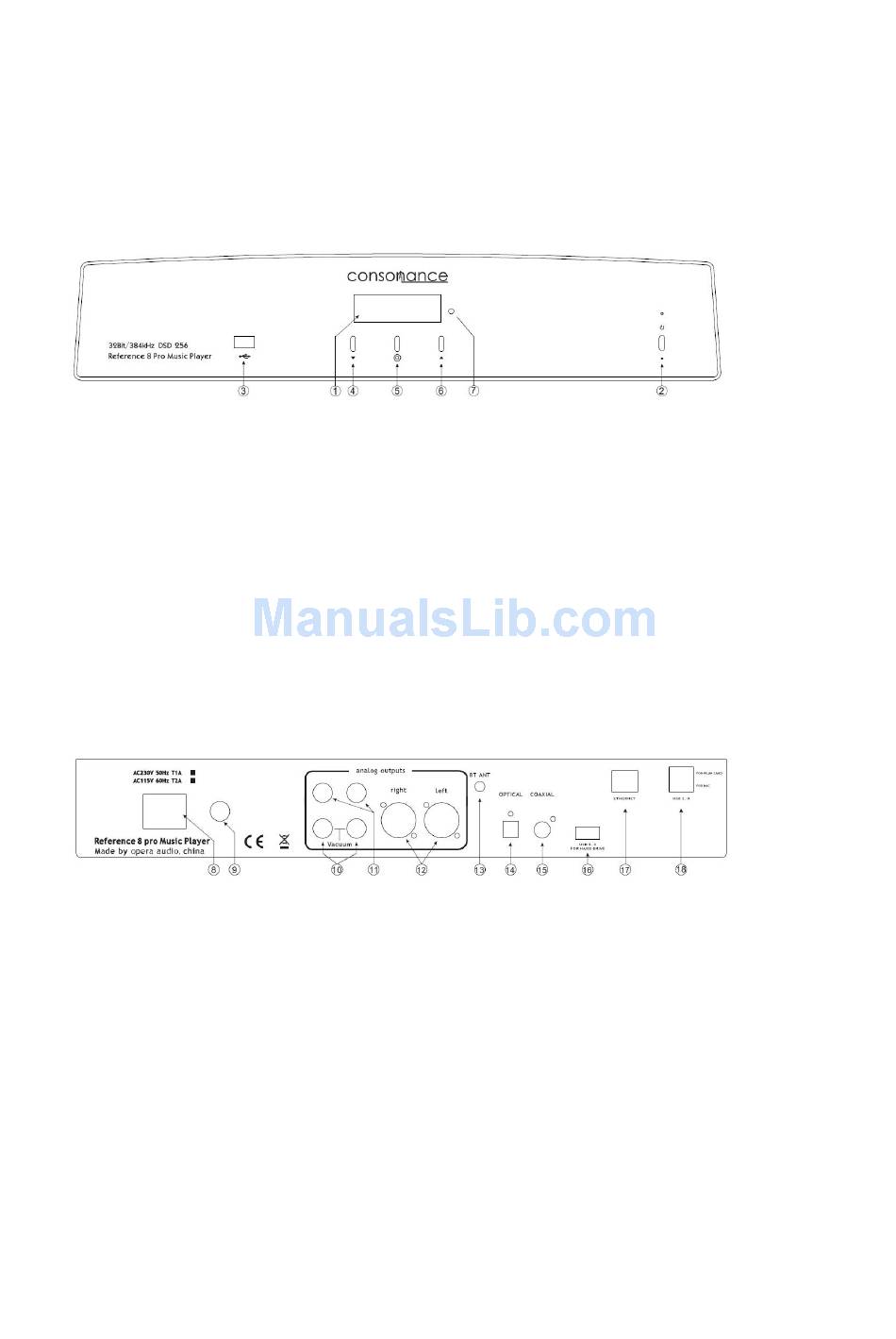

1/2 Front
1. Display
2. Power Switch
3. USB2.0 for Memory
4. Down Button
5. Menu Button
6. Up Button
7. IR Window
2/2 Rear
8. Power Socket
9. Fuse
10. Vacuum unbalanced Analog Outputs
11. Unbalanced Analog Outputs
12. Balanced Analog Outputs
13. Bluetooth ANT
14. Optical Digital input
15. Coaxial Digital input
16. USB2.0 for Memory
17. EtherneRJ45
18. USB2.0 for WiFi Adapter

Advertisement

loading
Need help?

Need help?

Do you have a question about the Reference8 Pro and is the answer not in the manual?

Questions and answers

Related Manuals for Consonance Reference8 Pro

Summary of Contents for Consonance Reference8 Pro

  • Page 1 Reference8 Pro music player Fast Operation Guide Introduction 1/2 Front 1. Display 2. Power Switch 3. USB2.0 for Memory 4. Down Button 5. Menu Button 6. Up Button 7. IR Window 2/2 Rear 8. Power Socket 9. Fuse 10. Vacuum unbalanced Analog Outputs 11.
  • Page 2 1. Set up a network connection Reference8 Pro has both wired and wireless models connected to the router. Wired connection via the RJ45 ETHERNET port, a network cable connected directly to the router. Wireless connection needs to be done once set up, in the future each boot can automatically connect with the router.
  • Page 3 pic 3 pic 4 pic 5 When you see these information (pic5) remove the Ethernet wire and turn power off. 2. How to play 1. Plug in USB memory (U disk or hard disk) remaining on the USB2.0 port. Tune on about 40 seconds and make sure the cell phone (Pad or computer) is connected to the same network.
  • Page 4 pic6 3. When you found the music, in the far right of the folder or track name has a button. Album folder has 4 modes: Play or Clear and play (direct playback), Add to queue and “Add to playlist”. Track added a "Add to favourites " mode. pic7 pic8...
  • Page 5 4. In Queue, you can see different playlist. It has 4 playback modes: random play, loop, save playlist and cancel playlist. pic9 pic10 5. Web Radio have five options (pic11).You can add the Radio station in “My Web Radio” (pic12, pic13). When you enter any options you can select playback mode (pic14). pic11 pic12...
  • Page 6 Pic13 pic14 6. When you plug DVD Rom to R8pro, you can direct play CD (pic15, pic16). pic15 pic16 You also can Rip CD to the memory. The memory should renamed “OPERA” in computer. (pic17~19)
  • Page 7 pic17 pic18 pic19 7. If you want to Add the Network Devices, please press the button and choose Add New Drive in the My Music option (pic20). Pic20 8.Enter the playback (pic21) you can see the currently playing track information, including album art, track information and schedule...
  • Page 8 Playback function buttons are : next, return to the previous, pause/play, Favorite, random play, loop, and create playlists and software volume (default none). pic21 The function of remote control or on the front panel buttons： 1. Digital inputs selections: Press the on the panel or use the left and right arrows buttons on the remote control, it can choose the digital channel.
  • Page 9 Five selections of PCM digital filter: Two selections of DSD cut off filter: Selections of Phase:...
  • Page 10 Supported audio sample rates, bit depths, number of channels ： PCM, 44.1khz-384kHz, 16-32bit, Stereo DSD, 2.8MHz-11.2MHz, 1bit, Stereo Digital inputs: USB2.0, Coaxial, Optical, Bluetooth (Name: consonance) Analog output: Vacuum unbalanced: 2.4V RMS, Distortion: <0.08% unbalanced: 2.4V RMS, Distortion: <0.003% Balanced: 4.8V RMS, Distortion: <0.0025% Dimensions: 14cm×44cm×33cm (H×W×D)
