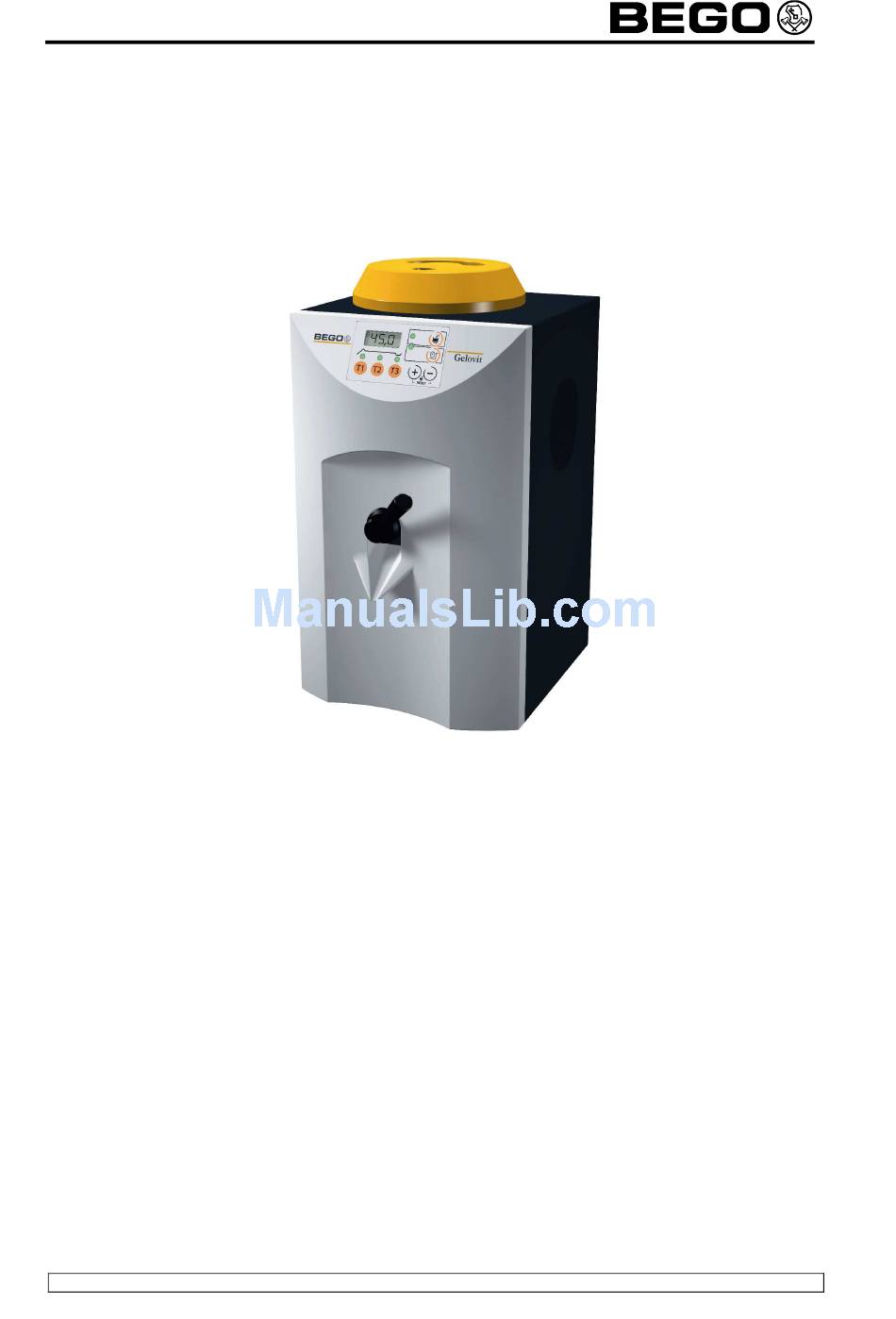

- Page 1 F&E Equipment Service manual V1.0 Gelovit 200 Gelovit 200 – Software V1.00 Autor : Fin/DW Stand 11.02.09 Seite 1 von 6...
- Page 2 Service manual V1.0 Gelovit 200 This handbook describes functions, which are not described in the manual of the device. It is only valid for Gelovit 200 with brushless drive. 1. Commissioning The device shows first the software version in the display and then the unit of the tempera- ture in °...
- Page 3 F&E Equipment Service manual V1.0 Gelovit 200 3. Connections and LEDs LED cover LED heater (bottom) LED heater (top) connections of the motor Wiring of the Motor (from left to right): Red - black - green - yellow - white - Gray 4.
- Page 4 F&E Equipment Service manual V1.0 Gelovit 200 4.2 Resetting hours of operation (device) Press and hold the cycle button and switch on the device. When the device has beeped 4 times, release the buttons. 4.3 Resetting hours of operation (motor) Press and hold the timer button and switch on the device.
- Page 5 F&E Equipment Service manual V1.0 Gelovit 200 4.7 Readout of the hours of operation (device) Switch on the device and wait until the device is ready to work. Press and hold the cycle button. When the device has beeped 4 times, release the button. The device shows you the operating hours now.
- Page 6 F&E Equipment Service manual V1.0 Gelovit 200 Additional information E01 – E03 are created, when the sensor signal is< 1° C or > 120° C. The errors switch off the motor and the heaters (safety). The device cannot be used any longer.
