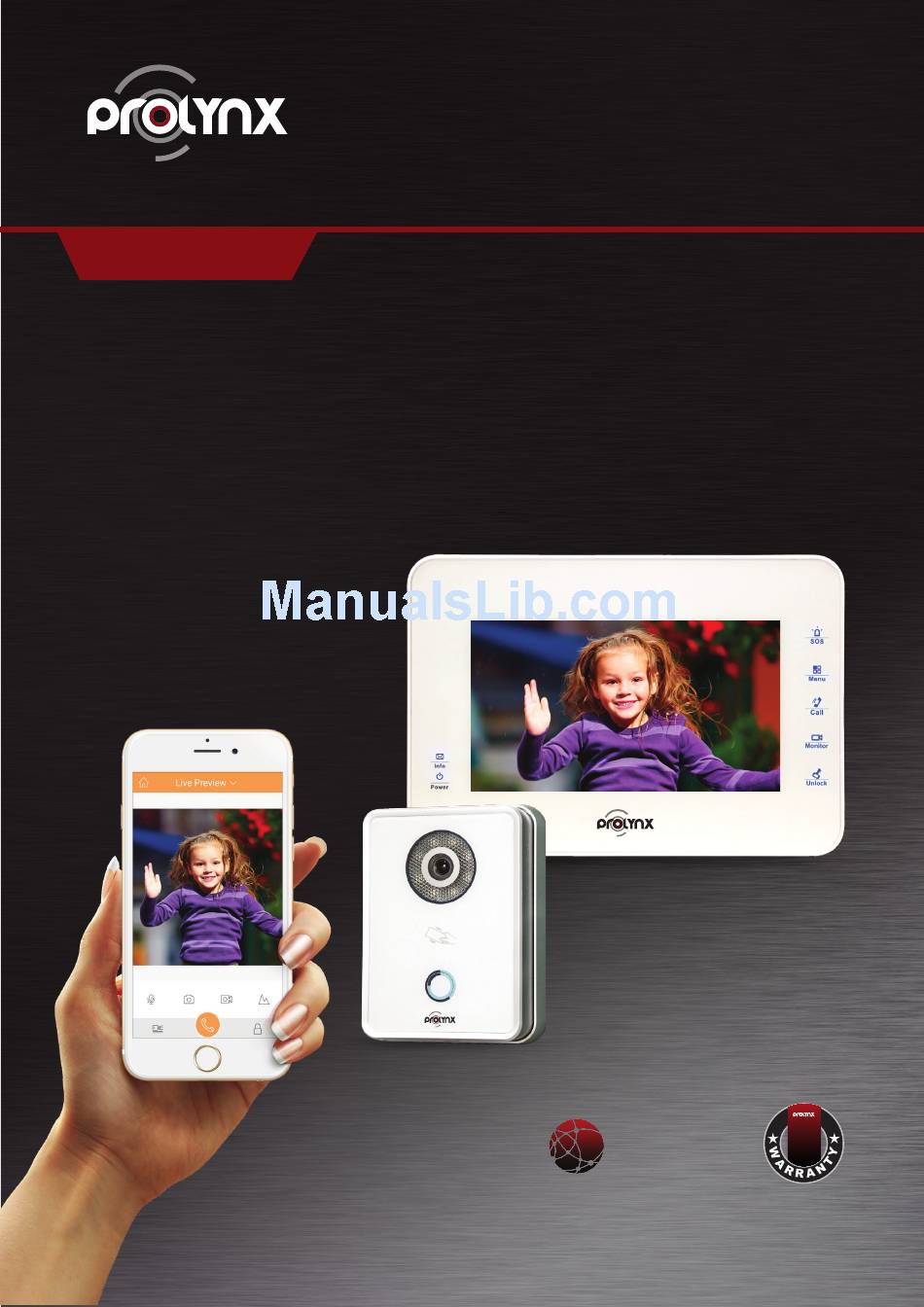

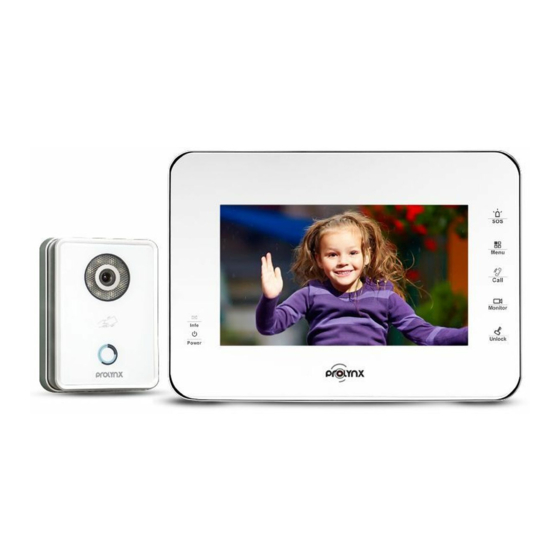

PL-VDIO-05
IP VIDEO DOOR PHONE QUICK START GUIDE
Smartphone Connect
Receive calls, remote monitor and remote unlock
with your smart phone
2
P2P
YEAR
SERVICES
7" VIDEO DOOR PHONE SYSTEM WITH SMARTPHONE CONNECT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PL-VDIO-05 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PROLYNX PL-VDIO-05

Summary of Contents for PROLYNX PL-VDIO-05

  • Page 1 PL-VDIO-05 IP VIDEO DOOR PHONE QUICK START GUIDE Smartphone Connect Receive calls, remote monitor and remote unlock with your smart phone YEAR SERVICES 7” VIDEO DOOR PHONE SYSTEM WITH SMARTPHONE CONNECT...
  • Page 2 IP VIDEO DOOR PHONE QUICK START GUIDE Welcome Thank you for purchasing our device! This quick start guide will help you become familiar with our device in a very short time. Before installation and operation, please read the following safeguard and warning carefully! Important Safeguard and Warning 1.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1 Typical Connection 1.1 IP Connection Mode 1 2 General Settings 2.1 Change Default Password 2.2 Outdoor Station Settings 2.3 Master Digital Indoor Monitor Settings 2.4 Digital Extension Indoor Monitor Settings 2.5 Change Villa Outdoor Station IP via Indoor Monitor 8-11 2.6 Check Results 3 Network Camera Settings...

  • Page 4: Typical Connection

    1. Typical Connection Note: All the installation and operations here should conform to your local electric safety rules. When a visitor press call button on Outdoor Station, multiple Indoor Monitors will ring at the same time. You can call, hang up, and unlock on any of these Indoor Monitors 1.1 IP Connection Mode 1 This mode is for 7”.

  • Page 5: General Settings

    2. General Settings The Outdoor Station default IP address is 192.168.1.110. The default WEB account is User name: admin, password: admin. The Indoor Monitor default IP address is 192.168.1.109, the project password is 002236. After the connection, please make sure the Indoor Monitor and Outdoor Station connection are OK. Please change the default password after your first login.

  • Page 6: Outdoor Station Settings

    2.2 Outdoor Station Settings a) Please use the PC to access the Outdoor Station. Open the browser and then input the Outdoor Station IP address. Click the Enter, input user name and password to login. b) Now you can set local information. See Figure 2-3. Figure 2- 3.

  • Page 7: Master Digital Indoor Monitor Settings

    2.3 Master Digital Indoor Monitor Settings a) On the main Indoor Monitor menu, from System->Project, you can input project password 002236 to go to the project setup interface. b) Set current Indoor Monitor as the master Indoor Monitor. See Figure 2-7. Figure 2-7.

  • Page 8: Digital Extension Indoor Monitor Settings

    2.4 Digital Extension Indoor Monitor Settings a) On the extension Indoor Monitor menu, from System->Project, you can input project password (002236) to go to the project interface. b) Set current Indoor Monitor as extension Indoor Monitor. Step1 Press Product Info, See Figure 2-9 Step2 Press Master, Master icon becomes ‘Extension’...

  • Page 9: Change Villa Outdoor Station Ip Via Indoor Monitor

    Note Please make sure the status is ON. The extension Indoor Monitor can synchronize information with the master Indoor Monitor. If one master Indoor Monitor has several extension Outdoor Stations, please enable status as on. See Figure 2-11. Figure 2-11. 2.5 Change Villa Outdoor Station IP via Indoor Monitor a) On the digital Indoor Monitor interface, from Settings->Project->002236, select Search device.
  • Page 10 b) Change Outdoor Station IP address as 192.168.1.11. See Figure 2-13. Figure 2-13. c) Click Add to add Outdoor Station settings. See Figure 2-14 Figure 2-14.
  • Page 11 d) Use 192.168.1.11 of the Outdoor Station to change default setup 192.168.1.110, change status as on. See Figure 2-15. Figure 2-15. e) Now you can see the following interface. See Figure 2-16. Figure 2-16.

  • Page 12: Check Results

    f) Or you can go to the Network interface to view the add result. See Figure 2-17. Figure 2-17. 2.6 Check Results • On the indoor Outdoor Station, click monitor button, you can view the situation of the Outdoor Station. •...

  • Page 13: Network Camera Settings

    3 Network Camera Settings 3.1 Indoor Monitor Settings The Indoor Monitor supports 8 network cameras. It supports product from Dahua and ONVIF protocol. 3.2 Add VDO Series Network Camera On the Indoor Monitor menu, from Settings-> Local IPC, input network camera name, IP address, port (5000), protocol (local) and then click Save button.

  • Page 14: Check Results

    3.4 Check Results On the Indoor Monitor menu, from Video Talk-> Monitor->IPC, you can use Last Channel/Next Channel to switch to different network camera video. See Figure 3 3. Figure 3-3.

  • Page 15: Mobile Phone Settings

    4 Cell Phone Settings 4.1 Outdoor Station Settings a) Go to the Network interface, set Outdoor Station IP address so that it can connect to the network. Set local DNS address. See Figure 4 1. Figure 4-1. b) Go to P2P interface; check the box to enable the P2P function. Please wait until the status becomes on.
  • Page 16 b) Use the cell phone to scan the QR code of Outdoor Station on the device’ s label or Web. See Figure 4 4 and Figure 4 5. Figure 4-4. Figure 4-5.

  • Page 17: Check Results

    c) Give a name to Outdoor Station first. Click the detect Outdoor Station. You can view the corresponding video from the Outdoor Station after it detects the device. vv Figure 4-6. 4.3 Check Results When the Outdoor Station is calling the Indoor Monitor, you can see a push message on your cell phone. Open the message;...

  • Page 18: Installation

    5 Installation 5.1 Outdoor Station Installation Use screw b to fix bracket onto 86 box embedded/120 box embedded inside ③. 2. Use screw c to fix bracket on ③. 3. Install Outdoor Station ① on Indoor Monitor bracket ②, and fix with screw a. See Figure 5-1.

  • Page 19: Indoor Monitor Installation

    5.2 Indoor Monitor Installation Important The center of the device shall be 1400mm-1600mm height from the ground. a) Secure the installation bracket on the wall. Use thirty-two M4×30 screws to fix. b) Fix the device on the installation bracket and then use the clip to secure. See Figure 5 2. Screw Illustration Name Illustration...

  • Page 20: Electric Lock And Magnetic Door Lock

    6 Electric Lock and Magnetic Door Lock 6.1 Electric Door Lock When connect the Outdoor Station to the electric door lock, connect the positive end of the electric door lock to the NO of the Outdoor Station, connect the negative end of the electric door lock to the public end.

  • Page 21: Appendix Specifications

    7 Appendix Specifications Model Indoor Monitor Main processor Embedded micro controller Embedded LINUX OS Video Video compression H.264 standard Resolution 800 480 Audio Input All-direction microphone Output Built-in speaker Audio talk Dual-way bidirectional talk Display Monitor dimensions 7-inch TFT true color screen Operation mode Input Touch buttons...
  • Page 22 Model Outdoor station Main Process Embedded micro controller System Embedded Linux OS Video Compression H.264 Standard Video Input/Sensor Megapixel CMOS HD camera Night Vision Support Input All-direction microphone Audio Output Built-in speaker Talk Support bidirectional talk Input Single key input Operation Door Lock Mode...
