WARNING: KICKER products are capable of producing sound levels that can permanently damage your
hearing! Turning up a system to a level that has audible distortion is more damaging to your ears than
listening to an undistorted system at the same volume level. The threshold of pain is always an indicator
that the sound level is too loud and may permanently damage your hearing. Please use common sense
when controlling volume.
SPECIFICATIONS
Model
Rated Impedance [Ω]
Fs [Hz]
Continuous Power Handling [Watts RMS]
Sensitivity [1W, 1m]
Xmax (One-Way Excursion) [mm]
Re [Ω]
Qts
Qms
Qes
Vas [ft³, L]
Outer Frame Dimension [in, cm]
Mounting Cutout [in, cm]
Mounting Depth [in, cm]
Frequency Response [Hz]
Note: All specifi cations and performance fi gures are subject to change. Please visit www.kicker.com for the most
current information. To get the best performance from your new KICKER Subwoofer, we recommend using genuine KICKER
Accessories and Wiring. Please allow two weeks of break-in time for the subwoofer to reach optimum performance.

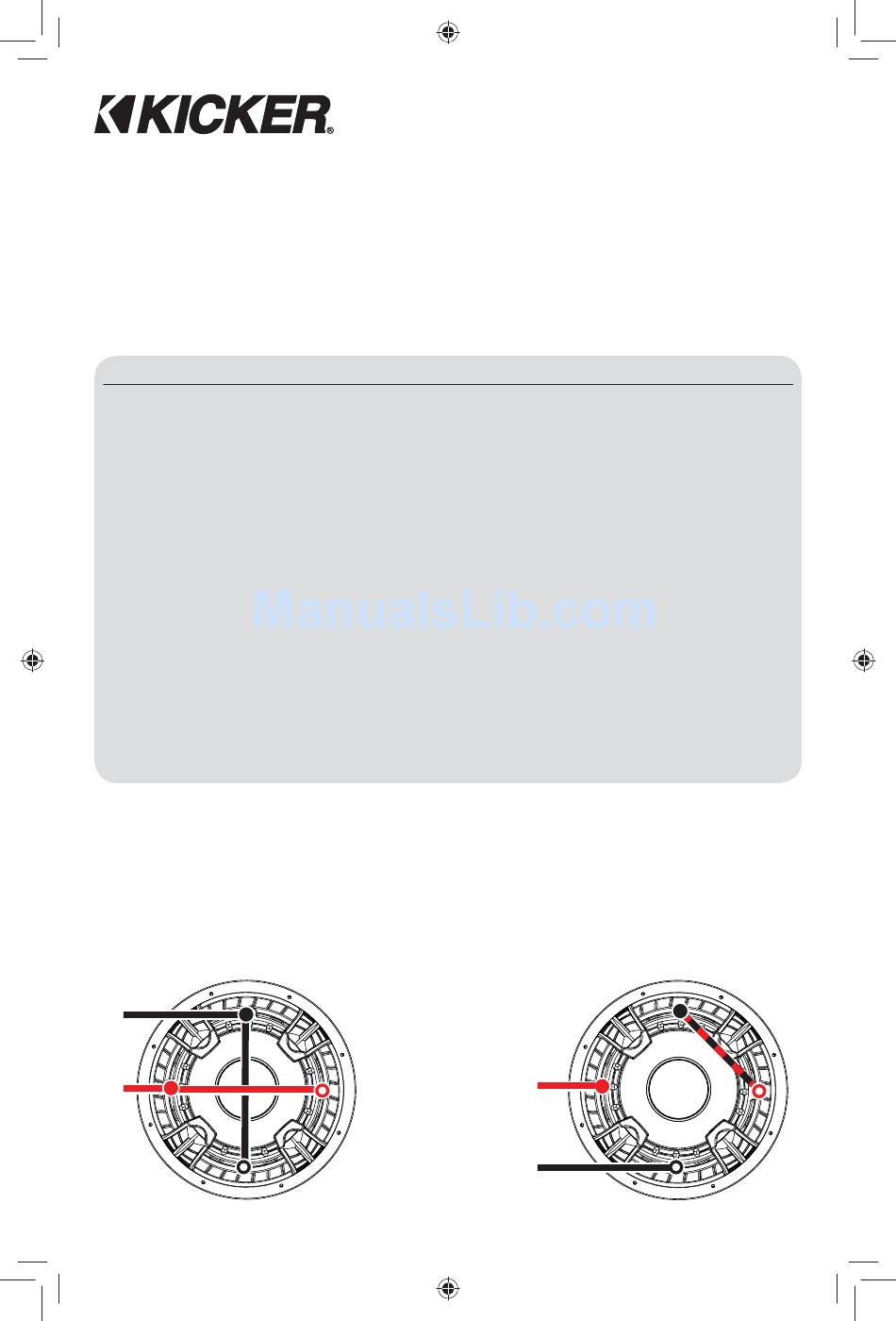

WIRING
Parallel Wiring
Dual 2Ω Voice Coils = 1Ω Load
Dual 4Ω Voice Coils = 2Ω Load
2
2017 CompVX Rev C.indd 2 2017 CompVX Rev C.indd 2
CompVX Subwoofer Owner's Manual
Models: CVX10 / CVX12 / CVX15
CompVX10
2 or 4
35.4
600
85.7
.64, 16.25
3.4
.403
10.754
.419
.811, 22.99
10-11/16, 27.1
9-3/16, 23.3
5-15/16, 15.1
24–500
Figure 1
CompVX12 CompVX15
2 or 4 2 or 4
28.5 23.7
750 1000
87.1 91.6
.64, 16.25 .75, 19
3.7 4.2
.381 .216
10.098 7.521
.396 .222
2.04, 57.82 5.5, 156.71
12-9/16, 31.8 15-7/16, 39.2
11-1/16, 28.1 13-13/16, 35
6-11/16, 16.9 8-1/2, 21.5
20–500 18–500
Series Wiring
Dual 2Ω Voice Coils = 4Ω Load
Dual 4Ω Voice Coils = 8Ω Load
