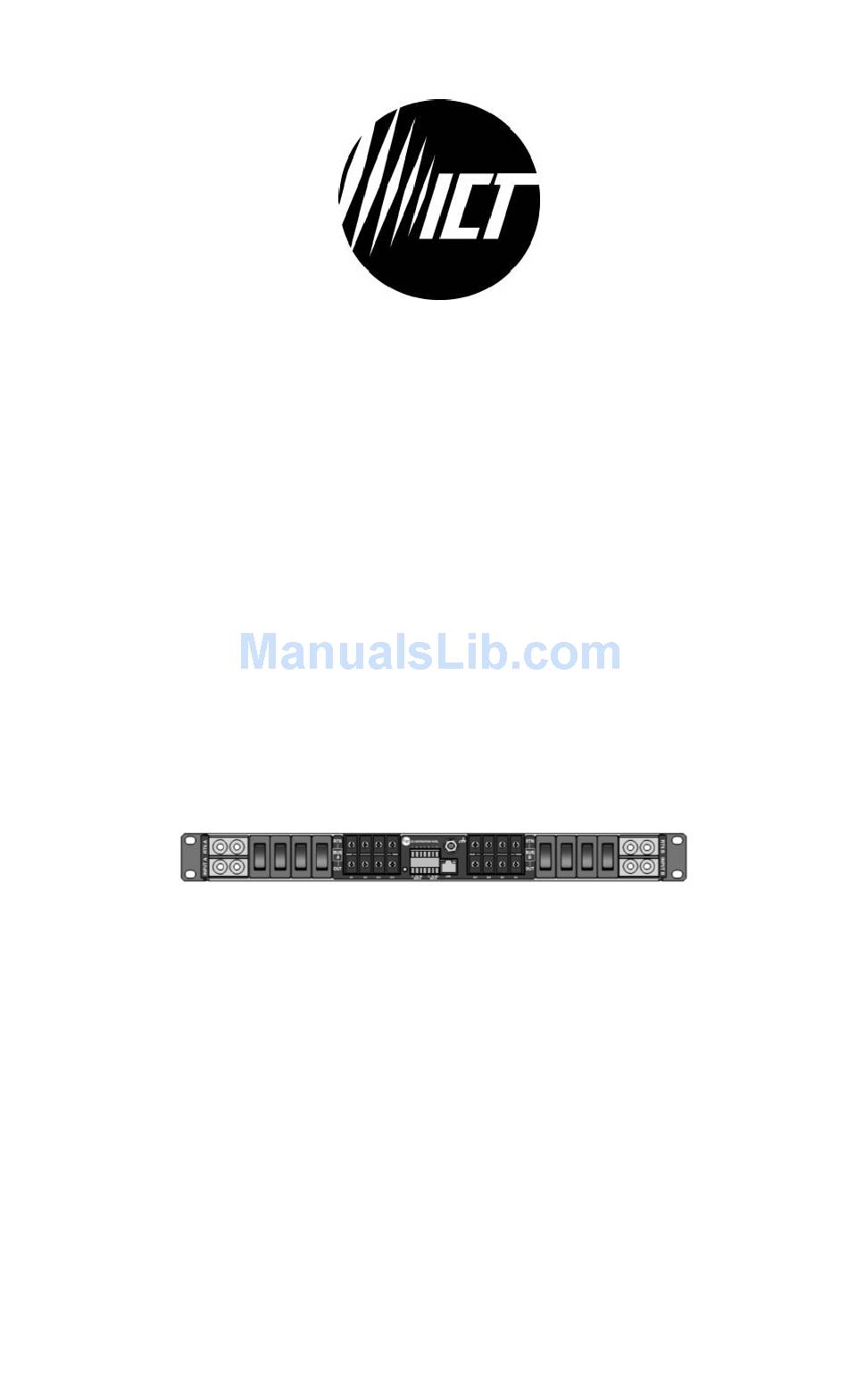

- Page 1 Innovative Circuit Technology Ltd. Front Access Distribution Panel Series INSTRUCTION MANUAL 855-154-000 Model: ICT240DB-8IRC...
- Page 2 Securely tighten all connections Do not attempt to service any internal parts. Refer all product service to an authorized ICT Ltd. service facility CAUTION Risk of personal injury or damage to equipment! Always observe the following: Install unit in a restricted access location (such as an equipment rack) to limit unintentional contact with terminals and wiring ...
-
Page 3: Table Of Contents
Contents PRODUCT DESCRIPTION ............... 4 INSTALLATION ..................5 OPERATION ..................9 Status Indicators and Alarms ............TCP/IP WEB BASED INTERFACE ............10 Status and Control ..............Device Setup ................Bus Setup ..................Output Setup ................Network setup ................E-mail Setup ................Alarm setup ................. -
Page 4: Product Description
PRODUCT DESCRIPTION The ICT Front Access Dual Bus Distribution Panel provides two 100A (continuous) bus inputs with four independently controlled and monitored output channels per bus in a compact 1U high chassis for 19 inch rack mounting. All connections are located on the front panel for simple installation in tight cabinets, and over current protection and manual on/off control for each output is provided by 65VDC user replaceable magnetic-hydraulic circuit breakers. -
Page 5: Installation
Blanking Plug CBI “B” series rocker handle circuit breakers with 0.25” tab terminals and current ratings up to 25A may also be used, consult ICT for suitable part numbers. CAUTION Risk of personal injury or damage to equipment! Always observe the following: ... - Page 6 Bus A Return Bus A Output Bus B Output Bus B Return Site Alarm inputs Reset button (Common) Breakers 1-4 Breakers 1-4 (Common) 1-4, Temp Sense (recessed) Bus A Outputs Bus B Outputs Bus A Input Bus B Input Channel 1-4 Channel 1-4 (100A cont) (100A cont)
- Page 7 Bond the panel chassis to the rack system ground, connecting a ground wire with ring tongue to the front panel ground stud. (1/4-20 thread) Connect Bus A loads to output channels A1 to A4 using suitably rated wire sized for the breaker installed on the channel, with crimped on spade lug terminals compatible with the output terminal block screws.
- Page 8 Refer to the Web Based Interface section for information on how to configure and use the four Site Alarm inputs. Connect an optional ICT external temperature sensor (ICT-TMP) to the two TMP inputs if you need to remotely monitor the temperature of a battery pack or enclosure.
-
Page 9: Operation
Connect a standard 10/100 Base-T Ethernet cable to the RJ-45 LAN port on the front panel to remotely monitor, control and reconfigure the panel settings from a remote computer. OPERATION Ensure the correct circuit breakers are installed in each channel location that will be used to power a load. -
Page 10: Tcp/Ip Web Based Interface
Typically your panel will be connected to a network with a DHCP server, and will be assigned an IP address automatically. To find the current address of your panel run the ICT IP Address Discovery tool, after installing it on your Windows computer (tool available for download from ICT http://www.ictcorporate.com/resources/tools/... -
Page 11: Status And Control
Click on any one of the blue buttons in the menu bar on the left side of the screen to select the desired page. To log out of the ICT panel GUI close your browser session. Status and Control This page provides information on the voltage, current, and alarm status for each bus, along with the status of each channel output and the current being provided Innovative Circuit Technology Ltd. -
Page 12: Device Setup
The Remote Temperature (in °C) of the optional ICT-TMP probe will be shown in the top right corner, if a probe is installed. - Page 13 Time Zone: Select the appropriate time zone relative to GMT for your unit so that the NTP server time can be converted to your local time zone. (e.g.: Pacific Standard Time is GMT-8) Set Time Manually: Checking this box will allow the unit’s clock and calendar to be set manually by entering date and time in MM/DD/YY and HH:MM:SS format.
- Page 14 Reverse Sequence Order: Checking this box will cause the power on sequence to run in reverse order with output channel 4 on first, ending with output 1, when the Enable Bus button is clicked on the Status and Control page. Network Watchdog: Watchdog Enabled: Checking this box will enable the watchdog feature, which will cause the unit to periodically ping up to two remote IP addresses...
-
Page 15: Bus Setup
Clear Log Now: Checking this box will cause the current log file to be cleared, and a new logging sequence to begin. Bus Setup Use this page to configure each bus. Select Bus A, or Bus B in the Select a Bus to Edit box to call up the settings for that bus. -
Page 16: Output Setup
Output Setup Use this page to configure the settings for each output channel on Bus A and Bus B. Select the output to be edited in the Select an Output to Edit box. Make any required changes, and then click on the Save Settings button at the bottom of the page to save any edits. - Page 17 Output Load Shedding: Enable Load Shedding: Check this box to disable this output when the bus voltage drops below the load-shedding threshold for at least 30s. This feature can be used to disconnect less critical loads to preserve back-up battery power as the battery voltage drops. Load-Shedding Threshold: Enter the voltage level at which the selected output will be disconnected.
-
Page 18: Network Setup
Load-Shedding Auto Recovery: Check this box to allow the output to be automatically reconnected when the bus voltage is above the Auto Recovery Threshold for at least 60s. The output must be manually re-enabled using the Output ON button on the Status and Control page if the Auto Recovery function is not enabled. - Page 19 assign a static IP address to the unit uncheck this box, then set the following parameters: IP Address: Specify a unique IP address for the unit. Subnet Mask: Specify the mask for the subnet the panel is located on Gateway: Specify the IP address of the default router (Gateway) used for connecting attached devices to different networks.
-
Page 20: E-Mail Setup
allow standard SNMP management software to connect to the SNMP agent running on the panel and read real time system information such as bus voltage, and channel currents. The panel can send SNMP traps to the external management software when an alarm or fault occurs. The information available from the SNMP agent is described in a MIB (Management Information Base) file, which can be downloaded from the panels Help page. - Page 21 SMTP Server: Enter the name or the IP address of your SMTP server used for sending outgoing e-mail. (e.g. “smtp.gmail.com”) SMTP Port: Enter the port used by your SMTP server. (Normally 25) SMTP Server requires SSL: Check this box if your SMTP server requires an encrypted SSL connection.
-
Page 22: Alarm Setup
Remote Temperature Monitoring: Check the Temperature Monitoring Enabled box to use an optional remote temperature monitoring probe (ICT-TMP) to report a sensed temperature on the Status and Control page. Set temperature alarm limits to flag high or low temperature conditions as desired. -
Page 23: User Setup
Activate Alarm Form-C Contact: Check this box to have either or both bus alarm relay outputs indicate a fault for an alarm condition on that input. Send E-mail: Check this box to have an email notification sent when one of the enabled alarm inputs is triggered, stating which input was affected. -
Page 24: Maintenance
Update Firmware: Click this button to locate and install the latest version of the unit’s operating firmware, while maintaining previous settings. Download the latest firmware version for your model unit from ict- power.com Extract the compressed .cry firmware file, and then select it for... -
Page 25: Password Reset
Access the Mobile Web version of the GUI by entering the address of the panel in the address field of your browser, followed by “/m”. (e.g. https://192.168.0.180/m) You will then be prompted for your user name and password, and logged into the following Status and Control screen: For improved security you should normally use a HTTPS (secures) connection when assessing the panel over the Internet, or use a Virtual Private Network (VPN) connection. -
Page 26: Router Configuration
2. Release the button (all outputs will be enabled after the reset) 3. Log in to the unit as user name admin, no password required. Set a new password as desired ROUTER CONFIGURATION Use this section to set up a Distribution Panel with remote Internet access when located behind a router. - Page 27 Typical Router Port Forwarding Screen 4. Determine the WAN IP address of your router assigned by the ISP. With the example router this information is on the Status tab, listed as IP Address. NOTE: When using a dynamic IP address the router’s WAN IP address may change from time to time without warning, depending on your ISP.
-
Page 28: Text Message Alarm Notifications
I am unable to access the web-based configuration utility: Check that you are using the correct IP address for the panel by downloading and running the ICT IP Address Discovery tool http://www.ictcorporate.com/resources/tools/ Check the network cable connections to the panel and the network ... - Page 29 If the HTTP port of the panel has been changed, you must append the new port number to the URL used to access the panel. (See the Network Setup section) See the Password Reset section for details on how to reset the port number to the factory default value.
-
Page 30: Product Specifications
PRODUCT SPECIFICATIONS Operating Voltage (either bus): 10VDC to 60VDC, or -10VDC to -60VDC Current Rating: 120A max, 100A continuous Bus A 120A max, 100A continuous Bus B 30A max, 25A Continuous per output (12/24V/48V) Breaker Capacity: 25A continuous 65Vdc x 4 per bus Meter Accuracy, Voltage: Bus voltage readings +/-1% Meter Accuracy, Current:... - Page 31 Warranty: 3 years Dimensions: 19.0” x 7.7” x 1.7” 483mm x 196mm x 43mm EMC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules and ICES 003. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 32: Limited Warranty
The user of ICT products, which are to be used in life support applications as described above, assumes all risks of such use and indemnifies ICT against all damages.
