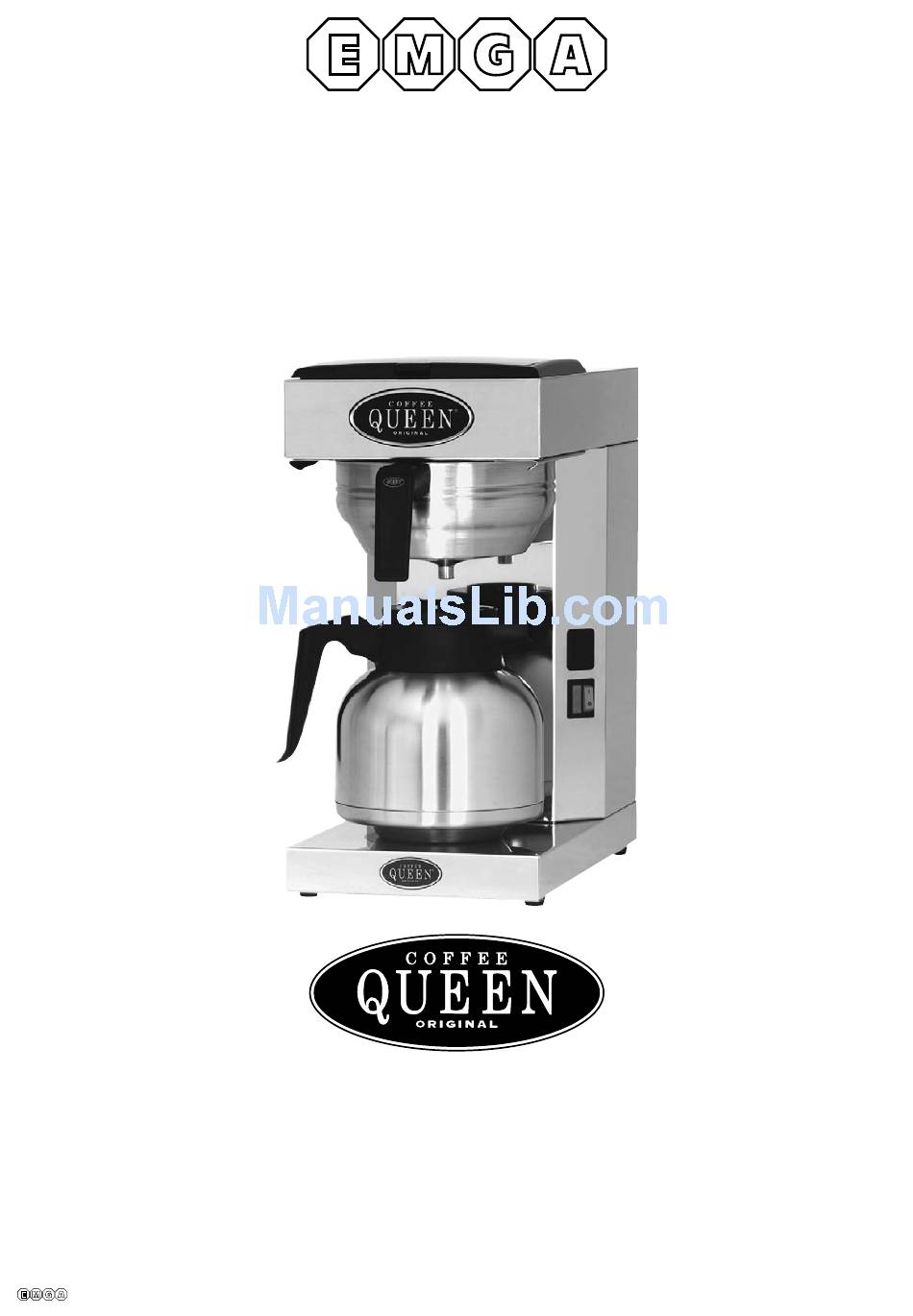

  • Page 1 FILTERBREW & SERVING CONCEPT TECHNICAL MANUAL *320.005 1/20 320005 en ma 2014 02...

  • Page 2: Table Of Contents

    CONTENT CONTENT ......................................2 GENERAL ......................................4 Introduction ........................................Warnings ..........................................Precautions ........................................Intended use ........................................CLEANING AND CARE ................................5 Rinse Thermos, Decanter and Serving station ............................Dayly cleaning ........................................Weekly cleaning ........................................ Cleaning Serving station ..............................7 Exterior cleaning ......................................PROGRAMMING ....................................8 A-2, DA-4, Thermos A, Mega Gold A ................................
  • Page 3 Some important information may appear in textboxes seen below IMPORTANT! CAUTION! More INFO. Note INFO. INFO. INFO. 3/20 320005 en ma 2014 02...

  • Page 4: General

    GENERAL Introduction Thank you for choosing a FILTERBREWER coffee machine. We hope you enjoy it ! Read the user guide before using the machine. Always keep this guide close at hand for future This guide contains important instructions for reference. proper and safe use of the vending machine.

  • Page 5: Cleaning And Care

    CLEANING AND CARE Before each brewing, rinse the thermos, decanter or serving station with fresh tap water. When cleaning the outside, use a soft rag with liquid cleaning agent to prevent scratches. The machine should not be submerged in water or washed in a dishwasher. it will result in machine damage.

  • Page 6: Dayly Cleaning

    CLEANING AND CARE Wash the thermos, decanter(B) and the fi lter holder with liquid solution for coffee machines. Always remove the fi lter immediately and clean the fi lter holder daily, coffee will get moldy. Clean the spray nozzle(A) and the surrounding area. Use a soft rag and liquid solution that does not scratch.

  • Page 7: Cleaning Serving Station

    CLEANING AND CARE IMPORTANT! Rinse the inside of the serving station several times with fresh tap water. Rinse the serving station with fresh tap water several times before reuse. OPTIONS Part No. CLEANING PARTS When cleaning exterior of the machine, use a soft rag with liquid cleaning agent to prevent scratches.

  • Page 8: Programming

    PROGRAMMING Enter the procedure to select machine type is the following: Press all three buttons at t before turning on the mains switch The buzzer beeps once. The display shows the current setting. Step up with button and step down with button Press the button to save setting and exit to normal mode.
  • Page 9 PROGRAMMING Adjust amount of brew water Press the buttons at same time in 5 seconds. The buzzer beeps twice. Display shows 0. - Press the button to increase amount of water. - Press the button to decrease amount of water. - 1 step = 5% - Press the button to confi rm the change.

  • Page 10: Cater

    PROGRAMMING In this mode a temperature offset for the NTC sensor can be adjusted. ADJUST DISPLAY The procedure to enter this mode is the following: +5°C +4°C +3°C The display shows the current setting. +2°C +1°C -1°C -2°C -3°C -4°C -5°C 10/20 320005 en ma 2014 02...
  • Page 11 PROGRAMMING ADJUST DISPLAY The display shows the current setting. -10% -15% -20% -25% the brewing done buzzer activation can be ADJUST DISPLAY adjusted The display shows the current setting. -10% -15% -20% -25% Note The brewing time is the same regardless adjustment of the outlet valve time. 11/20 320005 en ma 2014 02...
  • Page 12 PROGRAMMING In this mode the machine type can be chosen before turning the mains switch on The display shows the machine type. Step up with button step down with button Outlet time (s) Machine type Display Buzzer time (s) Half Full 1.8L 2.5L...
  • Page 13 PROGRAMMING before turning the mains switch on, puts the control board into test mode for time and temperature controlled machines. For the other types pressing before power-on results in test mode. A test sequence starts: - Turn all outputs off - Turn V_WATER on for 3 s - Turn V_OUT_A on for 3 s - Turn HEAT on for 3 s...

  • Page 14: Tower

    PROGRAMMING PROGRAMMING Tower Normal operation with reduced outlet time This mode is entered by pressing before turning the mains switch on. The buzzer gives a 5s beep to indicate this mode. This machine operates like in normal mode but the outlet times are reduced by 90% in order to allow faster adjustment of valve times.
  • Page 15 PROGRAMMING For left side ADJUST DISPLAY the display shows the current setting. -10% -15% -20% -25% For right side the display shows the current setting. 15/20 320005 en ma 2014 02...

  • Page 16: Hva/Hvm

    PROGRAMMING Use a decanter to fi ll up the water tank to the long sensor pin.(A) Keep button (B) pressed while turning on the power switch.(D) The display will show T1, change the type of machine with buttons (B) or (C). Confi rm the choice by holding down the buttons (B) and (C) at the same time for approximately 5 seconds.

  • Page 17: Grinder Original

    PROGRAMMING There are several sub modes for this mode: READY The machine is in this mode after power on. The motor is off and timers are stopped. Pressing the button changes the number of cups to be prepared. The number of cups is displayed on the 2 digit display. The range is 4 -34 cups.
  • Page 18 PROGRAMMING Press buttons simultaneously for 6 seconds. The display (A) shows the current time setting for grinding. You can now choose to increase or decrease the time 15 = 1.5 seconds for grinding, by pressing the buttons This means that you increase or decrease the amount of coffee grounds. The grinding degree is preset from the factory.

  • Page 19: Possible Solution

    POSSIBLE SOLUTION FAULT POSSIBLE SOLUTION - Check plug connection to wall socket. All maintenance - Check fuse in plug. Power switch does not lit and installations - Check if hot plate becomes warm, if so must be done replace power switch. of an authorized technician.

  • Page 20: Cater, Tower, Hva/Hvm

    POSSIBLE SOLUTION LEVEL CONTROL Remove the power SHOWN ON THE POSSIBLE POSSIBLE FAULT cord from the wall DISPLAY SOLUTION socket during any installation work. - The high water level - Clean the level sensor. sensor is triggerd - Replace. before the low level - Cables connected is sensor.
