Page 1: User Manual
The company passed the ISO9001: 2008 quality management system standard Smart Lookever Camera (720P) User Manual Nanjing IoT Sensor Technology Co., Ltd. Publication Number: 2015-0605.V01... - Page 3 Nanjing IoT Sensor Technology Co., Ltd. (hereinafter referred to as “Wulian”). This product shall be used with smart home APP as well as the supplied accessories. Wulian is not responsible for any loss due to improper installation and usage of this product.

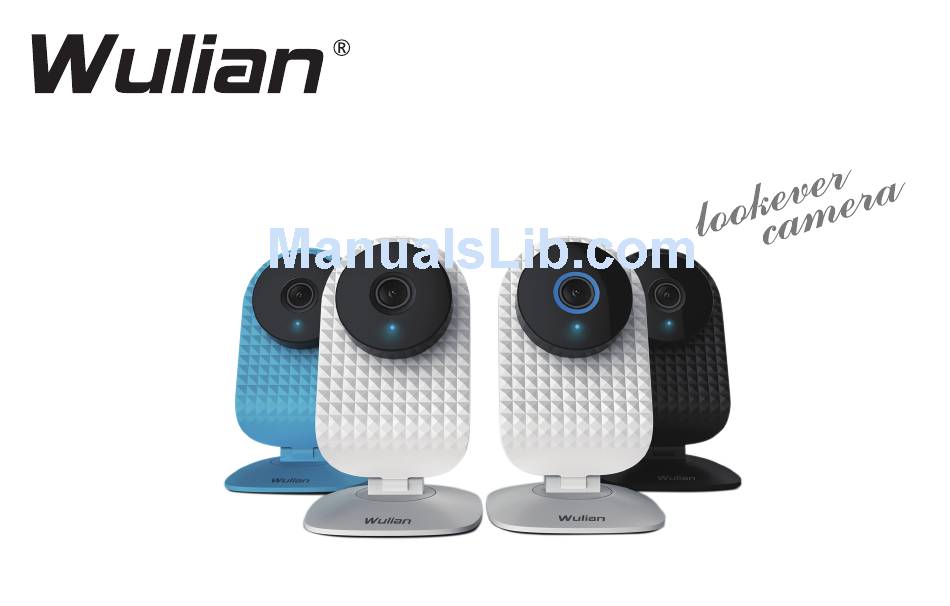

- Page 4 1.Wulian Smart Lookever Camera Series (720P) Product Display (e.g. white camera) QR Code SET Key Indicator Light Device ID SD Card Slot USB Interface Side Reverse Side Front Side...
-
Page 5: Installation Guide
Installation Guide Option A: Place it on any fixed flat surface Option B: Ceiling/Wall Mounted Expand Plug Remove the base Self-tapping Screw Attach the camera to the base Mount expansion pipe in predesigned Remove the base position and fix the base with self-tapping (attached with magnets) screw... - Page 6 Attentions Keep away from video Place this product in Avoid direct sun. K e e p a w a y f r o m c ab le, au di o c ab le , fixed flat surface. strong electromag- USB cable or power netic fields.
- Page 7 Option B: Download the APP with the link http://api.wuliangroup.cn/qr/icam (iCam APP) Enter into “APP Store” to search “wulian smart home” to download the latest iOS APP (Version 5) Warm prompt: please read this manual carefully and pay attention to the information of our...
- Page 8 ②Start Device For the first use, indicator flashes blue light means the camera has started and waits for configuration. Connect power, and wait for about 20s. ③Start iCam APP and register an account as per the APP prompts.
-
Page 9: Operation Instructions
Operation Instructions: “iCam -- Add Camera & Configure Wi-Fi Android: Start iCam APP. Add camera (by scanning QR Code or inputting the ID on the back side of the camera) & Configure Wi-Fi, then you can use the camera. iOS: Start iCam APP, and scan QR Code on the back side of the camera, connect ZigBee network as per APP instruction, then you can use the camera. - Page 10 Android Version / iOS Version Smart Home--The Usage of Smart Lookever Camera As Gateway: ①Log in “Smart Home” APP (by scanning QR Code or inputting the ID on the back side of the camera), and configure network. ②Log in “Smart Home” APP, and choose “MONITOR”, select “Lookever Camera”, input the camera code, (by scanning QR Code or inputting the ID on the back side of the camera) then you can use the camera.
- Page 11 Networking : Add ZigBee Devices ①Build ZigBee network for the first time Click Set Key 6 times quickly ZigBee Network Constructed ②Add Devices to ZigBee Network: Camera can be used as gateway by this time, and it can add ZigBee devices. New devices are Click Set Key 4 times allowed to be added...
-
Page 12: Basic Functions
3.Basic Functions ZigBee technology is a close, low Playback Anytime. complexity, low power, low data rate, low cost and safe wireless communication technology. Video Saved Zigbee Technology Supports Wi-Fi, put the camera Share video with friends by entering friends’ anywhere in our house. One-key account. - Page 13 Support motion detection alarm, focus Two-way time sharing talkback. on home situation at any time. Motion Detection Talkback Function Users could receive messages via smart Delicate in appearance & design, APP is phones, as well as watch videos beautiful and easy to operate. remotely.
-
Page 14: Specification Parameter
4.Specification Parameter Appearance Net Weight(g) Housing Material Color Black\White\Blue\White plus Lens Material Optical Glass... - Page 15 General Parameter Power Supply AC/DCAdapter DC 5V，1A Antenna Type Ceramic Antenna，FPC Antenna Operating Temperature -10℃+45℃ Operating Humidity ≤95%RH(Noncondensing) Power Consumption Max.3W Rotation Angle Pan:360°,Tilt: > 180°(manual operation) Audio& Video Parameters White Balance/Backlight Compensation Supported (Auto) /Self-Adapting Video Transmission Supported Motion Detection/Snapshot 720P Resolution Talkback Function...
-
Page 16: Network Parameter
Network Parameter Communication Protocol IEEE 802.15.4 IEEE 802.11 b/g/n IEEE 802.15.4 500m(visible) Communication Distance IEEE 802.11 b/g/n 50m(visible) TCP/IP、ICMP、HTTP、HTTPS、DHCP、DNS、 Network Protocol RTP、RTSP、RTCP、NTP、UPnP Wireless Access WiFi Number of ZigBee terminal One (black) Three (white) Six (blue) Unlimited (white plus) devices to connect... -
Page 17: Purchase Information
5.Purchase Information Product Model Materials & Color Product Name Item No. WL-ZAVMDPB-C41112-01 PC+ABS，Black WLPN150313002 WL-ZAVMDPW-C41112-01 PC+ABS，White WLPN150306001 Smart Lookever Camera (720P) WL-ZAVMDPU-C41112-01 PC+ABS，Blue WLPN150313001 WL-ZAVMDPW-C41112-02 PC+ABS，White plus WLPN150423001 WL-ZAVMDPW-C41112-03 PC+ABS，White WLPN150630001... - Page 19 Wulian, is beside you! More information, please visit Wulian official website.
- Page 20 Any illegal use of this manual shall be investigated according to law. Building 11, No.15, Fengji Road, Yuhuatai District, Nanjing (P. C.: 210039) Email: overseas@wuliangroup.com Service Hotline：400-889-2891 www.wulian.cc...
