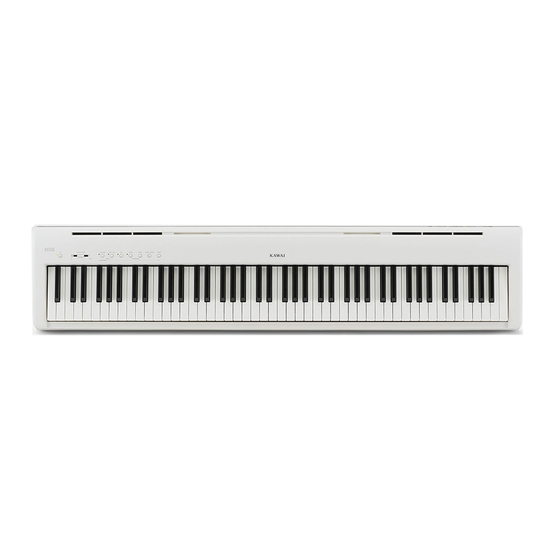

DIGITAL PIANO 电子钢琴 ES110/ES110S Service Manual 技术说明书 ES110 ES110S Manufacturing Start Date 2016/9 开始制造日期 Kawai Musical Instruments Manufacturing Co.,Ltd. KPSZ-0891 Rev:100 Date of issue(签发日期):10/3(March)/2017 Copyright C 2016 Kawai Musical Instruments Mfg.Co., Ltd. Allrights reserved...
Page 2
P02 目次 / Contents 目录 ES110/ES110S 目次 / Contents 目录 仕様 / Specifications 规格 Assembly Parts 组合部件 Assembly Parts 1/3 组合部件1/3 Assembly Parts 2/3 组合部件2/3 Assembly Parts 3/3 组合部件3/3 Parts 部件 Uppes Case Parts 上壳部件 Lower Case Parts 下壳部件 RJ88B Type Keyboard Unit Assy Parts RJ88型键盘主件组合部件...
Page 3
P03 Specifications 规格 ES110/ES110S ES110 ES110S 88 weighted keys Keyboard Responsive Hammer Compact (RHC) action weighted-key keyboard action 键盘 RHC键盘 Sound Source Harmonic Imaging™ (HI), 88-key piano sampling 音源 88全键单独立体声采样 19voices Concert Grand, Concert Grand2, Studio Grand, Studio Grand2, Mellow Grand, Mellow Grand2, Modern Piano, Internal Sounds Rock Piano, Classic E.Piano, 60's E.
Page 4
P04 Assembly Parts 1 of 3 组合部件1/3 ES110S Parts Code Parts Name Remarks 部件代码 部件名称 备注 序号 数量 PIANO ASSY 主体组合 ① STAND ASSY 琴腿组合 ② ③ 798529 +Truss Machine Screw M5*25mm BKC +大圆扁头机械螺丝 953519 ④ MUSIC RACK 谱台 953523 274569 ACCESSORY SCREW SET 螺丝包...
Page 5
P05 Assembly Parts 2 of 3 组合部件2/3 ES110/ES110S Parts Code Parts Name Remarks 部件代码 部件名称 序号 数量 备注 UPPER CASE ASSY 上壳组合 ① 798373 +Binding Taptite Screw P Tite 4*16mm BKC +扁头P-Tite螺丝 ② ③ 230712 RJ88B-Type KEYBOARD UNIT RJ88B型键盘主件 798373 +Binding Machine Screw M5*15mm WHC or BKC +扁头机械螺丝...
Page 6
P06 Assembly Parts 3 of 3 组合部件3/3 ES110S Parts Code Parts Name Remarks 部件代码 部件名称 备注 序号 数量 274260 ① SIDE BOARD ASSY (L) 侧面板组合(左) 274261 274262 ② SIDE BOARD ASSY (R) 侧面板组合(右) 274263 953528 ③ STAND BACK BOARD 琴腿背板 953546 274258 ④...
Page 7
P07 Upper Case Parts 1 of 2 上壳部件1/2 ES110/ES110S Parts Code Parts Name Remarks 部件代码 部件名称 序号 数量 备注 239102C ① PWB ASSY KEP-643(1) 电路板组合KEP-643(1) 239102D PWB ASSY KEP-644(1) 电路板组合KEP-644(1) ② ③ 798314 +Binding Taptite Screw P Tite 3*8mm WHC or BKC +扁头P-Tite螺丝...
Page 8
P08 Upper Case Parts 2 of 2 上壳部件2/2 ES110/ES110S Parts Code Parts Name Remarks 部件代码 部件名称 序号 数量 备注 954814 ① UPPER CASE 上壳 954813 ② 952765 KEY STOP RAIL FELT (Black) 压键档毛毡(黑色) 816925 NON WOVEN FABRIC HN604B t0.25*12*250 无纺布HN604B ③...
Page 9
P09 Lower Case Parts 1 of 2 下壳部件1/2 ES110/ES110S Parts Code Parts Name Remarks 部件代码 部件名称 备注 序号 数量 954904 LOWER CASE 下壳 ① 239097 for China, Taiwan 239098 for US, AU, HV PWB ASSY KEP-692(1) enabled Bluetooth 239099 for CD, CG, GE230 电路板组合KEP-692(1)带蓝牙功能...
Page 10
P10 Lower Case Parts 2 of 2 下壳部件2/2 ES110/ES110S Parts Code Parts Name Remarks 部件代码 部件名称 序号 数量 备注 954980 SHIELD SHEET 铝箔垫 ① 816378 CONDUCTIVE TAPE 双面导电胶带 ② ③ 814205 DOUBLE FACE TAPE 3M Y-9448H or equivalent 5*125 3M双面胶带Y-9448H 814205 ④...
Page 11
P11 Keyboard Unit Assy Parts 1 of 2 键盘主件组合部件1/2 RJ88B Type keyboard RJ88B型键盘 Parts Code Parts Name Remarks 部件代码 部件名称 序号 数量 备注 954148 WHITE KEY C ASSY 白键C组合 954149 WHITE KEY D ASSY 白键D组合 954150 WHITE KEY E ASSY 白键E组合 954151 WHITE KEY F ASSY 白键F组合...
Page 12
P12 Keyboard Unit Assy Parts 2 of 2 键盘主件组合部件2/2 RJ88B Type keyboard RJ88B型键盘 How to remove the keys: 如何拆卸琴键: 1. Insert long nose plier into the rear end of chassis and open the key stopper part. 将尖嘴钳插入底架的后方,打开压住琴键的部分。 2. Push up the rear end of keys, then keys can be removed. 将琴键后端向上抬高,即可拆卸下来。...
Page 14
P14 Grease Point 润滑剂应用点 RJ88B Type keyboard RJ88B型键盘 Parts Code Parts Name Apply Point 部件代码 部件名称 应用点 序号 GREASE G-32IS Front Guide, Actuator Bush, Hammer Guide 798759 润滑剂G-32IS 前导板,驱动器轴衬,音锤导板 GREASE FTG-50 or TKH-65 Hammer Axis, Key Axis, Rear Guide 815685 润滑剂FTG-50或THK-65 音锤轴,键轴,后导板...
Page 15
P15 Electrical Parts List 电子部件名单 ES110/ES110S Parts Code Parts Name Parts Number Construct Remarks 部件代码 部件名称 部件型号 结构 备注 序号 数量 239097 China, Taiwan 239098 US, AU, HV Enabled Bluetooth 239099 CD, CG, GE230 Enabled Bluetooth CPU 电脑, 239100 PWB Assy...
Page 18
P18 Software 软件 ES110/ES110S ● MIDIによる Flash ROM(MPU) プログラムの書換方法 How to rewrite the Flash ROM program by MIDI. 如何通过MIDI改写闪存(MPU)程序 1) 電源をOFFする。 Turn the power switch off. 关闭电源。 2) MIDIケーブルで本体にシーケンサを接続する。 Connect sequencer by MIDI cable. 用MIDI电缆线将音序器连接到琴体。 3) [FUNCTION]、[REC]、[PIANO]スイッチを押しながら電源を投入する。 Turn on the power switch while pressing the [FUNCTION], [REC] and [PIANO] buttons simultaneosly.
