Power Stroke PS902500 Series Operator's Manual

2,500 watt
Hide thumbs Also See for PS902500 Series:
Table of Contents

Advertisement

Quick Links

See also: Operator's Manual
NOTICE
Do not use E15 or E85 fuel (or fuel
containing greater than 10% ethanol) in
this product. It is a violation of federal
law and will damage the unit and void your warranty.
No utilice combustibles E15 o E85 (ni combustibles que
contengan más de 10 % de etanol) con este producto. Esto
constituye una violación a la ley federal, dañará la unidad
y anulará la garantía.
To register your POWERSTROKE product, please
visit: http://register.powerstroketools.com/
Para registrar su producto de POWERSTROKE, por
favor visita: http://register.powerstroketools.com/
Customer serviCe
serviCio AL CLieNte
usA: 1-877-617-3501
mexico: 01 800 843 1111
www.powerstroketools.com
NEUTRAL FLOATING
PUNTO NEUTRO FLOTANTE
Your generator has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. When properly cared for, it will give you years of rugged, trouble-free performance.
WARNING:
this product. If you do not understand the warnings and instructions in the operator's manual, do not use this product.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
Su generador diseñado y fabricado de conformidad con nuestras estrictas normas para brindar fiabilidad, facilidad de uso
y seguridad para el operador. Con el debido cuidado, le brindará muchos años de sólido funcionamiento y sin problemas.
ADVERTENCIA:
operador antes de usar este producto. Guarde este manual del operador y estúdielo frecuentemente para lograr
un funcionamiento seguro y continuo de este producto.
Le agradecemos su compra.
GUARDE ESTE MANUAL PARA FUTURAS CONSULTAS
AVISO
To reduce the risk of injury, the user must read and understand the operator's manual before using
Para reducir el riesgo de lesiones, el usuario debe leer y comprender el manual del
OPERATOR'S MANUAL
MANUAL DEL OPERADOR

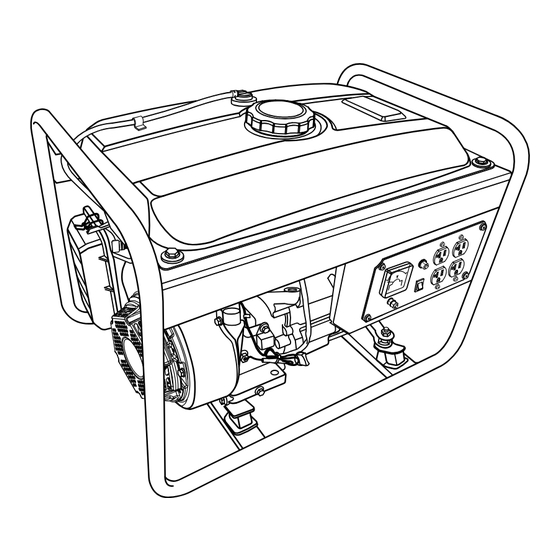

2,500 WATT GENERATOR
GENERADOR 2 500 WATTS
PS902500
Series/Serie

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PS902500 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Power Stroke PS902500 Series

Summary of Contents for Power Stroke PS902500 Series

  • Page 1 OPERATOR’S MANUAL MANUAL DEL OPERADOR 2,500 WATT GENERATOR GENERADOR 2 500 WATTS PS902500 NOTICE AVISO Series/Serie Do not use E15 or E85 fuel (or fuel containing greater than 10% ethanol) in this product. It is a violation of federal law and will damage the unit and void your warranty. No utilice combustibles E15 o E85 (ni combustibles que contengan más de 10 % de etanol) con este producto.
  • Page 2 See this fold-out section for all of the figures referenced in the operator’s manual. Consulte esta sección desplegable para ver todas las figuras a las que se hace referencia en el manual del operador. Fig. 1 F - Oil cap/dipstick (tapa de relleno de aceite / A - Analog voltage meter (contador de voltaje K - Choke (anegador) varilla medidora de aceite)
  • Page 3 Fig. 5 Fig. 8 Fig. 11 A - Move choke lever left to start (desplace izquierda la palanca del anegador para A - Spark arrestor (parachispas) arrancar) B - Screw (tornillo) B - Move choke lever right to run (desplace derecha de la palanca del anegador para A - Air filter latch (pestillo de filtro de aire) poner en marcha)

  • Page 4: Table Of Contents

    TABLE OF CONTENTS  Introduction ..................................2  Important Safety Instructions .............................3-4  Specific Safety Rules ..............................4  Symbols ..................................5-7  Electrical ..................................8-9  Features ..................................10  Assembly ..................................11  Operation ................................12-14  Maintenance ................................14-16  Troubleshooting ................................17 ...

  • Page 5: Important Safety Instructions

    IMPORTANT SAFETy INSTRUCTIONS  Do not start or operate the engine in a confined space, building, near open windows, or in other unventilated space DANGER: where dangerous carbon monoxide fumes can collect. Carbon Monoxide. Using a generator indoors CAN KILL Carbon monoxide, a colorless, odorless, and extremely YOU IN MINUTES.

  • Page 6: Specific Safety Rules

    IMPORTANT SAFETy INSTRUCTIONS  Use only authorized replacement parts and accessories  Maintain the unit per maintenance instructions in this and follow instructions in the Maintenance section of this Operator’s Manual. manual. Use of unauthorized parts or failure to follow main- ...

  • Page 7: Symbols

    SyMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SyMBOL SIGNAL MEANING Indicates an imminently hazardous situation, which, if not avoided, will result DANGER: in death or serious injury. Indicates a potentially hazardous situation, which, if not avoided, could result WARNING: in death or serious injury.

  • Page 8: Safety Labels

    SyMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SyMBOL NAME DESIGNATION/EXPLANATION Amperes Current Hertz Frequency (cycles per second) Watt Power...
  • Page 9 SyMBOLS FUEL WARNING DANGER PELIGRO No smoking when filling with gasoline. Do not overfill. Full level is 1 in. below the Risk of Fire. Check for any fuel overflow or leaking. Stop the engine before refueling. top of the fuel neck. Stop the engine for Riesgo de incendio.

  • Page 10: Electrical

    ELECTRICAL EXTENSION CORD CABLE SIzE Refer to the table below to ensure the cable size of the extension cords you use are capable of carrying the required load. Inadequate size cables can cause a voltage drop, which can burn out the appliance and overheat the cord. Load in Watts Maximum Allowable Cord Length Current in...
  • Page 11 ELECTRICAL GENERATOR CAPACITy POWER MANAGEMENT To prolong the life of the generator and attached devices, Make sure the generator can supply enough continuous it is important to take care when adding electrical loads to (running) and surge (starting) watts for the items you will power at the same time.

  • Page 12: Features

    FEATURES PRODUCT SPECIFICATIONS ENGINE Rated Starting Watts ..........3,125 W Engine Type ............208cc OHV Rated Frequency ............60 Hz Fuel Volume ..............4 gal. DIMENSIONS Spark Plug ............Torch F6TC Length ..............23.3 in. Engine Lubricant Volume........... 18 oz. Width ............... 18.3 in. GENERATOR Height ..............

  • Page 13: Assembly

    ASSEMBLy UNPACKING WARNING: This product has been shipped completely assembled. If any parts are damaged or missing do not operate this  Carefully cut the box down the sides then remove the product until the parts are replaced. Use of this product machine and any accessories from the box.

  • Page 14: Operation

    OPERATION BEFORE OPERATING THE UNIT DANGER:  Only use OUTSIDE and far away from windows, doors, and vents. Carbon Monoxide. Using a generator indoors CAN KILL YOU IN MINUTES.  NEVER use inside a home or garage, EVEN IF doors and windows are open.
  • Page 15 OPERATION STARTING THE ENGINE  Mix fuel stabilizer and gasoline prior to filling the tank by using a gas can or other approved fuel container and See Figures 4 - 5. shaking gently to combine. NOTICE: NOTE: To control the amount of fuel stabilizer being added to the engine, always mix fuel stabilizer with gasoline On a level surface with the engine off, check the lubricant before fueling the tank rather than adding fuel stabilizer...

  • Page 16: Maintenance

    OPERATION HIGH ALTITUDE OPERATION  Allow 30 minutes of “cool down” time before storing the machine. Specific modifications are needed for high-altitude operation.  Using the frame, get a firm grasp of the unit. Lift the unit Please contact your authorized service center for important into a safe and comfortable carrying position.
  • Page 17 MAINTENANCE SPARK ARRESTOR SPARK PLUG MAINTENANCE See Figure 10. See Figure 11.  Inspect the spark arrestor for breaks or holes. Replace The spark plug must be properly gapped and free of deposits if necessary. To purchase a replacement spark in order to ensure proper engine operation.
  • Page 18 MAINTENANCE STORAGE When preparing the generator for storage, allow the unit to cool completely then follow the guidelines below. STORAGE TIME PRIOR TO STORING Less than 2 months  Drain gasoline from tank and dispose of in a suitable container according to state and local ordinances. 2 months to 1 year ...

  • Page 19: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Fill fuel tank. Engine will not start. No fuel. Stale gasoline or water in gasoline. Drain entire system and refill with fresh fuel. Lubricant level is low. Engine is equipped with Low Oil Shutoff. If engine lubricant level is low, it must be filled before unit will start.

  • Page 20: Warranty

    WARRANTy LIMITED NON-ENGINE WARRANTy STATEMENT OWT Industries, Inc., (the Company) warrants to the original retail purchaser that this PowerStroke Product is free from defects in material and workmanship and agrees to repair or replace, at the Company’s discretion, any defective Product free of charge within these time periods from the date of purchase: ...
  • Page 21 WARRANTy U.S. EPA EMISSIONS CONTROL WARRANTy STATEMENT 1) Fuel Metering System yOUR WARRANTy RIGHTS AND OBLIGATIONS a) Carburetor and/or internal parts The United States Environmental Protection Agency (EPA) and b) Intake manifold UNITED POWER EQUIPMENT CO., LTD. are pleased to explain 2) Evaporative System the emissions control system warranty (ECS warranty) on your a) Fuel tank, fuel cap, fuel hose, fuel strainer, fuel cock, fuel...
  • Page 22 2,500 WATT GENERATOR GENERADOR 2 500 WATTS PS902500 Series/Serie OPERATOR’S MANUAL MANUAL DEL OPERADOR CALIFORNIA PROPOSITION 65 SERVICE For parts or service, contact your nearest authorized service dealer. Be sure WARNING: to provide all relevant information when you call or visit. For the location of the This product, its exhaust, and other sub- authorized service dealer nearest you, please call 1-877-617-3501.

Table of Contents
