FANATEC clubsport User Manual

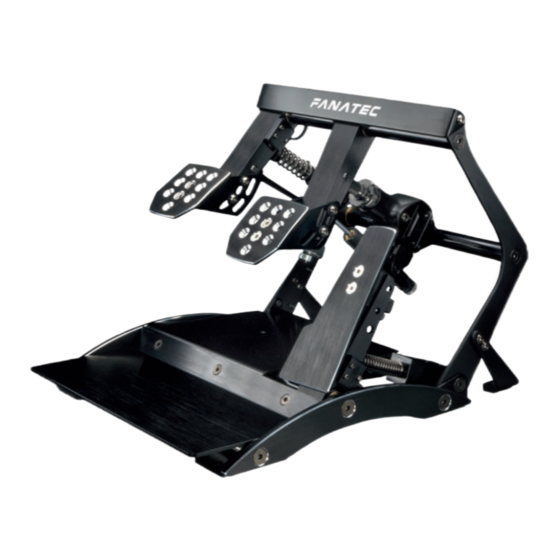

Pedals v3 inverted
Hide thumbs Also See for clubsport:
Table of Contents

Advertisement

Quick Links

Manual
Sorry but
it will not fit
in your car
www.fanatec.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the clubsport and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for FANATEC clubsport

Summary of Contents for FANATEC clubsport

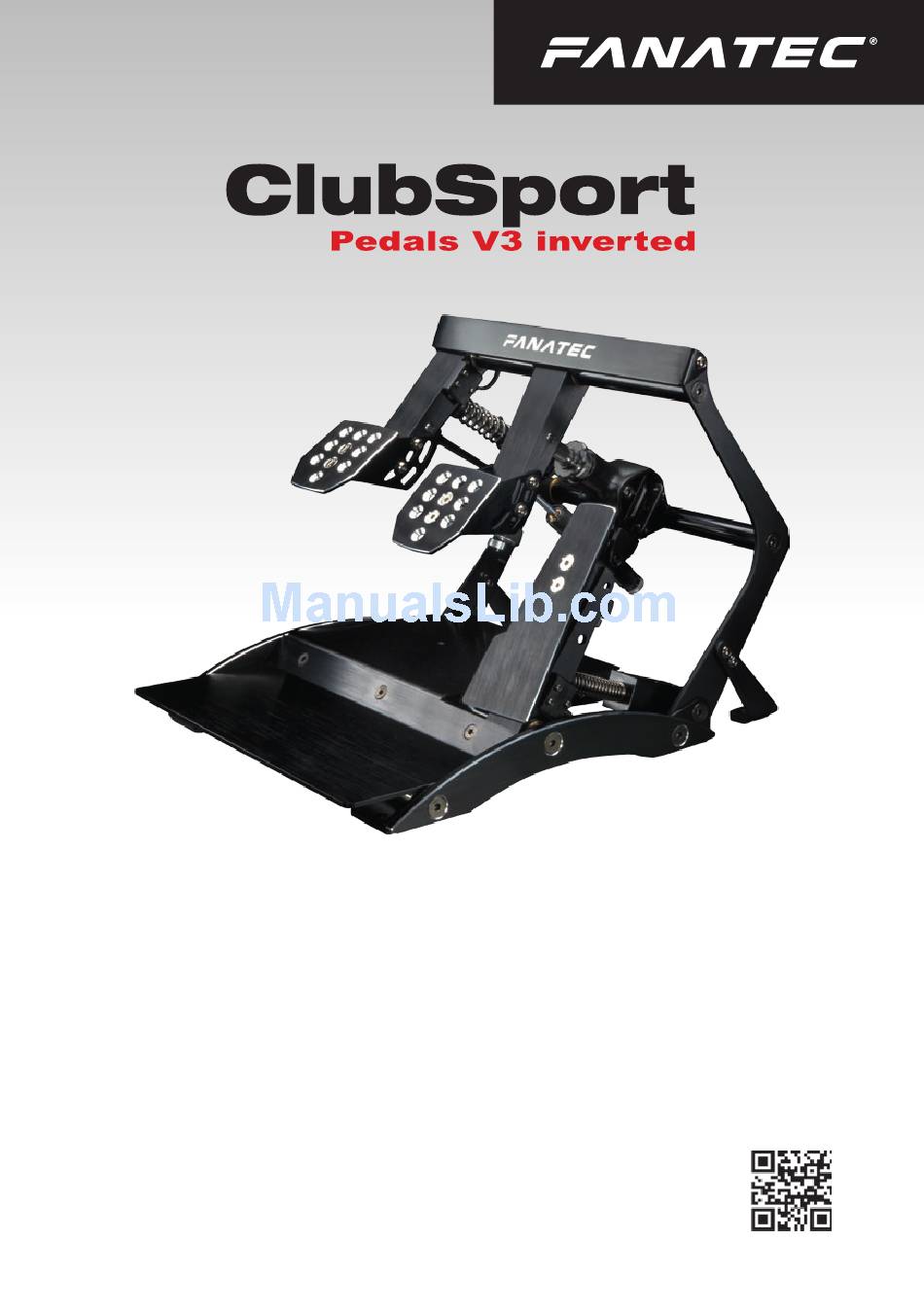

  • Page 1 Manual Sorry but it will not fit in your car www.fanatec.com...
  • Page 2 Thank you for choosing Before using your new ClubSport Pedals V3i, please read this manual for im- portant information regarding your health and how to safely use this product. This manual can also be used as a great tool for future reference.

  • Page 3: Table Of Contents

    5.7 Preload screw at brake pedal ..............5.8 Stabilizer feet ....................6. ClubSport Pedals V3 Damper Kit ..............18-21 6.1 Package content ClubSport Pedals V3 Damper Kit ........Tools......................6.3 ClubSport Pedals V3 Damper Kit assembly ..........19-21 7. ClubSport Pedals V3 Brake Performance Kit ..........
  • Page 4 WARNING! Photosensitive Seizures A very small percentage of people may experience a seizure when exposed to certain visual im- ages, including flashing lights or patterns that may appear in video games. Even people who have no history of seizures or epilepsy may have an undiagnosed condition that can cause these „pho- tosensitive epileptic seizures”...

  • Page 5: General

    Electrical Safety The ClubSport Pedals V3i must be connected to an appropriate power source: • For the ClubSport Pedals V3i use only the cords that came with your ClubSport Pedals V3i or that you received from an authorized repair center. •...

  • Page 6: General

    GENERAL NOTES • Additional peripheral devices like the Fanatec wheel bases, the ClubSport Handbrake and others which might be mentioned in this manual are not included within the ClubSport Pedals V3i package and sold separately. • This manual explains a lot about assembly, connections and functions related to Fanatec wheel bases, other additional peripheral devices and also about PC or console functionalities.

  • Page 7: Introduction

    ClubSport Pedals V3i. All materials needed for this are included in the ClubSport Pedals V3i package. And if this is not enough: You can add also the ClubSport Pedals V3 Damper Kit to the throttle pedal, the brake already has one damper kit assembled.

  • Page 8: Preparation

    PREPARATION Package contents 1x ClubSport Pedals V3i 1x Pedal extension 3x D-shaped pedal plate 1x USB connection cable 1x RJ12 connection cable 1,5 m 1x Strong spring throttle 2x Spring guide 2x Stabilizer foot Mounting screws S1, S2, S3, nuts N1, washers W1 and W2...

  • Page 9: Tools

    Allen Key 2.5 mm Allen Key 4 mm NOTE: Required tools are not included in ClubSport Pedals V3i package! NOTE: Frame fixing screws of the ClubSport Pedals V3i must not be loos- ened. Part list ClubSport Pedals V3i Part number Part name Usage...

  • Page 10: Assembly

    Mounting the ClubSport Pedals V3i To mount the ClubSport Pedals V3i to a rig by screws please find a drilling template fitting to the ClubSport Pedals V3i footprint as a printable file in the download area of our website www.fanatec.com.

  • Page 11: Connections

    Connections To connect your ClubSport Pedals V3i to PC or wheel base or connect addition- al peripheral devices like the ClubSport Handbrake to the ClubSport Pedals V3i there are some connector sockets at the bottom side of the ClubSport Pedals V3i:...

  • Page 12: Connections

    Do not try to use this port to connect any other device! 5.3.6 Handbrake This port is used for connection of the ClubSport Handbrake. The cable needed to connect ClubSport Pedals V3i with ClubSport Handbrake is not included in the ClubSport Pedals V3i package but is included in the ClubSport Handbrake package.

  • Page 13: 5.4 Exchanging The Pedal Plates

    5.4 Exchanging the pedal plates The ClubSport Pedals V3i comes with attached metal pedal plates. The package also contains additional D-shaped pedal plates. If you want to use the D-shaped pedal plates instead of metal pedal plates you can exchange them as follows:...

  • Page 14: 5.5 Assembly Of Pedal Extensions

    5.5 Assembly of pedal extensions The ClubSport Pedals V3i comes with attached pedal extensions on brake and clutch. The package also contains an additional pedal extension. If you want to use this on throttle pedal plates you can assemble it as follows:...

  • Page 15: 5.6 Stronger Springs At Throttle

    5.6 Stronger springs at throttle The ClubSport Pedals V3i come with two different springs for the throttle pedal, the assembled regular spring and the stronger one in the accessories. IMPORTANT: Make sure to use the correct spring guides to avoid...
  • Page 16 Pull the assembled spring from the pedal rod together with the spring guides. Attach the new spring with corresponding spring guides onto the pedal rod. Attach the pedalbox onto the pedal rod and hang it back into the lower stroke. Put the backplate onto the pedalbox again and tighten the two screws with Allen Key 3mm.

  • Page 17: Preload Screw At Brake Pedal

    Stabilizer feet If your ClubSport Pedals V3 inverted are not hard-mounted onto a wheel stand or cockpit please attach the stabilizer feet to avoid the tilting of the pedal set as follows: •...

  • Page 18: Clubsport Pedals V3 Damper Kit

    The ClubSport Pedals V3i can be modified for even more fine tuning options by using the ClubSport Pedals V3 Damper Kit at the brake pedal or at the throttle pedal or at both of them. One damper kit is assembled at ClubSport Pedals V3i brake already out of the box.

  • Page 19: Tools

    Tools For assembly of ClubSport Pedals V3 Damper Kit you need these tools: • Allen Key 1.5 mm (included in ClubSport Pedals V3i package and Damper Kit package) • Allen Key 2.5 mm • Allen Key 4 mm   N OTE: Required tools Allen Key 2.5 mm and 4 mm are not included...
  • Page 20 Use the Allen Key 4 mm and screws S2DK with washers W1DK to mount the damper bottom link onto the pedal box (3 screws on brake pedal box, 4 screws on throttle pedal box): S2DK W1DK W1DK S2DK Brake Throttle Attach the damper to the pedal lever at the marked holes and fix it by tightening the two screws S1DK to...
  • Page 21 IMPORTANT: Before using we recommend to check the calibrated minimum and maximum positions of the pedals after assembly and/or disassembly of ClubSport Pedals V3 Damper Kit and recalibrate them if necessary.

  • Page 22: Clubsport Pedals V3 Brake Performance Kit

    BRAKE PERFORMANCE KIT Become a racing professional: The feeling of your ClubSport Pedals V3 brake pedal can be modified even more by using the ClubSport Pedals V3 Brake Per- formance Kit in order to achieve the best possible performance for your brake.

  • Page 23: Clubsport Brake Performance Kit Assembly

    ClubSport Brake Performance Kit assembly IMPORTANT: Please follow these steps carefully to avoid damages due to assembly mistakes which cannot be covered by warranty. First please disassemble the Damper Kit from the brake pedal. It can be mount- ed again after the Brake Performance Kit assembly is completed. Refer to chapter ‘Damper Kit’...
  • Page 24 Remove the brake pedal bolt: Remove the original Polyurethane springs and store them safely and light-pro- tected for later use: Insert the small Polyurethane spring (E) from Brake Performance Kit package content into the preload screw: Select two pieces of the Elastomer springs (A) – (D) from Brake Performance Kit package content according to your preferences (refer to chapter ‘hardness comparison’...
  • Page 25 Insert the selected two pieces of the Elastomer springs (A) – (D) into the preload screw: Insert the brake pedal bolt into the preload screw: Turn back the brake assembly into the brake pedal lever, then reconnect the loadcell cable to ‘Brake’ port:...
  • Page 26 IMPORTANT: After insertion of the Brake Performance Kit the man- ually calibrated pedal positions of the ClubSport Pedals V3 have to be manually calibrated again. Otherwise the ClubSport Pedals V3 uses the automatically calibrated positions after pressing down each pedal to 100% of mechanical travel.

  • Page 27: Hardness Comparison

    Hardness comparison There are many possible combinations of Elastomer springs (A) – (D). This comparison table may give you a better idea of the effects when combining the different Elastomer springs: Ø13 Ø12 Ø13 Ø12 green green Ø13 very hard medium soft green...

  • Page 28: Drilling Template

    "automatische Seitenanpassung" ATTENTION: Please download and print the drilling template for mounting the ClubSport Pedals V3i from the download area of our web- site www.fanatec.com. The drilling template also shows more detailed information about the out- line dimensions of ClubSport Pedals V3i.

  • Page 29: Function & Features

    Before first use the ClubSport Pedals V3i must be updated to the latest firm- ware version which is available on our website www.fanatec.com/support. You also have to use the latest driver version in order to use the ClubSport Pedals V3i on a PC.
  • Page 30 When you start the driver this window as shown on the right hand side will appear and show all connected USB devices: Double-click the ClubSport Pedals V3 to see the complete menu. The next page is called ‘Function Test’, see...
  • Page 31 ATTENTION: The two motors are mounted at the backside of brake pedal lever and gas / throttle pedal lever. When ClubSport Pedals V3i are powered please make sure that the weights on this motors can turn freely and do not touch them to avoid damage or injury! Below these two buttons there is a checkbox named “Enable manual calibration mode”...
  • Page 32 ‘0’ to stage ‘100’ the signal resistance of the brake pedal can be adjusted (some users may know this feature realized by potentiometer next to the brake pedal of ClubSport Pedals V1, ClubSport Pedals V2 or CSR Elite Pedals).
  • Page 33 ‘Update’, see picture below: This page gives you detailed information about the currently installed PC driver version and the currently installed ClubSport Pedals V3i firmware version. There is also the button ‘Update CSP V3 Firmware’, see chapter ‘Firmware update procedure’...
  • Page 34 (see line ‘Firmware File’ on top side of the Firmware Updater window) and set – both indicator checkboxes are marked active. Now the user has the opportunity to select a different ClubSport Pedals V3 firm- ware file than the default selected file by pressing the button with the three dots if necessary.

  • Page 35: Start-Up Procedure

    See chapter ‘Pedal manual calibration’ of this manual for more details. Start-Up procedure Connect the ClubSport Pedals V3i to the PC or wheel base, when the device is switched ON the ClubSport Pedals V3i are also ON. The ClubSport Pedals V3i...

  • Page 36: Pedal Auto Calibration Mode

    First connect your ClubSport Handbrake to the ‘Handbrake’ port of your Club- Sport Pedals V3i. If you do not use a handbrake skip this step. Next, connect the ClubSport Pedals V3i to your PC or wheel base and switch ON the connected device.
  • Page 37 Enter the Tuning Menu and navigate to parameter ‘BRF’ (brake ƒ force; is only shown if ClubSport Pedals V3i are connected to the wheel base) with default value 050. Change the value for ‘BRF’ according to your preferred setting within the range OFF to 100:...
  • Page 38 IMPORTANT: To switch back to auto calibration mode connect the ClubSport Pedals V3i to PC directly or to wheel base port ‘PEDAL’ and wheel base to PC. Then open the PC driver and activate the checkbox for ‘Auto calibration mode, see picture on right hand...

  • Page 39: Electrical Operation

    ELECTRICAL OPERATION 10.1 Hotkeys This is a summary of all hotkeys related to the ClubSport Pedals V3i. Note: Hotkeys are a functionality of the Fanatec wheel base firmware in use. Wheel base firmware is subject to change. 10.1.1 Tuning menu (wheel base / steering wheel)

  • Page 40: Cleaning

    CLEANING Clean only with a dry or slightly damp cloth. Using cleaning solutions may dam age your ClubSport Pedals V3i and/or your ClubSport Pedals V3 Damper Kit. MAINTENANCE Please add some lithium grease to the parts where marked in the photo below...

  • Page 41: Troubleshooting

    TROUBLESHOOTING The ClubSport Pedals V3i must not be modified other than described in this manual. Endor AG expressly prohibits analysis and utilization of the electronics, ® hardware, software and firmware contained in the controller. In case difficulties occur in connection with utilization of the ClubSport Pedals V3i, please use the following guide for elimination of errors.
  • Page 42 This phenomenon is related to some main board are connected to USB before Windows is booted. manufacturers’ BIOS. In this case the it is required to boot the PC first and then plug the ClubSport Pedals V3i to the USB port.

  • Page 43: Serial Number

    Before contacting the Fanatec Customer Support please note the serial number of your ClubSport Pedals V3 Damper Kit: ............You can find the serial number on a sticker on the bottom side of your ClubSport Pedals V3 Damper Kit packaging boxes. The serial number starts with letters ‘DK’...

  • Page 44: Ecology Advice

    ECOLOGY ADVICE In the European Union: At the end of its working life, this product should not be disposed of with standard household waste, but rather dropped off at a collection point for the disposal of Waste Electrical and Electronic Equipment (WEEE) for recycling. Depending on their characteristics, the materials may be recycled.

  • Page 45: Fcc Compliance

    FCC COMPLIANCE This device complies with part 15 of the FCC rules. The operation of this device is subject to the following two conditions: • This device may not cause harmful interference, and must accept any interference received, including interference that may cause undesired operation.

  • Page 46: Warranty

    WARRANTY Please check the FAQ database at www.fanatec.com/support to see if your problem can be solved there. Normally, the warranty period is one year. How- ever, this may differ depending on the respective state. 1) Endor AG grants for the hardware product – as an extension of shorter ®...
  • Page 47 Fanatec is a registered trademark of Endor AG ® Designed and developed by Endor AG in Germany 11/2016...

This manual is also suitable for:

Clubsport pedals v3
