SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL
B
User Manual SCE-AC1870B230V, SCE-AC1870B230VSS& SCE-AC1870B230VSS6
1. User Manual ............................................................................................ p. 2
2. Legal Regulations ................................................................................... p. 2
3. Safety Instructions ................................................................................. p. 3
4. Functional Principle ............................................................................... p. 4
5. Technical Data ......................................................................................... p. 5
6. Performance Graph ................................................................................ p. 6
7. Mounting .................................................................................................. p. 7
8. Mounting Principle ................................................................................. p. 7
9. Cutout Dimensions ................................................................................. p. 8
10. Dimensions (H x W x D) ......................................................................... p. 8
11. Electrical Connection ............................................................................. p. 9
12. Controller Programming ........................................................................ p. 9
13. Wiring Diagram ....................................................................................... p. 10
14. Taking Into Operation ............................................................................. p. 12
15. Repair ....................................................................................................... p. 12
18. Parts Supplied ......................................................................................... p. 13
19. Warranty / Limits of Liability ................................................................. p. 14
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for SCE SCE-AC1870B230V
Summary of Contents for SCE SCE-AC1870B230V
-
Page 1: Table Of Contents

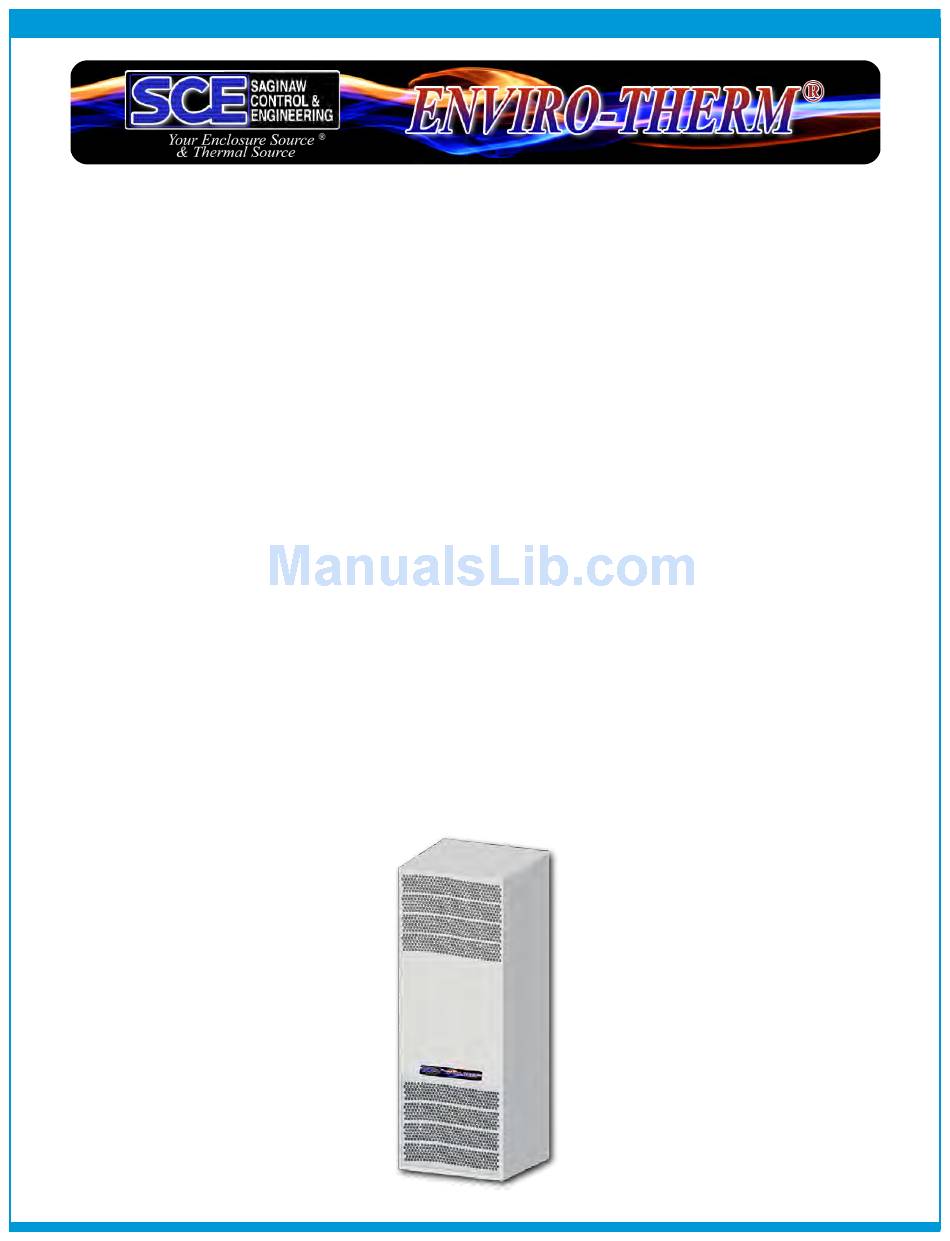

SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL User Manual SCE-AC1870B230V, SCE-AC1870B230VSS& SCE-AC1870B230VSS6 1. User Manual .................... p. 2 2. Legal Regulations ................... p. 2 3. Safety Instructions ................. p. 3 4. Functional Principle ................p. 4 5. Technical Data ..................p. 5 6. -
Page 2: User Manual
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 1. User Manual This instruction manual contains information and instructions to enable the user to work safely, correctly and economically on the unit. Understanding and adhering to the manual can help one: • Avoid any dangers • Reduce repair costs and stoppages • Extend and improve the reliability and working life of the unit... -
Page 3: Safety Instructions
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 3. Safety Instructions Upon delivery the unit is already meeting current technical standards therefore it can be safely taken into operation. Only trained specialists are allowed to work on the unit. Unauthorized personnel must be prohibited from working on the unit. Operating personnel must inform their superiors immediately if any malfunction of the unit becomes apparent. -
Page 4: Functional Principle
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 4. Functional Principle The unit functions on the principle of the compression refrigerator. The main components are: refrigerant compressor, condenser, choke and evaporator. These four components of the refrigerant plant are connected with each other by pipes to form a hermetically sealed system in which the refrigerant (R134a) circulates. -
Page 5: Technical Data
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 5. Technical Data Part Numbers SCE-AC1870B230V SCE-AC1870B230VSS SCE-AC1870B230VSS6 Cooling Capacity @ 95°F / 95°F 1870 BTU (548 Watts) Cooling Capacity @ 131°F / 131°F 1877 BTU (550 Watts) Heating Capacity 400 W... -
Page 6: Performance Graph
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 6. Performance Graph Enviro-Therm Air Conditioners 1870 BTU/HR (548Watts) ® Performance Curve SCE-AC1870B230V, SCE-AC1870B120V, SCE-AC1870B460V SCE-AC1870B230VSS, SCE-AC1870B120VSS, SCE-AC1870B460VSS SCE-AC1870B230VSS6, SCE-AC1870B120VSS6, SCE-AC1870B460VSS6 Enclosure Air Temp 131°F/55°C 122°F/50°C 95°F/35°C 68°F/20°C Ambient Temperature (°C) 3000... -
Page 7: Mounting
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 7. Mounting Always disconnect the power supply before opening the unit. Heat load to be dissipated from enclosure should not exceed specific cooling output of the unit at any condition. When selecting a cooling unit, always allow for a safety margin of at least 15% extra cooling output in the worst conditions. Air inlets and outlets must be completely free from obstruction. Ensure that flows of air leaving and entering the cooling unit, internal and external, are not obstructed. Cooling unit enclosure air suction hole must be installed at the highest possible point. -
Page 8: Cutout Dimensions
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 9. Cutout Dimensions 12.00 10.43 1.26 7.87 7.09 INTERNAL AIR INLET & ELECTRICAL CONNECTIONS 1.97 9.25 6.30 INTERNAL AIR OUTLET 32.70 .312 (x8) 16.09 13.80 MOUNTING PATTERN 10. Dimensions (H x W x D) 12.00 4°... -
Page 9: Electrical Connection
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 11. Electrical Connection The cooling unit is used where heat needs to be dissipated from electrical control cabinets or similar enclosures in order to protect heat sensitive components. The unit has two completely separate air circuits which ensure that the clean cabinet air does not come into contact with the ambient air which may well be dirty or polluted. -
Page 10: Wiring Diagram
7 P2 High Temp Alarm Contact 8 T1 Door Switch Contact 9 T2 Door Switch Contact Notes: Ci not used in SCE-AC1870B230V/SS X6 is plugged into X5 for units with heater Ma1 + Ca1 not used in SCE-AC1870B230V/SS Ma ~ 85˚C 85˚C 230V Mi ~ +t˚C... - Page 11 SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL Wiring of a single phase 230 V unit High Temp Alarm Ground High Temp Alarm L2/N for 230 V Door Switch L1 for 230 V Door Switch Wiring of a single phase 460 V unit High Temp Alarm Ground High Temp Alarm...
-
Page 12: Taking Into Operation
SAGINAW CONTROL & ENGINEERING • A/C USER MANUAL 14. Taking Into Operation Attention! The unit can be damaged by lack of lubricant. To ensure that the compressor is adequately lubricated, the oil, which has been displaced during transport, must be allowed to flow back into it. The unit must therefore be allowed to stand for at least 30 minutes before being connected to the mains and taken into operation. Upon connection the internal fan will start working. If the temperature inside the enclosure is higher than the set value of the controller, both the compressor and external air fan start working. -
Page 13: Maintenance & Cleaning
During transport and storage the cooling unit must be kept in the position marked on the box and at a temperature between -40˚F and 158˚F and a relative humidity of max. 95% (at 77°F). Check that the packaging has not been damaged during transport. 18. Parts Supplied 1 x Air Conditioner 1 x Instruction Manual with technical information 1 x Mounting Template in 1:1 scale 1 x Installation pack containing: 8 x M6 Bolts 8 x A6.4 Toothed Washers 8 x A6.4 Washers 1 x Female Connector with shorted wired positions for door contact Saginaw Control and Engineering 95 Midland Road Saginaw, MI 48638-5770 Phone: (989) 799-6871 Fax: (989) 799-4524 sce@saginawcontrol.com back to top... -
Page 14: Warranty / Limits Of Liability
19. Warranty / Limits of Liability All goods manufactured by SCE shall be warranted to be free of defects in material or workmanship for a period of two years from the date of shipment. Should the product be proven to SCE to be defective, we shall option to repair or replace the product.
