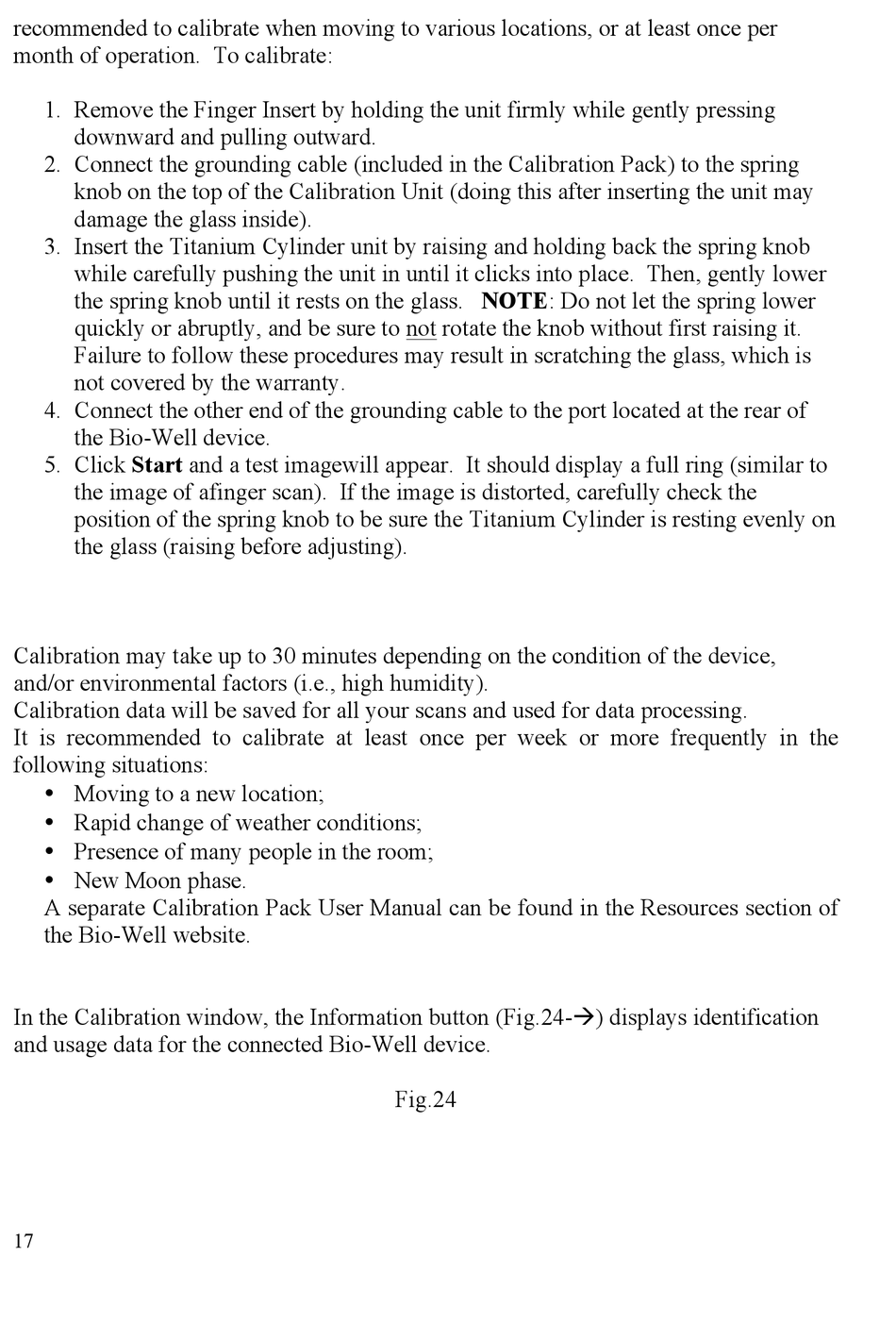

Bio-Well Operational Manual page 17

recommended to calibrate when moving to various locations, or at least once per
month of operation. To calibrate:
1. Remove the Finger Insert by holding the unit firmly while gently pressing
downward and pulling outward.
2. Connect the grounding cable (included in the Calibration Pack) to the spring
knob on the top of the Calibration Unit (doing this after inserting the unit may
damage the glass inside).
3. Insert the Titanium Cylinder unit by raising and holding back the spring knob
while carefully pushing the unit in until it clicks into place. Then, gently lower
the spring knob until it rests on the glass. NOTE: Do not let the spring lower
quickly or abruptly, and be sure to not rotate the knob without first raising it.
Failure to follow these procedures may result in scratching the glass, which is
not covered by the warranty.
4. Connect the other end of the grounding cable to the port located at the rear of
the Bio-Well device.
5. Click Start and a test imagewill appear. It should display a full ring (similar to
the image of afinger scan). If the image is distorted, carefully check the
position of the spring knob to be sure the Titanium Cylinder is resting evenly on
the glass (raising before adjusting).
Calibration may take up to 30 minutes depending on the condition of the device,
and/or environmental factors (i.e., high humidity).
Calibration data will be saved for all your scans and used for data processing.
It is recommended to calibrate at least once per week or more frequently in the
following situations:
• Moving to a new location;
• Rapid change of weather conditions;
• Presence of many people in the room;
• New Moon phase.
A separate Calibration Pack User Manual can be found in the Resources section of
the Bio-Well website.
In the Calibration window, the Information button (Fig.24-à) displays identification
and usage data for the connected Bio-Well device.
17
Fig.24
