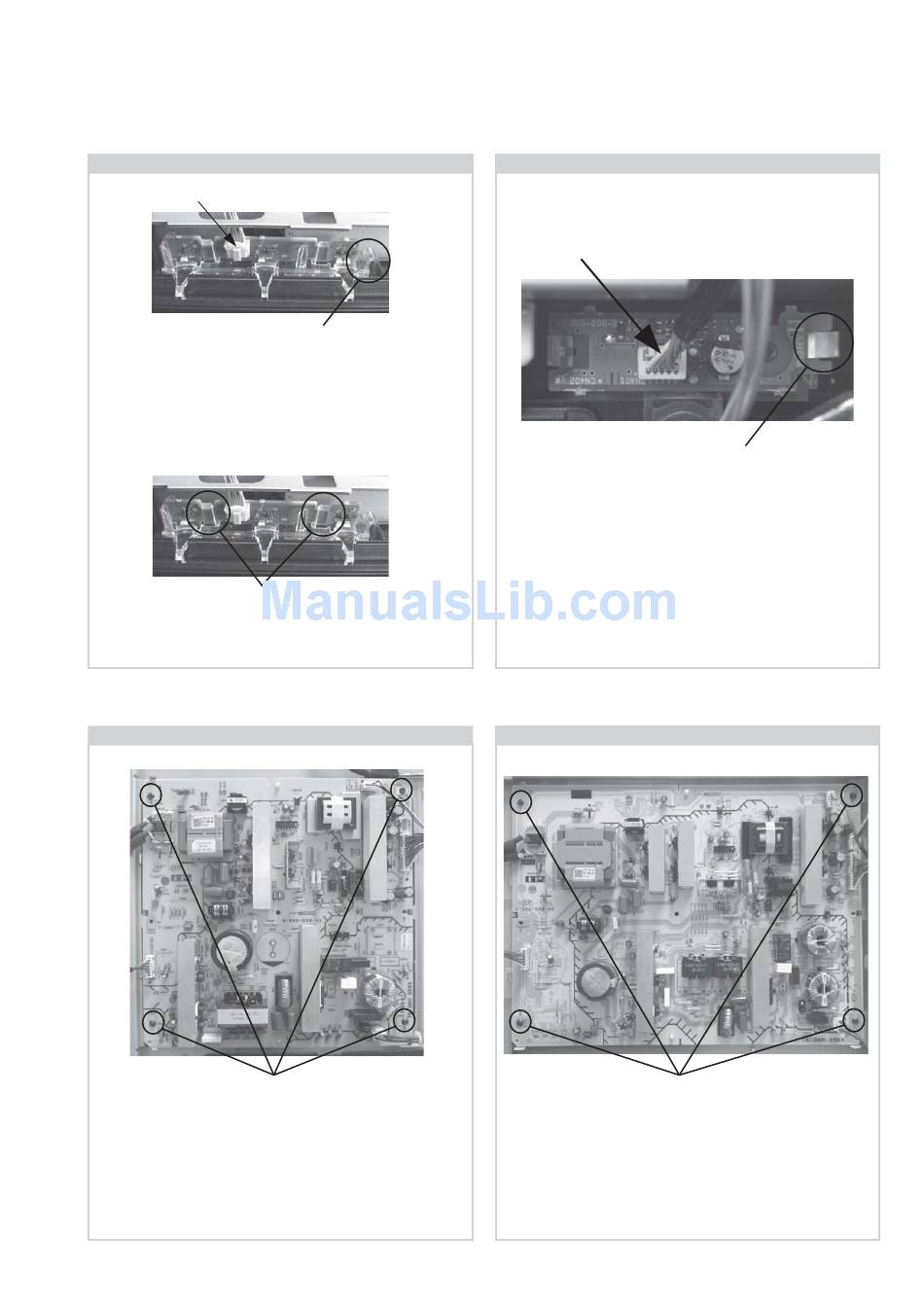

2-9. HL4A Board Removal
Connector
To remove the 'HL4A' board first remove the 'Rear Cover'
(See Sec 2-2-1) then the 'Stand Assy' (See Sec 2-2-2) and
then the 'Under Cover' (See 2-2-3). The 'Guide, Led' can
then be removed by disconnecting the 1 connector indicated
and releasing the 1 clip circled.
The 'HL4A' board can then be removed by releasing the
2 clips circled.
2-11. IP1 Board Removal (40 inches)
To remove the 'IP1' board disconnect all connectors and then
remove the 4 screws circled and ease the board gently away
from the back of the TV set.
Note: Refer to page 4 - Hirose MDF61 connector.
Screw Part number(s) and Description(s)
2-580-629-01 SCREW, +BVST 3X8
Clips
Clips
Screws
Published in Heiloo, Holland.
2-10. HSN Board Removal
Connector
To remove the 'HSN' board disconnect the 1 connector
indicated and then release the 1 clip circled, the 'HSN' board
can then be gently eased away from the back of the TV set.
2-12. IP2 Board Removal (46 inches)
To remove the 'IP2' board disconnect all connectors and then
remove the 4 screws circled and ease the board gently away
from the back of the TV set.
Note: Refer to page 4 - Hirose MDF61 connector.
Screw Part number(s) and Description(s)
2-580-629-01 SCREW, +BVST 3X8
- 11 -
Clip
Screws
4/3/16
