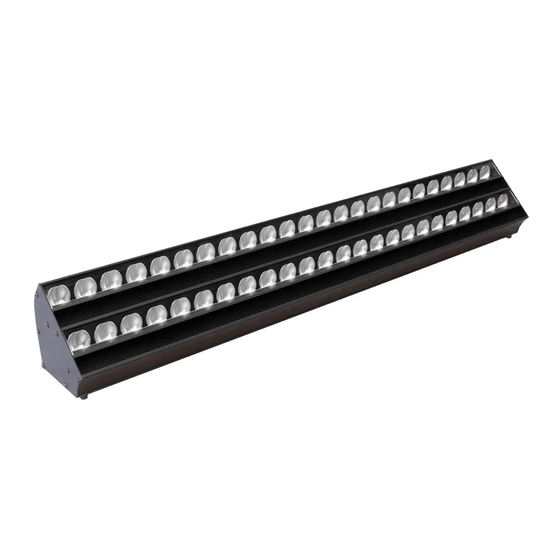

Robert Juliat DALIS - 860 Manual

8 colours led 300w cyclight
Hide thumbs Also See for DALIS - 860:
Table of Contents

Advertisement

Quick Links

See also: Instructions for Using
Dalis - 860
Cycliode
Cyclight
Cycliode 300W LED 8 couleurs
8 colours LED 300W Cyclight
DALIS - 860
Version V2 – 01/04/16
DN41077600
Robert Juliat S.A.S. 32, rue de Beaumont, F60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 51 89 - info@robertjuliat.fr
www.robertjuliat.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DALIS - 860 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Robert Juliat DALIS - 860

Summary of Contents for Robert Juliat DALIS - 860

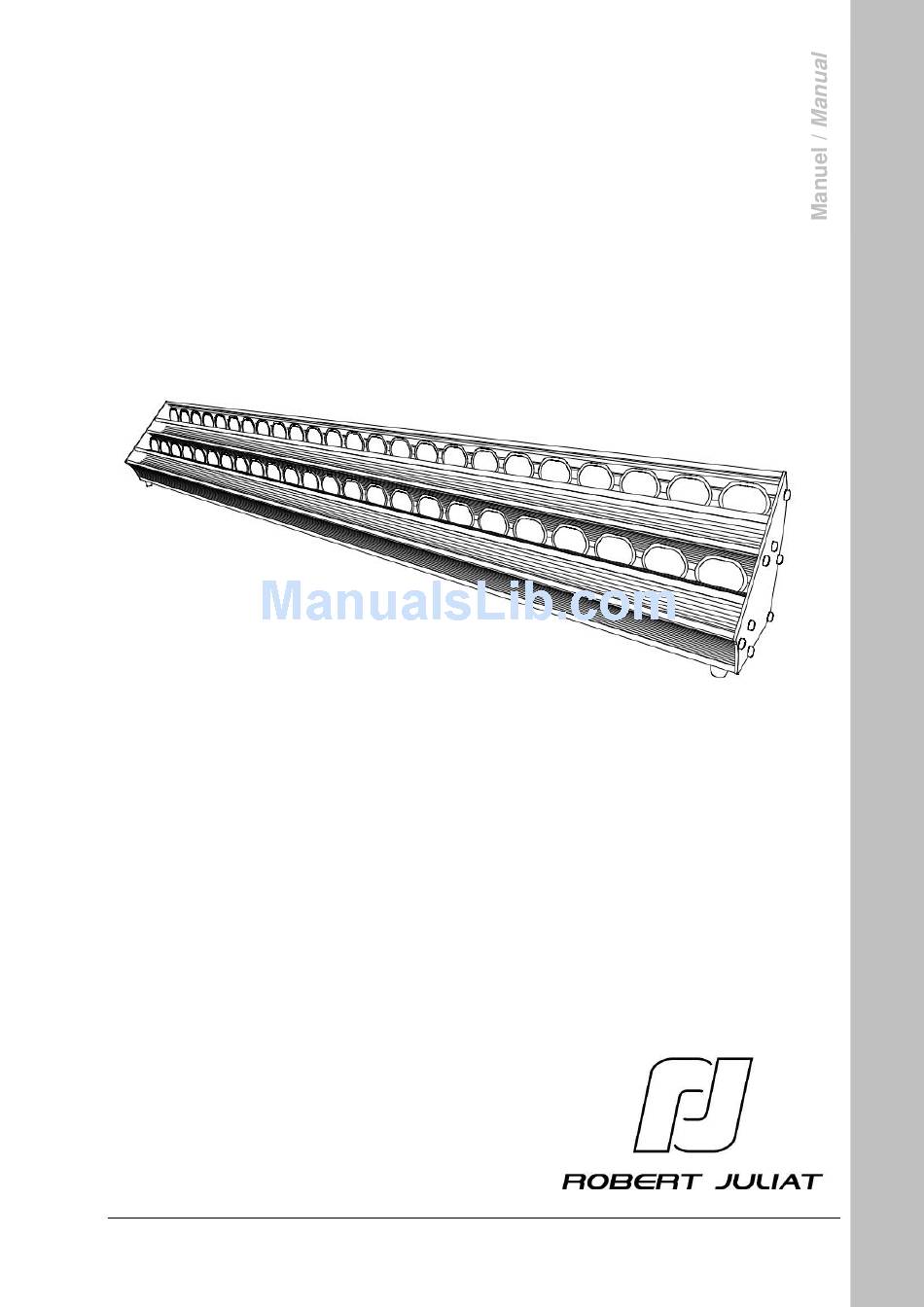

  • Page 1 8 colours LED 300W Cyclight DALIS - 860 Version V2 – 01/04/16 DN41077600 Robert Juliat S.A.S. 32, rue de Beaumont, F60530 Fresnoy-en-Thelle - phone : +33 (0)3 44 26 51 89 - fax : +33 (0)3 44 26 51 89 - info@robertjuliat.fr www.robertjuliat.com...

  • Page 2: Table Of Contents

    Electronic thermal management system ................30 Firmware update ........................30 Factory defaults ........................30 Robert Juliat reserve the right to change or alter any of the items detailed on this page, to increase or improve manufacturing techniques without prior notice.

  • Page 3: User's Instructions

    When hung or flown the fixture must be secured by an additional hanging accessory (such as a safety cable or bond) of suitable length – only use Robert Juliat safety cables ref. QR-CS1 Safety bonds or cables must be securely attached to the QuickRig system of the fixture and be as short as possible, or rolled up as necessary, to minimise travel distance should the fixture be dislodged.

  • Page 4: Presentation

    2 Presentation Functions           Functions : 1. Feet 6. Network 2. QuickRig rail 7. NFC sensor 3. ID plate 8. Display and keypad 4. Power IN 9. DMX OUT 5. DMX IN 10.

  • Page 5: Accessories Included

    Accessories included   Reference Description COU0003305 Neutrik PowerCon© True1 connector (ref. NAC3FX-W) DN41086000 Quick Start manual Optional accessories         Reference Description 3 meter power cable ( 3G1,5 HO7RNF) with Neutrik PowerCon© True1 and CAL03 CEE 7/7 (2P+T NF/SCHUKO) connectors CAL04...

  • Page 6: Set-Up

    3 Set-up Mechanics 3.1.1 Operating positions 3.1.2 Minimum distance between a flammable material and the lighting unit 0,2 m 0.7 ft 3.1.3 Instructions for use Minimum : Maximum : 5°C 40°C 41°F 104°F IP20 – Indoor use only   ...
  • Page 7 3.1.4 Recommended distances Dalis has been designed to be installed in a complete continuous row. Example: for a 10m wide cyclorama, 10 pieces of 1m DALIS are required. However, Dalis can be distanced with a gap of 30/50 cm. This arrangement does not affect the evenness and output, it will only minimise the colour fading possibilities.
  • Page 8 3.1.5 Floor installation 1 & 2 = Tilt Up / 3 & 4 = Tilt Down 3.1.6 Top / side installation  Ensure fixture is correctly mounted on an appropriate support.  The fixture must be installed with 2 clamps. ...
  • Page 9 EN -7-...
  • Page 10 3.1.7 Safety cable  When hung or flown, the fixture must be secured by an additional hanging accessory (such as safety bond or cable) of suitable length.  Safety cables or bonds must be securely attached to the back of the fixture and be as short as possible, or rolled up as necessary, to minimise travel distance should the fixture be dislodged.

  • Page 11: Electrical

    Electrical 3.2.1 Power Voltage Frequency Input power Connectors Neutrik powerCON TRUE1 1.5A / 300 W @ 230V ref. NAC3FPX (max. 20A) 3.4 A / 300 W @ 115V 90  265 V 50-60 Hz Max.4 A see appendix 1 for assembly instructions ...

  • Page 12: Data

    DATA 3.3.1 DMX 512-A / RDM Protocol Input connector Output connector USITT DMX 512-A XLR 5-pin XLR 5-pin DATA connectors PIN # Description Shielding Foil & Braided Shield DMX (-) conductor of 1 twisted pair DMX (+) conductor of 1 twisted pair Not used conductor of 2...
  • Page 13 3.3.3 Ethernet/DMX node Protocol Input connector Output connector Art-Net RJ45 sACN Art-Net sACN DMX Console Maximum: 32 units 3.3.4  soon available EN -11-...

  • Page 14: Operation

    4 Operation Light intensity 4.1.1 Range 100 % 4.1.2 Control Console Remotely with DMX512-A / Artnet / sACN protocols Locally via STAND ALONE mode Mode 1 – 2 – 3 – 4 – 5 – 6 4.1.3 Parameters 4.1.3.1 Dimming resolution Resolution DMX mode : 8 bits –...

  • Page 15: Colours

    Colours 4.2.1 Range 100 % Green 100 % Blue 100 % Royal blue 100 % Cyan 100 % Amber 100 % Cool white 6500K 100 % Warm white 2200K 100 % EN -13-...
  • Page 16 4.2.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 – 2 – 3 – 6 4.2.3 Parameters 4.2.3.1 Resolution Resolution DMX mode : 8 bits – 255 steps 16 bits – 65 535 steps 1 – 2 – 6 4.2.3.2 Intensity curve Linear...

  • Page 17: Colour Presets

    Colour presets 4.3.1 Range  Each preset has been calibrated by comparison with 1000W tungsten cyclight. Gel reference* L203: 1/4 CTB (E-color 203) L202: 1/2 CTB (E-color 202) L201: Full CTB (E-color 201) L200: Double CTB (E-color 200) L204: Full CTO (E-color 204) L205: Half CTO (E-color 205) E-Color 242: Fluorescent 4300K (L242 Fluorescent 4300K) E-Color 241: Fluorescent 5700K (L241 Fluorescent 5700K)
  • Page 18 4.3.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Locally via STAND ALONE mode Mode 4 – 5 4.3.3 Parameters 4.3.3.1 Resolution Resolution DMX mode : 8 bits – 255 steps 16 bits – 65 535 steps 4 – STAND ALONE 4.3.3.2 Cyan correction ...

  • Page 19: Cct

    4.4.1 Range 0 % = 2200K 100 % = 6500K 4.4.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 4 – 5 Strobe 4.5.1 Range Strobe duration 0=OFF 1=1ms 255=85ms Strobe speed 0=5,8Hz 255=11,5Hz 4.5.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 –...

  • Page 20: Group

    Group 4.6.1 Range Group 1 Group 2 Group 3 Group 4 4.6.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Mode 1 – 6 EN -18-...
  • Page 21 4.6.3 Parameters 4.6.3.1 Group flip  Selection in SETUP/GROUP FLIP menu Horizontal Normal Flip / Auto Normal / Auto Dalis#1 Dalis#2 Vertical Normal / Auto Flip / Auto Normal EN -19-...

  • Page 22: Response Time

    Response time 4.7.1 Range 0 = 0,1s 250 = 4 s 255 = OFF 4.7.2 Control Console Remotely with DMX512-A / Art-Net / sACN protocols Locally only when DMX mode 6 is selected Mode 1 – 2 – 3 – 4 – 5 EN -20-...

  • Page 23: Control And Parameters

    5 Control and parameters Local display and Controls 5.1.1 Display Function Exit the current menu option and/or go back Enter the current menu option and/or valid Scrolls through menus and/or Increase data value Scrolls through menus and/or Decrease data value Scrolls through menus and/or Increase data value Scrolls through menus and/or Decrease data value 5.1.2...
  • Page 24 5.1.3 Menus DATA FACTORY STATUS SETUP MODE DEFAULT • ADDRESS ANGULAR DISPLAY MODE • PERSONALITY ADJUSTMENT ARTNET • NET-SUB-UNI SERIAL NR DISPLAY FLIP • IP-CONF • ADDRESS • PERSONALITY SACN • NET-SUB-UNI SOFTWARE VERSION DISPLAY FAULTS • IP-CONF • ADDRESS •...

  • Page 25: Dmx512-A Remote Control

    DMX512-A remote control 5.2.1 Protocol: E1.11 – 2008, USITT DMX512-A 5.2.2 Configuration: Data Mode DMX Address DMX address of the unit from Start address : XXX 1 to 512 Personality MX : Selection of the unit XXXXXXXXXXXX personality 5.2.3 Parameters 5.2.3.1 DMX Hold ...
  • Page 26 5.2.4 DMX chart: Mode 1 Mode 2 Mode 3 Mode 4 Mode 5 Mode 6 address Full4groupsmode16b Full1groupmode16b Full1groupmode8b Presetmode16b Presetmode8b 4groupsindividual16b Dimmer Dimmer Dimmer Dimmer Dimmer Dimmer 1 Dimmer fine Dimmer fine Dimmer fine Colour presets Dimmer fine 1 Red 1 Green Colour presets...
  • Page 27 5.2.5 DMX ranges: 5.2.5.1 Colour presets Range min Range max Description L203: 1/4 CTB (E-color 203) L202: 1/2 CTB (E-color 202) L201: Full CTB (E-color 201) L200: Double CTB (E-color 200) L204: Full CTO (E-color 204) L205: Half CTO (E-color 205) E-Color 242: Fluorescent 4300K (L242 Fluorescent 4300K) E-Color 241: Fluorescent 5700K (L241 Fluorescent 5700K) E-Color 174: Dark steel blue (L161 Slate blue)
  • Page 28 5.2.5.2 CCT (Color Control Temperature) Range min Range max Function Function activated if Colour presets channel ≥ 250 Colour temperature: 2200 K --> 6500 K 5.2.5.3 Strobe duration Range min Range max Function Strobe OFF Strobe ON - 1ms --> 85ms 5.2.5.4 Strobe speed Range min...

  • Page 29: Rdm Remote Control

    RDM remote control 5.3.1 Protocol: ANSI E1.20 – 2010 / ANSI E1.37 - 1 For more information about RDM protocol: http://www.rdmprotocol.org/ 5.3.2 Functions: Description Commentary Description Ox0002 DiscoveryMute Ox0003 DiscoveryUnmute Ox0050 (Get) SupportedParameters Ox0060 (Get) DeviceInfo (Get) ProductDetailIDList Ox0070 Ox0080 (Get) DeviceModelDescription Ox0081 (Get) ManufacturerLabel...

  • Page 30: Art-Net Remote Control

    Art-Net remote control 5.4.1 Protocol: Artistic Licence Art-Net For more information about RDM protocol: http://art-net.org.uk/ 5.4.2 Configuration: Data Mode ARTNET Net Subnet Universe Selection of the Net, Net :XX Sub :X Sub-Net and Uni :X Universe Network Config DHCP Setup DHCP XXX DHCP ON or OFF IP-Address...

  • Page 31: Sacn Remote Control

    sACN remote control ANSI E1.31 – 2009 sACN (Streaming-ACN) 5.5.1 Protocol: 5.5.2 Configuration: Data Mode SACN Universe Selection of the Universe : XXXXX Universe Network Config DHCP Setup DHCP XXX DHCP ON or OFF IP-Address IP address of the XXX :XXX :XXX :XXX unit IP-Mask IP-Mask address of...

  • Page 32: Service

    6 Service Preventive maintenance 6.1.1 Frequency General maintenance should be performed at least once a year or more frequently if the equipment is operated in adverse conditions (smoke, heat, humidity, touring, etc.). 6.1.2 General cleaning Remove dust from the unit. Front glasses can be cleaned with solutions containing alcohol.
  • Page 33 APPENDIX 1 EN -1-...
  • Page 34 APPENDIX 1 EN -2-...
