Summary of Contents for Soundcast MELODY
- Page 1 User Manual...
- Page 2 AC/DC ADAPTER POWER SUPPLY and maintenance(servicing) instructions in the literature accompanying the appliance. Use only the AC adapter that was supplied by Soundcast Systems. Do not use a substitute AC adapter. Using an incorrect AC adapter may cause damage to the WARNING: unit and will void its warranty.
- Page 3 Soundcast or an authorized with the eyes, this may lead to loss of sight. Without rubbing the eyes, retailer: One (1) Year.

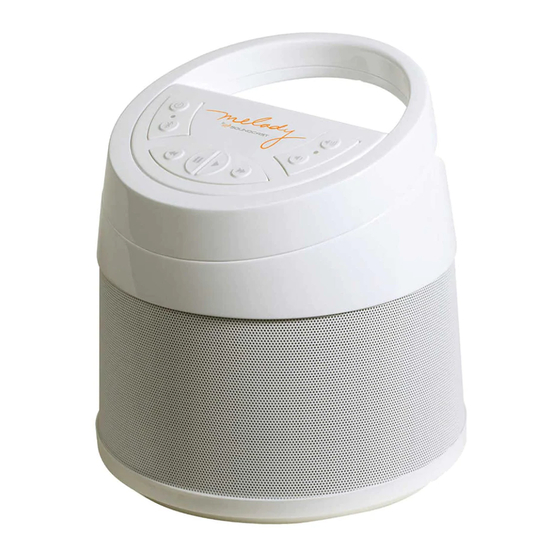

- Page 4 Melody is a weather friendly speaker system that you can enjoy indoors and outdoors. Despite its compact size, Melody will blow you away with its unique and powerful sound. Congratulations and welcome to the high definition audio world, a world with a sound quality that hasn’t been...
- Page 5 Melody Speaker AC Adapter USB Cable 12V Auto Adapter 1/8” (3.5mm) Audio Cable Quick Start Guide...
- Page 6 A. Blue and Green LED B. Red LED 1. Power 5. Volume Up 2. Bluetooth 6. Volume Down 3. Track Back 7. Track Forward 4. Track Pause 8. Track Play 9. Auxiliary Input 10. Micro USB Power Input...
- Page 7 A. Blue/Green LED: 1. Power Button: turns Melody on and off Blue fast flash = Melody is set to 2. Bluetooth Button: Used to pair a scan mode and looking for known Bluetooth devices to connect with Bluetooth device to the Melody...
- Page 8 The first thing you need to do before using Melody is connecting it to the provided AC power adapter using the USB power cable. Please follow these steps: 1. Connect the smaller end of the supplied power cable to Melody’s USB connector 2.
- Page 9 (if prompted for a “Pass Key Code”, enter 0000) NOTE: In subsequent uses, Melody will look for your audio player and 5. In some cases you may need to tell will connect to it automatically as long as your music player’s Bluetooth function is on and the device is within range.
- Page 10 We are now ready to stream music to Melody! 1. After Melody is connected to your music player, open a music app on your music player 2. Choose a song from your music library and press play 3. Control the volume...
- Page 11 Melody can accept audio from any external audio source. Simply use Melody’s line level input located beneath the port cover. 1. Connect your music player to Melody’s auxiliary input using the supplied 3.5mm audio cable (the blue LED will turn off and the green LED will turn on) 2.
- Page 12 Method Two: Memory Reset 1. Turn off Bluetooth on the connected device Melody can memorize up to 6 Bluetooth devices. If you (wait until you see your device has dropped need to reset the memory to make it forget all previously the connection).
- Page 13 Four full-range drivers + Four bass radiators in a stereo 360º array using IMPP cones and rubber surrounds. AMPLIFIER: Proprietary Soundcast DPAT (Dynamic Power Amplification Technology) with burst power, provides maximum power and battery efficiency to delivery high volume, distortion free audio to the 8 speaker system.
- Page 14 Solution Melody doesn’t Melody’s battery is discharged. Connect Melody to a charger and let it charge. You can still use it while turn on. charging is taking place. If the battery was completely discharged, you may have to wait for 5-10 minutes before Melody will turn on.
- Page 15 Connection with all Bluetooth devices cannot be guaranteed. A device featuring Bluetooth function is required to conform to the Bluetooth SIG, Inc. and any use of such marks by Soundcast is under license. iPhone and iPad standard specified by Bluetooth SIG, and be authenticated. Even if the are registered trademarks of Apple Inc.
- Page 19 Antes de usarla, usted necesitará instalar y cargar la batería siguiendo estas indicaciones. instructions provided below. Localice el compartimiento de la batería en la parte inferior de Melody. Usando Locate battery compartment on the bottom section of Melody. Using a Philips un desarmador de cruz retire los 2 tornillos ubicados en los extremos de la tapa.
