Planex Mini-MFP User Manual

Usb 2.0 high-speed print server
Hide thumbs Also See for Mini-MFP:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini-MFP and is the answer not in the manual?

Questions and answers

Related Manuals for Planex Mini-MFP

Summary of Contents for Planex Mini-MFP

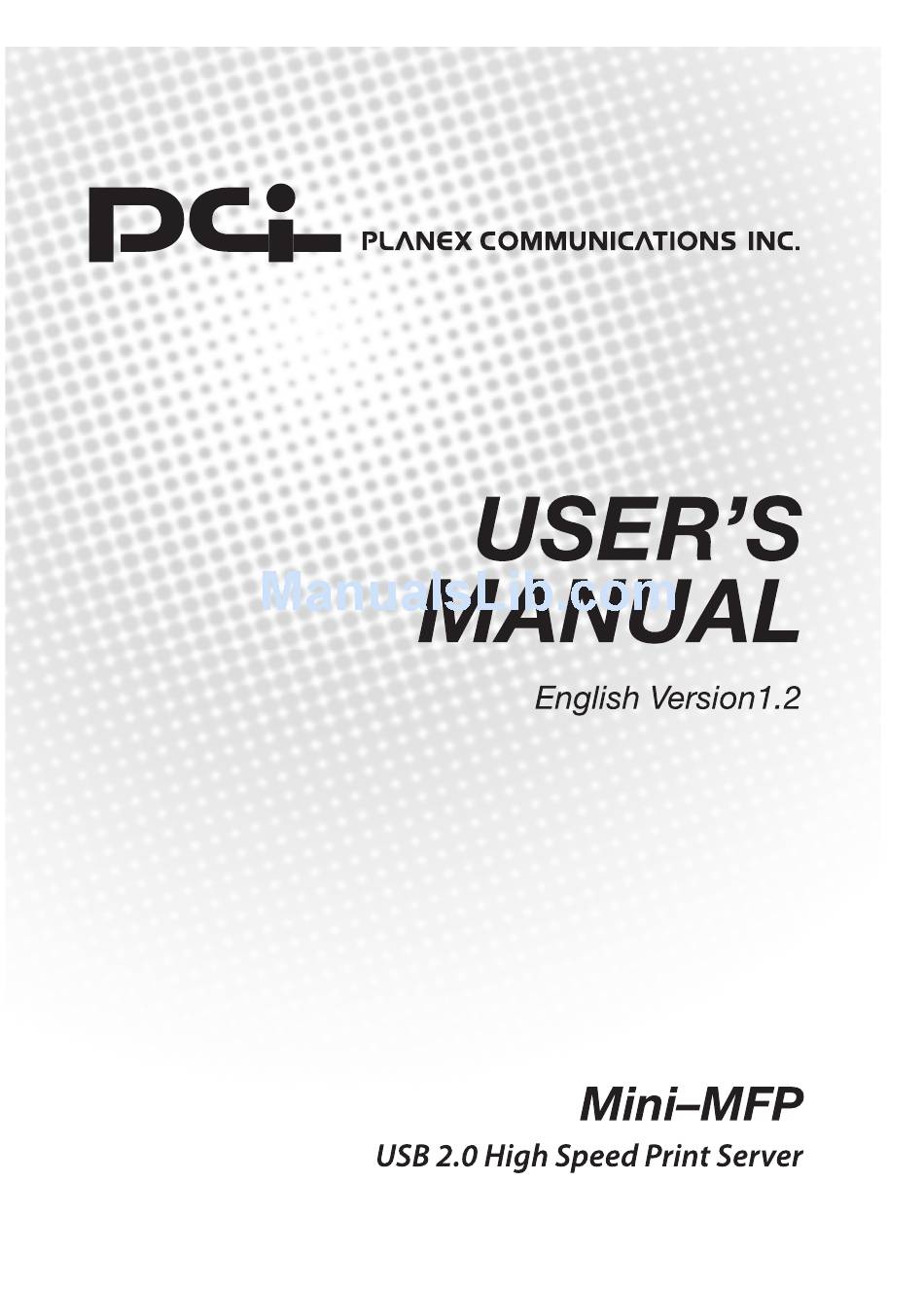

  • Page 2 USER’S MANUAL USB 2.0 High Speed Print Server Mini–MFP...
  • Page 3 Seeking for service or searching for an agent or a distributor Thank you for purchasing products from Planex Communications Inc. If you have any operational problems while con guring or setting up the product, you may contact with our Customer Service Department or ask the agent or the distributor from which you bought the product for help.
  • Page 4 Trademarks: All trade names and trademarks are the properties of their respective companies. Copyright © 2006, All Rights Reserved.

  • Page 5: Table Of Contents

    ..... . 12 3.3.2 ..... 12 Mini-MFP...
  • Page 6 Chapter 6 FILE SERVER ......39 ......39 Mini-MFP Contents...
  • Page 7 8.2.2 Displaying Server Status ....57 8.2.3 ..57 8.3 Quitting the Control Center ... . 64 Mini-MFP...
  • Page 8 Chapter 15 UPGRADE FIRMWARE ....91 Chapter 16 THE INIT BUTTON ....95 Mini-MFP Contents...

  • Page 9: Chapter 1 Introduction

    Unix/Linux, and also supports many network printing protocols like LPR, IPP, Raw TCP/JetDirect, and SMB/CIFS. By using the utility of Mini-MFP - Control Center, you can easily install and setup your network printing environment and enjoy the convenience of Mini-MFP. The following chapters will introduce the features and functions of Mini-MFP, and how to setup/configure Mini-MFP in various environments.
  • Page 10 WEB UI, and the usage for the print server, the file server, and the scan server. It will then introduce to you how to install and how to use Mini-MFP on Linux. However, we recommend you use Windows-based operating systems to get full functions of Mini-MFP.

  • Page 11: Chapter 2 Product Overview

    Verify that nothing is missing from the package by using the checking list below. Please contact your dealer if anything is missing or damaged. All packing materials are recyclable. Please confirm the items in the package below: Mini-MFP CD-ROM (Utility) User s Manual AC Adaptor Warranty Card 2.2 Product CD...

  • Page 12: Installation Procedures

    Server. If it is not lit, or if it blinks, there is a problem with the USB device or this Server. 2.4 Installation Procedures 2.4.1 Installation and Integration Please refer to the table below to select the appropriate installation method. The Control Center is available on the CD. Mini-MFP...

  • Page 13: Configuration And Management

    Function Method Description Installation of LPR, Raw TCP Standard Windows (JetDirect), Local Port Using Print Add Printer Wizard Windows SMB, and IPP Server Installation of LPR, Raw TCP, Control Center Tool Local Port Using SMB Apple LPR, Raw TCP (JetDirect) Printer Setup Tool MAC OS X SMB, IPP...
  • Page 14 USB devices. 6.Future Proof: The firmware stored in the Server s Flash memory can be upgraded over the network. This allows you to quickly update and enhance its operational features when new Server software becomes available. Mini-MFP...

  • Page 15: Chapter 3 Basic Installation

    Basic Installation 3.1 Connecting the Hardware 1.Make sure that your USB devices are switched off and that the Server's Power Adapter is disconnected. 2.Connect the USB devices to the USB ports with the USB cables. 3.Connect the Server to the network with a twisted-pair category 5 cable, 10baseT or 100baseTX.

  • Page 16: Ethernet Address

    3.2.5 Host Names and Host Name Rules The Host Name of the Server defaults to be Mini-MFP . If you put two or more Servers in your local area network, to avoid using the same Host Names you have to change the Host Names by using the Control Center or the Server s web pages.

  • Page 17: Setting The Ip Address Using The Control Center

    2.Activate the scope. The Server automatically gets the DHCP parameters. If you are using DNS, you may include at least one DNS server IP address in the DHCP scope or manually set the DNS server IP address using Server's web pages or the Control Center. 3.2.7 Setting the IP Address Using the Control Center 1.Install the Control Center.
  • Page 18 Automatically get IP by DHCP, you can use desired DNS by clicking the Manual DNS button and manually assigning a DNS. 7.Click Apply to save your settings. And the Server will reboot. 8.You have now finished the procedure of setting the IP address. Mini-MFP...

  • Page 19: Server's Web

    3.2.8 Setting the IP Address Using the Server's Web Pages 1.If you don t know the current IP of you Server, you have to do the Step1~Step4 of Set the IP Address Using the Control Center. 2.You can see the IP address of you Server in the Server List. Open IE Browser and enter the Server s IP address or click the Home Icon of the Control Center.

  • Page 20: Printer Names

    The local drives of the two storages in USB1 port and USB2 port are named as USBx_DyPz, where USBx represents the USBx port, Dy represents the y-th Disk (in particular to card reader plugging in multiple cards) and Pz represents the z-th partition. Mini-MFP...

  • Page 21: Chapter 4 Print Server In Windows

    Print Server in Windows 4.1 Overview of Installation Methods This chapter describes how to add network printers. Table List for Installing Network Printer Printing Protocols Method Windows Platform Standard Windows Add Printer Wizard SMB/CIFS Printing Windows 98, ME, The Control Center's Add Printer 2000,XP and 2003 Standard Windows...

  • Page 22: Connecting The Server

    Server is connecting to. 4.2.1 The Server and Windows PC on Same LAN LAN HUB/Switch Server USB Printer 4.2.2 The Server and Windows PC on Different LANs Example: Wired Windows PC across Internet Router LAN HUB/Switch Server Router LAN HUB/Switch USB Printer Mini-MFP...

  • Page 23: Setting Up Local Windows Printer Driver

    4.3 Setting up Local Windows Printer Driver You are advised to install your Windows printer driver in advance. For most printers, you can install the printer drivers with the following procedure: 1.Click Start, click Control Panel, click Printers and Other Hardware, and then click Printers and Faxes.

  • Page 24: Printing Protocol

    2.Right-click the printer for which you want to change settings, and then click Properties/ports 3.Clear Enable bidirectional support and click Add port, and then click Standard TCP/IP Port from the dropdown and click New port. 4.The "Add Standard TCP/IP Printer Port Wizard" will pop up and click Next. Mini-MFP...
  • Page 25 5.In the Printer Name or IP Address box, enter the Host Name of the Server (default: Mini-MFP) or IP address of the Server. In the Port Name box, enter your desired names or USB1_LPR or USB2_LPR for printer connected to USB1 port and USB2 port, respectively.
  • Page 26 7.Click Custom/settings. 8.Click Settings and confirm that the settings are as below. The queue names are USB1_LQ, USB2_LQ for USB1 port 1 and USB2 port, respectively. Click OK. Mini-MFP...

  • Page 27: Using The Control Center For Lpr Printing

    9.Click Finish 4.4.2 Using the Control Center for LPR Printing Windows Platform: Windows 2000, XP and 2003 1.Start the Control Center, select your Server and click Set Printer. 2.Select USB1 Port or USB2 Port to add the printer in Set printer in box, choose to use Host Name or IP address to represent the Server in Select IP address or Host Name in printer port box, and select the network printing protocol of Printing with LPR (Line Printer Remote).
  • Page 28 3.Click Apply. 4.Select the desired printer driver and click Set Port to Printer. 5.If you cannot find any printer driver in Printer List, please install your printer driver first or click Add New Printer to install the printer driver. Mini-MFP...
  • Page 29 Next. 5.In the Printer Name or IP Address box, enter the Host Name of the Server (default: Mini-MFP) or IP address of the Server. In the Port Name box, enter USB1_RAW or USB2_RAW for printer connected to USB1 port and USB2 port, respectively.
  • Page 30 9.Click Finish. Mini-MFP...

  • Page 31: Tcp/Jetdirect Printing

    4.4.4 Using the Control Center for Raw TCP/JetDirect Printing Windows Platform: Windows 2000, XP and 2003 1.Start the Control Center, select your Server and click Set Printer. 2.Select USB1 Port or USB2 Port to add the printer in Set printer in box, choose to use or IP address to represent the Server in Select IP Address or Host Name in printer port box, and select the network printing protocol of Print with Raw TCP Mode.

  • Page 32: Printing

    Print/File server in advance and then you may use it; otherwise you have to disable SMB/CIFS Print/File Server Authentication. If you use SMB on Windows 98 SE/ME with Server Authentication, you must login to your Windows 98 SE/ME using the same user name as in the Server's User Account. Mini-MFP...
  • Page 33 Control Center to know exact path). For example: if you set the Server's Host Name as Mini-MFP and printer name (USB1 port) as Photosmart 2, then the network path is expressed as: \\Mini-MFP\ Photosmart 2 If your Server is running on a different LAN than your windows PC such as Internet PC, you must enter IP address in Port Name box.
  • Page 34 2.Select USB1 Port or USB2 Port to add the printer in Set printer in box, choose to use Host Name or IP address to represent the Server in Select IP Address or Host Name in printer port box, and select the network printing protocol of Printing with Network Path (SMB). Mini-MFP...
  • Page 35 If your Server is running on a different LAN than your Windows PC such as Internet PC, you must choose IP address in Select IP address or Host Name in printer port box. 3.Click Apply. 4.Select the desired printer driver and click Set Port to Printer. 5.If you cannot find any printer driver in Printer List, please install your printer driver first or click Add New Printer to install the printer driver.

  • Page 36: Using Standard Windows Method For Ipp Printing

    Server: http://Server's Host Name /printer name or http:/Serve's IP address /printer name For example, http://Mini- MFP/Photosmart 2 If your Server is running on a different LAN than your windows PC such as Internet PC, you must enter IP address in URL: Field. Mini-MFP...
  • Page 37 5.Click Next and then continue Windows Add Printer Wizard. Chapter4 Print Server in Windows...

  • Page 38: Chapter 5 Print Server In Unix/Linux

    # login root 2.Register the Server's Host Name and IP address into /etc/hosts file. To edit host file, use an editor, e.g. vi . Example: The IP address is 192.168.1.200 , Host Name is Mini-MFP 192.168.1.1 # DNS Server 192.168.1.2...
  • Page 39 # login root 2.Register the Server into /etc/printcap file. Example: To register the printer of USB1 port by the printer name Printer1 . Printer1:\ ---(A) :lp=:rm=Mini-MFP:rp=USB1_LQ:\ ---(B) :sd=/var/spool/lpd/Printer1:\ ---(C) :lf=/var/spool/lpd/Printer1/Printer1_errs: ---(D) where (A) Describes the printer name. (B) lp: Device file name to connect printer. No name designation required on the network.

  • Page 40: (Fedora Core)

    file. Example: To create the spool directory Printer1 and error log file Printer1_errs . # mkdir /var/spool/lpd/Printer1 Create the spool directory # touch /var/spool/lpd/Printer1/Printer1_errs Create the error log file # chown -R daemon /var/spool/lpd/Printer1 Change the owner to daemon # chgrp -R daemon /var/spool/lpd/Printer1 Change the group to daemon 4.Start Printing.
  • Page 41 2.Click on the New button in the Printer configuration window. 3.Click on the Forward button in the Add a new print queue window. 4.Fill in your desired printer name and description (optional) in Queue name window and then click on the Forward button. Mini-MFP...
  • Page 42 5.In Queue type window, you will now be asked to specify which Printer Queue type you are using, select the one option form Networked Unix (LPD), Networked CUPS (IPP), Networked Windows (SMB) and Networked JetDirect options. Click on the Forward button. 6.Fill in parameters for Queue type window: A.Networked Unix (LPD): Fill in the Server's IP address and queue name and then click the Forward button.
  • Page 43 IP address is 192.168.1.100 and it connects HP PSC 1300 MFP via USB1 port. You can enter IP address in the Server box as 192.168.1.100 and TCP Port in Port box as 9100. C.Networked Windows (SMB): i. Click on the Specify button to specify SMB server Authentication. Mini-MFP...
  • Page 44 ii.Fill in the Workgroup, Host Name, User name and Password in Authentication window and then click on the OK button. iii.Click on the Forward button. D.Networked CUPS (IPP): Fill in the Server's IP address and printer name then click the Forward button. Example: If your Server's IP address is 192.168.1.100 and its printer name is psc 1300 ser.
  • Page 45 7.Select your printer driver. Click on the Forward button. Windows will display the Finish, and create the new print queue folder. 8.Click Finish button. Mini-MFP...

  • Page 46: Chapter 6 File Server

    NTFS is only supported in NetUSB mode. Please refer to the Storage Access Mode. 2.Planex Communications Inc. is not responsible for the loss or corruption of data in memory devices, including hard disk; Planex Communications Inc. is not responsible for the leak, manipulation, loss, or corruption of data in memory devices connected to the Server after unauthorized access.

  • Page 47: Supported Codepages

    The Server supports Windows codepages. If users want to communicate files using FTP client tool or SMB on Windows 98/Me/2000 with the Server, they have to set their Server codepage to be same as the codepage that their Windows PC is using. Mini-MFP...
  • Page 48 1.FTP 2.SMB on Windows 98/Me/2000 -Configuring the Server's Codepages Users can use the following methods to set the Server's codepage. A.Using Control Center 1.Start Control Center and Auto-searching Server window will appear. 2.If the tool finds the Servers in your local area network, then you have to select one Server from the Server List.

  • Page 49: Network With Security

    2.If the tool finds multiple Servers in your local area network, then you have to select one Server from the Server List. 3.Double click the highlight list and enter the Server's administrator (default: admin) and password (default: 0000). 4.After you have logged in successfully, click Supported Protocols. Mini-MFP...
  • Page 50 5.Set up File Server Configuration: A.Set SMB/CIFS Print/File Server Enable SMB/CIFS Print/File Server: select the item, if you want to support SMB/CIFS print/File server. Enable Internet Access: clear the item, if you do not allow that users can access your SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol.

  • Page 51: Setting Up File Server Using Web Pages

    9. 6.5.2 Setting up File Server Using Web Pages 1.Go to the web page, click CONFIG 2.Login your administrator (default: admin) and password (default: 0000). 3.After you have logged in successfully, click Supported Protocols. Mini-MFP...
  • Page 52 4.Set up File Server Configuration: A.Set SMB/CIFS Print/File Server Enable SMB/CIFS Print/File Server: select the item, if you want to support SMB/CIFS print/File server. Enable Internet Access: clear the item, if you do not allow that users can access your SMB/CIFS server via Internet. If you select the item, you allow Internet users can access your storage using the SMB/CIFS protocol.

  • Page 53: For Windows

    Workgroup name is WORKGROUP . You can refer to Control Center or the Server's web pages to get it. You will see that the Server will be displayed as the default Host Name "Mini-MFP" or the Host Name that you have set.
  • Page 54 10.Perform Open, Paste, Remove or Copy the files to the shared folders. Note: Another way to use shared storages by SMB/CIFS method : In Control Center, click the Network Storage button, as the following figure. 6.5.4 Using Shared Storage by FTP Methods for Windows A.Use Microsoft IE to the shared USB Mass Storages 1.Open Microsoft IE...
  • Page 55 Server. You can add user name and password in User Account box the Control Center or the Server's Web pages. 4. Perform FTP commands to use this FTP server. Mini-MFP...

  • Page 56: Chapter 7 Scan Server

    SANE client. For non HP MFPs/Scanners, please use NetUSB technology, which is described in Chapter 9. 7.1 Connecting HP All-In-One to the Server LAN HUB/Switch HP MFP Mini-MFP Scanner Chapter7 Scan Server...

  • Page 57: Using The Shared Scanner In Windows

    7.2 Using the Shared Scanner in Windows 7.2.1 Using the Control Center 1.Start the Control Center, select your Server, and click Network Scanner. 2.Select your scanner for USB1 port or USB2 port. Mini-MFP...

  • Page 58: Using Windows Applications

    3.Set the options. The options are defined as follows: -Source: choose flatbed scanning or scrollfed scanning -Mode: choose lineart (black/white), Gray and color mode -Resolution: choose the image resolution -Contrast: tune the contrast of the image -Brightness: tune the brightness of the image -Range: define the scanning range of the image Note: Not all the MFP scanners support the options above.
  • Page 59 3.Click Connect to Network Scanner button in Server Information box. Mini-MFP...
  • Page 60 4.Select your scanner in Server Information box. 5.Click Preview button. 6.Adjust the window size to be scanned. 7.Click Scan button. 7.3 Using the Shared Scanner in Linux 7.3.1Using XSane in RedHat Linux 1.Download SANE-Backends from http://www.sane-project.org. 2.Download and install SANE-frontends: XSane (UNIX binary) from http://www.xsane.org.
  • Page 61 5.Perform scan function. Mini-MFP...

  • Page 62: The Control Center

    The Control Center This chapter describes how to use the Control Center. 8.1 Installing Control Center 1.Insert the utility CD into the personal computer. The Autorun screen as in the following should appear. 2.Click Install Utility. 3.Click Next, if you see any Next button in installation windows. 4.Click Finish.

  • Page 63: Using The Control Center

    Note 1: You can also right-click the mouse button on the highlighted server to get the Configure MFP Server , Goto HomePage , Network Scanner , Set Printer , and Network Storage functions. Note2: You can also double-click on the highlighted server to get the Configure MFP Server function. Mini-MFP...

  • Page 64: Displaying Server Status

    8.2.2 Displaying Server Status You can start the Control Center and select your Server to see its status which includes Server Information, TCP/IP Status, and Supported Protocol Status. 8.2.3 Setting up Server Configuration Click the Configure MFP Server button to setup the highlighted server. Then type the administrator ID and password to login.
  • Page 65 If you clear this field it means that FTP server will have no limitation in session number. -Set Passive Mode: select or clear Set Passive Mode support that FTP server can accept passive mode. Mini-MFP...
  • Page 66 -Enable Server Authentication: select or clear Enable Server Authentication support. If you select the support, you need to enter user name and password to login to the Server. If you clear the support, you do not need user name and password to enter the Server. -Allow Anonymous Login: select the item, if you want to allow the user anonymous to login to your FTP server with Read-Only permission and FTP server will not check the password.
  • Page 67 Permission: select Read-Only or Read-Write permission to access File servers. Add: click Add button, after entering the user name, corresponding password, and Permission selection. The account will take effect once shown in the blank below. Delete: delete the existing user account. Mini-MFP...
  • Page 68 SNMP: You can set community and some parameters for SNMP server. Furthermore, you can enable SNMP v3 for more security. Set SNMP Configuration Authentic Community: set Community name of SNMP server. Trap Community: set Trap Community name for SNMP server to send trap packets.
  • Page 69 Cc: stands for carbon copy; enter an e-mail address to send that mail to a second person. SMTP Server requires authentication: login to remote SMTP server which requires authentication. Account Name: enter account name for remote SMTP server. Password: enter account s password for remote SMTP server. Mini-MFP...
  • Page 70 Maintenance: If you want to restart the Server, restore the Server to factory defaults, download new firmware file from product's public website and upgrade new firmware, you can use the Maintenance tool. Restart Server: click this button, the Server will restart. Factory Default: click this button, the Server will restore factory default values.

  • Page 71: Quitting The Control Center

    There are two ways to really close the Control Center. The first way is choosing Exit item in the File menu in the Control Center. The second way is right-clicking the icon of the Control Center in the system tray and choosing the Exit item. Mini-MFP...

  • Page 72: Chapter 9 The Netusb Technology

    The NetUSB Technology 9.1 Introduction The goal of Mini-MFP USB MFP server is to provide the print/scan/file server in a single product. For printers and scanners, there is no industrial standard. In order to support many different models of printers and scanners from various vendors, you must put so many printer/scanner drivers into a single product.
  • Page 73 NetUSB allows you to use USB printers or USB MFPs as if they were connected directly to your PC although they are actually connected to Mini-MFP. The link operation is a software operation that simulates an actual USB device plug-in. That is to say, when you do a link operation in the Control Center, PC can then detect a USB device's plug- in, although actually you do not plug in any USB device.

  • Page 74: How To Use

    Here we will describe how to use the NetUSB technology to do remote installation for a USB device. Before using the NetUSB technology, you must first make sure that your PC can access Mini-MFP via TCP/IP. The simplest way to do this is using Control Center to search for all of Mini-MFPs on the network and change its IP address to be the same subnet as your PC.
  • Page 75 B.Connect the USB device to Mini-MFP. The LED of the USB port will light-on. C.Run the Control Center. In the USB MFP Server List window, you can see the host names and IP addresses all of the Mini-MFP servers (in blue) on the network, as the following figure. Mini-MFP...
  • Page 76 D.Click the server. Then all USB devices attached on the server will be shown. E.Please follow the user manual of the USB device to do the driver installation. For example, you may put the driver CD of the USB device in the CDROM to install the driver.

  • Page 77: Netusb Printing

    NetUSB printing. A.In the Control Center, click the MFP server that has the desired printer (or MFP) attached. B.Click the desired printer (or MFP). C.Click the Set Auto Link button. The following figure will appear. Mini-MFP...
  • Page 78 D.Choose the desired printer. The desired printer must be the Windows printer (this is a logical printer) that matches the printer attached on the MFP server (this is a physical printer). Then click the Apply button. E.Then, in the Auto Link Printer List you can see a newly created item that describes the association between the Windows printer and the physical printer on the server.

  • Page 79: Netusb Scanning

    B.Click the desired scanner (or MFP). C.Click the Link button to manually link the scanner (or MFP). D.Right-click the scanner icon in the Control Panel's Scanners and Cameras , and choose Get picture using Scanner Wizard , as the following figure. Mini-MFP...
  • Page 80 E.Then the Scanner Wizard will run. Set the options as your need. Then submit the scan job. F.After the scanning finished, click the Unlink button in the Control Center to release the ownership of the scanner (or MFP). Chapter9 The NetUSB Technology...

  • Page 81: Accessing Usb Storage Using Netusb

    E.Just use the new disk as a general disk. F.After you finish the disk operations, click the storage icon in the system tray and choose Safely remove USB Mass Storage Device . G.In the Control Center, click the Unlink button to unlink the USB storage device. Mini-MFP...
  • Page 82 Please note that by this way, FAT32 and NTFS file system can be fully supported. 9.4 Limitations There are some limitations to use the NetUSB technology. A.Only supports Windows 2000/XP/2003. Windows 98/ME is not supported. B.Only one PC can get the ownership of the same USB device at the same time.

  • Page 83: Chapter 10 The Server's Web

    The Server's Web Pages 10.1 Introduction The Server runs the daemon of http server, httpd on TCP port: 80. Users may use the web pages to see the Server s system status and configure the Server. 10.2 Using the Server s Web Pages 10.2.1 Displaying Server Status You can see the status of Machine Information, Server Information, TCP/ IP, and Supported Protocols.
  • Page 84 Enable Raw TCP Printing: select or clear Enable Raw TCP Printing support. It is enabled in Factory Default and users may set the protocol's TCP ports as following boxes: -TCP Port 1: set TCP port for the printer of USB1 port (default: 9100) Mini-MFP...
  • Page 85 -TCP Port 2: set TCP port for the printer of USB2 port (default: 9101) Enable SMB/CIFS Print/File Server: select or clear Enable SMB/CIFS Print/File Server support. It is enabled in Factory Default. -Enable Internet Access: select or clear Enable Internet Access support. If you clear the item, you do not allow that users can access your SMB/CIFS server via Internet.
  • Page 86 2.NetUSB Mode: In this mode, you can access the USB storage using NetUSB technology. In this mode, FAT16/32 and NTFS file formats are supported, but only one user is allowed to access the storage at the same time. Please refer to chapter 9 for the details about NetUSB technology. Mini-MFP...
  • Page 87 User Accounts: You can change administrator name and password or add a user account for SMB/CIFS Print/File server and FTP File server. If you forgot administrator name and password, you must perform Restore Factory Default action by plugging in the power adaptor while pressing the Init button.
  • Page 88 Community name. SNMP V3 Enable SNMP V3: select or clear Enable SnmpV3 support User Security name: set user security name of SNMP v3 Auth Password: set authentication password of SNMP v3. Privacy Password: set privacy password of SNMP v3. Mini-MFP...
  • Page 89 Restart Server: click this button, the Server will restart. Maintenance If you want to restore factory default values of the Server and upgrade new firmware, you can use the Maintenance tool. Factory Default: click this button, the Server will restore factory default values.

  • Page 90: Chapter 11 Email Alerting

    HP OpenView to manage the Server. The Server supports all relevant parts of MIB-II and a private MIB. You can set these MIB variables from the Server s web pages or by using the Control Center. Mini-MFP...

  • Page 91: Chapter 13 Troubleshooting

    Troubleshooting This chapter provides useful information to help you resolve difficulties that you may experience with your Server. Fault symptoms, possible causes, and remedial actions are provided within a quick reference table. This Server s USB ports only support MFPs, printers, scanners, and mass storage.

  • Page 92: Usb Device Status

    Mass Storage Ready Storage is ready Error There are errors in network File server Scanner Ready Scanner is ready Flatbed Scanning Flatbed of scanner is scanning. Scrollfed of scanner is scanning Scrollfed Scanning Error There are errors in network scanning Mini-MFP...

  • Page 93: Chapter 14 Restore Factory Defaults

    Restore Factory Defaults You may restore the Server's default parameters by one of the following methods. 14.1 Using the Control Center 1.Start the Control Center. 2.If the tool finds Servers in your local area network, then you have to select a Server from the Server List. 3.Double click the highlight list and enter the Server's administrator (default: admin) and password (default: 0000).

  • Page 94: Using Init Button

    Finally, the Server will operate using the Factory Default values. 14.4 Default Parameters List Host Information Comment (Optional): PCI USB 2.0 MFP and File Server Host Name: Mini-MFP Workgroup: WORKGROUP Code Page of File Server: Western European TCP/IP Automatically get IP by DHCP: Enabled - Manual DNS: None (Disabled).
  • Page 95 - SANE Port: 6566 UPnP: Enabled User Accounts Administrator: admin Password: 0000 SNMP Authentic Community: public Trap Community: public Trap Address: 0.0.0.0 SysContact: sales@planex.com.tw SysName: PCI USB 2.0 MFP and File Server SysLocation: www.planex.net EnableAuthenTrap: 2 (disable) SNMPv3: Disabled Chapter14 Restore Factory Defaults...
  • Page 96 - Auth Password: None - Privacy Password: None Email SMTP Protocol: Disabled SMTP Server Name: None SMTP Port Number: 25 Subject: None From Address: None To Address: None Cc: None SMTP Server requires authentication: Disabled - Account Name: None - Password: None Mini-MFP...

  • Page 97: Chapter 15 Upgrade Firmware

    Upgrade Firmware This chapter describes how to upgrade firmware. Please follow one of the following Procedures: Procedure A: Using the Control Center 1.Open Control Center. It will automatically search the existing Servers and display their statuses. 2.Select the Server that you want to upgrade the firmware. Double click the selected Server and enter Administrator (default: admin) and Password (default: 0000).
  • Page 98 6.Login the Server with Administrator (default: admin) and Password (default: 0000). 7.Click Maintenance. 8.Click Upgrade Firmware. 9.Click Browse button to choose the file of new firmware. 10.Click Upload button to start firmware upgrade. 11.Wait for 20 seconds for system reboot. Mini-MFP...
  • Page 99 Procedure C: Using the Init Button and the TFTP Client 1.Plug in the power adaptor while pressing the Init button until LED indicators of Power, USB1 and USB2 blink. Please note that after that, the Server will operate using the factory default values after restarting, i.e., your Server s configuration will recover to Factory Default values.

  • Page 100: Chapter 16 The Init Button

    The Init Button The Init button is used for maintenance: Simultaneously press Init button and turn on (by plugging in the power adaptor) the Server until USB1 and USB2 LED indicators simultaneously blink. After that, the Server will do the following tasks: A.Perform a Factory Default of the MFP server, which will restore most of the parameters and settings to factory default values, B.Perform a TFTP server.
