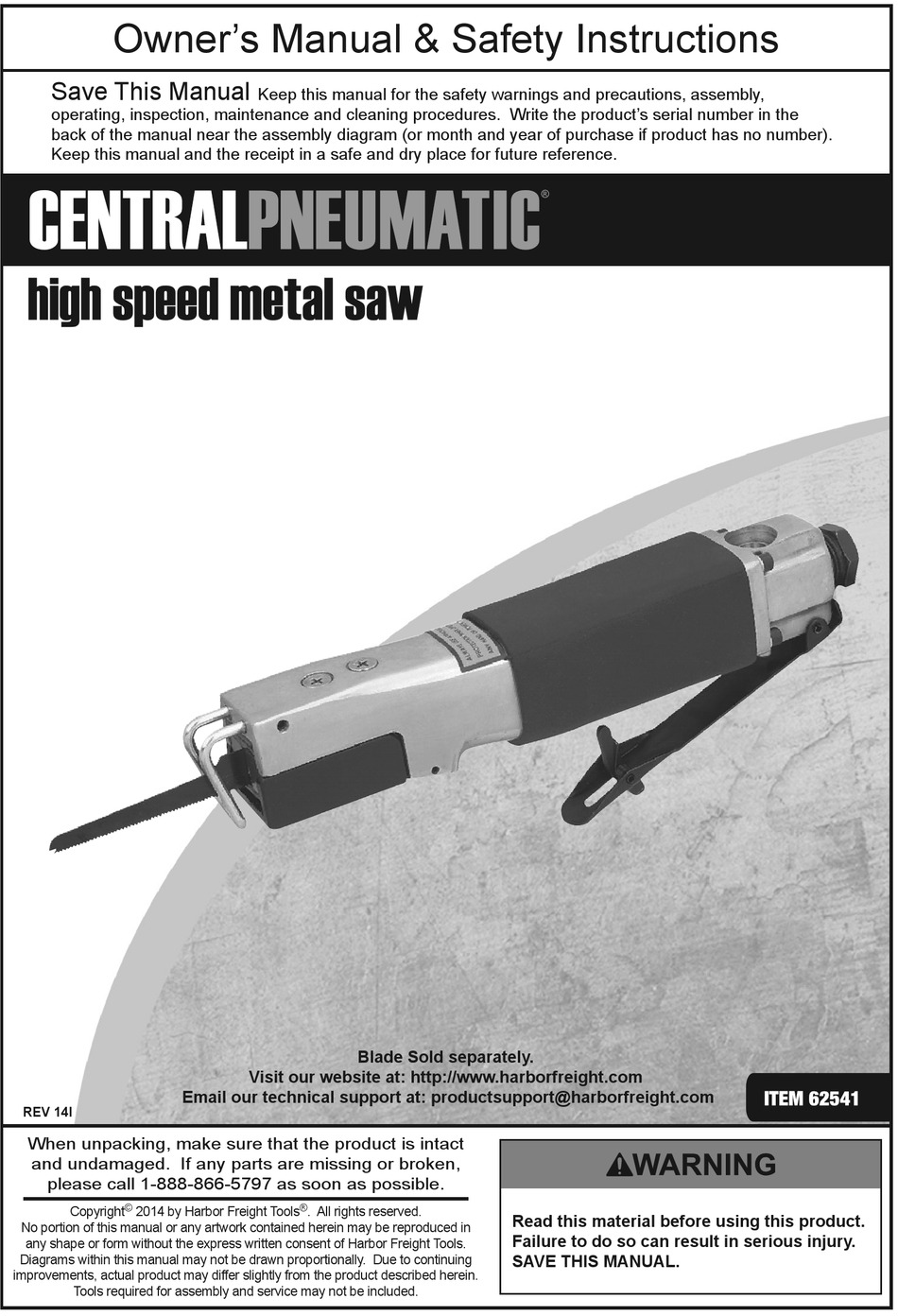

Owner's Manual & Safety Instructions
Save This Manual
operating, inspection, maintenance and cleaning procedures� Write the product's serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number)�
Keep this manual and the receipt in a safe and dry place for future reference�
email our technical support at: productsupport@harborfreight.com
reV 14l
When unpacking, make sure that the product is intact
and undamaged� If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible�
©
Copyright
2014 by Harbor Freight Tools
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools�
Diagrams within this manual may not be drawn proportionally� Due to continuing
improvements, actual product may differ slightly from the product described herein�
Tools required for assembly and service may not be included�
Keep this manual for the safety warnings and precautions, assembly,
Blade Sold separately.
Visit our website at: http://www.harborfreight.com
®
� All rights reserved�
read this material before using this product.
Failure to do so can result in serious injury.
SaVe tHiS ManuaL.
Advertisement
Related Manuals for CentralPneumatic 62541
Summary of Contents for CentralPneumatic 62541
- Page 1 Owner’s Manual & Safety Instructions Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance and cleaning procedures� Write the product’s serial number in the back of the manual near the assembly diagram (or month and year of purchase if product has no number)� Keep this manual and the receipt in a safe and dry place for future reference�...
-
Page 2: Table Of Contents
WarninG – When using tools, basic precautions should always be followed, including the following: General to reduce the risks of electric shock, fire, and injury to persons, read all the instructions before using the tool. Page 2 For technical questions, please call 1-888-866-5797. Item 62541... -
Page 3: Safety
13� Do not reach underneath the work� applicable conditions� Wear heavy-duty work gloves during use� Item 62541 For technical questions, please call 1-888-866-5797. Page 3... - Page 4 Such gases are capable of explosion pressure or within the rated pressure range and serious injury to persons� as marked on the tool� Always verify prior to SaVe tHeSe inStructiOnS. Page 4 For technical questions, please call 1-888-866-5797. Item 62541...
- Page 5 Using tools with only one hand that are specially designed to filter out can result in loss of control� microscopic particles� (California Health & Safety Code § 25249�5, et seq.) Item 62541 For technical questions, please call 1-888-866-5797. Page 5...
- Page 6 (such as tingling, tool as explained in this manual� numbness, and white or blue fingers), seek If abnormal vibration occurs, stop immediately� medical advice as soon as possible� SaVe tHeSe inStructiOnS. Page 6 For technical questions, please call 1-888-866-5797. Item 62541...
-
Page 7: Specifications
Excess air pressure is hazardous and may cause the tool to exceed stated maximum speed� components and controls Housing (28) air inlet (9) Blade Guard (34) throttle (13) Blade chuck cover (26) (sold separately) Safety Lever Item 62541 For technical questions, please call 1-888-866-5797. Page 7... -
Page 8: Operation
The air hose must be long enough to reach the work area with enough extra length to allow free movement while working� Page 8 For technical questions, please call 1-888-866-5797. Item 62541... - Page 9 Provides quick connection and release Leader Hose (optional) Increases coupler life Air Cleaner / Dryer (optional) Prevents water vapor from damaging work piece Air Adjusting Valve (optional) For fine tuning airflow at tool Item 62541 For technical questions, please call 1-888-866-5797. Page 9...
- Page 10 Screw (38)� Swing the Chuck Cover (26) back on its hinge� See Figure D� note: When Saw is in the upside down position, the blade teeth will face upward� Hex Wrench Figure e Page 10 For technical questions, please call 1-888-866-5797. Item 62541...
- Page 11 Saw to vibrate out of your control causing serious injury� WarninG! to prevent tool and accessory failure, resulting in injury, do not exceed the tool’s maximum air pressure rating. Item 62541 For technical questions, please call 1-888-866-5797. Page 11...
- Page 12 2� Make sure that the Housing that Have the internal mechanism holds the blades and Air Inlet (9) cleaned, inspected, and lubricated are free of dirt and debris� by a qualified technician� Page 12 For technical questions, please call 1-888-866-5797. Item 62541...
- Page 13 3� Replace damaged components� 4� Dirty, worn or damaged valve� 4� Clean or replace valve assembly� Follow all safety precautions whenever diagnosing or servicing the tool. Disconnect power supply before service. Item 62541 For technical questions, please call 1-888-866-5797. Page 13...
-
Page 14: Parts List And Diagram
If product has no serial number, record month and year of purchase instead� note: Some parts are listed and shown for illustration purposes only, and are not available individually as replacement parts� Page 14 For technical questions, please call 1-888-866-5797. Item 62541... - Page 15 Item 62541 For technical questions, please call 1-888-866-5797. Page 15...
- Page 16 Limited 90 Day Warranty Harbor Freight Tools Co� makes every effort to assure that its products meet high quality and durability standards, and warrants to the original purchaser that this product is free from defects in materials and workmanship for the period of 90 days from the date of purchase� This warranty does not apply to damage due directly or indirectly, to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper installation, normal wear and tear, or to lack of maintenance�...
