Masport R5000 WOOD FIRE Installation Instruction

Masport R5000 WOOD FIRE Installation Instruction

Hide thumbs Also See for R5000 WOOD FIRE:
1
2
3
4
5
6
7
8

Advertisement

Table of Contents

MODEL:
R5000 WOOD FIRE
INSTRUCTION FOR FAN INSTALLATION
15.11.2013
583271

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5000 WOOD FIRE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Masport R5000 WOOD FIRE

Summary of Contents for Masport R5000 WOOD FIRE

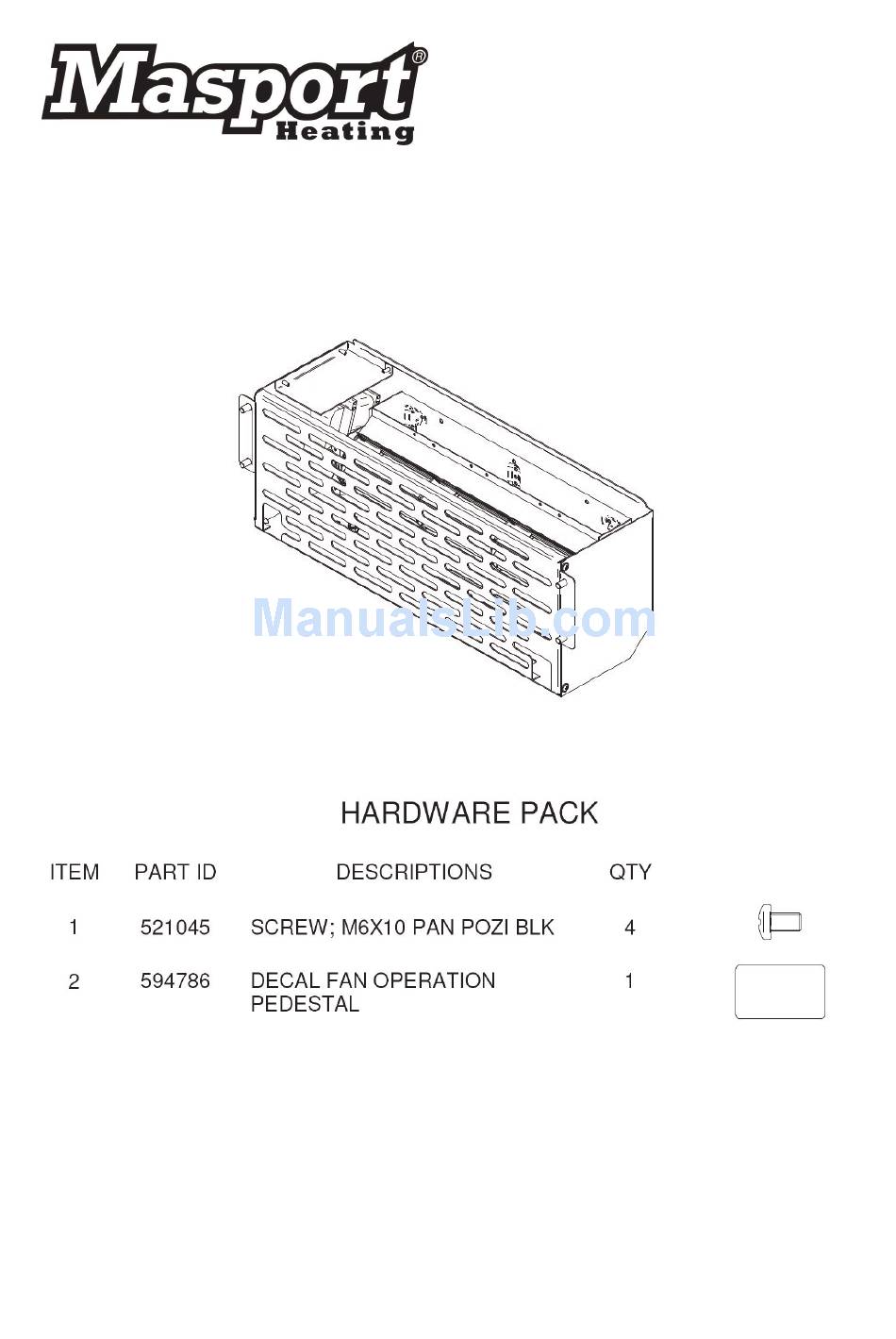

  • Page 1 MODEL: R5000 WOOD FIRE INSTRUCTION FOR FAN INSTALLATION 15.11.2013 583271...
  • Page 2 CAUTION: YOU NEED A POWER POINT ON THE WALL, SO THAT YOU CAN PLUG IN THE FAN. NO POWER POINT SHALL BE LOCATED IMMEDIATELY ABOVE THE HEATER. IF ANY ELECTRICAL WORK IS REQUIRED, IT MUST BE CARRIED OUT BY A LICENSED ELECTRICIAN. IN SOME REGIONS POWER POINTS ARE NOT PERMISSIBLE WITHIN THE FLOOR PROTECTOR AREA, PLEASE CHECK WITH YOUR LOCAL AUTHORITY.
  • Page 3 Figure 2. Earth connection installation Figure 3. Fan switch 11. Connect the loose earth wire (green) to the brass tab at rear of the left side of pedestal, this is a push-on connection. 12. Lift the fan assembly and secure to the back of the pedestal with 4 black screws supplied.
  • Page 4 Remove switch from wiring loom. Remove bottom heatshield by unfastening 6 black screws ref. Fig 4. Lift and support the fan whilst feeding the wiring loom through square hole in rear channel of the leg. Continue to feed the end through the knockout fan switch hole, shown in Fig 4 Detail B.
  • Page 5 Figure 5. Circuit Diagram—Revision B— 15.11.2013...
  • Page 6 AIRSLIDE REPLACEMENT (NZ MODEL ONLY): In New Zealand, a special Airslide marked 983278 must be fitted if the fan is installed. Procedure for replacing Air Slide is shown as follows: Step One (Figure 6): Remove the door from the heater. Remove 2 x (M6X10) screws which fasten the louver in position.
  • Page 7 Step Four (Figure 9): While holding the deflector in correct position ref detail D of Fig 9, refit the new Airslide (983278) to the front of the heater. Refit 2 spacers and 2 x (M6X50) bolts back to the top front of the heater. Tighten the 2 x M6 nuts to the back of the air deflector to secure all the parts together.
  • Page 8 SAFETY: THE APPLIANCE IS NOT INTENED FOR USE BY YOUNG CHILDREN OR INFIRM PERSONS WITHOUT SUPERVISION. SUPERVISE YOUNG CHILDREN TO ENSURE THEY DO NOT PLAY WITH THE APPLIANCE. IF A SUPPLY CORD IS DAMAGED, IT MUST BE REPLACED BY THE MANUFACTURER, ITS SERVICE AGENT OR A SUITABLY QUALIFIED PERSON, IN ORDER TO AVOID ELECTRICAL HAZARD.
