Konig KN-BM60 Manual

Konig KN-BM60 Manual

Ip baby and child monitor
Hide thumbs Also See for KN-BM60:

Advertisement

Quick Links

Download this manual See also: Manual
KN-BM60
MANUAL
IP Baby and Child Monitor

Advertisement

loading
Need help?

Need help?

Do you have a question about the KN-BM60 and is the answer not in the manual?

Questions and answers

Related Manuals for Konig KN-BM60

Summary of Contents for Konig KN-BM60

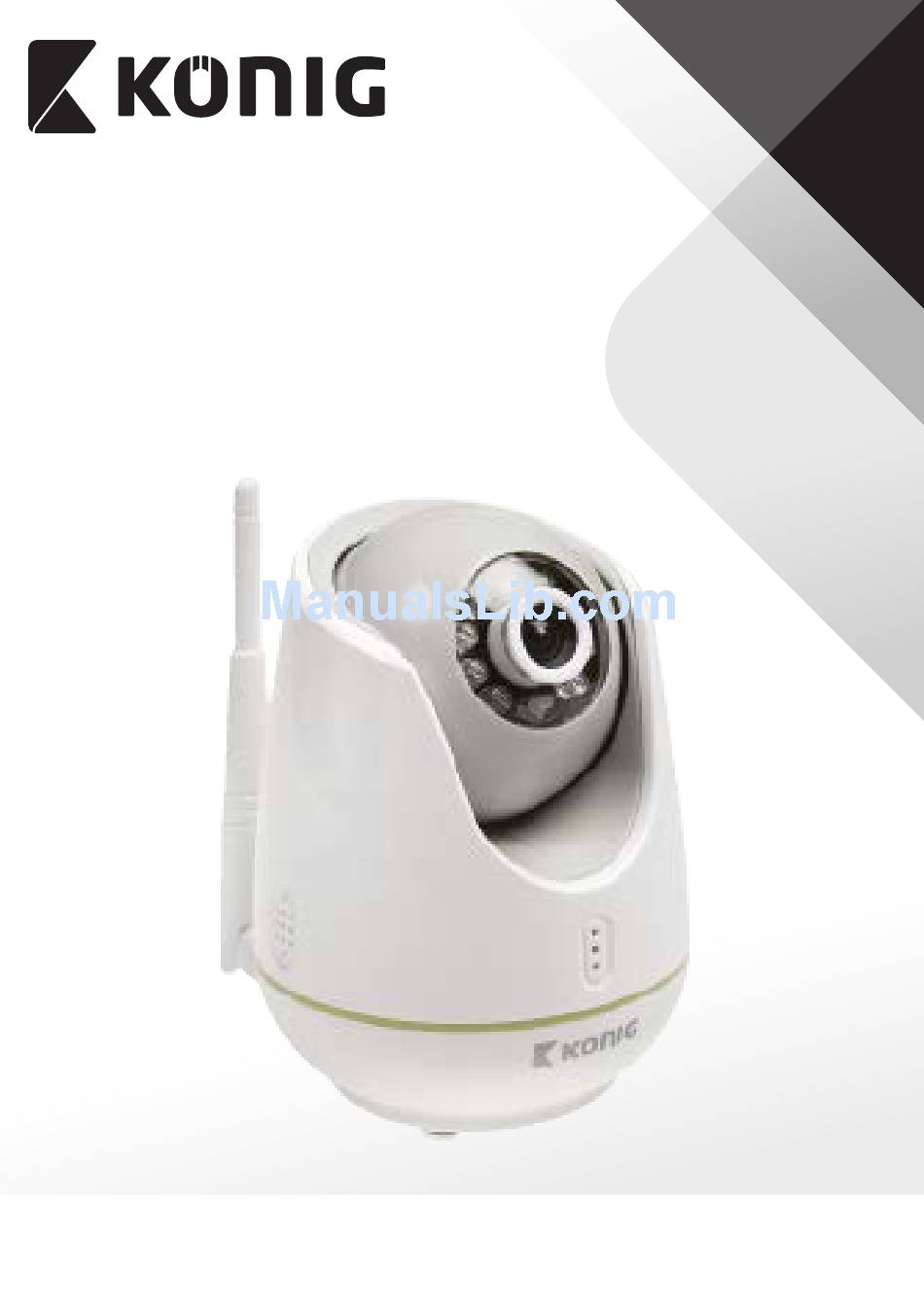

  • Page 1 KN-BM60 MANUAL IP Baby and Child Monitor...
  • Page 2 ENGLISH Table of contents • Introduction • Safety precautions • Packaging content • System requirements • Product description • User instructions • Maintenance • Warranty • Disclaimer • Disposal Introduction The wireless kids monitor more than just a baby monitor with pan & tilt function enables parents to check the complete room within seconds and makes this product a perfect monitoring solution during the growing up years of their child.

  • Page 3: Product Description

    ENGLISH Product description 1. Microphone 2. Light intensity sensor 3. Lens 4. IR LED 5. Loudspeaker 6. Antenna 7. Micro SD card slot 8. 5 V DC input 9. IO alarm connector 10. Ethernet connector 11. Temperature sensor Bottom • Wi-Fi/Ethernet switch •...

  • Page 4: Hardware Installation

    ENGLISH Warning: Please use the power adapter included with your camera to avoid damage to the camera. When the camera powers up, the status LED will be Green for about 15 seconds before flashing Red. If there is no Red LED flashing, please unplug the power cord, wait 5 seconds, then re-connect the power again.
  • Page 5 ENGLISH 1. Router Mode 2. WPS (Wi-Fi Protect Setup) Mode (Requires a Router with WPS function using WPA/WPA2 encryption - WEP encryption will not work) Play List Tab Go to this Tab to view all Pictures taken by User via Smartphone. The Pictures will be listed by camera.
  • Page 6 ENGLISH Write down or have handy, the SSID of your Wi‑Fi Router and your Wi‑Fi Password. For example, the SSID may be something like “TP‑Link‑XXXXX” or “NETGEAR”. You will need both the SSID and the Password during this process. 1. Make sure the status LED on IP baby and child monitor is blinking Red and Green.
  • Page 7 ENGLISH E. Android – Setup IP baby and child monitor Wi‑Fi There are two methods to setup IP baby and child monitor to connect to a new Wi-Fi Router. Method 1: Use WPS (Wi‑Fi Protected Setup) Available if your Wi-Fi Router supports WPS and it is set to use WPA or WPA2 security encryption.
  • Page 8 ENGLISH 7. Please enter a Camera name (2 to 20 characters) and default password “0000”. You are encouraged to change the default password after setup for security purposes. Then click “OK” in the top right corner. 8. The camera will restart and the Smartphone App will automatically connect to the camera in Live View.
  • Page 9 ENGLISH Method 2: Scan QR Code at back of IP baby and child monitor 1. Make sure your Smartphone is connected to the internet. Open up the Smartphone APP “uCare Cam” and click on the “+” at the top right of the screen. 2.
  • Page 10 ENGLISH Method 1: Scan for IP baby and child monitor in local intranet 1. Make sure your Smartphone is connected to the same Router as your IP baby and child monitor. Open up the Smartphone and click on the “Click here to import APP “uCare Cam”...
  • Page 11 ENGLISH 2. Click in the “UID” field to enter typing mode. 3. Type in 20 digit code exactly as printed underneath the QR code in back of IP baby and child monitor. 4. Please enter a Camera name (2 to 20 characters) and the camera password. Default password is 0000.
  • Page 12 ENGLISH 2) Point to Point (P2P) Mode IP baby and child monitor will establish a point to point network connection directly with the Smartphone. Typical scenario will be that the IP baby and child monitor is installed at home or in the office and the Smartphone has a 3G/3.5G/4G internet connection.
  • Page 13 ENGLISH Take Photo Connection Status Information Playlist User can view, delete, and copy picture files. Camera file folder File list per camera...
  • Page 14 ENGLISH File delete Photo view Settings Manage IP baby and child monitor (Default manager name: admin , Default Password: 0000) Only one User can manage a camera that is online and connected to Smartphone APP at any one time. Here, User can: • Check Camera Info • Change Wi-Fi Router • Change Alarm Settings –...
  • Page 15 ENGLISH 1) Change Wi‑Fi Router User can remotely switch the camera to connect to a different Wi-Fi Router. 2) Alert & Notify Setting/Warning & Notify Setting The camera has a number of hardware alarm detection possibilities. User can set the desired trigger and notification. When a new event is generated, the APP will notify the User either through email or through a Phone Push Message.
  • Page 16 ENGLISH Set Email Alerts To setup your email to receive motion/sound/etc. alerts, please login to the “Settings” page with Manager name and password (default: admin/0000). 1) Click on “Alert & Notify Setting” or “Warning & Notify Setting”. 2) Click on “Email snapshot alert”. 3) You will see a variety of options.
  • Page 17 ENGLISH • SMTP Mail Settings – Only either SMTP or Gmail mail settings can be set. Please enter your email provider’s SMTP server settings. You may need to contact your email provider for the server settings. Please enter your email address and email password. This account will be used as the “Sender”...
  • Page 18 ENGLISH 4) SD Card Recording Setting User can insert a microSD card into the camera to enable the recording function. Trigger Recording: The camera will automatically start recording when a trigger event (motion, sound, and other events) have occurred. The camera will record for 60 seconds. If another trigger event occurs, the camera will record for another 60 seconds;...

  • Page 19: Password Setting

    ENGLISH 6) Password Setting The two-level password management system allows the user to safely and effectively manage the camera. First layer: Camera password – able to view the camera. Default value is 0000 Second layer: Manager’s Name and Password – able to view and set IP baby and child monitor settings.
  • Page 20 ENGLISH J. Update your IP baby and child monitor firmware 1. Download firmware and un-compress the file. 2. Copy “update.bin” to microSD Card top folder, for example H:\. 3. Turn off power to IP baby and child monitor and insert microSD card into IP baby and child monitor microSD slot in back of IP baby and child monitor.
  • Page 21 ENGLISH 2) The live video stream is very slow. IP baby and child monitor will automatic adjust video streaming speed according to smartphone’s internet connection. It will start sending video from a low frame rate and gradually increase the frame rate. It may take 1-2 minutes for the frame rate to stabilize. If performance is still not satisfactory –...
  • Page 22 ENGLISH 7) Why can’t IP baby and child monitor connect with Wi‑Fi Router using WPS Mode? a. Make sure Router’s WPS function is enabled. b. Please try Router model if WPS mode setup failed. 8) What is the frequency of email alert and smartphone notify alert? Ans: Once motion or sound detection is triggered, then IP baby and child monitor will send email and phone notify immediately.
  • Page 23 ENGLISH Maintenance Clean the product only with a dry cloth. Do not use cleaning solvents or abrasives. Warranty Any changes and/or modifications to the product will void the warranty. We cannot accept any liability for damage caused by incorrect use of this product.
