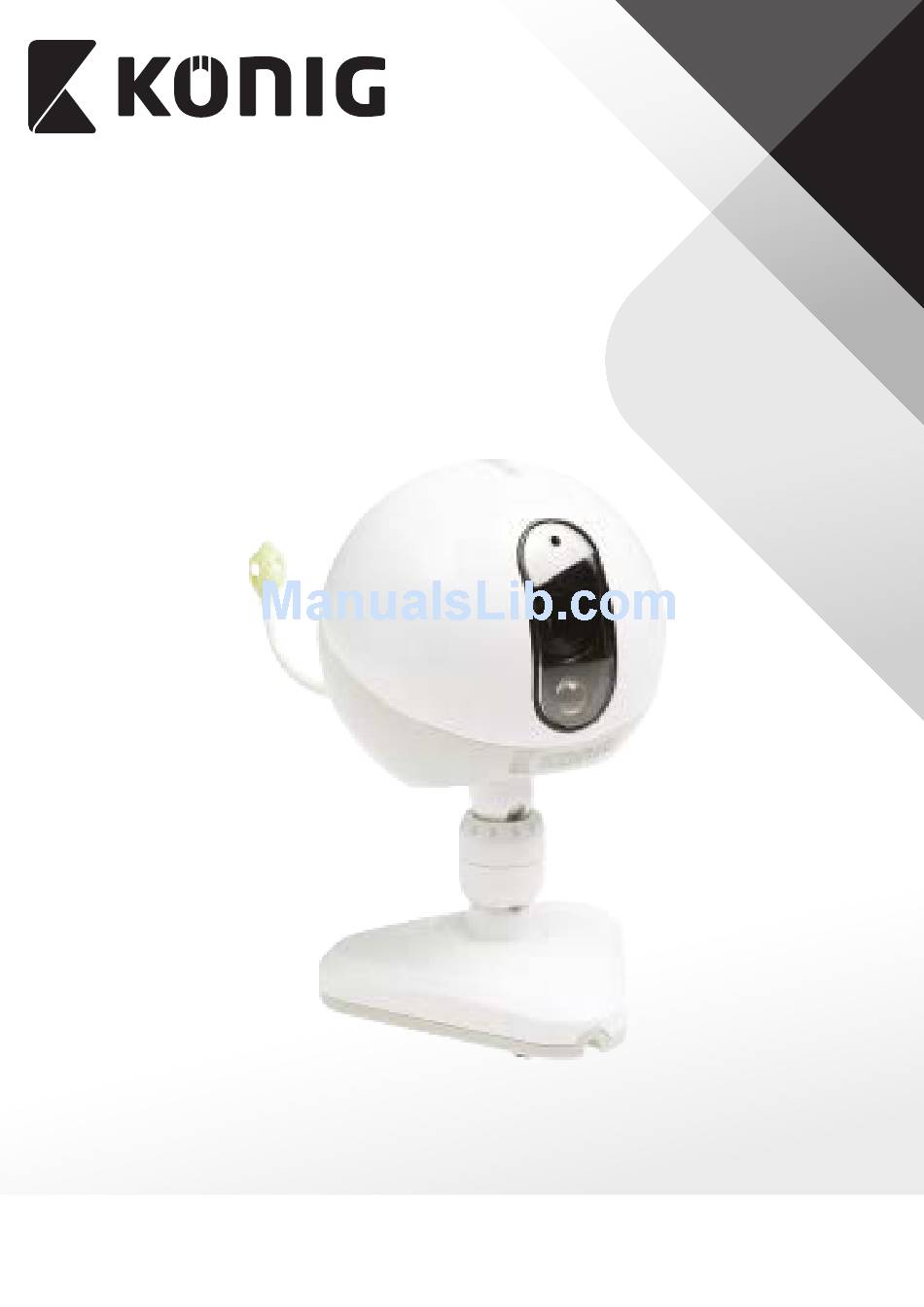

KN-BM40
MANUAL
IP Baby Monitor

Advertisement

loading
Need help?

Need help?

Do you have a question about the KN-BM40 and is the answer not in the manual?

Questions and answers

Summary of Contents for Konig KN-BM40

  • Page 1 KN-BM40 MANUAL IP Baby Monitor...
  • Page 2: Table Of Contents

    ENGLISH Table of contents • Introduction • Safety precautions • Packaging content • System requirements • Technical specifications • Product description • User instructions • Warranty • Disclaimer • Disposal Introduction The wireless baby monitor enables parents to maintain a secure connection with their baby anytime, anywhere.
  • Page 3: Technical Specifications

    ENGLISH Technical specifications Specifications KN-BM40 Video codec MJPEG Resolution VGA 640 x 480/QVGA 320 x 240/QQVGA 160 x 120 Frame rate 1~25 fps Image sensor CMOS Lens 3.0 mm Night vision 1 Lux, 5 meter Flash memory 8 MB Card storage...
  • Page 4: Product Description

    ENGLISH Product description KN-BM40 Front 1. LED indicator for status of IP camera 2. Light intensity sensor for IR LED 3. IR LED for 5 meter night view 4. Microphone Back 5. WPS/Reset button for set-up and reset 6. Slot for Micro SD card 7.
  • Page 5: User Instructions

    ENGLISH User instructions A. Hardware Installation 1. Please find a location to install IP baby monitor that is within good Wi-Fi signal reach of your home Router. 2. If you plan to hang the IP baby monitor, you can use the mounting kit found in inside box. 3.
  • Page 6 ENGLISH Camera List Tab This is the main App screen. In this tab, all of the cameras which have been added will be listed. Wi-Fi Setting or Wi-Fi Connect Tab Please go to this tab to configure IP baby monitor Wi-Fi settings. There are two methods to install a new IP baby monitor and connect it to a Wi-Fi Router.
  • Page 7 ENGLISH 6. Use the smartphone App to add IP baby monitor into the Camera List. See instruction manual – “iOS - Add IP baby monitor (already connected to router) to App”. Method 2: Use Router Mode You will first need to connect to the router that is available inside the uCare Cam, configure the Wi-Fi settings for your home router, then IP baby monitor will restart and connect to your home router.
  • Page 8 ENGLISH 7. Your iOS device should have disconnected from “Wi-Fi-cam-p2p” and reconnected to your home router. Please check that your iOS device has connected to your home router now, via “Settings” -> “Wi-Fi”. If it has not, please connect your smartphone to your home router Wi-Fi. 8.
  • Page 9 ENGLISH 1. Open the Smartphone APP “uCare Cam” and click on the tab at the bottom of the screen that says “Wi-Fi Setting”. 2. Click on “Router mode”. 3. Make sure the status LED on IP baby monitor is blinking Red and Green. If the status LED is not blinking Red and Green, please press and hold the WPS/RESET button for 10 seconds to reset the uCare Cam.
  • Page 10 ENGLISH F. iOS – Add IP baby monitor (already connected to Router) to App There are three ways to add a IP baby monitor to the Camera List view if the IP baby monitor is already connected to the internet. You can: • Scan for IP baby monitor in local intranet • Scan QR code at the back of IP baby monitor • Type in 20 digit code...
  • Page 11 ENGLISH 5. You will see the Camera name now in Camera List view. It should indicate that the Camera is “Online”. To connect to the Camera, please click on the Camera name. If the Camera is not “Online”, you may need to force reconnect. To force reconnect, click on the right arrow and click on “Reconnect”.
  • Page 12 ENGLISH Method 1: Scan for IP baby monitor in local intranet 1. Make sure your smartphone is connected to the same router as your uCare Cam. Open up the Smartphone App “uCare Cam” and click on the “Click here to import installed Wi-Fi-Cam” at the top of the screen. 2.
  • Page 13 ENGLISH Method 3: Type in 20 digit QR code 1. Make sure your smartphone is connected to the internet. Open up the Smartphone App “uCare Cam” and click on the “Click here to import installed Wi-Fi-Cam” at the top of the screen. 2.
  • Page 14 ENGLISH Connection Types There are three types of network connection types possible between IP baby monitor and your Smartphone App. 1) Local Area Network (LAN) Mode Both IP baby monitor and your smartphone are connected to the same Wi-Fi Router. Typical frame rate will be around VGA 640 x 480 15~20 fps.
  • Page 15 ENGLISH I. Using the uCare Cam App The IP baby monitor has a lot of functions possible through the Smartphone App. Please see below for some of the key functions. Camera List Edit Camera Info Add Camera that has already setup Wi-Fi Camera On-Line Take Photo Connection Status...
  • Page 16 ENGLISH Playlist User can view, delete, and copy picture files. Camera file folder File list per camera File delete Photo view...
  • Page 17 ENGLISH Settings Manage uCare Cam (Default manager name: admin, Default Password: 0000) Only one user can manage a camera that is online and connected to the smartphone App at any one time. Here, the user can: • Check Camera Info • Change Wi-Fi Router •...
  • Page 18 ENGLISH Set Email Alerts To setup your email to receive motion/sound/etc. alerts, please login to the “Settings” page with Manager name and password (default: admin/0000). 1) Click on “Alert & Notify Setting” or “Warning & Notify Setting”. 2) Click on “Email snapshot alert”. 3) You will see a variety of options.
  • Page 19 ENGLISH • Email snapshot alert – Turn email on/off • Motion detection enabled – Turn motion detection on/off • Sensitivity – Motion detection sensitivity (High, Medium, Low) • Sound detection enabled – Turn sound detection on/off • SD card remove detection – Send alert if SD card is removed • SD card out of space alert –...
  • Page 20 ENGLISH 4) SD Card Recording Setting User can insert a microSD card into the camera to enable the recording function. Trigger Recording: The camera will automatically start recording when a trigger event (motion, sound, and other events) have occurred. The camera will record for 60 seconds. If another trigger event occurs, the camera will record for another 60 seconds;...
  • Page 21 ENGLISH 5) Play SD Card Video Click on the Video file to play. 6) Password Setting The two-level password management system allows the user to safely and effectively manage the camera. First layer: Camera password – able to view the camera.
  • Page 22 ENGLISH 7) Date & Time User can only adjust the Time Zone. The Date and Time will be factory set and the user cannot change. App Info In the App info page, user can see options related to the App, not specific to a camera. To go to App info page, please click on on top right hand of screen.
  • Page 23 ENGLISH J. Update your IP baby monitor firmware 1. Download firmware and un-compress the file. 2. Copy “update.bin” to microSD Card top folder, for example H:\. 3. Turn off power to IP baby monitor and insert microSD card into microSD slot in back of IP baby monitor.
  • Page 24 ENGLISH LED Colour Description Green slow flashing Searching and Connecting to Wi-Fi router (IP baby monitor will reboot automatically every hour in this status) Orange Connected to Wi-Fi Router Red fast flashing WPS pairing failed 4) My IP baby monitor does not connect to the router. It’s possible that there are too many Wi-Fi routers nearby using the same channel and they interfere with each other.
  • Page 25: Warranty

    ENGLISH 10) In iOS, I cannot see the IP baby monitor router “Wi-Fi-cam-p2p”. After some time, the IP baby monitor Router will no longer broadcast the SSID “Wi-Fi-cam- p2p”. Please reset IP baby monitor by pressing the WPS/RESET button for ~10 seconds. Then please take note of the LED colour.
