Summary of Contents for CSI CS108G+

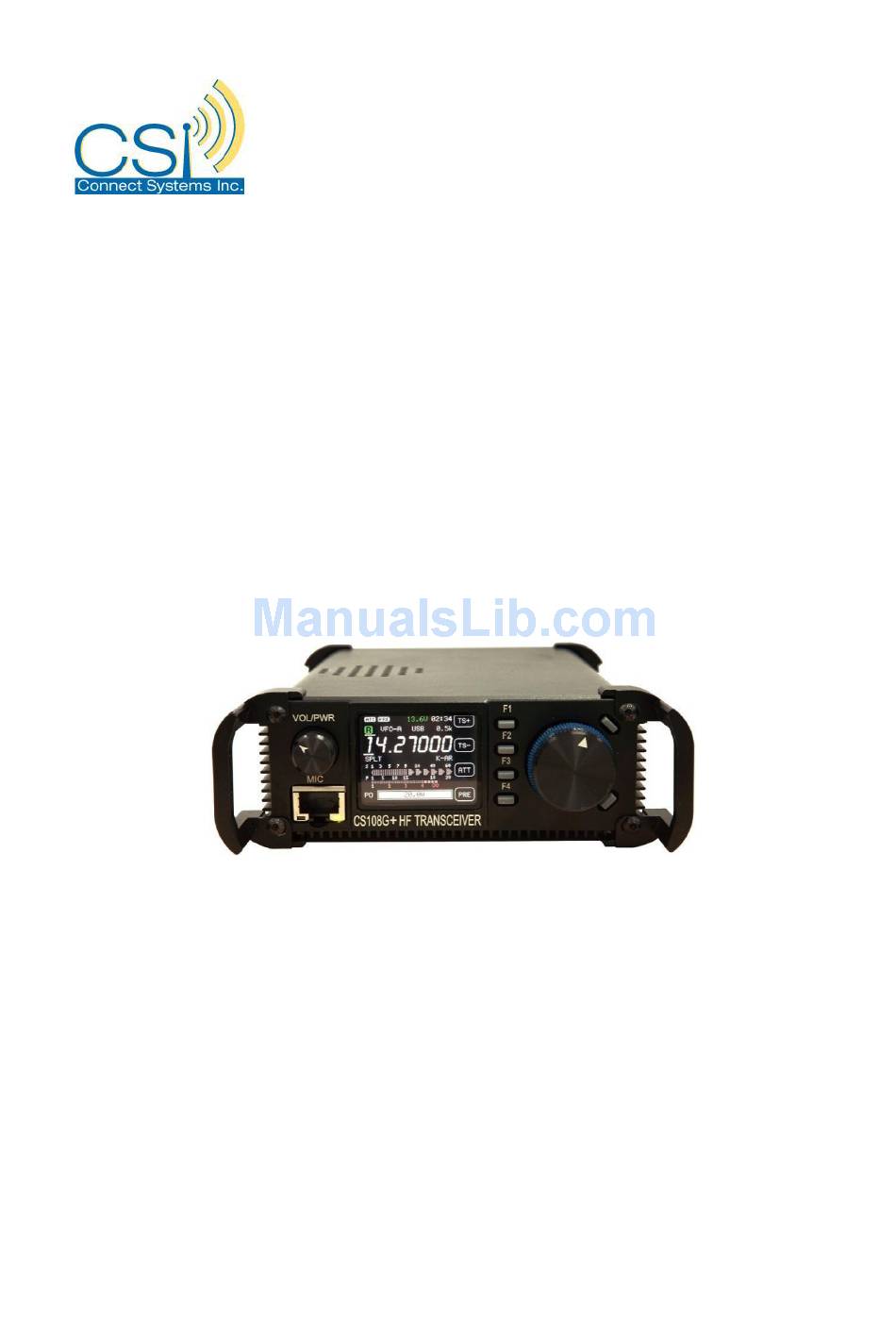

- Page 1 HF TRANSCEIVER CS108G+ Outdoor version Operating Manual Connect Systems Inc. 5321 Derry Avenue Suite B, Agoura Hills, California 91301 U.S.A. www.connectsystems.com (818) 889-0503...
-
Page 2: Important Reminder
Security considerations: Important reminder: Before operating the equipment, please read our operating manual carefully and keep the manual where it will not be lost. Do not use equipment during a lightning storm. Features: Lownoise, single conversion transceiver.Double balanced diode mixer for extended dynamic range. -
Page 3: Packing List
① Packing list: Quantity ① CS108G+....1 ② Power supply cable..1 ③ Hand microphone... 1 ④ USB Cable....1 ⑤ Service card....1 ② ⑤ ③ ④ 一、Specification’s... - Page 4 Basic specifications I ． Specification: General Specifications Frequency range: Receive:0.5~30MHz （ Continuous ） Transmitting: All HF Amateur bands including WARC bands （J3E） Operating mode: SSB （A1A） （A3E） Minimum frequency step: 10Hz Antenna impedance: 50Ω º Maximum operating temperature: 55℃(131 Frequency stability: ±0.5ppm @ 5 minutes after applying power Operating voltage: 12~14.5V DC Current draw: Receiving: 600mA @Max...
- Page 5 Receiving IF Frequency: 10.7MHz receive sensitivity: 0.5uV @ 12dB SINAD (PRE ON，≤2.0MHz） 0.35uV @ 12dB SINAD (PRE ON，＞2.0MHz） Receive Frequency bands: 1.8~2.0MHz 3.5~4.0MHz 5.0~5.5MHz 7.0~7.3MHz 10.0~10.2MHz 14.0~14.5MHz 18.0~18.2MHz 21.0~21.6MHz 24.8~25.0MHz 28.0~28.8MHz Dynamic range :Better than 90db RIT (Receiver Incremental Tuning) Frequency control range: ±1kHz audio output: 0.5W@8Ω...
-
Page 6: Description Of Equipment
II. Description of equipment 2.1 Front Panel Description 1. Metal handle 2. Power switch/Volume knob 3. Color OLED display screen 4. Microphone port 5. UP Key 6. Multi-function Key 7. Main function knob(frequency knob) 8. DOWN Key... - Page 7 2.2 Rear Panel Description 1. Back metal handle 2. Antenna interface 3. AUX port 4. External speaker output 5. KEY port 6. ACC port 7. USB port 8. DC power input 9. Ground connection.
- Page 8 2.3 Microphone 1. Lock button/Press it again unlock 2. PTT button:Launch control button 3. Up / Down: In the system settings menu, upper and lower entry selection 4. Receiving indicator 5. Multi-function 6. Filter selection buttons：Selection of built-in filter 7. Mode selection button：Selection of working mode of the host 8.
- Page 9 2.4 Display information description 1. Pre-attenuator/Preamplifier/Voice compression 2. Receiving / transmitting status 3. Current operating frequency value 4. Current functional status: SPLIT, NB Suppressor, AGC, Key mode 5. Received signal strength indicator 6. Real time power/SWR indicators 7. The current input voltage display 8.
- Page 10 ． Operating instructions To go between different screens, press the Main Function Knob. Screen display instructions 【TS+】Increase frequency step This moves the frequency marker from right to left. When it gets to the far left it wraps around to the lowest digit. When you turn the frequency knob clockwise, you increase the frequency based on the frequency step you are under.
- Page 11 【PRE】Switch receive preamp on or off When the Preamp is on, the sensitivity is increased about 10 dBm. You would typically keep the preamp on when you want to listen to very weak signals. The preamp increases the background noise as well as the weak signals. When the preamp is on, there is a small PRE indication near the top left of the screen...
- Page 12 Select desired operating mode – CW/AM/LSB/USB. 【MODE】 Select CW for Morse Code, AM for amplitude modulation, LSB for lower side band when using single sideband modulation, and USB for upper sideband when using single sideband modulation. The modulation choice is shown on the second line about the middle of the screen. 【AGC】...
- Page 13 【A=B】 Set VFO A the same as VFO B. You would keep VFO A and VFO B the same when you want to transmit and receive on the same frequency. This minimizes the spectrum usage and is a good practice when speaking to one other person but is not always the optimum way of doing things.
- Page 14 【V/M】 Select VFO or Memory mode. When in the VFO Mode, the frequency knob will change the frequency. When in the Channel Mode, the frequency knob will change the channel. In Frequency Mode, the VFO can be continually adjusted to a resolution of 10 Hz. In the channel mode, the frequency is whatever the channel was programmed for.
- Page 15 【FIL】 Select filter The radio has three filters optimized for different modes. There is a 500 Hz narrow band filter which is used for CW. There is a 2.3 KHz filter which is used for SSB. There is a 6 KHz filter used for AM. 【KEY】...
- Page 16 【SQL】 Select to adjust Squelch level. Squelch is displayed where the power output used to be. The speed can be adjusted from 0 to 10. The up key and down key is used to adjust the squelch. 【CMP】Voice Compression settings. Compression is displayed where the power output used to be.
- Page 17 Spectrum Analyzer display screen 【BACK】 Close the spectrum screen and return to previous screen. While you are in the spectrum analyzer mode, you cannot hear any audio. Pressing the BACK key allows you to hear what is on the center frequency. 【PEAK】...
- Page 18 3.2 Using your CS108G+ from the Keypad 3.2.1 Set the current operating frequency from the keypad On the microphone, press the function button then input frequency directly, e.g. 14.27, then press the function button F-INPENT again, complete the setting. 3.2.2: Mode Switching from the keypad On the multifunction digital microphone in hand, press to complete the mode switching.
- Page 19 3.3Extended Interface 【AUX】No function 【SPK】External speaker output Speaker or Headphone(3.5 stereo Socket); Otherwise it will damage the rig. Before using the headphone, please decrease the volume. 【KEY】Telegraph Key The telegraph key is automatic or manual operation.You can switch the keyer mode in the corresponding menu.
- Page 20 【ACC】ACC port Pin Definitions 1： 9V Power Output 2： PTT Signal Output 3： Wave Bands voltage output 4： ALC voltage output 5： External Audio input 6： Ground Band voltage parameter 【USB】USB port PC controller firmware update...
- Page 21 【DC IN】 Power port Power socket polarity, as shown: Note ：Power input range: 12~14.5V DC Do not exceed the input voltage range or Reversepolarity. 【Ground hole】 【Ground screw】...
-
Page 22: Advanced Menu Settings
3.4.Advanced Menu Settings CAUTION: THESE SETTINGS ARE DIRECTLY RELATED TO THE CORRECTOPERATION OF THIS RADIO. PLEASE EXERCISE CAUTION. PLEASE RECORD AND SAVE ALL ORIGINAL FACTORY SETTINGS BEFORE MAKING ANY ADJUSTMENTS. 3.4.1 In the shutdown state, press and hold the F1 key on the host and turn on (note, do not release) until the screen displays the data of the engineering menu, as shown below: 1. - Page 23 14. F1 DEF: Custom Key 15. F2 DEF: Custom Key PLEASE SEE ON LINE MANUAL FOR MORE DETAILS OF THE ABOVE PARAMETERS...
- Page 24 user-definedon call sign display 3.4.2 When the power is first applied to the radio, a splash screen is shown that has the name of the company underneath its trademark. You can change the name of your company to your call sign as follows: a.
- Page 25 3.4.3 ADC on the system check value (It is strictly prohibited to modify or delete the data!!) With the power off, hold down the F3 key, and then turn on the power until the special screen is shown. This screen is used to calibrate the S table. Do not modify or delete the data!!It may cause the S table display to be inaccurate or not appear.
-
Page 26: General Troubleshooting
IV General troubleshooting The following is a general troubleshooting guide.If you still cannot solve the problem, please call for assistance or RMA.Do not disassemble the machine or you will lose the warranty. Fault description Possible reasons Solution Power cord is not connected Connect power cable Power is not turned on Turn on the power... - Page 27 PTT pressed does not turn on Microphone Re-connect microphone transmitter Please confirm that the current does not frequency is not in the forbidden Reset frequency band operate No reaction when button is pressed Re-connect microphone Other circumstances Needs repair...
-
Page 28: Warranty Limitations
After sales service policy 1. Warranty clause: The radio has warranty for one year from the date of purchase. This warranty covers only manufacturing and parts defects. It does not cover damage caused by lightning, excess voltage on the power supply, accidental damage, or purposeful damage. If the radio needs warranty repair within two weeks of receiving the radio, Connect Systems Inc. - Page 29 D. Damage is not caused by the material or the quality of production； E. Damage to the shell or other external components due to improper use. Contact us: service@connectsystems.com...
- Page 30 www.connectsystems.com...
