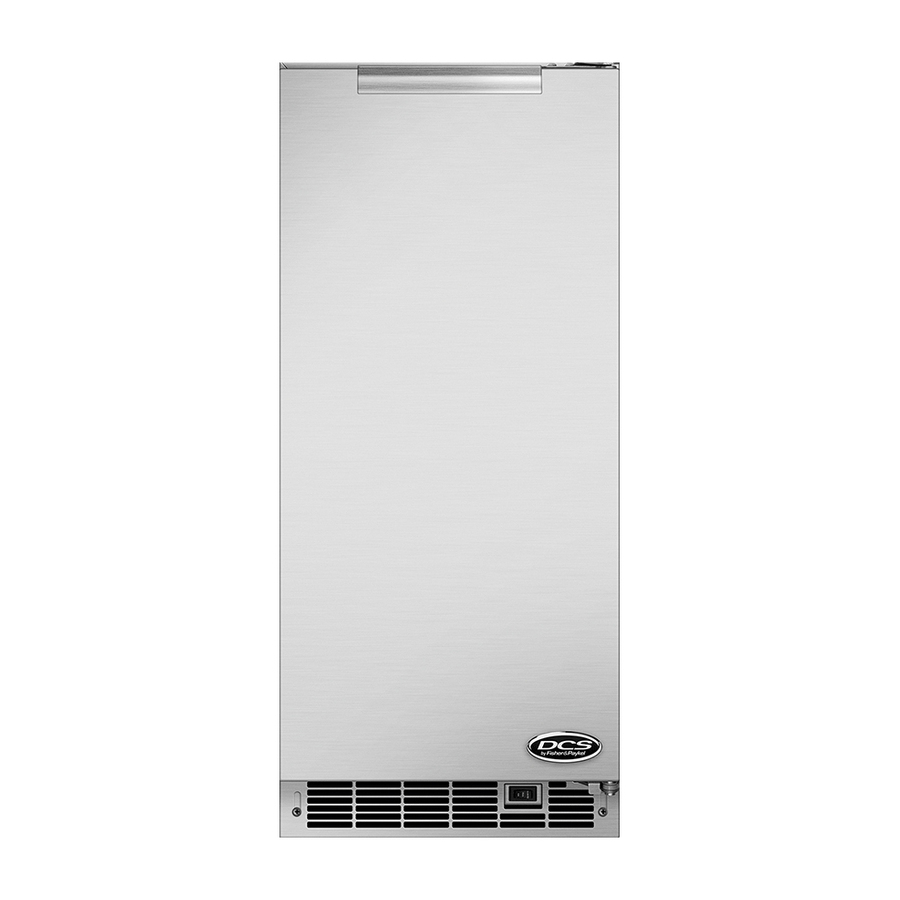

DCS RF151 Installation Instructions & User Manual

Outdoor ice maker
Hide thumbs Also See for RF151:
Table of Contents

Advertisement

Quick Links

See also: Service Manual
INSTALLATION INSTRUCTIONS
USER GUIDE
Outdoor Ice Maker
RF15I models
US CA

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RF151 and is the answer not in the manual?

Questions and answers

Related Manuals for DCS RF151

Summary of Contents for DCS RF151

  • Page 1 INSTALLATION INSTRUCTIONS USER GUIDE Outdoor Ice Maker RF15I models US CA...

  • Page 3: Table Of Contents

    For current To register your product visit our website: details about model and specification www.dcsappliances.com availability in your country, please go to our website www.dcsappliances.com or contact your local DCS by Fisher & Paykel dealer.

  • Page 5: Introduction

    INTRODUCTION Thank you for buying this DCS by Fisher & Paykel Outdoor Ice Maker. This detailed Installation instructions and User guide contains valuable information on how to properly install, operate and maintain your new refrigerator. This refrigerator has many unique features so following the instructions outlined in this book is essential to safe and enjoyable operation.

  • Page 6: Safety And Warnings

    Do not operate electrical equipment or any other equipment that may produce arcs, sparks or flames in the area. Contact your DCS by Fisher & Paykel trained and supported service technician immediately to arrange for the appliance to be repaired.
  • Page 7 SAFETY AND WARNINGS If the power supply cord is damaged, it must only be replaced by your DCS by ● ● Fisher & Paykel trained and supported service technician because special purpose tools are required. When moving your appliance away from the wall, be careful not to roll over or ●...

  • Page 8: Installation Instructions

    INSTALLATION INSTRUCTIONS Product dimensions Datum: front of chassis Datum: front of chassis Datum: bottom of chassis...
  • Page 9 Overall height of cutout min. 34 1/2” (min. 876) Overall width of cutout 15” (381) Overall width of cutout 15 1/2” (394) (with optional DCS side trim kit) Depth of cavity ** min. 24” (min. 610) ** Depth dimension varies depending on individual installation.
  • Page 10 For this reason it is important this area to not be obstructed and the grille openings kept clean. DCS by Fisher & Paykel does not recommend the use of a custom made grille as air flow may be restricted because of inadequate openings.
  • Page 11 The overall height of your DCS ice maker may be adjusted from 33 3/4” (857mm) with the leveling legs turned in, and up to 34 3/4” (883mm) with the leveling legs extended.

  • Page 12: Electrical Connection

    Note: your machine comes with a gravity drain. If you require a drain pump this will need to be purchased separately. Contact your DCS by Fisher & Paykel trained and supported service technician or the Customer Care Center.
  • Page 13 INSTALLATION INSTRUCTIONS Gravity drain, no drain pump Your ice maker has a gravity drain that requires 5/8” outside diameter (O.D.) tubing from the back of the ice maker to a plumbed connection to a sanitary sewer. The gravity drain location for built-in ice makers can be within the shaded area (A). 5/8”...
  • Page 14 If you require a drain pump for your ice maker this can be purchased separately online at www.dcsappliances.com or by contacting the Customer Care Center. Your drain pump will need to be installed by a DCS by Fisher & Paykel trained and supported service technician.

  • Page 15: Drain Pump

    INSTALLATION INSTRUCTIONS Drain pump The drain pump is designed to remove drain water from ice makers installed in areas without direct drainage access. The sealed reservoir pump collects the melted ice water and pumps it to a maximum lift of 8ft (2.44m) through 3/8” I.D. vinyl tubing to a drain. Note: this pump has been evaluated for use with water only.
  • Page 16 INSTALLATION INSTRUCTIONS Connecting the water supply Water supply Connect the ice maker to a potable drinkable water supply only. Do not install on line pressure above 120psi (827kPa) or below 20psi (138kPa). 1/4’’ copper tubing (water supply line) Water supply inlet Screw and clamp connection to shut off valve Water supply line...
  • Page 17 INSTALLATION INSTRUCTIONS Connect the water supply line to the water valve using the compression nut fitting provided (C). Secure the water supply line to the back of the cabinet using the screw and clamp provided in the corner of the back panel (D). When connecting the water supply line to the water supply inlet, connect the copper tubing to the “top side”...

  • Page 18: Operating Instructions

    OPERATING INSTRUCTIONS Operation (turning on the ice maker) Once the drain and water supply are connected, and the ice maker is in place and levelled: With the switch in the ‘Off’ position, plug the ice maker into an electrical outlet. Turn on the water supply line. Turn the switch to the ‘On’...
  • Page 19 OPERATING INSTRUCTIONS The ice making process Your ice maker is unique in how it forms ice with fractional freezing to form a slab of ice that is clear and has less mineral content than the water it is produced from. This is accomplished by running water over the cold evaporator plate (A) which gradually freezes the water to produce the ice slab.
  • Page 20 OPERATING INSTRUCTIONS The bin level sensor is located in the ice bin, it senses when the ice supply is low or full and starts or stops the ice making process accordingly. Note: if the water supply is turned off to the ice maker be sure to set the switch to the ‘Off’...

  • Page 21: Care And Cleaning Instructions

    CARE AND CLEANING INSTRUCTIONS Care of the ice maker Avoid leaning on the cabinet door. You may bend the door hinge or tip the ice maker. ● ● Exercise caution when sweeping, vacuuming or mopping near the front of the ice maker. ●...
  • Page 22 CARE AND CLEANING INSTRUCTIONS Remove the drain plug at the bottom of the reservoir to drain any remaining water and then reinstall. Drain plug in bottom of reservoir Allow the ice to fall from the evaporator, remove and discard slab of ice. Ice slab Remove ice slab and discard Grid cutter...
  • Page 23 CARE AND CLEANING INSTRUCTIONS Set the switch on the grille of the ice maker to the ‘Clean’ position. The ice maker will automatically start and stop the cleaning cycle and 3/4 of a gallon (2.8L) of water will automatically be added to the cleaning solution. The total cleaning time will end in 49 minutes.

  • Page 24: Energy Saving Tips

    ENERGY SAVING TIPS The following suggestions will minimize the cost of operating your ice maker appliance Do not install your appliance next to a hot appliance, (cooker, dishwasher, etc), heating ● ● air duct, or other heat sources. Install product out of direct sunlight. ●...

  • Page 25: Preparing The Ice Maker For Storage

    PREPARING THE ICE MAKER FOR STORAGE If the ice maker is moved, not used for an extended period of time, or will be in an area that will be near freezing temperatures, it is necessary to remove any remaining water in the ice making system.
  • Page 26 PREPARING THE ICE MAKER FOR STORAGE Draining and removing water from the ice making system with a gravity drain Turn off water supply to the ice maker. Disconnect the plastic water outlet line (A) from the water valve outlet by pushing up on the white collar (B) and pulling on the plastic water outlet line.

  • Page 27: Drain Pump Removal Instructions

    DRAIN PUMP REMOVAL INSTRUCTIONS To remove the drain pump: Unplug ice maker from the electrical supply and remove the rear access cover from the ice maker. Unscrew the leveling leg in the back corner until the end of the threaded portion is flush with the threaded nut insert in the base (A).
  • Page 28 DRAIN PUMP REMOVAL INSTRUCTIONS Additional issues to be inspected by the installer upon service replacement: The drain pump must be level. No pinched water lines. No interference with electrical cords or wiring. The drain pump should not set on any obstacles, wiring, etc. Secure all hose clamps leading to and from the drain pump.

  • Page 29: Troubleshooting

    If there is a problem with your appliance, please check the following points before contacting your local DCS by Fisher & Paykel trained and supported service technician or the Customer Care Center. Product parts can be purchased through DCS by Fisher & Paykel Customer Care Center or online at www.dcsappliances.com. Ice maker operation...
  • Page 30 TROUBLESHOOTING Ice production problems PROBLEM POSSIBLE CAUSES WHAT TO DO Little or no The ice maker is not Check the switch is set to the ‘On’ ice production powered on. position. from the ice Water is not getting to the Ensure the water is properly connected maker.
  • Page 31 TROUBLESHOOTING Ice quality problems PROBLEM POSSIBLE CAUSES WHAT TO DO Odor, grey Mineral scale build up. If there is scale build up on the color, or off evaporator, the ice maker needs to be taste in the ice. cleaned. See ‘Cleaning the ice maker’. High mineral content level Install a water filter, or replace the in the water supply.

  • Page 32: Drain Pump Problems

    TROUBLESHOOTING Drain pump problems PROBLEM POSSIBLE CAUSES WHAT TO DO The pump No power to the pump. Make sure the pump is plugged in and does not run. there is power to the receptacle. Drain lines or vents Check that the drain and vent lines are restricted.

  • Page 33: Limited Warranty

    LIMITED WARRANTY When you purchase any new DCS by Fisher & Paykel product for personal or consumer use you automatically receive a two year limited warranty covering parts and labor for servicing within the 48 mainland United States, Hawaii, Washington DC and Canada. In Alaska the limited warranty is the same except that you must pay to ship the product to the service shop or the service technician’s travel to your home.
  • Page 34 LIMITED WARRANTY expire TWO YEARS (or such longer period as required by applicable law) from the date of purchase of the product by the first consumer. Some states do not allow limitations on how long an implied warranty lasts, so this limit on implied warranties may not apply to you.
  • Page 35 Please read your user guide. If you then have any questions about operating the product, need the name of your local DCS by Fisher & Paykel trained and supported service technician, or believe the product is defective and wish service under this...

  • Page 36: Www.dcsappliances.com

    www.dcsappliances.com © Fisher & Paykel Appliances 2016. All rights reserved. The product specifications in this booklet apply to the specific products and models described at the date of issue. Under our policy of continuous product improvement, these specifications may change at any time. You should therefore check with your dealer to ensure this booklet correctly describes the product currently available.
