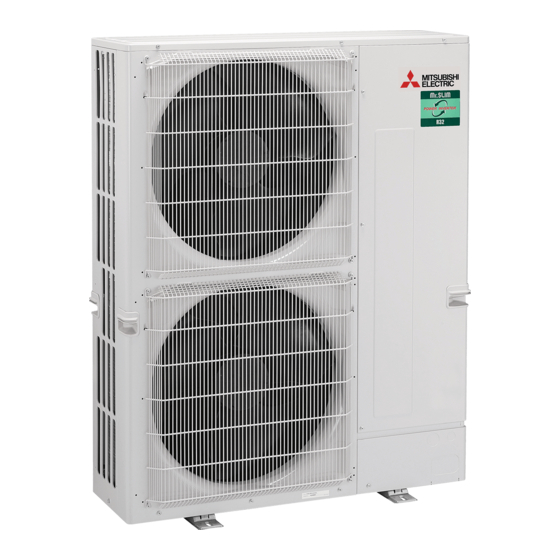

Air-Conditioners
PUZ-ZM
PUZ-ZM
INSTALLATION MANUAL
For safe and correct use, read this manual and the indoor unit installation manual thoroughly before installing
the air-conditioner unit.
INSTALLATIONSHANDBUCH
Aus Sicherheitsgründen und zur richtigen Verwendung vor der Installation die vorliegende Bedienungsanleitung
und die Installationsanleitung der Innenanlage gründlich durchlesen die Klimaanlage.
MANUEL D'INSTALLATION
Avant d'installer le climatiseur, lire attentivement ce manuel, ainsi que le manuel d'installation de l'appareil
intérieur pour une utilisation sûre et correcte.
INSTALLATIEHANDLEIDING
Lees deze handleiding en de installatiehandleiding van het binnenapparaat zorgvuldig door voordat u met het
installeren van de airconditioner begint.
MANUAL DE INSTALACIÓN
Para un uso correcto y seguro, lea detalladamente este manual y el manual de instalación de la unidad interior
antes de instalar la unidad de aire acondicionado.
MANUALE DI INSTALLAZIONE
Per un uso sicuro e corretto, leggere attentamente il presente manuale ed il manuale d'installazione dell'unità
interna prima di installare il condizionatore d'aria.
EΓΧEIPIΔIO OΔHΓIΩN EΓKATAΣTAΣHΣ
Για σωστή και ασφαλή χρήση, διαβάστε προσεκτικά αυτό το εγχειρίδιο καθώς και το εγχειρίδιο εγκατάστασης της
εσωτερικής μονάδας, προτού εγκαταστήσετε τη μονάδα του κλιματιστικού.
MANUAL DE INSTALAÇÃO
Para uma utilização segura e correcta, leia atentamente este manual e o manual de instalação da unidade
interior antes de instalar o aparelho de ar condicionado.
INSTALLATIONSMANUAL
Læs af sikkerhedshensyn denne manual samt manualen til installation af indendørsenheden grundigt, før du
installerer klimaanlægget.
INSTALLATIONSMANUAL
Läs bruksanvisningen och inomhusenhetens installationshandbok noga innan luftkonditioneringen installeras så
att den används på ett säkert och korrekt sätt.
INSTALLASJONSHÅNDBOK
For å sikre trygg og riktig bruk skal denne håndboken samt installasjonshåndboken for innendørsenheten leses
grundig gjennom før du installerer klimaanleggenheten.
INSTRUKCJA MONTAŻU
Aby zapewnić bezpieczne i prawidłowe korzystanie z urządzenia, przed montażem klimatyzatora należy
dokładnie zapoznać się z treścią niniejszej instrukcji oraz instrukcji montażu jednostki wewnętrznej.
HA
•
KA
•
FOR INSTALLER
FÜR INSTALLATEURE
POUR L'INSTALLATEUR
VOOR DE INSTALLATEUR
PARA EL INSTALADOR
PER L'INSTALLATORE
ΓΙΑ ΑΥΤΟΝ ΠΟΥ ΚΑΝΕΙ ΤΗΝ ΕΓΚΑΤΑΣΤΑΣΗ
PARA O INSTALADOR
TIL INSTALLATØREN
FÖR INSTALLATÖREN
FOR MONTØR
DLA INSTALATORA
English
Deutsch
Français
Nederlands
Español
Italiano
Eλληνικά
Português
Dansk
Svenska
Norsk
Polski
Advertisement
Table of Contents
Related Manuals for Mitsubishi Electric PUZ-ZM-HA
Summary of Contents for Mitsubishi Electric PUZ-ZM-HA
-
Page 1: Installation Manual
Air-Conditioners PUZ-ZM • PUZ-ZM • INSTALLATION MANUAL FOR INSTALLER English For safe and correct use, read this manual and the indoor unit installation manual thoroughly before installing the air-conditioner unit. INSTALLATIONSHANDBUCH FÜR INSTALLATEURE Deutsch Aus Sicherheitsgründen und zur richtigen Verwendung vor der Installation die vorliegende Bedienungsanleitung und die Installationsanleitung der Innenanlage gründlich durchlesen die Klimaanlage. -
Page 2: Table Of Contents
This symbol mark is according to the directive 2012/19/EU Article 14 Information for users and Annex IX. Your MITSUBISHI ELECTRIC product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste. -
Page 3: Before Installation
1. Safety precautions 1.1. Before installation Caution: • Do not use the unit in an unusual environment. If the air conditioner is installed in • The outdoor unit produces condensation during the heating operation. Make areas exposed to steam, volatile oil (including machine oil), or sulfuric gas, areas sure to provide drainage around the outdoor unit if such condensation is likely to exposed to high salt content such as the seaside, or areas where the unit will be cause damage. - Page 4 2. Installation location 2.2. Choosing the outdoor unit installation location / R32 is heavier than air—as well as other refrigerants—so tends to accumulate at the base (in the vicinity of the floor). If R32 accumulates around base, it may reach a flammable concentration in case room is small. To avoid ignition, maintaining a safe work environment is required by ensuring appropriate ventilation.
- Page 5 2. Installation location / 2.5. Minimum installation area If you unavoidably install a unit in a space where all four sides are blocked or there are depressions, confirm that one of these situations (A, B or C) is satisfied. Note: These countermeasures are for keeping safety not for specification guarantee. A) Secure sufficient installation space (minimum installation area Amin).
- Page 6 2. Installation location ■ Indoor units Install in a room with a floor area of Amin or more, corresponding to refrigerant quantity M (factory-charged refrigerant + locally added refrigerant). * For the factory-charged refrigerant amount, refer to the spec nameplate or installation manual. For the amount to be added locally, refer to the installation manual.
-
Page 7: Installing The Outdoor Unit
3. Installing the outdoor unit • Be sure to install the unit in a sturdy, level surface to prevent rattling noises during (mm) operation. (Fig. 3-1) <Foundation specifications> Foundation bolt M10 (3/8") Thickness of concrete 120 mm Length of bolt 70 mm Weight-bearing capacity 320 kg... - Page 8 4. Installing the refrigerant piping 4.2. Connecting pipes (Fig. 4-1) 45°± 2 ° • When commercially available copper pipes are used, wrap liquid and gas pipes with commercially available insulation materials (heat-resistant to 100°C or more, thickness of 12 mm or more). •...
- Page 9 4. Installing the refrigerant piping ■ ■ 4.3. Refrigerant piping (Fig. 4-4) ZM35, 50 ZM60, 71 For ZM35, 50 Remove the service panel D (2 screws). For ZM60, 71 Remove the service panel D (3 screws) and the front piping cover A (2 screws) and rear piping cover B (2 screws).
- Page 10 4. Installing the refrigerant piping 4.5. Stop valve opening method The stop valve opening method varies according to the outdoor unit model. Use the appropriate method to open the stop valves. (1) Gas/Liquid side of ZM35-71 (Fig. 4-6) 1 Remove the cap and turn the valve rod counterclockwise as far as it will go with the use of a 4 mm hexagonal wrench.
-
Page 11: Drainage Piping Work
4. Installing the refrigerant piping 4.7. Precautions when reusing existing R22 refrigerant pipes • Refer to the flowchart below to determine if the existing pipes can be used and if it is necessary to use a filter dryer. • If the diameter of the existing pipes is different from the specified diameter, refer to technological data materials to confirm if the pipes can be used. Measure the existing pipe thickness and check for damage. -
Page 12: Electrical Work
6. Electrical work 6.1. Outdoor unit (Fig. 6-1, Fig. 6-2) ■ ■ ZM35, 50 ZM35, 50 1 Remove the service panel. 2 Wire the cables referring to the Fig. 6-1 and the Fig. 6-2. A Indoor unit B Outdoor unit C Remote controller D Main switch (Breaker) E Earth... - Page 13 6. Electrical work 6.2. Field electrical wiring Outdoor unit model ZM35, 50V ZM60, 71V Outdoor unit power supply ~/N (single), 50 Hz, 230 V ~/N (single), 50 Hz, 230 V Outdoor unit input capacity Main switch (Breaker) 16 A 25 A Outdoor unit power supply 3 ×...
-
Page 14: Test Run
7. Test run 7.1. Before test run • The insulation resistance drops due to accumulation of refrigerant in the com- ► After completing installation and the wiring and piping of the indoor and outdoor units, check for refrigerant leakage, looseness in the power supply pressor. -
Page 15: Special Functions
8. Special functions 8.1. Low noise mode (on-site modification) (Fig. 8-1) By performing the following modification, operation noise of the outdoor unit can be Orange CNDM reduced by about 3-4 dB. Brown The low noise mode will be activated when a commercially available timer or the Fig. - Page 16 że jednostka zewnętrzna i pompy ciepła opisane poniżej, są przeznaczone do zastosowań w środowisku mieszkalnym, handlowym i lekko uprzemysłowionym: MITSUBISHI ELECTRIC, PUZ-ZM35VKA*, PUZ-ZM50VKA*, PUZ-ZM60VHA*, PUZ-ZM71VHA* * : , , 1, 2, 3, · · · , 9 Note: Its serial number is on the nameplate of the product.
- Page 17 <ENGLISH> <PORTUGUÊS> English is original. The other languages versions are translation of the original. O idioma original é o inglês. As versões em outros idiomas são traduções do idioma original. CAUTION CUIDADO • Refrigerant leakage may cause suffocation. Provide ventilation in accordance with EN378-1. •...
- Page 18 UNIT : mm 1000 Fig. 2-7 Fig. 2-8 Fig. 2-9 1000 Fig. 2-10 Fig. 2-11 Fig. 2-12 1000 Fig. 2-13 Fig. 2-14 Fig. 2-15 Fig. 2-16 Fig. 2-17 Fig. 2-18 Fig. 2-19...
- Page 19 This product is designed and intended for use in the residential, commercial and light-industrial environment. Importer: Mitsubishi Electric Europe B.V. Capronilaan 46, 1119 NS, Schiphol Rijk, The Netherlands French Branch 25, Boulevard des Bouvets, 92741 Nanterre Cedex, France German Branch...
