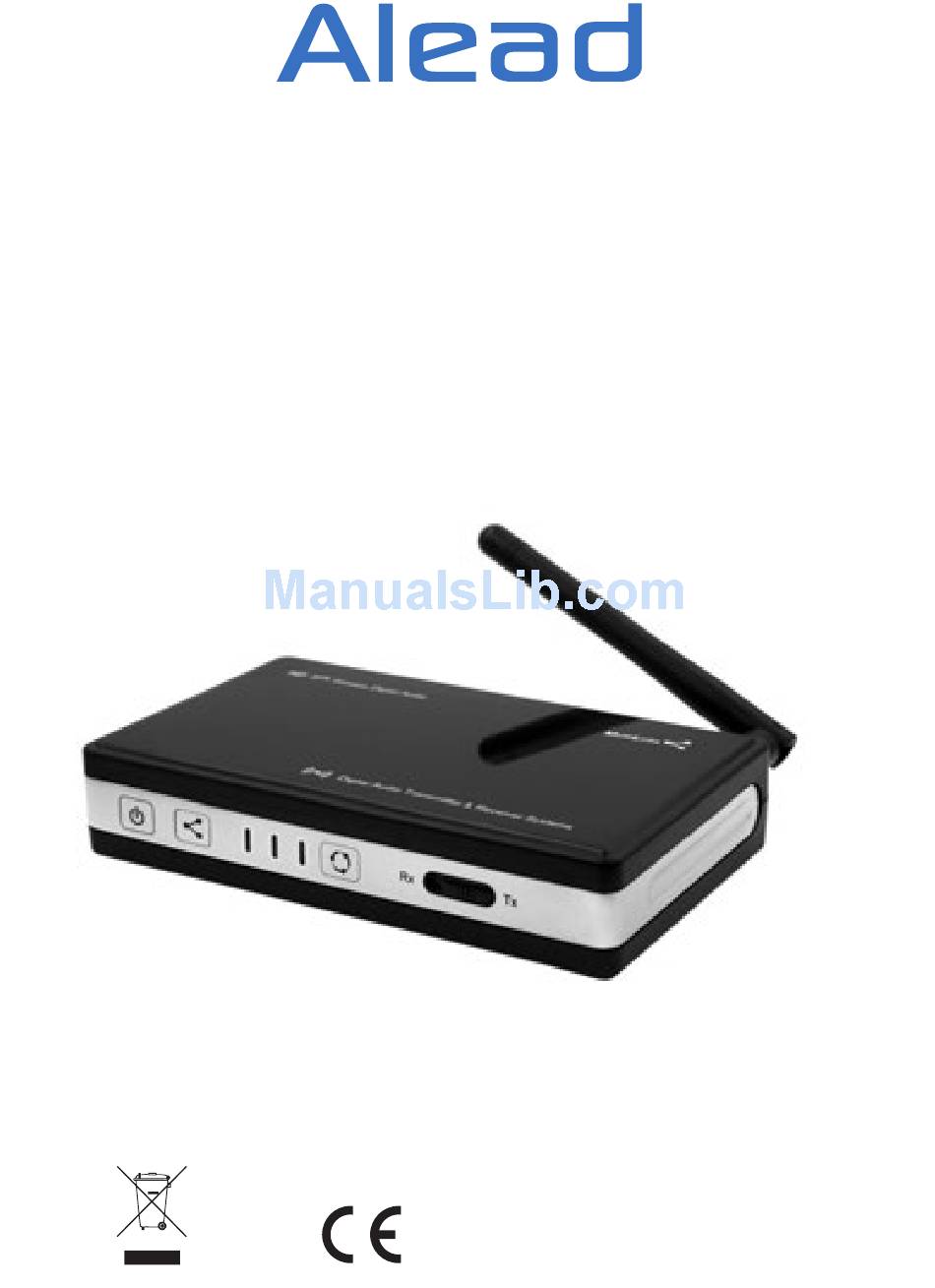

- Page 1 Bluetooth Wireless Stereo Transceiver HD Pro P/N: ASHDP5C2XXX USER GUIDE Declaration of Conformity： We declare that product ASHDP5C2XXX conforms to the R&TTE Directive 1999/5/RC. FCC ID: 2ADC4NMSP3C2MTRX 0678...
-
Page 2: Getting Started
INTRODUCTION This Bluetooth Stereo Transceiver HD Pro (TRX HD Pro) works with home stereo and TV as Transmitter (Tx) or Receiver (Rx) for music/audio by using Bluetooth A2DP profile wirelessly. GETTING STARTED Unpack the package carefully and confirm that you have all of components as shown below. -
Page 3: Product Overview
PRODUCT OVERVIEW The TRX HD Pro provides the digital HDMI, optical (Toslink), analog 3.5mm aux combo audio interface, input audio pass through, audio converting, HDMI (ARC), HDMI audio extracting, HDMI A/V signal pass through and Bluetooth multilink features. Power Audio Channel ON/OFF MultiLink LEDs Switch... -
Page 4: System Setup
SYSTEM SETUP 1. Install the Bluetooth antenna and power cord HDMI IN OPTICAL / AUX IN HDMI OUT OPTICAL / AUX OUT DC IN 2. Connect audio cable between devices and select desired audio input or output mode on the TRX HD Pro. 2.1 Transmitter (Tx) to transmit audio out For the transmit music/audio out, connect HDMI, optical (Toslink) or aux cable from audio output of TV or audio source to audio... -
Page 5: Transmitter (Tx)
Transmitter (Tx): Tablet Phone Set-top box BD/DVD player AUDIO OUTPUT OPTICAL Audio HMDI IN OPTICAL / AUX IN HMDI OUT OPTICAL / AUX OUT DC IN Speaker HDMI IN OPTICAL / AUX IN HDMI OUT OPTICAL / AUX OUT DC IN Sound Bar (Bluetooth audio receiver) B. - Page 6 Set-top box BD/DVD player HDMI OUTPUT HDMI HDMI IN OPTICAL / AUX IN HMDI OUT Speaker HDMI IN OPTICAL / AUX IN HDMI OUT OPTICAL / AUX OUT DC IN Sound Bar (Bluetooth audio receiver) HDMI ARC supported cable INPUT (ARC) HDMI HDMI IN...
-
Page 7: Receiver (Rx)
2.2 Receiver (Rx) – to receive audio in For receiving music/audio, connect an optical (Toslink) or aux audio cable from the optical/aux output port on the TRX HD Pro to the audio input of home stereo, soundbar, speaker or receiver. For connecting external device using audio optical cable or aux cable. - Page 8 POWER ON Touch the POWER icon to turn on the unit, the Power LED will be on with amber color. SELECT DESIRED WORKING MODE – TRANSMITTER (Tx) OR RECEIVER (Rx) MODE TRX HD Pro works in 2 different modes: 1. Transmitter (Tx): Transmit music/audio to Bluetooth stereo speaker, receiver and headphone...etc.
- Page 9 SELECT AUDIO PORT 1. Transmitter (Tx): Touch the audio selection icon to select audio input either HDMI or optical/aux combo jack. OPTICAL / HDMI IN AUX IN TV ARC HDMI - TRX HD Pro will detect audio source of HDMI from either HDMI IN or HDMI (ARC) automatically.
- Page 10 PAIRING Transmitter (Tx): To pair and connect with Bluetooth speaker, receiver or headphone devices. 1. Turn on the TRX HD Pro. The Power LED will light on with amber color and the Mode LED is quick flashing with green color for pairing.
-
Page 11: Power Off
POWER OFF Touch the POWER icon, TRX HD Pro and all of LEDs will be off. Audio Pass Through and Converting The Audio Pass Through function is only available at Transmitter mode (Tx) and performed automatically when TRX HD Pro is on. Select desired audio input and the desired input audio signal will be passed through to the optical and aux output port. - Page 12 Set-top box BD/DVD player HDMI HDMI OUTPUT INTPUT HDMI HDMI Audio and video Pass Through Audio Video IN Audio Video OUT HDMI IN OPTICAL / AUX IN HDMI OUT OPTICAL / AUX OUT DC IN HDMI (ARC) Audio Return Channel TRX HD Pro supports the HDMI ARC and CEC from TV to have better audio quality.
- Page 13 MULTIPLE LINKS With multilink, TRX HD Pro can pair and connect upto 2 Bluetooth speaker, receiver or headphone at same time. Pairing and connect to the 2nd Bluetooth device If you like to connect 2nd speaker/receiver/ headphone when the 1st device is connected, by touch multilink icon, TRX HD Pro will start to pair and connect the 2nd device.
-
Page 14: Visual Indication
VISUAL INDICATION The POWER/MODE/AUDIO LED can also indicate the status of TRX HD Pro working status. Power Status POWER LED Indication Power on Amber LED on Power off Amber LED off Mode Status MODE LED Indication Green LED fast flashing Transmitter pairing Green LED medium speed... - Page 15 Bluetooth driver with A2DP profile supporting in order to enable correct operation. Problem Likely Cause / Solution TX Mode TRX HD Pro cannot Ensure selected correct audio transmit audio to the input on front of audio switch and Bluetooth device. matching audio input...
-
Page 16: Customer Service Information
5 second devices off and turn on again intervals. to reconnect. CUSTOMER SERVICE INFORMATION For other Alead Bluetooth products or supporting, please view our website – www.aleadinc.com, www.nolan-sys.com or email info@aleadinc.com, info@nolan-sys.com or contact your local representative. DISCLAIMER...
