Summary of Contents for Goodmans GPS163R

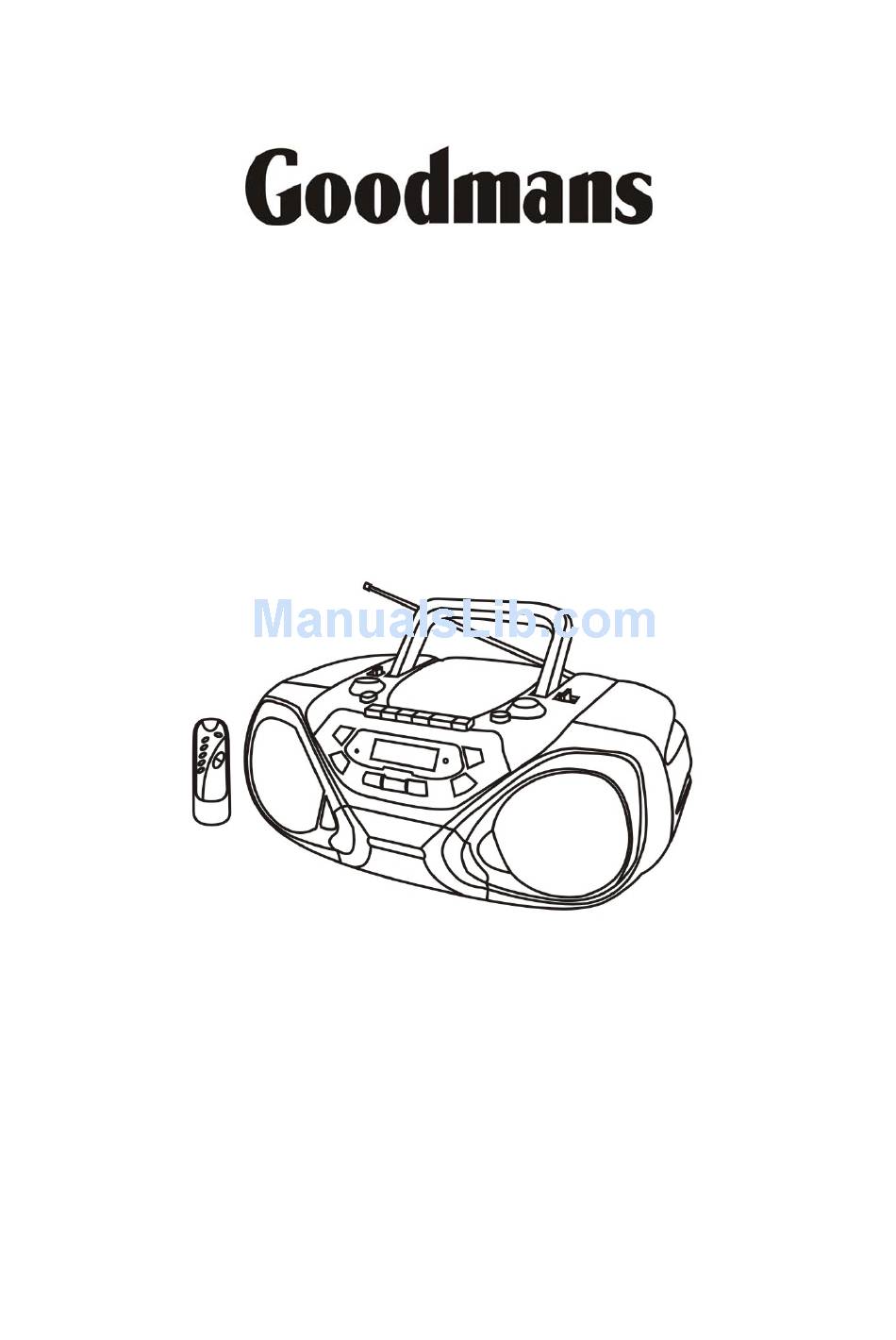

- Page 1 GPS163R CD MW/FM Stereo Cassette Player/Recorder INSTRUCTION MANUAL Before operating this unit, please read this Owner’s Manual carefully...
- Page 3 WARNING: UNDER NO CIRCUMSTANCES MUST THE LIVE OR NEUTRAL WIRES BE CONNECTED TO THE EARTH TERMINAL IN 3-PIN MAINS PLUG. This symbol means that this unit is double insulated. An earth connected is not required. CAUTION: WHEN OPERATING THIS UNIT ON 230V MAINS SUPPLY. PLEASE NOTE THAT WHEN THE POWER SWITCH IS IN THE OFF MODE.
- Page 4 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK. DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE, DANGEROUS HIGH VOLTAGES ARE PRESENT INSIDE THE EXPLOSED. OPEN CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY. CARE AND MAINTENANCE CLEANING THE UNIT (REMOVE MAINS PLUG FROM MAINS OUTLET SOCKET) To clean the unit, simply wipe off with a soft clean cloth moistened with plan lukewarm warer.
-
Page 5: Power Supply
POWER SUPPLY This Product can be powered by either 230V AC Mains supply or by 8 x UM-1 “D” size Alkaline batteries. AC OPERATION Remove the AC cord which is packed inside the box. Connect the cord to the AC input socket. Connect the 3 pins mains plug to an AC mains socket. -
Page 6: Location Of Controls
LOCATION OF CONTROLS 1. DYNAMIC BASS BOOST BUTTON 2. VOLUME CONTROL KNOB 3. FUNCTION SWITCH (AUX/CD/TAPE/RADIO) 4. FM TELESCOPE ANTENNA 5. CASSETTE PAUSE BUTTON 6. CASSETTE STOP/EJECT BUTTON 7. CASSETTE FORWARD BUTTON 8. CASSETTE REWIND BUTTON 9. CASSETTE PLAY BUTTON 10. - Page 7 SET THE CORRECT TIME Before starting to set the time, make sure that the unit is in its off/standby mode. 1. Press PROGRAM/CLOCK Button once to enter the setting model. The 12/24Hr Segment will start flashing. Use the Back or Next Buttons to select the desired hour format and then press the PROGRAM/CLOCK ADJ Button to confirm.
-
Page 8: Auto Stop System
USING THE CASSETTE RECORDER FAST FORWARD AND REWIND The tape can be fast forward or rewind by pressing the Next (Fast Forward) Button or Back (Backward) Button respectively. PAUSE During playback or recording, the tape can be stopped temporarily by pressing the Pause Button. - Page 9 USING THE CD PLAYER NORMAL PLAY Should skipping of tracks occur during CD playing, try turning the NOTE: volume down or switch off the dynamic bass boost. When CD is playing, do not open the CD Door. 1. Open the CD Door by pressing the CD Open Door Button. Put a CD into the CD Compartment label side facing up and close the CD Door.
-
Page 10: Product Specifications
PRODUCT SPECIFICATIONS PICK-UP System Compact disc digital audio system Laser diode Material: GaAIAs Properties Wavelength: λ = 780nm Emission Duration: continuous Laser output: < 44.6μW Error correction Cross-interleave Reed-solomon code AUDIO D/A conversion 1-bit DAC 8 times oversampling Frequency response 20-20,000Hz (+1/-3 dB) Wow and flutter Below measurable limits...
