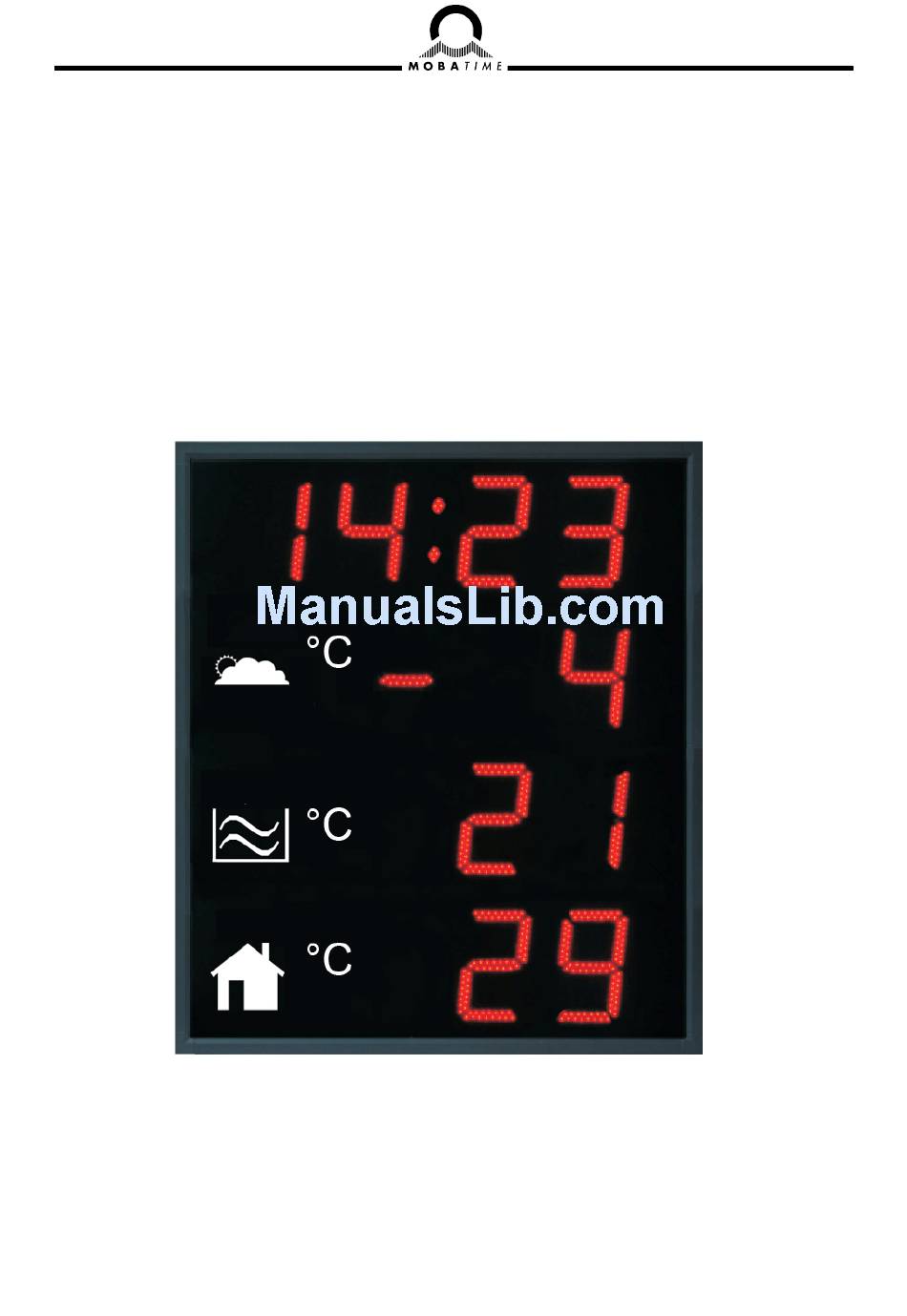

Page 1: Instruction Manual
INSTRUCTION MANUAL Time / Temperature display DT Series © MOBATIME BE-800845.01... - Page 2 It is prohibited to reproduce, to store in a computer system or to transfer this publication in a way or another, even part of it. The copyright remains with all the rights with BÜRK MOBATIME GmbH, D-78026 VS-Schwenningen and MOSER-BAER AG – CH 3454 Sumiswald / SWITZERLAND.
-
Page 3: Table Of Contents
Autonomous clock synchronized by GPS4500 receiver ................13 Autonomous clock synchronized by internal GPS receiver ..............13 Slave clock controlled by synchronizing impulses .................14 Slave clock controlled by MOBATIME serial code, MOBALine, or IRIG-B ..........14 Cascaded connection of the DCF/GPS synchronised clock ..............14 Synchronization by NTP protocol......................15 3.7.1... - Page 4 Voltage range and electric current consumption of the lines ..............34 13 Accessories ..............................35 13.1 Single sided display ..........................35 13.2 Double side display ..........................35 13.3 Optional accessories ..........................35 14 Cleaning ................................35 15 Disposal of used batteries ..........................35 16 Guarantee and maintenance........................36 © MOBATIME 4 / 40 800845.01...
-
Page 5: Description
IR remote for easy access to all functions and display configuration; autonomous TCXO time base, with the possibility of synchronization using the following: DCF 77 radio signal, one-minute 24 V pulses, the MOBATIME serial code, MOBALine, RS 232, RS 485, IRIG-B or GPS; ... -
Page 6: Installation
configure the Line type jumper according to used synchronization signal (applies only for DCF, MOBALine, Serial MOBATIME code, polarized impulse line or IRIG-B); mount back the connector cover;... -
Page 7: Double-Sided Display
configure the Line type jumper according to used synchronization signal (applies only for DCF, MOBALine, Serial MOBATIME code, polarized impulse line or IRIG-B); mount back the connector cover;... -
Page 8: Mechanical Drawings
Mechanical drawings DT.100/57.1C.2T Luft T° Wasser T° DT.100.1C.3T DT.100.1C.2T °C DT.100.1C.1T °C °C °C °C °C DT.180.1C.3T DT.180.1C.2T °C DT.180.1C.1T °C °C °C °C °C © MOBATIME 8 / 40 800845.01... -
Page 9: Connectors And Control Elements
LAN - JP7 (version NTP) LED indication of DCF signal PROG – JP8 state LED RELAY – JP27 (optional) LED indication of powering jumper DC Out / DCF Out – JP17 © MOBATIME 9 / 40 800845.01... -
Page 10: Function Of The Plug Connectors
Function of the plug connectors LINES, DC/DCF OUT – JP1 time signal inputs: The DCF/GPS receiver, polarized impulse line, MOBALine, MOBATIME serial code, IRIG-B, power supply output: DC OUT 12–40 VDC or passive DCF current loop output TEMP – JP2 connection of the temperature sensor(s) ... -
Page 11: Tp3, Tp30 Temperature Sensors Connection
Ethernet network is used for connection of this type of temperature sensors, there can be any number of temperature sensors connected in the network moreover more display units can communicate to single temperature sensor, single display can communicate to up to three sensors © MOBATIME 11 / 40 800845.01... - Page 12 the connection is done using standard UTP or STP cable and network infrastructure the sensor is powered from small AC/DC wall adapter © MOBATIME 12 / 40 800845.01...
-
Page 13: Setting Of Time Synchronization Type
Configure the jumper JP11 according to table (chapter 2.7.) if the source of synchronization is DCF signal, Mobatime serial code, polarized impulse line, MOBALine or IRIG-B. Choose the item P4 in main MENU (chapter 7) and set the type of synchronization. The auto detection mode (P4:A), when the type of synchronization signal is set automatically, is applicable for DCF signal, Mobatime serial code, MOBALine, IRIG-B and WTD. -
Page 14: Slave Clock Controlled By Synchronizing Impulses
In case of the line fault the clock displays the right time information based on its own quartz time base. When the normal operation of the line resumes, the slave clock adjusts itself to the time equal to the master clock. Slave clock controlled by MOBATIME serial code, MOBALine, or IRIG-B ... -
Page 15: Synchronization By Ntp Protocol
Set item P4 to value 10 According to chapter 6.4 set IP address of NTP server and polling interval For correct displaying time and date choose desired time zone in item P6 © MOBATIME 15 / 40 800845.01... -
Page 16: Setting The Way Of Displayed Time And Date Calculation
Selection of the Timezone-server time zone Display time and date according to chosen Timezone-server time zone, incl. daylight saving time This setting is suitable for NTP digital clocks controlled by MOBATIME NTP servers which support the Timezone-server functionality. © MOBATIME 16 / 40... -
Page 17: Calculation According To Internal Time Zone Table
Displayed time and date calculation is based on the internal time zone table or on the user–specific time zone parameters. © MOBATIME 17 / 40 800845.01... -
Page 18: Setting The Network Parameters For Ntp Versions
–n displays current network parameters command conf -? displays help for command conf parameters example: conf -i 192.168.0.190 set clock IP address to 192.168.0.190 it is necessary to end telnet by command exit © MOBATIME 18 / 40 800845.01... -
Page 19: Setting Of The Network Parameters By Dhcp
IP addresses up to four NTP servers can be set using the DHCP option. Following options are supported: Option code 42 – NTP servers Note: For NTP address assignation, NTP unicast synchronization must be selected. © MOBATIME 19 / 40 800845.01... -
Page 20: Control Of The Display Using Ir Remote Control
The actual parameter blinks, to change its value use the +, - or 0 to 9 buttons, to move to another parameter use the << or >> buttons. To set the time press the OK button. To exit the time setting without applying the changes press the ESC button. © MOBATIME 20 / 40 800845.01... -
Page 21: Menu For The Setting Of The Clock Parameters
(in seconds): 2 By pushing OK are the entered values stored and the display returns to the menu item P4. By pushing ESC return to P4 item without storing. © MOBATIME 21 / 40 800845.01... -
Page 22: Submenu For Setting Of The User-Specific Time Zone
Enter the day of the month. Push >>. Enter the month in which the daylight saving time begins. Push >> The display shows the following: Enter the hour in which the daylight saving time ends. Push >>. © MOBATIME 22 / 40 800845.01... - Page 23 Push >>. The display shows the following: Enter the month in which the daylight saving time ends. Push PB1S. Enter the hour in which the daylight saving time ends. © MOBATIME 23 / 40 800845.01...
-
Page 24: Setting Of The Predefined Temperature Value
Enter the address of the sensor, see the address printed on the sensor body and use the table in the chapter 11 for searching of the numerical representation of the particular address. Push the >> button to move to the temperature correction setting. The display shows cxx.x. © MOBATIME 24 / 40 800845.01... -
Page 25: Settings For The Tp Lan Temperature Sensors
6.11 Manual setting of the subnet mask Choose the item P19 in the main menu and push the SET button to enter the submenu for setting the subnet mask. The item to be set is blinking. © MOBATIME 25 / 40 800845.01... -
Page 26: 6.12 Manual Setting Of Default Gateway Ip Address
Octets are marked by letters A, b, C and d. By pushing OK, the entered values are stored and the clock returns to the menu item P20. By pushing ESC, the clock returns to P20 without saving. © MOBATIME 26 / 40 800845.01... -
Page 27: Menu Table
1 - 10, A (automatically) Synchronization source auto detection, applicable for: DCF, the Mobatime serial code, MOBALine, WDT or IRIG-B autonomous operation without synchronization synchronization by DCF signal the MOBATIME serial code MOBALine 24 V DC impulses, at minute intervals... - Page 28 DHCP IP address IP* Manual setting Subnet mask Su* Manual setting Gateway Gt* Manual setting SW version r_._(e.g.: r1.10) Note: in values marked with * the submenu is accessible by pushing the SET buttton © MOBATIME 28 / 40 800845.01...
-
Page 29: Testing Mode, Parameter Reset
Using the PB2 or + button on IR set the value behind the colon to 04 Keep pushing simultaneously both clock PCB buttons or the DISP button on IR, until the display shows FAC1 and clock makes reset © MOBATIME 29 / 40 800845.01... -
Page 30: Update Firmware
After entering the password, check if the firmware version is correct, if it isn’t, it is necessary to repeat the whole procedure. Close the telnet window and end the program tftpd32 with the command exit. © MOBATIME 30 / 40 800845.01... -
Page 31: Time Zone Table
South Australia: Adelaide +9.5 Sun. Oct (02:00) Sun. Apr. (03:00) Northern Territory: Darwin +9.5 Brisbane, Guam, Port Moresby, Yakutsk Sydney, Canberra, Sun. Oct. (02.00) Sun. Apr. (03:00) Melbourne, Tasmania: Hobart UTC (GMT) UTC (GMT) © MOBATIME 31 / 40 800845.01... - Page 32 The Time Zone Table is usually updated every year. The current table is available for download under the following address: www.mobatime.com Customer Area Customer Support Support Resources Software Tools Time Zone Table. In case your device is equipped with a newer version than shown in this manual, the current time zone settings should be checked.
-
Page 33: Table Of The Addresses For The Tp Rs485 Sensor
Table of the addresses for the TP RS485 sensor Addr. Num. Addr. Num. Addr. Num. Addr. Num. Addr. Num. Addr. Num. Example: Sensor address ‘M’ -> number 48 © MOBATIME 33 / 40 800845.01... -
Page 34: Engineering Data
Engineering data 12.1 Standard design of the display DT.100.1C.1T DT.100.1C.2T DT.100.1C.3T DT.100.2C.1T DT.100.2C.2T Technical data DT.100/57.1C.2 DT.180.1C.1T DT.180.1C.2T DT.180.1C.3T DT.180.2C.1T DT.180.2C.2T Digit height 100 mm or 180 mm according to version 100 / 57 mm Display colours red / yellow / pure green / blue / white... -
Page 35: Accessories
Unusable batteries can be returned free of charge at appropriate collection points of your waste disposal company or at shops that sell batteries. By doing so, you fulfill your legal responsibilities and help protect the environment. © MOBATIME 35 / 40 800845.01... -
Page 36: Guarantee And Maintenance
The following circumstances are excluded from the guarantee: - inappropriate handling or interventions - chemical influences - mechanical defects - external environmental influences (natural catastrophes) Repairs during and after the guarantee period are assured by the manufacturer. © MOBATIME 36 / 40 800845.01... - Page 37 © MOBATIME 37 / 40 800845.01...
- Page 38 © MOBATIME 38 / 40 800845.01...
- Page 39 © MOBATIME 39 / 40 800845.01...
- Page 40 19 chemin du Champ-des-Filles CH-1228 Plan-les-Ouates/GE Tel. +41 44 802 75 75 Fax +41 44 802 75 65 Tel. +41 22 884 96 11 Fax. +41 22 884 96 90 info-d@mobatime.ch www.mobatime.ch export@mobatime.com www.mobatime.com MOBATIME SA PRODUCTION / HEADQUARTER En Budron H 20 ...
