Lennox MLDVTCD-35 Installation Instructions

INSTALLATION INSTRUCTIONS FOR THE MLDVTCD-35 CONVERSION KIT
FOR USE WITH MERIT™ SERIES MLDVT GAS FIREPLACES

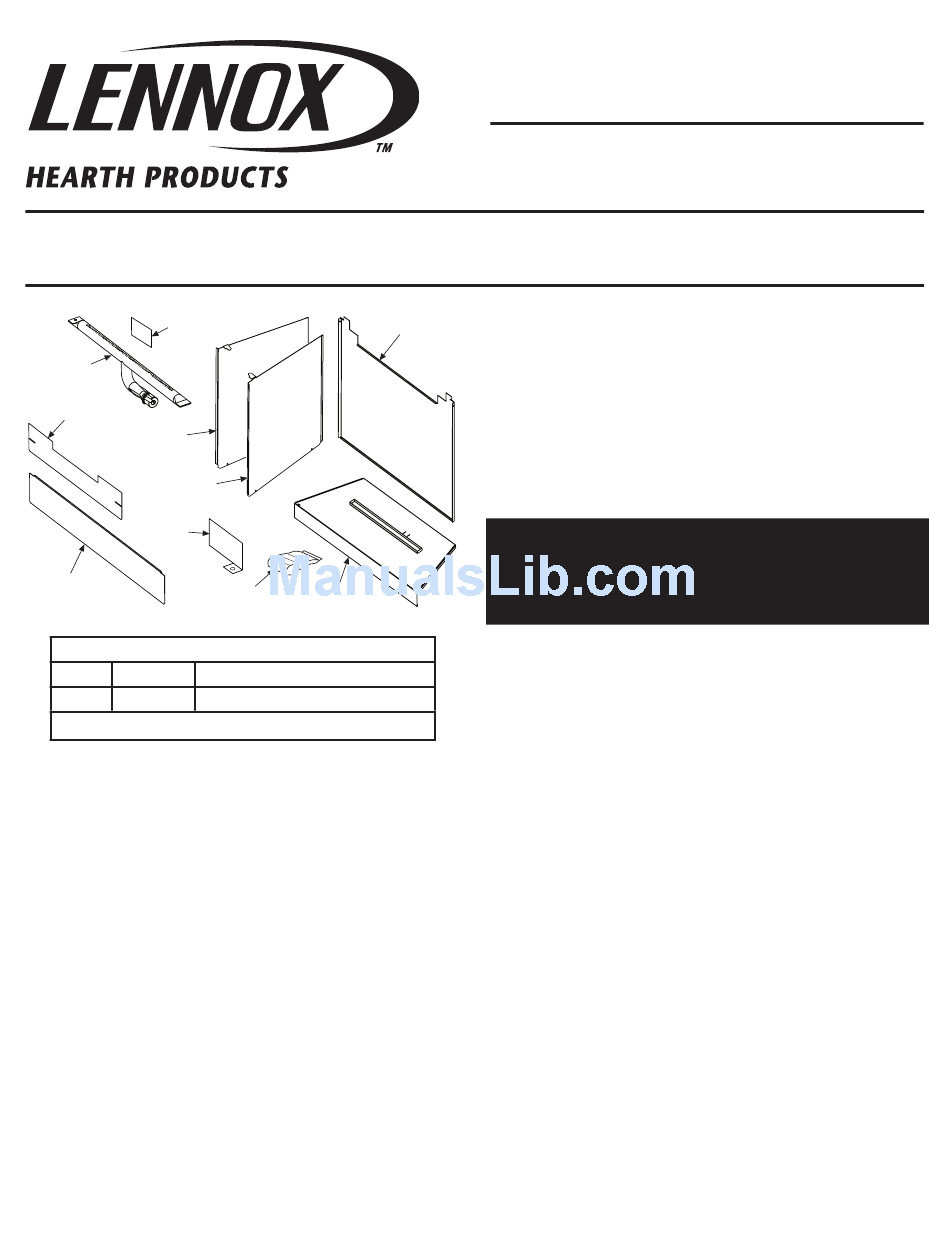

Label
Burner
Assembly
Lower Baffle
Porcelain
Panel - Left
Porcelain
Panel - Right
Pilot
Shield
Sub-Floor
Attaching Parts
Front Panel
MLDVTCD-35 Conversion Kit
Cat. No. Model No.
H7535 MCDK-35
Table 1
TOOLS REQUIRED
1 - Phillips Screwdriver, 1 - 5/16" Nut Driver
GENERAL INFORMATION
This MLDVTCD-35 Conversion Kit is used to convert an existing MLDVT
fireplace to a Contemporary MLDVTCD-35 fireplace. Please read this
instruction sheet in its entirety before beginning the installation.
The conversion kit consists of: One - Burner Assembly, One - Sub-Floor,
One - Sub-Floor Front Panel, One - Lower Baffle, One - Pilot Shield, One
- Porcelain Panel Kit (with Left, Right and Rear Porcelain Panels), One
- Bag of attaching parts, One Conversion Label and these instructions.
Refer to Table 1 for kit catalog and model numbers.
ALL WARNINGS AND PRECAUTIONS IN THE INSTALLATION AND
OPERATION MANUAL PROVIDED WITH THE APPLIANCE APPLY TO
THESE INSTRUCTIONS.
Refer to the appliance Care And Operations manual (P/N 506017-01) for
detailed instructions.
Porcelain Panel
Sub-Floor
Description
35" Contemporary Conversion Kit
NOTE: DIAGRAMS & ILLUSTRATIONS NOT TO SCALE.
50609-4
REV. N/C 04/2009
TURN OFF THE FIREPLACE AND ALLOW IT TO COMPLETELY COOL
- Rear
BEFORE PROCEEDING.
CAUTION: TURN OF GAS TO THE APPLIANCE AND LOCK OUT ANY
ELECTRICAL SWITCHES.
IMPORTANT: Installation of this kit should be performed by a quali-
fied service technician.
REMOVING THE GLASS DOOR
WARNING: Handle this glass with extreme care!
Tempered glass is susceptible to damage – do not
scratch or handle roughly while removing or install-
ing the glass door.
. To access the glass door securing latches, first open the lower control
compartment door by sliding and pulling the bottom panel forward.
2. Pull the latches forward and down to release them from the door
channel.
3. Pull the bottom of the door out a few inches and grasp it on the right
and left. Gently lift to release the door from its channel above the door.
Pull the door forward.
INSTALLING THE CONVERSION KIT
Removing The Existing Components (refer to Figure 1 on page 2).
Step . Locate the two screws securing the grate (refer to Figure 1 ).
Remove and retain the two screws holding the grate in place. The grate
may be discarded.
Step 2. Locate the two screws retaining the sub-floor in its location
between the burner front edge and the sub-floor (refer to Figure 1 ).
Remove and retain the additional screws and remove the sub-floor. The
sub-floor may be discarded. Re-install the screws.
Step 3. Remove the screw (refer to Figure 1 ) and remove the burner.
The burner may be discarded
Note: Take care when disengaging the burner from the venturi adjust-
ment rod.
HEARTH PRODUCTS
KITS AND ACCESSORIES
MLDVTCD-35
CONVERSION KIT
