Summary of Contents for aidacare Ward Bed
-

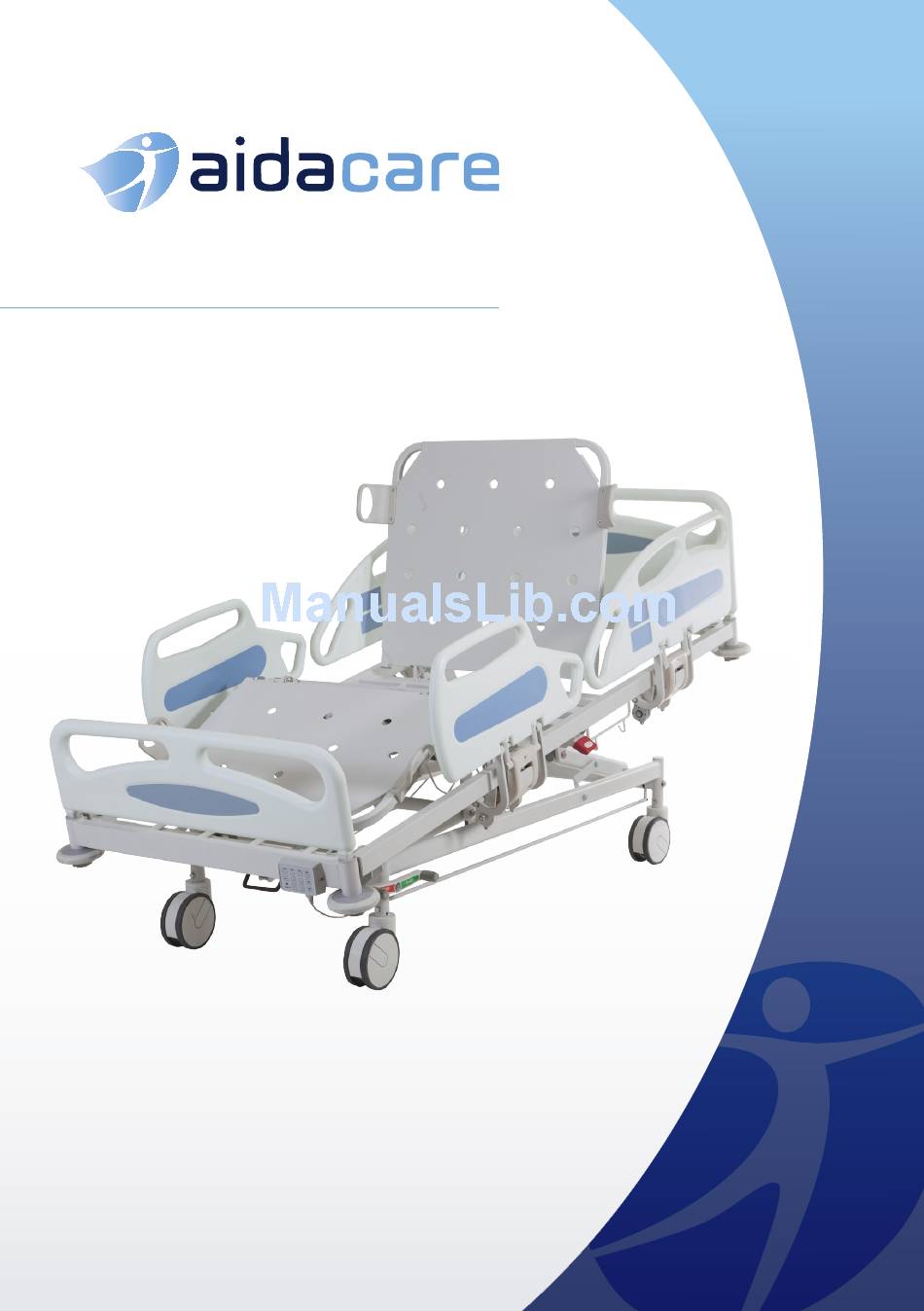

Page 1: User Manual
WARD BED USER MANUAL Designed to IEC60601-2 International Standards 1300 133 120 www.aidacare.com.au... -
Page 2: Table Of Contents
Thank you for choosing this Aidacare TABLE OF CONTENTS Ward Bed. This product has been specifically designed to offer comfort, support and safety. Introduction It is important that you read this user 2. Safety Precautions manual carefully before using your new bed. -
Page 3: Introduction
1. INTRODUCTION 2. SAFETY PRECAUTIONS The Aidacare Ward Bed is an electrically operated acute care bed. It has a range of It is important that this User Manual is read in its entirety prior to operating the functions and positional movements that assist caregivers and provide for patient bed. -
Page 4: Electronic Functions
3. ELECTRONIC FUNCTIONS • ALWAYS use the bed to support one patient only. The Aidacare Ward Bed is intended for one person use and may become unstable if used incorrectly. WARNING • ALWAYS use a mattress of the correct size and type. A range of suitable pressure reducing and pressure relieving mattresses are available from Aidacare. - Page 5 0° to 35°. 3.5 AUTO CONTOUR POSITIONING Auto Contour Positioning provides synchronised movement of the backrest and knee positioning in one operation. The position helps provide a more natural resting environment for the patient. www.aidacare.com.au...
-
Page 6: General Bed Operation
• Bed adjustment will be slower when the power cord is unplugged and the bed is powered from its batteries. • Always store the power cable using the cord minder hooks at the head end of the bed whenever it is not in use or during transportation. www.aidacare.com.au... - Page 7 WARNING: Care should be taken whilst operating the side rails to ensure hands and fingers are kept away from potential squeeze hazards. Side rails should only be used after clinical assessment and within organisational policy and guidelines. www.aidacare.com.au...
- Page 8 C. Position rail brackets over bolt holes bed frame The Aidacare Ward Bed has a central locking and direction castor system that is operated via foot pedals found at the foot end of the bed. 3. To remove the rails, lower partially for greater bolt head access and unfasten •...
-
Page 9: Specifications
Deck Height Range – Tente Twin 150mm Castors 355 to 815mm panel. Trendelenburg Tilt 0 to 14º Reverse Trendelenburg 0 to 14º Backrest Angle Adjustment 0 to 77º Knee Break Angle Adjustment 0 to 35º Calf Positioning Angle Adjustment (if specified) 0 down to 25º www.aidacare.com.au... -
Page 10: Cleaning
1.2 amp hrs. General Standards The Aidacare Ward Bed has been built to comply with International Standard Examine the bed for obvious signs of damage. All aspects of the equipment should operate as IEC 60601-2 intended. Check that all nuts, bolts and other fasteners are tight and are not missing. -
Page 11: Troubleshooting
Symptom Possible Cause Action If the red shaft is visible when the side rail is in the raised and locked position, contact Aidacare for service advice. All actuators fail to work Power diconnected or Ensure mains supply lead Check that the rails pivot axles are securely fitted to the bed. -
Page 12: Transportation And Storage
9. TRANSPORTATION & STORAGE 11. WARRANTY & SERVICE The Aidacare Ward Bed should be stored in a clean, dry well ventilated area. Do not drop and avoid shock or Aidacare Ward beds carry a comprehensive warranty as detailed below. Please keep violent impact when transporting. - Page 13 AIDACARE PTY LTD 4 Noonan Road, Ingleburn NSW 2565 1300 133 120 www.aidacare.com.au...
