Page 1 GPS HANDBOOK...
Page 2: Table Of Contents

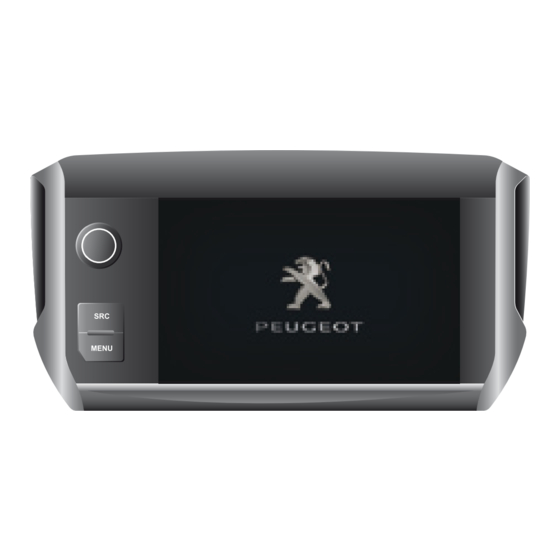

Audio and Telematics 7-inch touch screen GPS satellite navigation - Multimedia audio - Bluetooth ® telephone Contents First steps Steering mounted controls Menus Navigation Navigation - Guidance Traffic Radio Media Radio DAB (Digital Audio Broadcasting) radio Media Settings Connected services Internet browser MirrorLink CarPlay...
Page 3 Audio and Telematics First steps Use the buttons to the left of the touch screen In very hot conditions, the system may for access to the menu carousels, then press go into stand-by (screen and sound the virtual buttons in the touch screen. completely off) for a minimum period Each menu is displayed in one or two pages of 5 minutes.
Page 4: Telephone
Audio and Telematics Short-cuts: using the touch buttons in the upper In very hot conditions, the volume may band of the touch screen, it is possible to go be limited to protect the system. The directly to the selection of audio source, the list return to normal takes place when of stations (or titles, depending on the source).
Page 5 Audio and Telematics Steering mounted controls Press: mute on / off. Radio, rotate: automatic search for Telephone: start or answer a call. the previous / next station. Call in progress: telephone menu Radio, press: preset stations. (end call, secret mode, hands-free Media, rotate: previous / next track.
Page 6 Audio and Telematics Menus Navigation Settings Radio Media (Depending on equipment) Select an audio source, a radio station, display Adjust the settings for sound (balance, Enter navigation settings and choose a photographs. ambience, ...) and the display (language, units, destination. date, time, ...).
Page 7 Audio and Telematics Navigation Level 1 Level 2 Level 3 Navigation Route settings...
Page 8 Audio and Telematics Level 1 Level 2 Level 3 Comments Enter destination Display recent destinations Fastest Shortest Time/distance Choose the navigation criteria. Ecological The map displays the route chosen according to Tolls these criteria. Route settings Ferries Navigation Traffic Settings Strict-Close Navigation Show route on map...
Page 9 Audio and Telematics Level 1 Level 2 Level 3 Enter destination Address For managing contacts and their addresses, refer to the Navigation "Telephone" section. Contacts To use the telephone functions, refer to the "Telephone" section.
Page 10 Audio and Telematics Level 1 Level 2 Level 3 Comments Current loc. Point of interest Address settings Town center Address Save Save the current address. Add waypoint Add a waypoint to the route. Navigate to Press to calculate the route. Addresses Navigation View...
Page 11 Audio and Telematics Level 1 Level 2 Level 3 Navigation Search for a point of interest Point of interest displayed on the map...
Page 12 Audio and Telematics Level 1 Level 2 Level 3 Comments All POIs Navigation List of categories available. Motor After choosing the category, select the points of Secondary page Dining/hotels interest. Personal Search for POI Search Save the settings. Select all Navigation Delete Choose the display settings for POIs.
Page 13 Audio and Telematics Level 1 Level 2 Level 3 Diversion Traffic messages Map settings Map settings Navigation Settings Settings Moving between Settings the two menus.
Page 14 Audio and Telematics Level 1 Level 2 Level 3 Comments On the route Around vehicle Navigation Settings for the choice of messages and the Near destination filter radius. Secondary page Detour over a distance Detour Traffic messages Recalculate route Finish Save your selections.
Page 15 Audio and Telematics Navigation - Guidance Choosing a new destination Towards a new destination Press on Navigation to display the Select "Save" to save the address To delete navigation information, primary page. entered as a contact entry. press on "Settings". The system allows up to 200 entries.
Page 16 Audio and Telematics Towards a recent destination Towards a contact Press on Navigation to display the Select a destination from To be able to use navigation "towards primary page. the contacts in the list a contact in the directory", it is first offered.
Page 17 Audio and Telematics Towards GPS coordinates Towards a point on the map Towards points of interest (POI) Press on Navigation to display the Press on Navigation to display the Points of Interest (POI) are listed in different primary page. primary page. categories.
Page 18 Audio and Telematics An annual mapping update allows new points of interest to be presented to you. You can also update the Risk areas / Danger areas every month. The detailed procedure is available on: http://peugeot.navigation.com.
Page 19: Traffic Information
Audio and Telematics Traffic Risk areas / Danger zone Traffic information alert settings Display of messages Press on Navigation to display the Press on Navigation to display the primary page. This series of alerts and displays is primary page. only available if Risk areas have first Press on the secondary page.
Page 20 Audio and Telematics Setting filters Receiving TA messages Select the message from Press on Navigation to display the Press on Navigation to display the the list offered. primary page. primary page. Press on the secondary page. Press on the secondary page. Select the magnifying glass to have voice information.
Page 21 Audio and Telematics Radio Media Level 1 Level 2 List of FM stations Save...
Page 22 Audio and Telematics Level 1 Level 2 Comments Radio Media List of FM stations Press on a radio station to select it. List FM Radio DAB Radio AM Radio Radio Media MirrorLink Select change of source. Source CarPlay ® iPod Bluetooth Jukebox Radio Media...
Page 23 Audio and Telematics Level 1 Level 2 Level 3 List of FM stations Media Photos Manage Jukebox Copy to Jukebox...
Page 24 Audio and Telematics Level 1 Level 2 Level 3 Comments Save Press a radio station to select it. Radio Media Update list Update the list of stations received. Secondary page Frequency Enter the desired radio frequency. Radio list Confirm Save the settings. Home screen Display the selected photo in the home page.
Page 25 Audio and Telematics Level 1 Level 2 Level 3 Media Settings Settings Settings...
Page 26 Audio and Telematics Level 1 Level 2 Level 3 Comments Radio Media Secondary page Presentation of the last media used. Media list Shuffle (all tracks) Media Shuffle (current album) Choose the play settings. Settings Repeat Aux. amplification RDS options Radio Media DAB/FM station tracking Radio Activate or deactivate the settings.
Page 27 Radio reception may be affected by Select a radio station from the use of electrical equipment not the list offered. approved by PEUGEOT, such as a USB charger connected to the 12 V socket. Select "FM Radio". The exterior environment (hills, Select "Update list"...
Page 28 Audio and Telematics Presetting a station Activating / Deactivating RDS Select a radio station or frequency (refer to the Press on Radio Media to display the corresponding section). primary page. Press on Radio Media to display the Press on "Save" (preset). Press on the secondary page.
Page 29 Audio and Telematics DAB (Digital Audio Broadcasting) radio Short-cut: access to the choice of audio Display of the name of the source and the list of stations (or titles, current station. depending on the source). Select the radio station. Any thumbnail broadcast by the station.
Page 30 Audio and Telematics Digital radio DAB / FM auto tracking Digital radio provides higher quality "DAB" does not cover 100% of the If "DAB/FM station tracking" is reception and also the graphical display territory. activated, there is a difference of a of current information on the radio When the digital radio signal is poor, few seconds when the system switches...
Page 31: Selecting The Source
Audio and Telematics Media USB player Auxiliary (AUX) socket Selecting the source Press on Radio Media to display the primary page. Select change of source. Insert the USB memory stick into the USB port Connect the portable device (MP3 player…) to or connect the USB device to the USB port the auxiliary Jack socket using an audio cable using a suitable cable (not supplied).
Page 32 Audio and Telematics Information and advice The audio equipment will only play audio In order to be able to play a recorded CDR or Use only USB memory sticks formatted FAT 32 files with".wma, .aac, .flac, .ogg and. mp3" CDRW, when recording it is preferable to select (file allocation table).
Page 33 Audio and Telematics ® ® Bluetooth audio streaming Connecting Apple players Streaming allows audio files on your telephone The classifications available are those to be played through the vehicle's speakers. of the portable device connected (artists / albums / genres / playlists / audiobooks / podcasts).
Page 34 Audio and Telematics Managing the Jukebox Connect the device (MP3 player...) to the USB Select the magnifying glass to enter port or auxiliary Jack socket using a suitable the folder or album and select audio audio cable. file by audio file. Select "Confirm"...
Page 35 Audio and Telematics Settings Level 1 Level 2 Level 3 Audio settings Audio settings Audio settings...
Page 36 Audio and Telematics Level 1 Level 2 Level 3 Comments Ambience Choose the sound ambience. ® Balance Sound distribution using the Arkamys system. Set the volume or activate the link to vehicle Sound effects Settings speed. Audio settings Ringtones Set the telephone ringtone and volume. Set the volume and voice for speaking street Voice names...
Page 37 Audio and Telematics Level 1 Level 2 Units Factory settings Configuration Adjust date and time Display screen...
Page 38 Audio and Telematics Level 1 Level 2 Comments Set the units used to display distance, fuel Units consumption and temperature. Settings Select the desired data in the list then press Delete data Delete. Secondary page Factory settings Return to factory settings. System Settings Confirm Save the settings.
Page 39 Audio and Telematics Level 1 Level 2 Choice of language Configuration Calculator Calendar...
Page 40 Audio and Telematics Level 1 Level 2 Comments Settings Secondary page Confirm Select the language then confirm. Languages Settings Secondary page Select the calculator. Calculator Settings Secondary page Select the calendar. Calendar...
Page 41 Audio and Telematics Audio settings Press on Settings to display the The distribution (or spatialisation using On-board audio: Arkamys © Sound primary page. ® the Arkamys system) of sound is an Staging optimises sound distribution in audio process that allows the audio the the passenger compartment.
Page 42 Audio and Telematics Modifying system settings Press on Settings to display the Press on Settings to display the Press on Settings to display the primary page. primary page. primary page. Press on the secondary page. Press on the secondary page. Press on the secondary page Select "System Settings".
Page 43 Audio and Telematics Connected services Level 1 Level 2 Level 3...
Page 44: Internet Browser
Audio and Telematics Internet browser Press on Connected services to display the primary page. Press on "Internet browser" to display the browser home page; first connect your smartphone by Bluetooth, "Internet" option, see the "Telephone" section. Authentication for Internet browsing via a smartphone is done using the Dial-Up Networking (DUN) standard.
Page 45 Audio and Telematics Level 1 Level 2 Bluetooth (devices) Usage monitor Internet connection settings Wi-Fi connection...
Page 46 Audio and Telematics Level 1 Level 2 Comments Search Start the search for a device to connect. Connected services Start or end the Bluetooth connection to the Connect /Disconnect selected device. Secondary page Import contacts from the selected telephone to Update save them in the audio system.
Page 47 Audio and Telematics MirrorLink Optional depending on the smartphone and operating system.
Page 48 Audio and Telematics MirrorLink smartphone Start the application on the As a safety measure, applications smartphone (optional, depending connection can only be viewed with the vehicle on the smartphone and operating stationary; display is interrupted once system). As a safety measure and because it the vehicle is moving.
Page 49 Audio and Telematics Level 1 Level 2 Level 3...
Page 50 Audio and Telematics Level 1 Level 2 Level 3 Comments Access or return to the applications already downloaded to your smartphone and adapted to MirrorLink technology. Access to a menu list depending on the Connected application chosen. services "Back": abandon the current operation, go up one level.
Page 51 Audio and Telematics ® CarPlay...
Page 52 Audio and Telematics ® CarPlay smartphone connection Connect a USB cable. The Voice recognition As a safety measure and because it smartphone charges when Press the end of the lighting control stalk to requires sustained attention by the connected by a USB cable. start voice recognition of your smartphone via driver, using a smartphone when the system.
Page 53 Audio and Telematics Level 1 Level 2 Level 3...
Page 54 Audio and Telematics Level 1 Level 2 Level 3 Comments Favourites Calls The "Telephone" function is placed automatically in "Siri" voice mode. Telephone Contacts Press on "Display contacts" for access to the telephone menus. Keypad Messages Lists Artists Press on "Music" to browse and select the tracks on your smartphone.
Page 55 Audio and Telematics Telephone Level 1 Level 2 Level 3 Call log Contacts...
Page 56 Audio and Telematics Level 1 Level 2 Level 3 Comments All calls Incoming calls Outgoing calls Telephone Contacts After making choices, start the call. Call log View Magnifying glass Create Call Addresses Create Modify Delete View Telephone Delete all After making choices, start the call. By name Contacts Confirm...
Page 57 Audio and Telematics Level 1 Level 2 Level 3 Bluetooth (devices) Telephone connection Devices detected Telephone Options...
Page 58 Audio and Telematics Level 1 Level 2 Level 3 Comments Start the search for another peripheral device to Search connect. Telephone Start or stop the Bluetooth connection to the connection Connect / Disconnect selected peripheral device. Secondary page Import the contacts from the selected telephone Update to store them in the audio system.
Page 59 Audio and Telematics ® Pairing a Bluetooth telephone Procedure from the system For reasons of safety and because they require prolonged attention on the part Activate the telephone's Bluetooth function Select the name of the of the driver, the operations for pairing and ensure that it is "visible to all"...
Page 60 Press on the secondary page. done without any action on your part, with (Bluetooth activated). Visit www.peugeot.co.uk for more information To modify the automatic connection mode, (compatibility, additional help, ...). select the telephone in the list then select the Select "Bluetooth"...
Page 61 Audio and Telematics Managing paired Receiving a call Making a call telephones An incoming call is announced by a ring and a This function allows the connection or Using the telephone is not superimposed display in the screen. disconnection of a peripheral device as recommended while driving.
Page 62 Audio and Telematics Managing contacts / entries Select "Contacts". Press on Telephone to display the Select "By name" to view the list of primary page. contacts. Select the desired contact from the list offered. Select "Contacts". Select "Call". Select "View". Calling a recently used number Select "Create"...
Page 63 Audio and Telematics Frequently asked questions The following table groups together the answers to the most frequently asked questions concerning your audio system. Navigation QUESTION ANSWER SOLUTION The route calculation is not The route settings may conflict with the current location (exclusion of Check the route settings in the "Navigation"...
Page 64 Audio and Telematics QUESTION ANSWER SOLUTION Certain traffic jams along On starting, it is several minutes before the system begins to receive Wait until the traffic information is being received the route are not indicated the traffic information. correctly (display of the traffic information icons in real time.
Page 65 The aerial is absent or has been damaged (for example when going Have the aerial checked by a PEUGEOT dealer. through a car wash or into an underground car park). I cannot find some radio The station is not received or its name has changed in the list.
Page 66 Audio and Telematics Media QUESTION ANSWER SOLUTION Playback of my USB Some files supplied with the memory stick may greatly slow down Delete the files supplied with the memory stick memory stick starts only access to reading the memory stick (multiplication by 10 of the and limit the number of sub-folders in the file after a very long wait catalogue time).
Page 67 Audio and Telematics QUESTION ANSWER SOLUTION The CD player sound is The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable poor. conditions. The audio equipment settings (bass, treble, ambiences) are Set the treble or bass level to 0, without selecting unsuitable.
Page 68 Audio and Telematics Settings QUESTION ANSWER SOLUTION In changing the setting The selection of an equalizer setting imposes the balance settings. Modify the balance or equalizer settings to obtain of treble and bass the Modifying one without the other is not possible. the desired musical ambience.
Page 69 Audio and Telematics QUESTION ANSWER SOLUTION There is a difference in For optimum sound quality, the audio settings for Loudness, Check that the audio settings (Loudness, sound quality between the Ambience, Treble, Bass, Volume can be adapted to the different Ambience, Treble, Bass, Volume) are adapted to different audio sources.
Page 70 The Bluetooth telephone is not compatible with the system. You can check the compatibility of your telephone at www.peugeot.co.uk (services). The volume of the The volume depends both on the system and on the telephone. Increase the volume of the audio system, to...
Page 72 Audio and Telematics ® Audio system / Bluetooth Contents First steps Steering mounted controls Radio Media Telephone Audio settings Configuration Screen menu map(s) Frequently asked questions As a safety measure, the driver must only carry out operations which require prolonged attention while the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the system switches off after activation of energy economy mode.
Page 73 Audio and Telematics First steps On / Off, volume adjustment. Automatic search for a lower radio Automatic search for a higher radio frequency. frequency. Select the previous CD, USB track. Select the next CD, USB track. Navigation in a list. Navigation in a list.
Page 74 Audio and Telematics Steering mounted controls Radio: select the previous / next Radio: automatic search for a lower preset station. frequency. CD / USB: select the genre / CD / MP3 / USB: select the previous track. artist / folder / playlist from the list depending on classification.
Page 75 Audio and Telematics Radio Presetting a station Managing a list Entering a frequency Press SRC/TEL repeatedly to select Press LIST to display the list of Press on MENU. the FM1, FM2 or AM waveband. stations received in alphabetical order. Select "Radio". Press and hold one of the buttons to Select the desired radio station using preset the station being listened to.
Page 76: Displaying Radio Text
Audio and Telematics Receiving TA messages Displaying RADIO TEXT RDS, if activated, enables you to continue The TA (Traffic Announcement) Radio text is information transmitted by listening to the same station by automatic function gives priority to TA alert the radio station related to the current retuning to alternative frequencies.
Page 77 Audio and Telematics Media USB player This unit comprises a USB port Press LIST to display the structure of and a Jack auxiliary socket, the folders in the compilation. depending on model. Select a line in the list. Confirm with "OK". Connect a USB memory stick to the USB port The system constitutes playlists (in or connect a USB device to the USB port using...
Page 78 Audio and Telematics Auxiliary socket (AUX) CD player Insert a CD into the player, play starts Press LIST to display the folder automatically. structure of the compilation. Insert an MP3 compilation CD into the CD player. Select a line in the list. The audio system searches for audio tracks, which can take from a few to several dozen seconds before play starts.
Page 79 Audio and Telematics Information and advice The audio system will only play files with The playlists accepted on CD, MP3, iPod and Use only USB memory sticks formatted FAT32 ".mp3", ".wma" and ".wav" on a CD and can USB connection are types ".m3u" and ".wpl". (File Allocation Table).
Page 80 Audio and Telematics ® ® Bluetooth audio streaming Connecting Apple players Streaming allows music files on a telephone to Activate the streaming source by be heard via the vehicle's speakers. pressing the SRC/TEL* button. Control of playback is via the audio system. The control Connect the telephone: see the "Telephone"...
Page 81 Consult your telephone's manual and telephone: enter the same code and confirm. your operator to find out which services are available to you. Visit www.peugeot.co.uk for more information If pairing fails, try again; the number of attempts is not limited. (compatibility, more help, ...).
Page 82 Audio and Telematics Managing connections Making a call Press the MENU button. Select or deselect: From the directory "Tel.": hands-free connection Press the MENU button. "Audio": play audio files Select "Bluetooth". "OK" to confirm the choice. Select "Telephone". Select "BT management" and confirm.
Page 83 Audio and Telematics Making a call Receiving a call Recently called numbers* Press and hold SRC/TEL to display Press one of these buttons to go to An incoming call is announced by a ring and a the calls list. the previous or next page in the list. superimposed display in the screen.
Page 84: Managing Calls
Audio and Telematics Audio settings Managing calls Hang up Combined mode Press ¯ to display the audio settings menu. (to leave the vehicle without ending the call) In the contextual menu, select "Hang Press ¯ to go to the next setting. up"...
Page 85 Select "Language" to modify the display language. Select "Version" for information on the software. Select "System" when you want to install an update. Information can be obtained from a PEUGEOT dealer. Select "Unit" to modify the units for temperature (Celsius, Fahrenheit).
Page 86 Audio and Telematics Screen menu map(s) MENU Radio Telephone Language Deutsch Call English Directory Español Calls list Français Write freq. Missed calls Italiano Dialed calls Nederlands Media Answered calls Português Normal Phone status Português-Brasil Random Bluetooth Русский Türkçe Random all BT management Repeat Version...
Page 87 Audio and Telematics Frequently asked questions The following tables contain answers to the most frequently asked questions. QUESTION ANSWER SOLUTION There is a difference in For optimum sound quality, the audio settings (volume, bass, Check that the audio settings (volume, bass, sound quality between the treble, ambience, loudness) can be adapted to the different sound treble, ambience, loudness) are adapted to the...
Page 88 The aerial is absent or has been damaged (for example when going Have the aerial checked by a PEUGEOT dealer. through a car wash or into an underground car park). Sound cut-outs of 1 to...
Page 89 Audio and Telematics QUESTION ANSWER SOLUTION The CD is ejected The CD is inserted upside down, is unplayable, does not contain Check that the CD is inserted in the player automatically or is not any audio data or contains an audio format which the player cannot the right way up.
Page 90 Audio and Telematics QUESTION ANSWER SOLUTION An iPod is not recognised The iPod is of a generation that is not compatible with the USB when connecting to the connection. USB port. The hard disk or device Some hard disks and devices need a power supply greater than is Connect the device to the 230 V socket, the 12 V is not recognised when provided by the audio system.
Page 92 Audio and Telematics Audio system Contents First steps Steering mounted controls Radio Media Audio settings Screen menu map(s) Frequently asked questions As a safety measure, the driver must only carry out operations which require prolonged attention while the vehicle is stationary. When the engine is switched off and to prevent discharging of the battery, the system switches off after activation of economy mode.
Page 93 Audio and Telematics First steps On / Off, volume adjustment. Display the list of stations received, Automatic search step by step for a the CD/MP3 tracks or folders. higher radio frequency. Press and hold: update the list of Select the next CD track. stations received.
Page 94 Audio and Telematics Steering mounted controls Radio: select the previous / next Radio: automatic search for a lower preset station. frequency. Select the previous / next item in a CD / MP3: select the previous track. CD: press and hold: fast back. menu.
Page 95 Audio and Telematics Radio Presetting a station Managing the list Press the SRC/BAND button Press LIST to display the list of RDS, if displayed, enables you to continue repeatedly to select the FM1, FM2 or stations received, in alphabetical listening to the same station by automatic AM waveband.
Page 96 Audio and Telematics Receiving TA messages Select "On" or "Off" to switch RDS Select "On" or "Off" to switch The TA (Traffic Announcement) on or off. on or off the reception of traffic function gives priority to TA alert announcements. messages.
Page 97 Audio and Telematics Media Display RADIO TEXT Auxiliary socket (AUX) CD player Insert a CD into the player, play starts Radio Text is information transmitted automatically. by the radio station on the station or on Insert an MP3 compilation in the CD player. the song being played.
Page 98: Play Mode
Audio and Telematics Playing a compilation Play mode Press LIST to display the folder Go back to the first level to select the track Press MENU. structure for the compilation. classification: By Folders: all folders containing audio files recognised on the peripheral device, Select "Media".
Page 99 Audio and Telematics Audio settings Information and advice The audio system can only play files with Playlists accepted are types .m3u and .pls. Press ¯ to display the audio settings ".mp3", ".wma" or ".wav" extensions. The system can recognise up to 5 000 files in menu.
Page 100 Audio and Telematics Screen menu map(s) MENU Radio Displaying Traffic SCROLLING TEXT INFO Unit Media Celsius Fahrenheit Play Normal Random Language Random all Repeat TEXT INFO...
Page 101 Audio and Telematics Frequently asked questions The following tables contain answers to the most frequently asked questions. QUESTION ANSWER SOLUTION There is a difference in For optimum sound quality, the audio settings (Volume, Bass, Check that the audio settings (Volume, Bass, sound quality between the Treble, Ambiance, Loudness) can be adapted to the different sound Treble, Ambiance, Loudness) are adapted to...
Page 102 The aerial is absent or has been damaged (for example when going Have the aerial checked by a PEUGEOT dealer. through a car wash or into an underground car park). Sound cut-outs of 1 to...
Page 103 Audio and Telematics QUESTION ANSWER SOLUTION The CD is ejected The CD is inserted upside down, is unplayable, does not contain Check that the CD is inserted in the player automatically or is not any audio data or contains an audio format which the player cannot the right way up.
Page 104 Alphabetical index Checks ........121, 168, 169, 173 Accessories ..........162 Battery ............208-211 Access to rear seats ........36 Battery, charging ...........210 Child lock ............114 Children (safety) .......95, 100-114 Active City Brake ........... 141 Battery, remote control ......44, 45 Child seats ........... 100, 113 AdBlue ®...
Page 105 Alphabetical index Deadlocking ............39 Filling the fuel tank ......154, 156, 157 Hazard warning lamps ......90, 182 Demisting/defrosting ......58, 64, 66 Filter, air ............173 Headlamps, automatic illumination ....79 Dials and gauges ..........11 Filter, oil ............173 Headlamps ........77, 195-197 Diesel ............157 Filter, particle ..........155 Head restraints, front ........50...
Page 106 MP3 CD ..........254, 301 Parking brake ..........121 Level, brake fluid ........... 170 Petrol .............157 Level, Diesel additive ........155 PEUGEOT Connect Assistance ....223 Level, engine coolant ........25 PEUGEOT Connect Packs ......223 Level, engine oil ........170, 171 PEUGEOT Connect SOS ......222 Levels and checks ........25, 89,...
Page 107 Alphabetical index Replacing the air filter ........173 Player, USB ...........254 Settings (Menus) ...........258 Replacing the oil filter ........173 Port, USB ........72, 254, 300 Sidelamps ....77, 80, 83, 195-197, 199, 200 Replacing the passenger Side repeater ..........199 Pre-heater, Diesel ...........15 Pressures, tyres ..........220 compartment filter ........
Page 108 Alphabetical index Ventilation ........56-58, 61, 115 Third brake lamp ...........201 Voice recognition ........271, 275 Three flashes (direction indicators) ....84 Time (setting) ..........33 TMC (Traffic info) ..........242 Tools ..........188, 202, 212 Touch screen........29, 31, 153 Touch screen (Menus) ......225, 229 Towbar ...........159, 160 Towing another vehicle .........
Page 114 Automobiles this document is prohibited without written PEUGEOT dealers or qualified workshops, PEUGEOT reserves the right to modify the authorisation from Automobiles PEUGEOT. equipped with the special tools required technical specifications, equipment and...
Page 115 Anglais AN. 16208.0040 www.peugeot.com...
Page 116 The warning lamp should go off when the engine is fault (dirty or loose terminals, slack or started. cut alternator belt, ...). If it does not go off, contact a PEUGEOT dealer or a qualified workshop. Under-inflation fixed. The pressure in one or more wheels Check the pressure of the tyres as soon as possible.
Page 117 Practical information Fuel tank Fuel tank capacity: approximately 50 litres ( 45 litres for the BlueHDi Diesel engine). Low fuel level Refuelling When the low fuel level is reached this warning lamp comes on in the instrument panel. There remains approximately 5 litres of fuel in the tank.
Page 118 This additive must be topped-up by a the engine of your vehicle, you must least 40 mph (60 km/h) until the warning lamp PEUGEOT dealer or a qualified workshop have the fuel tank drained and filled goes off. without delay.
Page 119 Connect Assistance" and the official national to the emergency services (112) without language selected by the owner of the location. vehicle. The list of countries covered by PEUGEOT CONNECT services is available at dealers or on the website in your country.
Page 120 "PEUGEOT Connect SOS" and vehicle. "PEUGEOT Connect Assistance" buttons The list of countries covered by PEUGEOT again, followed by a press on "PEUGEOT CONNECT services is available at dealers or Connect Assistance" to confirm.
Page 121 Connect Assistance" and the official national emergency services (112) without the vehicle language selected by the owner of the location. vehicle. The list of countries covered and PEUGEOT CONNECT services is available from dealers or on the website in your country.
Page 122 "PEUGEOT Connect SOS" and vehicle. "PEUGEOT Connect Assistance" buttons The list of countries covered and PEUGEOT A fault with the system does not again, followed by a press on "PEUGEOT CONNECT services is available from dealers prevent the vehicle being driven.
Page 123 Audio and Telematics 7-inch touch screen GPS satellite navigation - Multimedia audio - Bluetooth ® telephone Contents First steps Steering mounted controls Menus Navigation Navigation - Guidance Traffic Radio Media Radio DAB (Digital Audio Broadcasting) radio Media Settings Connected services MirrorLink CarPlay ®...
Page 124 Audio and Telematics First steps Use the buttons to the left of the touch screen In very hot conditions, the system may for access to the menu carousels, then press go into stand-by (screen and sound the virtual buttons in the touch screen. completely off) for a minimum period of Each menu is displayed in one or two pages 5 minutes.
Page 125 Audio and Telematics Short-cuts: using the touch buttons in the upper In very hot conditions, the volume may band of the touch screen, it is possible to go be limited to protect the system. The directly to the selection of audio source, the list return to normal takes place when of stations (or titles, depending on the source).
Page 126: Steering Mounted Controls
Audio and Telematics Steering mounted controls Press: mute on / off. Radio, rotate: automatic search for Telephone: start or answer a call. the previous / next station. Call in progress: telephone menu Radio, press: preset stations. (end call, secret mode, hands-free mode).
Page 127: Menus
Audio and Telematics Menus Navigation Settings Radio Media (Depending on equipment) Select an audio source, a radio station, display Adjust the settings for sound (balance, Enter navigation settings and choose a photographs. ambience, ...) and the display (language, units, destination. date, time, ...).
Page 128: Navigation
Audio and Telematics Navigation Level 1 Level 2 Level 3 Navigation Route settings...
Page 129 Audio and Telematics Level 1 Level 2 Level 3 Comments Enter destination Display recent destinations Fastest Shortest Time/distance Choose the navigation criteria. Ecological The map displays the route chosen according to Tolls these criteria. Route settings Ferries Navigation Traffic Settings Strict-Close Navigation Show route on map...
Page 130 Audio and Telematics Level 1 Level 2 Level 3 Enter destination Address For managing contacts and their addresses, refer to the Navigation "Telephone" section. Contacts To use the telephone functions, refer to the "Telephone" section.
Page 131 Audio and Telematics Level 1 Level 2 Level 3 Comments Current loc. Point of interest Address settings Town center Address Save Save the current address. Add waypoint Add a waypoint to the route. Navigate to Press to calculate the route. Addresses Navigation View...
Page 132 Audio and Telematics Level 1 Level 2 Level 3 Navigation Search for a point of interest Point of interest displayed on the map...
Page 133 Audio and Telematics Level 1 Level 2 Level 3 Comments All POIs Navigation List of categories available. Motor After choosing the category, select the points of Secondary page Dining/hotels interest. Personal Search for POI Search Save the settings. Select all Navigation Delete Choose the display settings for POIs.
Page 134 Audio and Telematics Level 1 Level 2 Level 3 Diversion Traffic messages Map settings Map settings Navigation Settings Settings Moving between Settings the two menus.
Page 135 Audio and Telematics Level 1 Level 2 Level 3 Comments On the route Around vehicle Navigation Settings for the choice of messages and the Near destination filter radius. Secondary page Detour over a distance Detour Traffic messages Recalculate route Finish Save your selections.
Page 136: Navigation - Guidance
Audio and Telematics Navigation - Guidance Choosing a new destination Towards a new destination Press on Navigation to display the Select "Save" to save the address To delete navigation information, primary page. entered as a contact entry. press on "Settings". The system allows up to 200 entries.
Page 137 Audio and Telematics Towards a recent destination Towards a contact Press on Navigation to display the Select a destination from To be able to use navigation "towards primary page. the contacts in the list a contact in the directory", it is first offered.
Page 138 Audio and Telematics Towards GPS coordinates Towards a point on the map Towards points of interest (POI) Press on Navigation to display the Press on Navigation to display the Points of Interest (POI) are listed in different primary page. primary page. categories.
Page 139 Audio and Telematics An annual mapping update allows new points of interest to be presented to you. You can also update the Risk areas / Danger areas every month. The detailed procedure is available on: http://peugeot.navigation.com.
Page 140: Traffic
Audio and Telematics Traffic Risk areas / Danger zone Traffic information alert settings Display of messages Press on Navigation to display the Press on Navigation to display the primary page. This series of alerts and displays is primary page. only available if Risk areas have first Press on the secondary page.
Page 141 Audio and Telematics Setting filters Receiving TA messages Select the message from Press on Navigation to display the Press on Navigation to display the the list offered. primary page. primary page. Press on the secondary page. Press on the secondary page. Select the magnifying glass to have voice information.
Page 142: Radio Media
Audio and Telematics Radio Media Level 1 Level 2 List of FM stations Save...
Page 143 Audio and Telematics Level 1 Level 2 Comments Radio Media List of FM stations Press on a radio station to select it. List FM Radio DAB Radio AM Radio Radio Media Select change of source. MirrorLink Source CarPlay ® iPod Bluetooth Radio Media Press an empty location to Save it.
Page 144 Audio and Telematics Level 1 Level 2 Level 3 List of FM stations Media Photos...
Page 145 Audio and Telematics Level 1 Level 2 Level 3 Comments Save Press a radio station to select it. Radio Media Update list Update the list of stations received. Secondary page Frequency Enter the desired radio frequency. Radio list Confirm Save the settings. Home screen Display the selected photo in the home page.
Page 146 Audio and Telematics Level 1 Level 2 Level 3 Media Settings Settings Settings...
Page 147 Audio and Telematics Level 1 Level 2 Level 3 Comments Radio Media Secondary page Presentation of the last media used. Media list Shuffle (all tracks) Media Shuffle (current album) Choose the play settings. Settings Repeat Aux. amplification RDS options Radio Media DAB/FM station tracking Radio Activate or deactivate the settings.
Page 148: Radio
Radio reception may be affected by Select a radio station from the use of electrical equipment not the list offered. approved by PEUGEOT, such as a USB charger connected to the 12 V socket. Select "FM Radio". The exterior environment (hills, Select "Update list"...
Page 149 Audio and Telematics Presetting a station Activating / Deactivating RDS Select a radio station or frequency (refer to the Press on Radio Media to display the corresponding section). primary page. Press on Radio Media to display the Press on "Save" (preset). Press on the secondary page.
Page 150: Dab (Digital Audio Broadcasting) Radio
Audio and Telematics DAB (Digital Audio Broadcasting) radio Short-cut: access to the choice of audio Display of the name of the source and the list of stations (or titles, Select the radio depending on the source). station. current station. Any thumbnail broadcast by Select the audio source.
Page 151 Audio and Telematics Digital radio DAB / FM auto tracking Digital radio provides higher quality "DAB" does not cover 100% of the If "DAB/FM station tracking" is reception and also the graphical display territory. activated, there is a difference of a few of current information on the radio When the digital radio signal is poor, seconds when the system switches to...
Page 152: Media
Audio and Telematics Media USB port Auxiliary socket (AUX) Selecting the source Press on Radio Media to display the primary page. Select change of source. Insert the USB memory stick into the USB port This source is only available if the "Auxiliary or connect the USB device to the USB port socket"...
Page 153 Audio and Telematics Information and advice The audio system will only play audio files In order to be able to play a recorded CDR or Use only USB memory sticks formatted FAT 32 with".wma, .aac, .flac, .ogg and .mp3" file CDRW, when recording it is preferable to select (file allocation table).
Page 155 Audio and Telematics ® ® Bluetooth audio streaming Connecting Apple players Streaming allows audio files on your telephone The classifications available are those to be played through the vehicle's speakers. of the portable device connected (artists / albums / genres / playlists / audiobooks / podcasts).
Page 156: Settings
Audio and Telematics Settings Level 1 Level 2 Audio settings Audio settings Audio settings...
Page 157 Audio and Telematics Level 1 Level 2 Comments Ambience Choose the sound ambience. Balance Sound distribution using the Arkamys ® system. Set the volume or activate the link to vehicle Sound effects Settings speed. Audio settings Ringtones Set the telephone ringtone and volume. Set the volume and voice for speaking street Voice names.
Page 158 Audio and Telematics Level 1 Level 2 Units Factory settings Configuration Adjust date and time Display screen...
Page 159 Audio and Telematics Level 1 Level 2 Comments Set the units used to display distance, fuel Units consumption and temperature. Settings Select the desired data in the list then press Delete data Delete. Secondary page Factory settings Return to factory settings. System Settings Confirm Save the settings.
Page 160 Audio and Telematics Level 1 Level 2 Choice of language Configuration Calculator Calendar...
Page 161 Audio and Telematics Level 1 Level 2 Comments Settings Secondary page Confirm Select the language then confirm. Languages Settings Secondary page Select the calculator. Calculator Settings Secondary page Select the calendar. Calendar...
Page 162 Audio and Telematics Audio settings Press on Settings to display the The distribution (or spatialisation using On-board audio: Arkamys © Sound primary page. ® the Arkamys system) of sound is an Staging optimises sound distribution in audio process that allows the audio the passenger compartment.
Page 163 Audio and Telematics Modifying system settings Press on Settings to display the Press on Settings to display the Press on Settings to display the primary page. primary page. primary page. Press on the secondary page. Press on the secondary page. Press on the secondary page Select "System Settings".
Page 164: Connected Services
Audio and Telematics Connected services MirrorLink Optional depending on the smartphone and operating system.
Page 165: Mirrorlink Tm
Audio and Telematics MirrorLink smartphone Start the application on the As a safety measure, applications smartphone (optional, depending connection can only be viewed with the vehicle on the smartphone and operating stationary; display is interrupted once system). As a safety measure and because it the vehicle is moving.
Page 166 Audio and Telematics Level 1 Level 2 Level 3...
Page 167 Audio and Telematics Level 1 Level 2 Level 3 Comments Access or return to the applications already downloaded to your smartphone and adapted to MirrorLink technology. Access to a menu list depending on the Connected application chosen. services "Back": abandon the current operation, go up one level.
Page 168: Carplay
Audio and Telematics ® CarPlay...
Page 169 Audio and Telematics ® CarPlay smartphone connection Connect a USB cable. The When the telephone menu is displayed, As a safety measure and because it smartphone charges when connection of the USB cable causes the requires sustained attention by the connected by a USB cable.
Page 170 Audio and Telematics Telephone Level 1 Level 2 Level 3 Call log Contacts...
Page 171 Audio and Telematics Level 1 Level 2 Level 3 Comments All calls Incoming calls Outgoing calls Telephone Contacts After making choices, start the call. Call log View Magnifying glass Create Call Addresses Create Modify Delete View Telephone Delete all After making choices, start the call. By name Contacts Confirm...
Page 172 Audio and Telematics Level 1 Level 2 Level 3 Bluetooth (devices) Telephone connection Devices detected Telephone Options...
Page 173 Audio and Telematics Level 1 Level 2 Level 3 Comments Start the search for another peripheral device to Search connect. Telephone Start or stop the Bluetooth ® connection to the connection Connect/Disconnect selected peripheral device. Secondary page Import the contacts from the selected telephone Update to store them in the audio system.
Page 174 Audio and Telematics ® Pairing a Bluetooth telephone Procedure from the system For reasons of safety and because they require prolonged attention on the part Activate the telephone's Bluetooth ® function Select the name of the of the driver, the operations for pairing and ensure that it is "visible to all"...
Page 175 (Bluetooth ® activated). Visit www.peugeot.co.uk for more information To modify the automatic connection mode, (compatibility, additional help, ...). select the telephone in the list then select the Select "Bluetooth" to display the list desired profile.
Page 176 Audio and Telematics Managing paired Receiving a call Making a call telephones An incoming call is announced by a ring and a This function allows the connection or Using the telephone is not superimposed display in the screen. disconnection of a peripheral device as recommended while driving.
Page 177 Audio and Telematics Managing contacts / entries Select "Contacts". Press on Telephone to display the Select "By name" to view the list of primary page. contacts. Select the desired contact from the list offered. Select "Contacts". Select "Call". Select "View". Calling a recently used number Select "Create"...
Page 178: Frequently Asked Questions
Audio and Telematics Frequently asked questions The following table groups together the answers to the most frequently asked questions concerning your audio system. Navigation QUESTION ANSWER SOLUTION The route calculation is not The route settings may conflict with the current location (exclusion of Check the route settings in the "Navigation"...
Page 179 Audio and Telematics QUESTION ANSWER SOLUTION Certain traffic jams along On starting, it is several minutes before the system begins to receive Wait until the traffic information is being received the route are not indicated the traffic information. correctly (display of the traffic information icons in real time.
Page 180 The aerial is absent or has been damaged (for example when going Have the aerial checked by a PEUGEOT dealer. through a car wash or into an underground car park). I cannot find some radio The station is not received or its name has changed in the list.
Page 181 Audio and Telematics Media QUESTION ANSWER SOLUTION Playback of my USB Some files supplied with the memory stick may greatly slow down Delete the files supplied with the memory stick memory stick starts only access to reading the memory stick (multiplication by 10 of the and limit the number of sub-folders in the file after a very long wait catalogue time).
Page 182: Level
Audio and Telematics QUESTION ANSWER SOLUTION The CD player sound is The CD used is scratched or of poor quality. Insert good quality CDs and store them in suitable poor. conditions. The audio equipment settings (bass, treble, ambiences) are Set the treble or bass level to 0, without selecting unsuitable.
Page 183 Audio and Telematics Settings QUESTION ANSWER SOLUTION In changing the setting The selection of an equalizer setting imposes the balance settings. Modify the balance or equalizer settings to obtain of treble and bass the Modifying one without the other is not possible. the desired musical ambience.

PEUGEOT 208 Touch Screen Navigation Handbook

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PEUGEOT 208 Touch Screen Navigation

Summary of Contents for PEUGEOT 208 Touch Screen Navigation

Table of Contents
