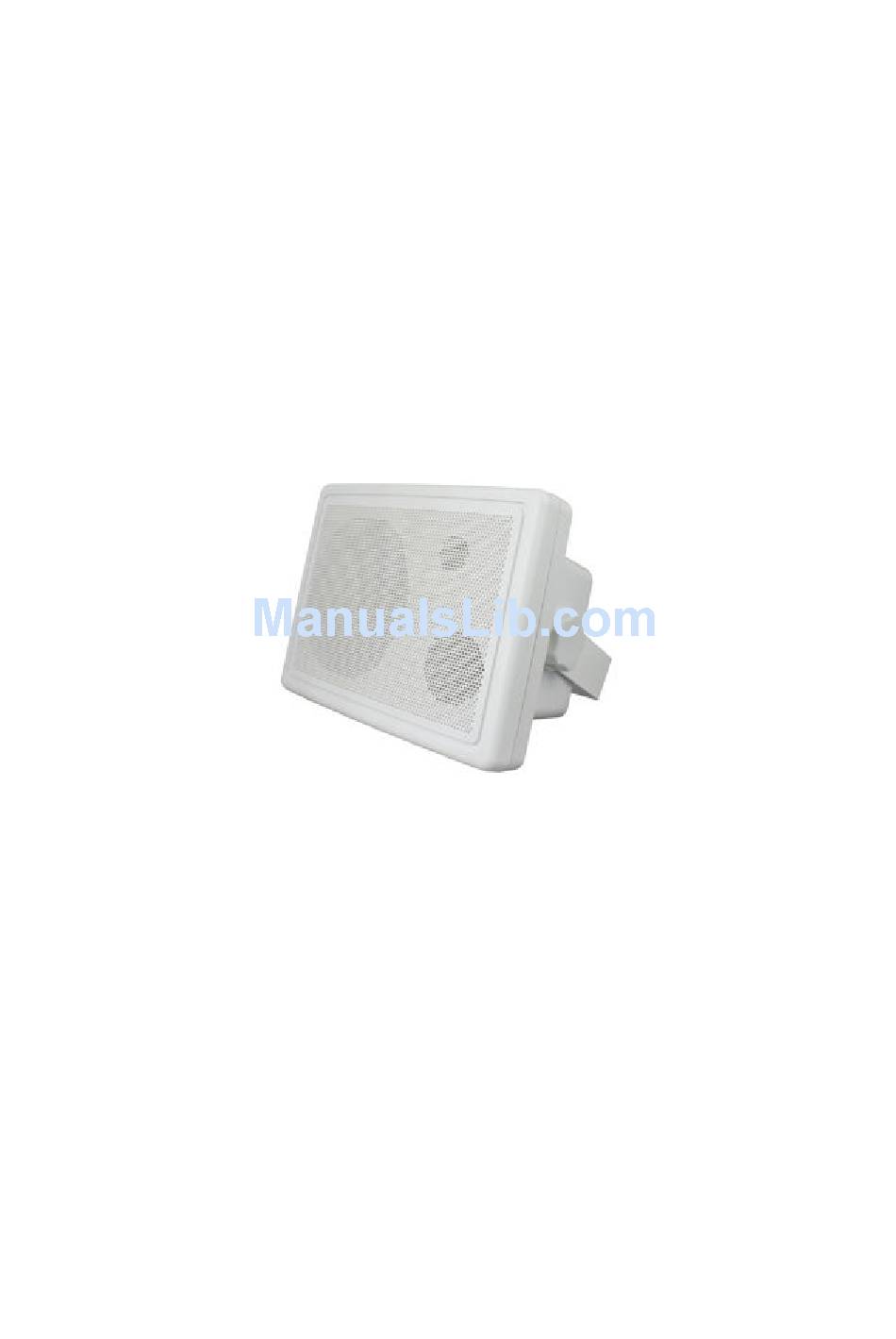

The audio receivers can be installed in the broadcast system, to have network broadcast function. 2. Product Package Content: IP Speaker(IS-670) host X 1 main body size : 270 X 150 X 195 270 X 150 X 195...
IS-670 User manual III. PoE injector (non-standard 30W) X 1 3. PoE Injector connection structure diagram LAN port : RJ-45 network port(PoE) ; connected to PoE Injector through network cable P+D/OUT port conducts network connection and power supply...
IS-670 User manual 4. Web picture Step 1: open IE browser (or other browser software), input [http://192.168.0.100] Step 2: enter [Login WEB] picture, input [Username & Password (defaults: username: voip, Password: 1234)] data, and then click [OK] to enter the equipment management interface after confirming the password is correct (as shown in the following picture).
IS-670 User manual 5. Set the main interface It provides the following function items: Network, SIP Setting, System Auth, (Account and Password Change), Save Change, Update and Reboot. (1).Network : Network provides Status and WAN Setting (2).SIP Settings : SIP Setting provides Service Domain (SIP registration setting),Port Setting (SIP and RTP ports setting),Code Setting (voice format setting),Audio Setting (loudspeaker volume...
IS-670 User manual 6. Network (Network Environment) 6.1 Status (network status) Network Status (network status) picture shows the date of current network environment status (as shown in the following picture). Column Introduction Master Show the network environment data of the network port (WAN...
IS-670 User manual 6.2 WAN Setting (WAN network setting) WAN Setting (WAN network setting) picture provides WAN network connection mode. WAN Setting Provide WAN port network environment setting data IP Type Preset to be DHCP Client network mode. Provide Fixed IP, DHCP Client (automatically obtain an IP address) and PPPoE mode.
IS-670 User manual 6.3 SNTP Setting SNTP Setting picture provides server address and timing time. Column Introduction SNTP Preset to be On (start); timing function. Turn off timing function when it is set to be Off. Primary Server Preset to be time.windows.com; the first syn-position timing server address.
IS-670 User manual 7. SIP Setting 7.1 Service Domain (broad system server registration setting) Service Domain (registration setting) picture provides registration account data and state. Column Introduction Active Preset to be Off; put the account into use. Put the registration account into use when it is set to be On.
IS-670 User manual 7.2 Port Setting (SIP and RTP port setting) Port Setting (SIP and RTP port setting) picture provides setting of SIP and RTP communication port positions. Column Introduction SIP Port Preset to be 5060; set SIP port position.
IS-670 User manual 7.3 Codec Setting (voice format setting) Code Setting (voice format setting) picture provides Codec format priority, RTP package size and VAD function. Column Introduction Codec Priority Provide format priority of using voice. Codec Priority 1 Preset to be G.711 u-law; the first syn-position voice format.
IS-670 User manual G.723 5.3K Provide data of setting G.726 5.3K Voice VAD Preset to be Off; G.723 5.3K function. Start 5.3K when it is set to be On. Voice VAD Provide data of setting Voice VAD Voice VAD Preset to be Off; voice detection function. Use VAD function when it is set to be On.
IS-670 User manual 7.5 Other Setting Other Setting interface provides SIP Expire Time SIP Expire Time Preset to be 60; set registration interval; data setting section (30-86400). CutLine Interrupt present broadcast program and restore to idle status Submit [key] Execute storage and change setting.
IS-670 User manual 8. Update 8.1 Update New Firmware Code Type Preset to be Risc (.gz). Select the type of documents to be updated. Provide Risc (system firmware. gz) and DSP (DSP firmware. ds) updating modes. File Location Input file positon or name to be updated or press [Browse] to select file data;...
Page 16
IS-670 User manual Step 2: enter [select file] interface, to select [gz] file to be updated [for example, VP5110_70105.gz], and then press [open] (as shown in the following picture), to return to the main interface. Step 3: back to [Update Firmware], wherein [File Location] has data to be updated if it is confirmed to be correct;...
IS-670 User manual 8.2 Default Setting Restore Default Setting provides data content of all change setting (not containing data in Network) to restore default setting value; the system will automatically restart. Column Introduction Restore [key] Remove all change setting data to restore default setting.
IS-670 User manual Step 2: enter the informatoin prompt interface to finish clear setting and restart the system, please wait (as shown in the following picture). Step 3: return to the main interface after starting up, please press [reload (F5)] to conduct other environment settings.
IS-670 User manual 10. Save Change Save Changes provides save changes setting and restarts the system automatically Column Introduction Save [key] Execute storage and change setting. 11. Reboot Reboot System interface provides manual reboot.
IS-670 User manual Step 1: click [Reboot] in the main interface to enter [Reboot System] and then press [Reboot] to reboot the system (as shown in the following picture). Column Introduction Reboot [key] Reboot the equipment Step 2: enter the information prompt interface, showing that the system is rebooting, please wait (as shown in the following picture);...
Page 21
IS-670 User manual Step 2, sleeve a proper flexible coil to the connector body according to the diameter of the network wire. Draw it out and change it after the original part is sleeved Please use special outdoor wire material to avoid influence on network quality due to...
Page 22
IS-670 User manual Step 4, press the attached network joint Step 5, sleeve half the network joint into the front end of the connector body Step 6, screw the rear cover into the rear end of the connector body and screw it tightly...
Page 23
IS-670 User manual Step 7, insert half the network joint in the front of the connector body into the speaker network port Step 8, screw the front cover of the connector body into the network port main body clockwise, to...
