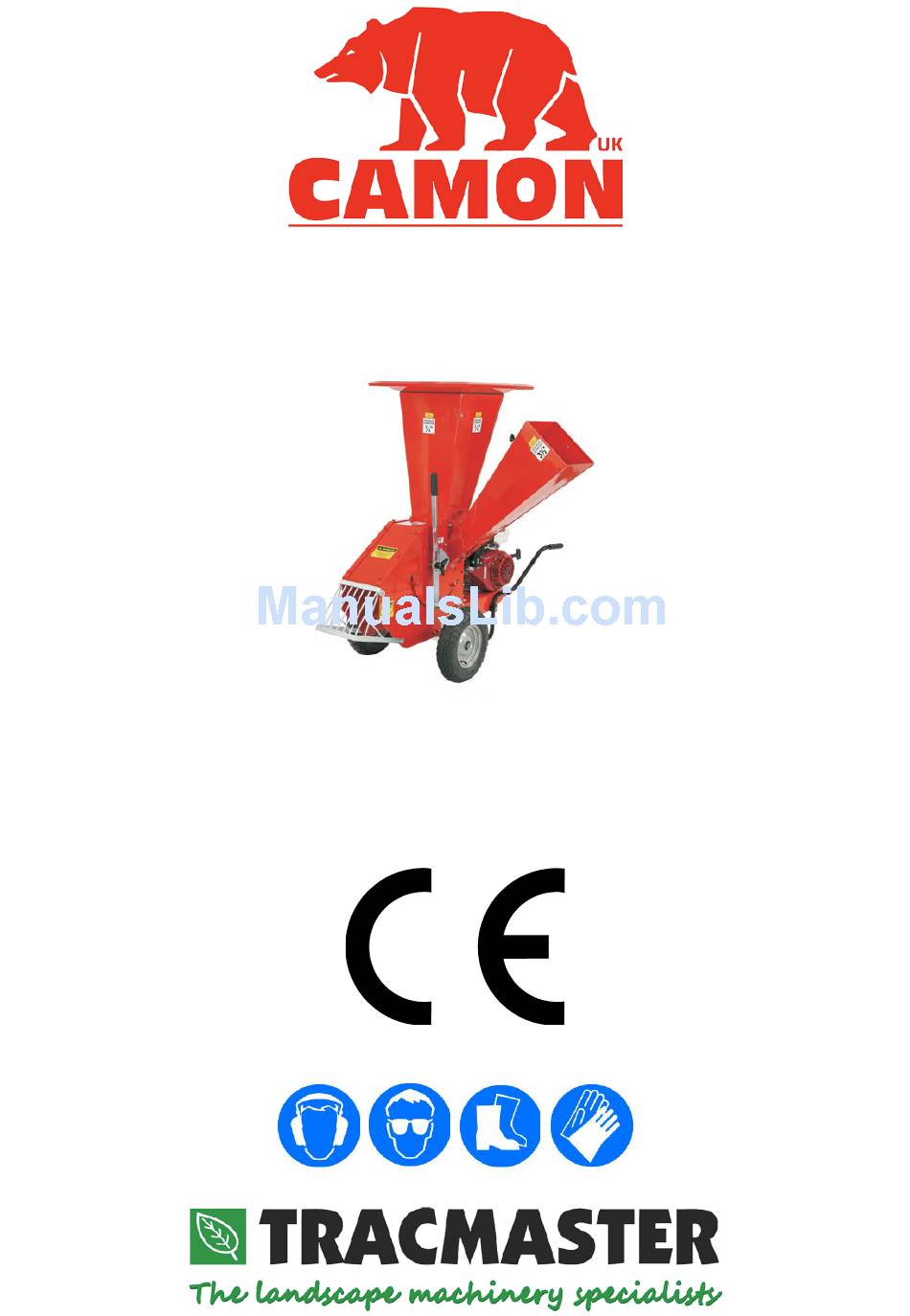

- Page 1 C150 Chipper Shredder Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
-
Page 2: Table Of Contents
CAMON Chipper Shredder Contents Page 3 Safety Page 4 Before Starting Work To Start Engine Page 5 Shredder Operation Page 6 To Clear the Discharge Grille Page 7 Points to Observe Page 8 Maintenance Programme Page 9 Risk Assessment Page 10... -
Page 3: Safety
CAMON Chipper Shredder Safety ALWAYS start the engine in the open air DO NOT smoke when refuelling DO NOT mix OIL with the fuel ALWAYS stop the engine before making any adjustments, refuelling, moving or cleaning, or when the unit is unattended... -
Page 4: Before Starting Work
CAMON Chipper Shredder Before Starting Work Ensure the machine is on firm, level ground. DO NOT USE MACHINE ON A SLOPE. The unit may be placed on a tarpaulin to collect the processed material. Ensure the shredder hopper and chipping chute are in place. -
Page 5: Shredder Operation
CAMON Chipper Shredder Shredder Operation ENSURE THE DISCHARGE GRILLE IS IN THE CLOSED POSITION. Increase engine to FULL throttle and allow the machine to build up to FULL speed. Be very careful what you put into the hopper. The shredder cannot handle the following: •... -
Page 6: To Clear The Discharge Grille
CAMON Chipper Shredder To Clear the Discharge Grille Switch off the engine and visually check the shredder shaft has stopped rotating. Disconnect the spark plug lead. Move discharge grille lever from fully closed to fully open position. Clear out the material with a wooden handle or brush. -
Page 7: Points To Observe
CAMON Chipper Shredder Danger Points to Observe The chipper shredder blades may continue to rotate silently after engine shut down. Be sure the blades have stopped rotating before working on the machine. The shredder grasps and pulls material down into the hopper with surprising speed. -
Page 8: Maintenance Programme
CAMON Chipper Shredder Maintenance Programme OPERATION EVERY EVERY EVERY WEEK MONTH ENGINE Check engine oil level 10w/40 See separate engine manual MACHINE Check chipping blade condition Check fixed blade condition Check shredder blades condition Check belt tension Grease chipping side bearing... -
Page 9: Risk Assessment
CAMON Chipper Shredder Risk Assessment HAZARDS RISK LEVEL ACTION NEEDED General The machine should only be used by trained operators. Flying chippings Medium Wear protective clothing including helment, eye and ear protection, loose fitting gloves, and overalls. Ensure there are no bystanders in the area of operation. -
Page 10: Shredder Blade Layout
CAMON Chipper Shredder Shredder Blade Layout Description Part No 3mm spacer 010107000 11.5mm spacer 081007080 18mm spacer 010108001 6mm hammer 010105006 Page 10 C150/0415... -
Page 11: Machine Overview

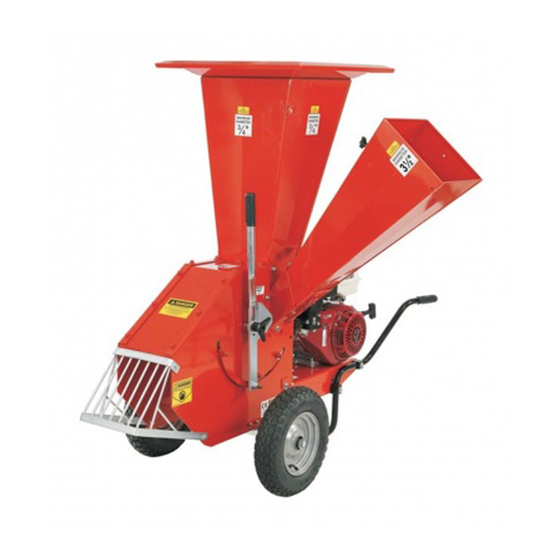

CAMON Chipper Shredder Machine Overview Shredder infeed chute/hopper Chipper infeed chute/hopper Grille opening lever Fuel filler cap Ignition switch Lever locking knob Oil level plug CLOSED OPEN Recoil starter handle Throttle lever Choke lever Fuel tap Discharge grille Page 11... -
Page 12: Sound Levels
CAMON Chipper Shredder Sound Levels MACHINE ENGINE RPM SOUND LEVEL dB(A) CAMON C80 Chipper Shredder 3100 up to 104.0 Page 12 C150/0415... -
Page 13: Warranty Registration
CAMON Chipper Shredder Warranty Registration To validate your warranty please complete the form below and return it to: Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill, RH15 9LR Alternatively visit www.tracmaster.co.uk and complete the online form. CUSTOMER DETAILS Name: .................... - Page 14 CAMON Chipper Shredder Page 14 C150/0415...
- Page 15 CAMON Chipper Shredder Page 15 C150/0415...
- Page 16 © Tracmaster Ltd 2015. Specifications are subject to change without prior notice. Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR T: +44 (0) 1444 247689 F: +44 (0) 1444 871612 W: www.tracmaster.co.uk E: info@tracmaster.co.uk...
