Summary of Contents for Camon C50i

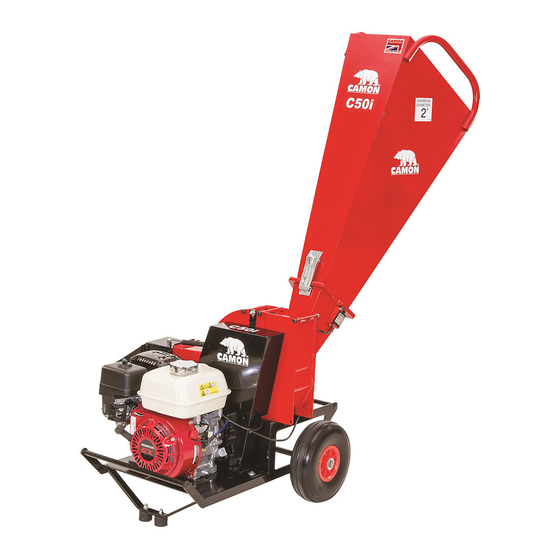

- Page 1 C50i Chipper Operating Instructions Before commissioning the machine, read operating instructions and observe warning and safety instructions.
- Page 3 Sovereign Centre Victoria Road Burgess Hill West Sussex RH15 9LR UNITED KINGDOM Tel: +44 1444 247689 Fax: +44 1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk Machine Details Model: CAMON C50i Chipper Serial Number: ..........Engine Serial No: ..........Date of Purchase: ..........Supplier: ..........
-
Page 4: Table Of Contents
To Stop the Engine ....................10 Safety Equipment ...................... 10 Operation........................10 Procedure for Unexpected Shut Down ............... 11 Residual Risks of the C50i Chipper ................11 6.0 Maintenance .......................... 12 Schedule ........................12 Basic Maintenance ....................12 Advanced Maintenance ..................... 12 6.3.1 Belt ....................... -
Page 5: What The Machine Is Designed For
Additionally wood chippings can be used a mulch or in the creation of compost. The blade of the CAMON C50i Chipper is designed to chip wood only. Do not use the CAMON C50i Chipper for chipping any material other than wood. Metal will cause significant damage to the chipping blades and machine. -
Page 6: Specifications
CAMON C50i Chipper Tracmaster Ltd 2.0 Specifications ENGINE Engine Manufacturer Honda Engine Model GX200 or GP200 Engine Type 4-stroke OHV, single cylinder Net Engine Power 4.1kW (5.5hp) @ 3600rpm Engine Shaft Size ¾” straight Spark Plug BPR6ES (NGK) / W20EPR-U (DENSO) Spark Plug Gap 0.70 - 0.80mm... -
Page 7: Unpacking And Assembly
Tracmaster Ltd CAMON C50i Chipper 3.0 Unpacking and Assembly Major Components Diagram Capacity Gauge (NB: Not fitted on current chutes) In-feed Chute Collection Bag Service Hatch (NB: Not fitted on current housing) Locking Latch Bottom Bracket Rotor Housing Belt Guard... -
Page 8: Safety Instructions - Pre-Operation
Chipping Blade A chipping blade must be fitted to the rotor disc of the C50i Chipper for it to be able to function in the manor for which it is designed. Without a chipping blade the C50i Chipper will not chip wood, and damage to the machine is likely to occur. -
Page 9: Discharge Chute
Tracmaster Ltd CAMON C50i Chipper The chipping blade must be kept sharp for the C50i Chipper to efficiently chip wood. A blunt chipping blade will cause damage to the machine. Discharge Chute The discharge chute swivels from a storage position into its operating position. The Honda engine will not start unless the discharge chute has been moved into its working position. -
Page 10: Engine Specific Safety Instructions
CAMON C50i Chipper Tracmaster Ltd 4.10 Engine Specific Safety Instructions Always ensure the engine is turned off when transporting the machinery, cleaning the machinery and making adjustments. Always start the engine in open air. Starting an engine within a confined space can lead to the inhalation of toxic substances. -
Page 11: Safety Instructions Starting And Operating
Tracmaster Ltd CAMON C50i Chipper 5.0 Safety Instructions Starting and Operating To Start the Engine Using the dipstick provided, check the engine oil level. Top up with 10w/30 oil if the dipstick is clear of oil. Check the fuel level. Refill as necessary and as determined by the fuel tank type –... -
Page 12: To Stop The Engine
Turn the fuel tap lever to the OFF position. Ensure the blades have stopped rotating prior to moving the machine. WARNING: THE EXHAUST COVER MAY BE HOT – DO NOT TOUCH. Safety Equipment The C50i operator must be wearing: • Ear Defenders •... -
Page 13: Procedure For Unexpected Shut Down
Ensure that the blade has stopped rotating prior to moving or tilting the machine. The C50i Chipper is designed to be pushed by the operator during transportation. It has no brake system and the operator must position the machine only on flat areas during operation. -
Page 14: Maintenance
CAMON C50i Chipper Tracmaster Ltd 6.0 Maintenance Schedule Operation Daily Every Every Week Month Engine Check engine oil level 10w/30 See separate engine manual Machine Check condition of blades Check belt condition Check collection bag condition Check rotor shaft bearings... -
Page 15: Changing The Chipping Blade
Tracmaster Ltd CAMON C50i Chipper 6.3.2 Changing the Chipping Blade Inspection Check: Over time blades will lose their point and sharpness. This will lead to poor chipping performance. Check regularly to ensure the chipping blade has a sharp leading edge. -
Page 16: Air Filter
CAMON C50i Chipper Tracmaster Ltd The first oil change is after 50 hours of work. Subsequent oil changes should be made after each 100 hours of work. At extreme temperatures or conditions change the oil after every 50 hours. Open the drain plug on the engine and the filling plug and drain the oil into a suitable container or use a suction pump to remove oil through filler neck. -
Page 17: Troubleshooting
Tracmaster Ltd CAMON C50i Chipper Troubleshooting 6.6.1 Machine Have all serious malfunctions on the machine and engine repaired by an authorised Tracmaster or Honda agent. Problem Possible Cause Remedy No drive to blades Broken belt Replace belt Poor chipping performance... -
Page 18: Transportation, Storage And Handling
Transportation Use ramps where possible to manoeuvre the Chipper into a transportation vehicle. The C50i must be fixed securely using straps and by placing chocks behind the wheels. Always transport the C50i horizontally and not at an angle. Ensure that the fuel control lever on the engine is moved into the OFF position so fuel does not leak into the carburetor during transportation. -
Page 19: Service Record
Tracmaster Ltd CAMON C50i Chipper 8.0 Service Record To ensure your machine is kept in peak condition we recommend that your CAMON C50i Chipper is serviced regularly. Contact Tracmaster on 01444 247689 to find out who your local Authorised Agent is. -
Page 20: Ec Declaration Of Conformity
CAMON C50i Chipper Tracmaster Ltd EC Declaration of Conformity Tracmaster Ltd declares that the machinery stipulated below complies with all the relevant provisions of: Machinery Directive 2006/42/EC EMC Directive 2004/108/EC and the National Laws and Regulations adopting these directives and other relevant directive. -
Page 21: Warranty Registration
Tracmaster Ltd CAMON C50i Chipper Warranty Registration To validate your warranty please complete the form below and return it to: Tracmaster Ltd, Sovereign Centre, Victoria Road, Burgess Hill, RH15 9LR Alternatively visit www.tracmaster.co.uk and complete the online form. CUSTOMER DETAILS Name: ....................... - Page 22 CAMON C50i Chipper Tracmaster Ltd _______________________________________________________________________________________________ For parts diagrams visit www.tracmaster.co.uk...
- Page 23 Tracmaster Ltd CAMON C50i Chipper Visit our website for more information on the CAMON C50i Chipper. www.camon.co.uk www.tracmaster.co.uk Videos, parts diagrams, technical bulletins, FAQ’s and more. _______________________________________________________________________________________________ For parts diagrams visit www.tracmaster.co.uk...
- Page 24 © 2015 Tracmaster Ltd Sovereign Centre, Victoria Road, Burgess Hill RH15 9LR Tel: +44 (0)1444 247689 Fax: +44 (0)1444 871612 www.tracmaster.co.uk info@tracmaster.co.uk...
