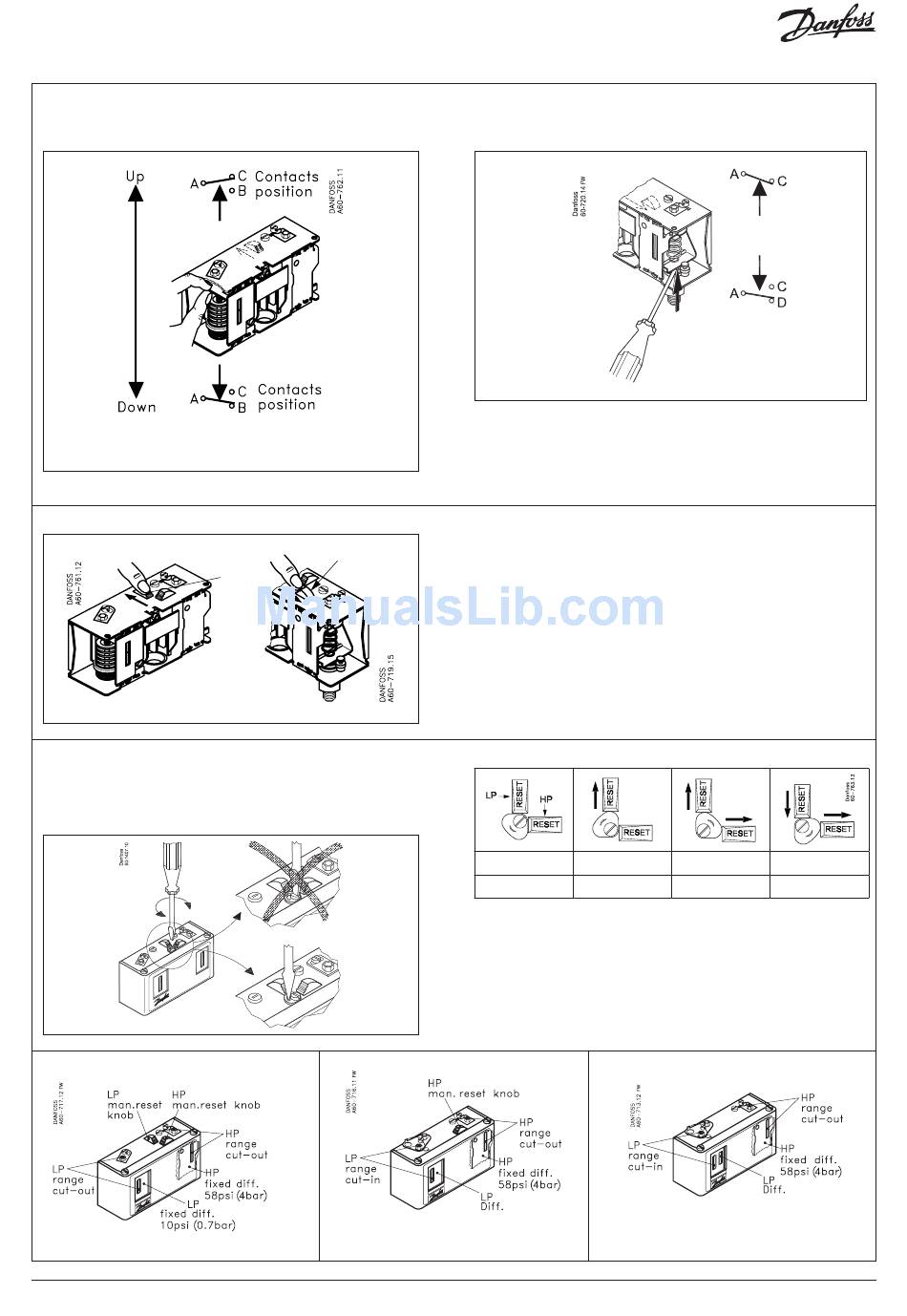

Manual tripping
(Electrical contacts/wiring test)
LP side
Trip:
use FINGERS ONLY! (Do NOT use screwdriver)
Manual reset
Convertible reset
Insert a screwdriver into the slot on the lock disc and turn
it to desired reset configuration. Do not turn the screw
on the lock disc as it may damage the convertible reset
mechanism.
Adjustment spindle(s) location
KP 15
A. MAN./MAN. RESET
© Danfoss | DCS (jmn) | 2016.10
HP side
Note:
On controls with LP and/or HP man. reset, push corresponding
LP and/or HP man. reset knob during tripping.
To resume control operation after safety cut-out,
push man. reset knob as indicated.
Note:
LP man. reset is possible only after system pressure
has risen above cut-in value.
HP man. reset is possible only after system pressure
has dropped below cut-out value.
Reset options
LP man.
HP man.
Note:
Do not select automatic reset if safety of the system requires
manual reset.
Note:
Selected reset configuration may be protected against
unauthorized actions applying a seal.
KP 15, KP 17B
B. AUTO/MAN. RESET
Use screw
driver only
LP auto. LP auto.
HP man. HP auto.
KP 15, KP 17W, KP 25
C. AUTO./AUTO. RESET
DKRCC.PI.CA0.B3.22 | 520H11520 | 3
LP man.
HP auto.
