Components
1
2
Remove Existing Lighting Equipment
Prior to installation, survey the site for information regarding power and accessibility inside and outside the building. Ensure that the
branch circuit supplying the existing LED power supply will be within the voltage ratings of the new LED power supply, and have a
current rating not exceeding 20A, or that permitted by applicable local, state, or country electrical codes (whichever is less).
If removal of the existing lighting equipment (see Step 2 in this section) eliminates the disconnect switch, as required by applicable local,
state, or country electrical codes; a new disconnect switch must be installed. If required, the disconnect switch shall be installed by
qualified personnel, in accordance with applicable local, state, and country electrical codes.
Make sure the removal of lighting equipment does not compromise the integrity of the sign body (i.e. water intrusion). Fill in all holes
0.5 in. (13 mm) or smaller with the appropriate amount of rated caulk or sealant. For holes greater than 0.5 in. (13 mm), use an
aluminum or zinc coated steel patch with rivets and sealant.
1
Turn off power and remove panel from the channel
letter.

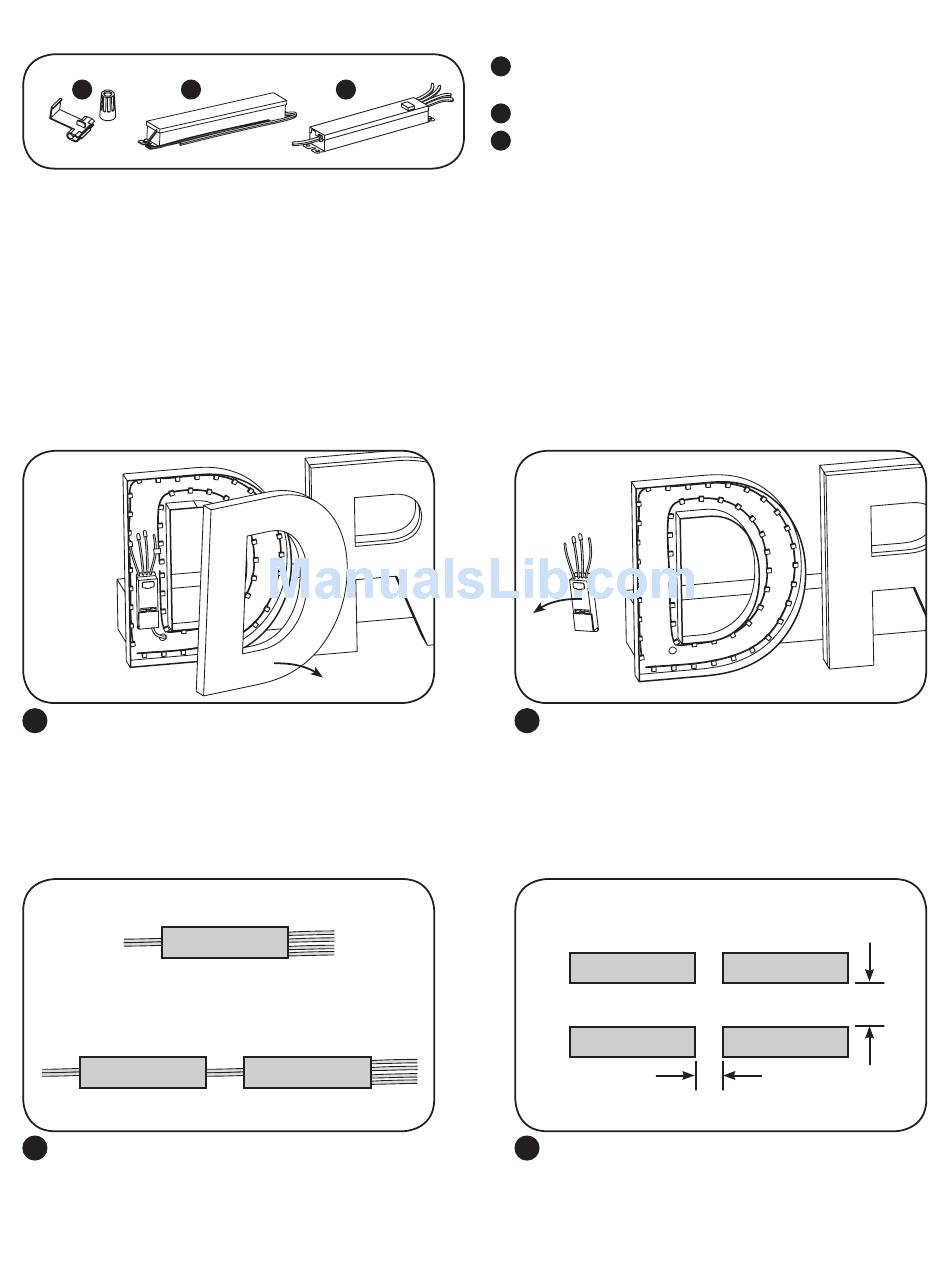

Electrical Connections
GECLPS3
GEPS24-100-XX
3
One GECLPS3-2 and one 24VDC, 100W, Class 2 Tetra
LED Driver will be required to replace each GECLPS3 or
up to four GECLPS4 LED drivers.
NOTE: Mount the LED driver and LED control module
within the sign or other enclosure.
3
=
GECLPS3-2
1
UL certified 22-14 AWG (0.33-2.08 mm
22-18 AWG (0.33-0.82 mm
2
Tetra
24 Volt Power Supply.
®
3
Tetra
LED Control Module.
®
2
Remove the existing GECLPS3. Do not remove existing
channel letters and wiring.
NOTE: Follow all federal and local regulations when
disposing of existing LED drivers.
LED driver
LED driver
4
If installing multiple LED control modules or LED drivers in
the same compartment, keep them at least 2" (50.8mm)
apart end to end and 4" (101.6mm) apart along the sides.
NOTE: All drivers except GEPS24-180U must be installed
in a enclosure or be provided with a GEPSJB60 LED driver
extended enclosure.
) wire connectors or
2
) .
2
LED driver
4"
LED driver
2"
