Master-force 240 -0021 Quick Start

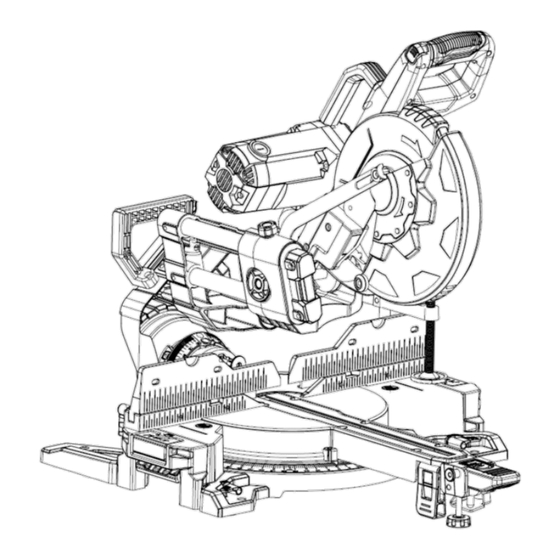

10” compact-slide miter saw

10" Compact-Slide Miter Saw

240 -0021

QUICK START

For more information or to ask questions,

Call Toll-Free: (866) 902-9690

Monday-Friday between 8:30 AM and 5:00 PM ET

CAUTION:

To Reduce The Risk Of Injury, User Must Read

And Understand Operator's Manual. Save These Instructions

For Future Reference.

Page 1

Table of Contents

Need help?

Do you have a question about the 240 -0021 and is the answer not in the manual?

Page 1 ® 10” Compact-Slide Miter Saw 240 -0021 QUICK START For more information or to ask questions, Call Toll-Free: (866) 902-9690 Monday-Friday between 8:30 AM and 5:00 PM ET CAUTION: To Reduce The Risk Of Injury, User Must Read And Understand Operator’s Manual. Save These Instructions For Future Reference.
Page 2 Ratcheting Bevel Control Loosen Bevel Lock: A) Press upper part of inner control tab to set ratcheting lever to the loosen position. B) Hold outer part of ratchet tab and move lever up and down to loosen the saw cutting head. NOTE: Loosen slowly and hold cutting head securely.
Page 3 Miter Control Lock Miter Angle: A) Release inner control button at desired angle. B) Press down outer main lever to set in locked position. Miter Angle Quick-Detent Override This saw has pre-set miter angle detents at frequently used angles: 0°, 15°, 22.5°, 31.6° and 45° - both left and right. To enable the override feature to eliminate stopping at these pre-set detents, follow the instructions below.
Page 4 Laser adjustment instruction 1. Remove the cover with a Philips screwdriver 2. If the laser line intersects the blade line, loosen the laser head fixture screw and turn around the laser head to make the laser line parallel the blade line, tighten the laser head fixture screw.
