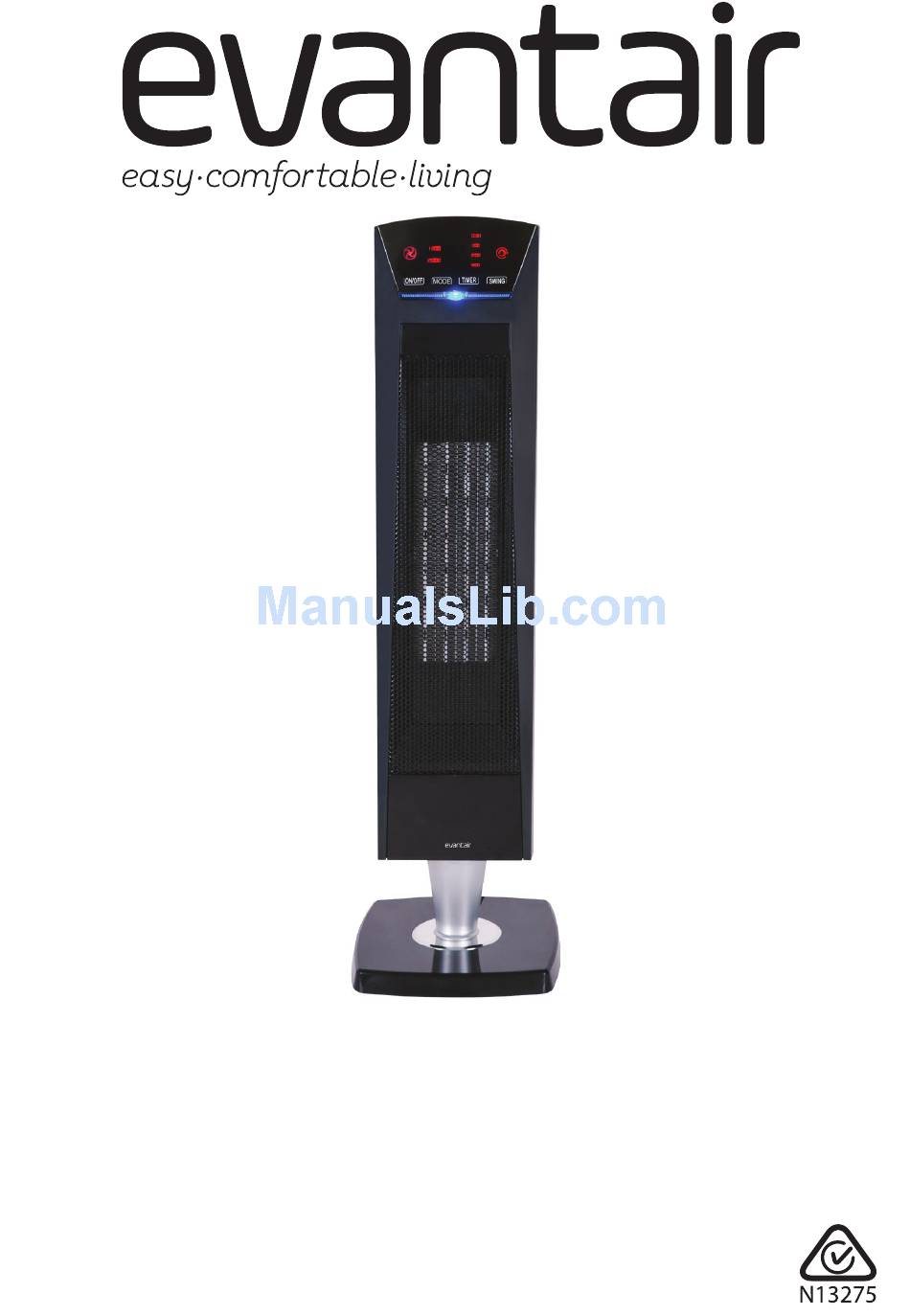

- Page 1 Ceramic Tower Heater INSTRUCTION MANUAL MODEL: PTC-5137 AFTER SALES SUPPORT (AU) 1300 886 649 (NZ) 0800 836 761...
-
Page 2: Table Of Contents
Contents Important Safety Instructions Product Overview Getting Started Operating Instructions Other Useful Information 0800 422 274... -
Page 3: Important Safety Instructions
Important Safety Instructions Read this manual thoroughly before first use, even if you are familiar with this type of product. The safety precautions enclosed herein reduce the risk of fire, electric shock and injury when correctly adhered to. Make sure you understand all instructions and warnings. -
Page 4: Usage Conditions And Restrictions
Important Safety Instructions (Cont.) • After use: Always disconnect power when the heater is not in use and before cleaning, servicing or moving the heater. • Disconnect: To disconnect the heater, switch it off and remove the plug from the outlet. When disconnecting, grip the plug, do not pull on the cord. •... - Page 5 Important Safety Instructions (Cont.) • Usage restriction: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-
Page 6: Product Overview
Product Overview Parts List Control Panel Front View Air Outlet Grille Heating Elements (behind the grille) Air Intake Grille (at the back) Power Switch (at the back) Stand Post Power Cord and Plug (at the back) Decorative Washer Weighted Base 0800 422 274... -
Page 7: Remote Control
Product Overview (Cont.) Control Panel Remote Control Remote and Control Panel 10 Fan Indicator 11 Heat Level Indicators (1200W, 2000W) 12 Timer Indicators (0:30, 1:00, 2:00, 4:00) 13 Swing (Oscillation) Indicator 14 ON/OFF Button 15 MODE Button (1200W, 2000W, Fan Only) 16 SWING (OSCIL) Button 17 TIMER Button 18 Power Indicator Light... -
Page 8: Getting Started
Getting Started Unpacking • Carton: This product has been packaged to protect it against transportation damage. Unpack the appliance and keep the original packaging carton and materials in a safe place. It will help prevent any damage if the product needs to be transported in the future, and you can use it to store the appliance when it is not in use. - Page 9 Getting Started (Cont.) Assembly The heater comes with the base packaged separately in the carton. Before you can use the heater in an upright position, you have to attach the base. • Place the heater flat on a table or benchtop so you can attach the base to the underside of the heater.
-
Page 10: Operating Instructions
Operating Instructions IMPORTANT! • Do not connect the appliance to the mains source until it is securely assembled on the base. • When turning the heater on for the first time it is normal for the heater to emit a ‘new heater’ smell, which will quickly pass. This is no cause for concern. -
Page 11: Timer Operation
Operating Instructions (Cont.) Fan Only Mode The heater can be operated without heat output as a fan only. • Press the ON/OFF [ ] button to start the fan. The Fan Indicator will illuminate and the fan will start blowing air without heat output. Heating Modes The heater can be operated on two power levels: 1200W or 2000W. - Page 12 Operating Instructions (Cont.) Overheat Protection and Prevention This heater is equipped with an automatic thermal cut-off (overheat protection), which switches the heater off automatically in the event of abnormal over- heating. While this features provides additional safety in case of overheating, first and foremost you should make sure to eliminate all potential reasons that can lead to overheating and create a fire risk.
-
Page 13: Other Useful Information
Other Useful Information CAUTION! • Always switch off and disconnect the appliance from the power supply before attempting any maintenance or cleaning the heater. • Do not attempt to open the heater and repair it yourself. Any repairs must be carried out by a qualified technician. Troubleshooting If your heater fails to operate, or you experience any other problem with the appliance, contact our after sales line for advice or to arrange a service. - Page 14 Other Useful Information (Cont.) perating Instructions (Cont.) Battery Replacement ery replacement When the battery in the remote control is flat, insert a new 3V CR2025 size battery in the remote control is flat, insert a new 3V CR2025 size button button cell following the instructions below.
-
Page 15: Technical Specifications
Other Useful Information (Cont.) Technical Specifications Model No PTC-5137 Power 2000W Voltage 220–240V AC, 50Hz Dimensions (approx.) 220mm (L) × 230mm (W) × 772mm (H) Weight approx. 4kg CLASS II - DOUBLE INSULATED APPLIANCE This symbol indicates that the appliance has been designed in such a way that it does not require a safety connection to electrical earth (ground). - Page 16 Warranty We pride ourselves on producing a range of quality home appliances that are both packed with features and completely reliable. We are so confident in our products, we back them up with a 2 year warranty. Now you too can relax knowing that you are covered. Customer Helpline NZ: 0800 422 274 This Product is covered by a 2 year warranty when accompanied by proof of purchase.
