9.6.3

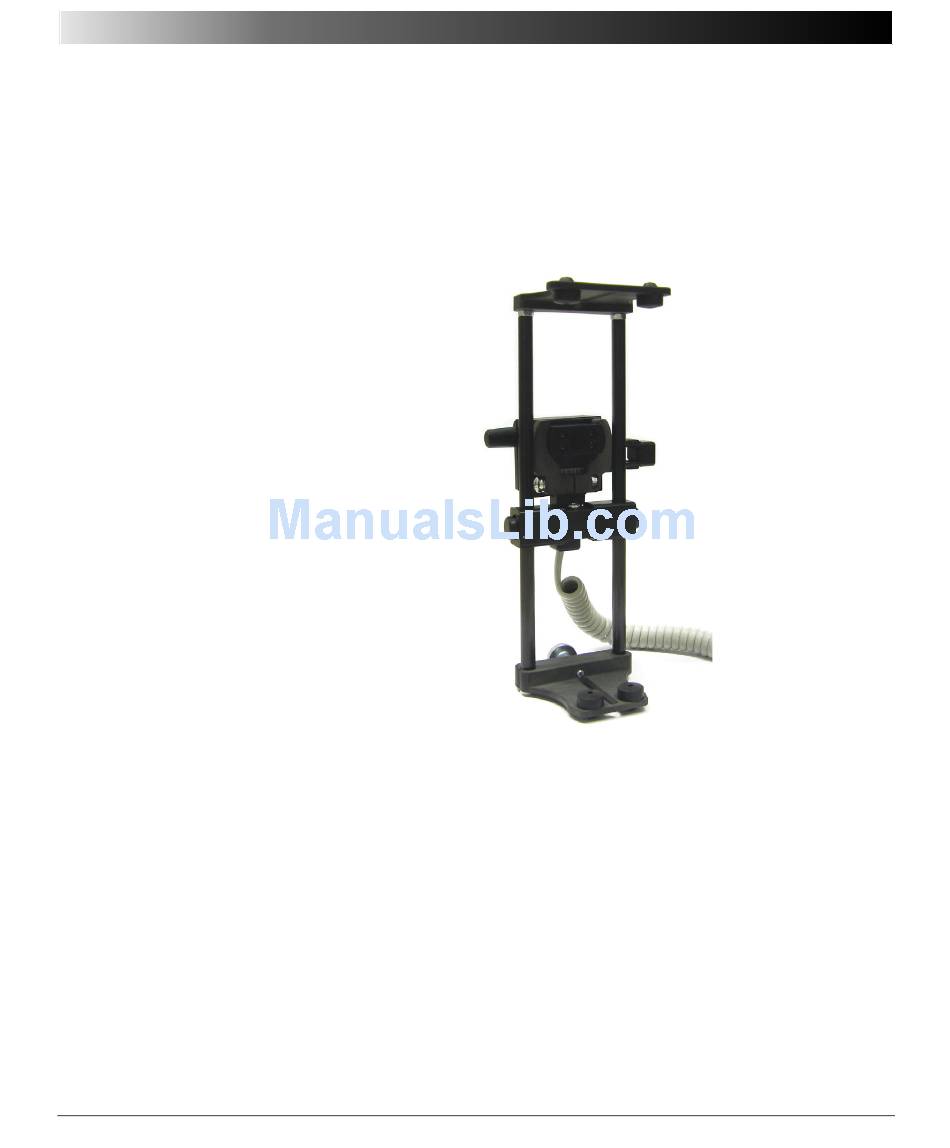

Figure 9-13:
The photoelectric scanning
head TK 326

Scanning Head TK 326

The photoelectric scanning head TK 326 is suitable for scanning of all
known rotor marks of Ferraris meters and for scanning of LEDs up to the
infrared wavelength range. It includes a spiral cable for the connection to the
adapter cable or to a CMLIB B.
The TK 326 connects to the EXIF socket of a CMC 356 by means of the
adapter cable VEHK0010 (refer to section 9.6.5, "Adapter Cable for
Scanning Heads" on page 117) or a CMLIB B (refer to section 9.6.6,
"CMLIB B" on page 118).
CMC 356-Related Products and Accessories
Order number: VEHZ2008
