CMC 356 Reference Manual
9.2

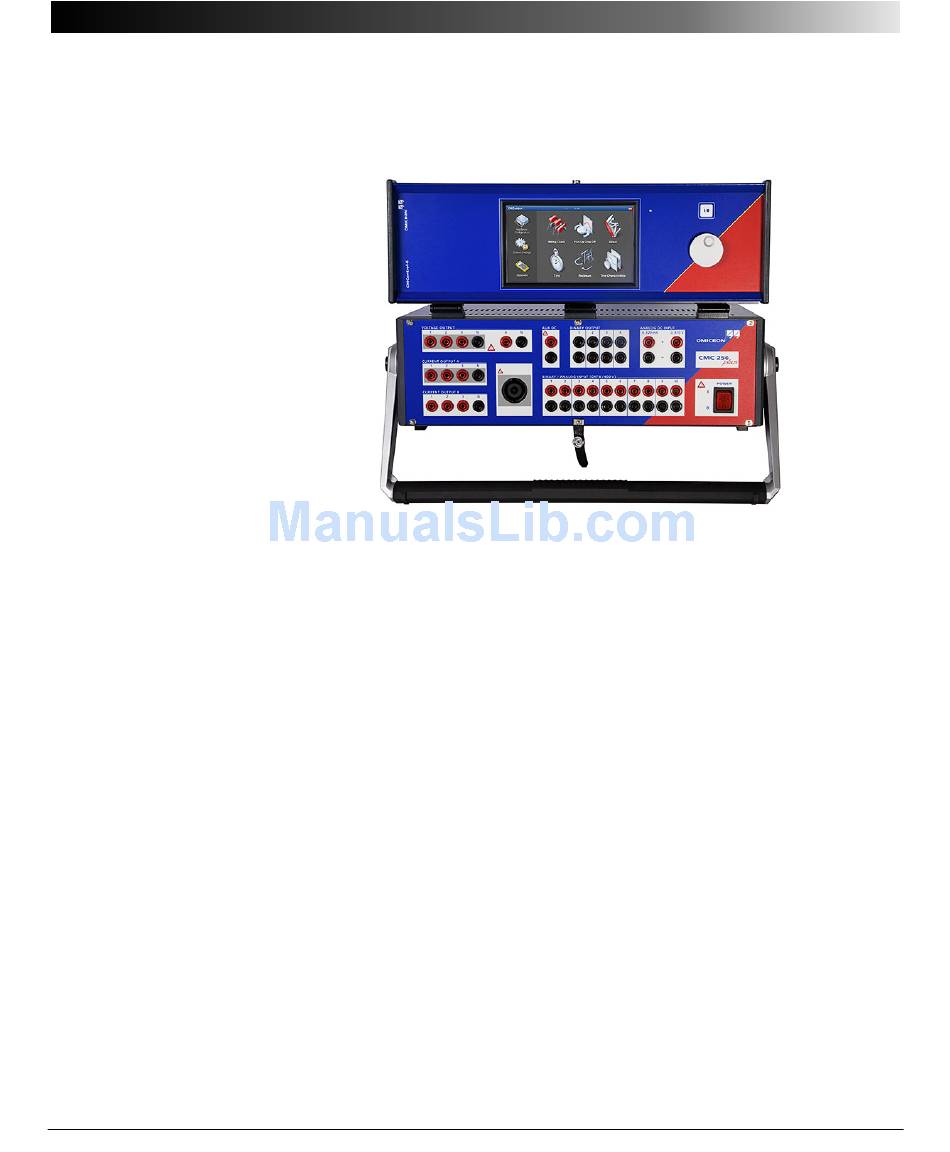

Figure 9-2:
CMControl-6 attached to a
CMC 256plus (or in the
same manner to a
CMC 356) test set
106

CMControl-6

VEHO2806 (CMControl-6); upgrade for an existing CMC 356
VEHO2805 (CMControl-6); add-on for new CMC 356
The CMControl is a front panel control device for CMC test sets. Its instant
availability and its easy operation concept make it the ideal solution for the
quick verification of test objects.
The CMControl provides an intuitive touch screen user interface that makes
setting up tests particularly easy and convenient. The control wheel allows
quick and accurate adjustment of the output quantities. The included test
tools and integrated fault models cover almost all common test tasks and
support the tester in getting reliable results quickly.
The CMControl can either be used attached to the CMC test set as front
panel control or detached as a handheld control device. Its magnetic rear
allows easy attachment to standard racks while its built-in stand works
perfectly on every table.
The CMControl is available in two variations: CMControl-6 for CMC 356,
CMC 256plus and CMC 256-6, and CMControl-3 for CMC 353.
The rugged Ethernet connector ensures reliable communication with the
CMC test set. The CMControl is designed to optimally meet the
requirements for commissioning and maintenance of protection devices and
substations.
For ordering information about the CMControl, refer to table 9-5, "Order
numbers overview" on page 128.
Order numbers:
