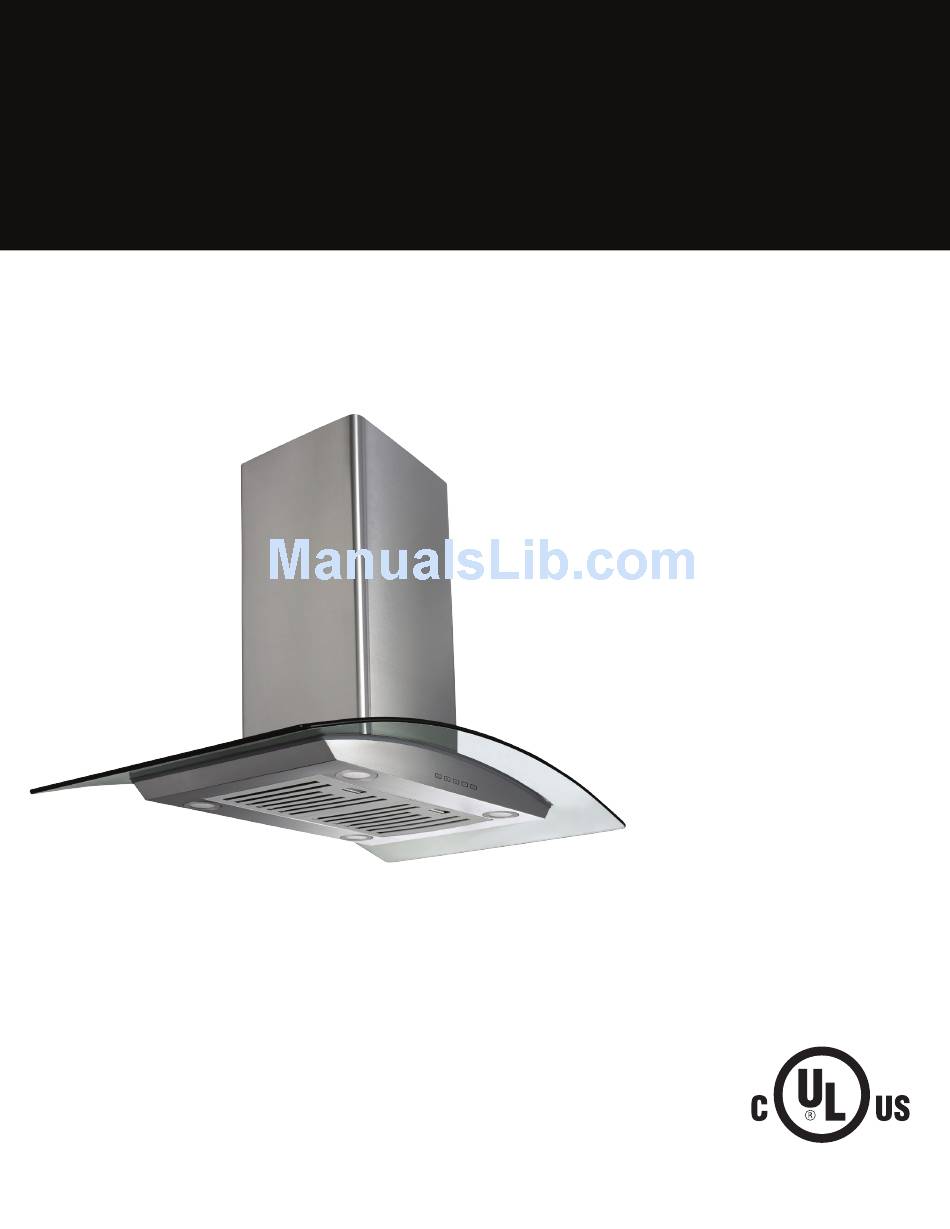

- Page 1 Installation and Use Manual iCHORUS ISLAND HOOD 1-855-55-ZUHNE | www.zuhne.com...
-
Page 2: To Reduce The Risk Of Fire, Electric Shock, Or Injury To Persons, Observe The Following
B. The fire is small and contained in the area where it started. C. The fire department is being called. D. You can fight the fire with your back to an exit. * Based on “Kitchen Fire Safety Tips” published by NFPA. www.zuhne.com iCHORUS 36 Island Hood... - Page 3 10. Use with approved cord-connection kit only. 11. Please read specification label on product for further information and requirements. www.zuhne.com iCHORUS 36 Island Hood...
-
Page 4: Prepare The Hood
1 - Aluminum Flex Duct MOUNTING PLATE INSTRUCTION PAPER MOUNTING MOUNTING SCREWS SCREWS (4 X WASHER X 14MM) 8MM) ANGLE IRON VENT EXPLODE DRYWALL ALUMINUM MOUNTING S HOOK SCREWS SCREWS ANCHORS FLEX DUCT X 45MM) www.zuhne.com iCHORUS 36 Island Hood... - Page 5 The minimum hood distance above cooktop must not be less than 24’’. A maximum of 33” above cooktop is highly recommended for best capture of cooking impurities. Distances over 33” are at the installer and users discretion. www.zuhne.com iCHORUS 36 Island Hood...
-
Page 6: Installation Procedure
1. Decide where the ductwork will run between the hood and the outside. 2. A straight, short duct run will allow the hood to perform most efficiently. 3. Let the one side of the duct go outside through the hole of 6.7’’ as shown. www.zuhne.com iCHORUS 36 Island Hood... - Page 7 See picture shown. 2. Put the outside chimney onto the inside chimney and use the S hook to fix on the angle iron. See picture shown. www.zuhne.com iCHORUS 36 Island Hood...
-
Page 8: Install The Hood
Note: at least two people will be required to mount the hood. 1. Raise the hood into its mounting position. 2. Fix the hood onto the angle irons with 16 pcs of mounting screws(4*14mm). See picture as shown. www.zuhne.com iCHORUS 36 Island Hood... - Page 9 INSTALLATION PROCEDURE 3. Pull the duct as the direction showed on the picture, and make it fix onto the vent. 4. Loose the S hook, and pull the outside chimney as shown. www.zuhne.com iCHORUS 36 Island Hood...
-
Page 10: Maintenance
Many of these com pounds contain chemicals which may be harmful. Rinse with water after exposure and wipe dry with a clean cloth. Painted surfaces should be cleaned with warm water and mild detergent only. www.zuhne.com iCHORUS 36 Island Hood... -
Page 11: Touch Controls
, and motor runs on high speed. Push it again and the motor will stop. Whilst the cooker hood is in use, if you press the timer button once the hood will run for 5 minutes and then cut off. www.zuhne.com iCHORUS 36 Island Hood... -
Page 12: Led Lights
1. Open the filter and find the spring of the light, push the spring and the lgight will be slip out. Change the light as with same kind of 4Volt,3 Watt LED light. CAUTION: LIGHT MAY BE HOT,PLEASE ROTATE WHEN THELIGHT IS COOL! www.zuhne.com iCHORUS 36 Island Hood... -
Page 13: Troubleshoot
The machine inclines The fixing screw not tight enough Tighten the hanging screw and make it horizontal The hanging screw not tight enough Tighten the hanging screw and make it horizontal www.zuhne.com iCHORUS 36 Island Hood...
