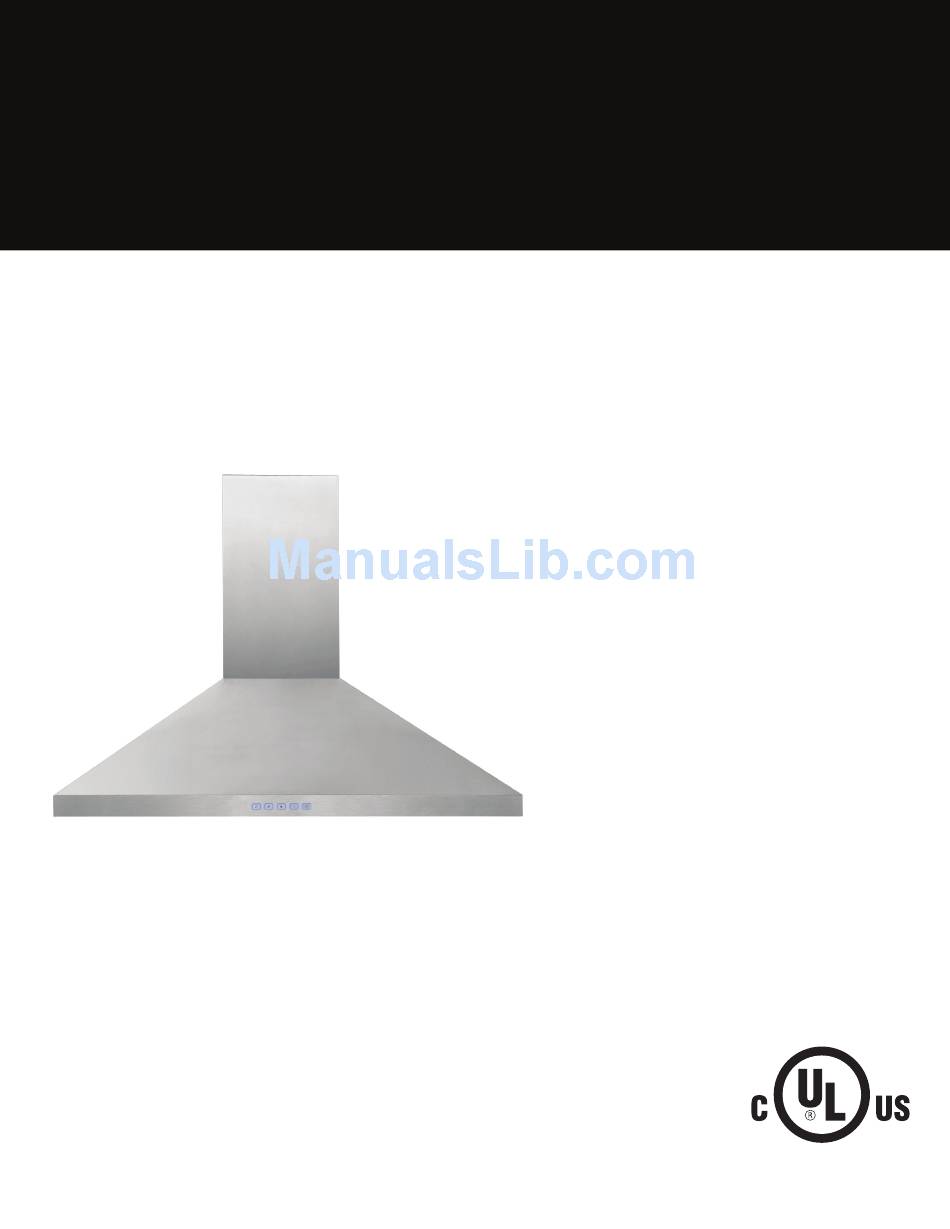

- Page 1 Installation and Use Manual VENTUS WALL MOUNTED HOOD 1-855-55-ZUHNE | www.zuhne.com...
-
Page 2: To Reduce The Risk Of Fire, Electric Shock, Or Injury To Persons, Observe The Following
B. The fire is small and contained in the area where it started. C. The fire department is being called. D. You can fight the fire with your back to an exit. * Based on “Kitchen Fire Safety Tips” published by NFPA. www.zuhne.com VENTUS 30 Kitchen Range Hood... - Page 3 10. Use with approved cord-connection kit only. 11. Please read specification label on product for further information and requirements. www.zuhne.com VENTUS 30 Kitchen Range Hood...
-
Page 4: Prepare The Hood
2 - Washer (for φ 8 holes) 1 - Aluminum Flex Duct DUCT FIXING SUPPORT SLIDERY DUCT FIXING SUPPORT SAFETY SCREW (ST4 x30MM) DECORATIVE FLUE MOUNTING SCREWS X 8MM) VENT WASHER MOUNTING DRYWALL SCREWS (4 X ANCHORS 40MM) www.zuhne.com VENTUS 30 Kitchen Range Hood... -
Page 5: Install The Ductwork
Deside where the ductwork will run between the hood and the outside. A straight, short duct run will allow the hood to perform most efficiently. Install the Aluminum Flex duct on the vent towards hood location. www.zuhne.com VENTUS 30 Kitchen Range Hood... -
Page 6: Install Mounting Brackets
Put the drywall anchors into the holes and fix the mounting screws (4x40mm) into the anchors, and install the hook on the wall as shown. (The rest two pares of 4x40mm screw and drywall anchors are for spare) www.zuhne.com VENTUS 30 Kitchen Range Hood... - Page 7 1. Pick out the hood from the carton. 2. Install vent into duct connector of the cooker hood. 3. Fix the extensive pipe onto the vent. www.zuhne.com VENTUS 30 Kitchen Range Hood...
-
Page 8: Installation Procedure
4. Measure the height of the glass to the slidery duct fixing support. Adjust the height of the chimney according to the height. Then use the duct fixing support with two screws (4x8mm) to fix the chimneys. Shown as in the pic. www.zuhne.com VENTUS 30 Kitchen Range Hood... - Page 9 30 hours of operation (when the central segment on the display goes on or starts blinking). Use a warm detergent solution. Grease filters are dishwasher safe. Remove filter by pushing filter towards the back of hood and rotating filter downward. www.zuhne.com VENTUS 30 Kitchen Range Hood...
-
Page 10: Maintenance
1. Open the filter and find the spring of the light, push the spring and the light will be slip out. Change the light as with same kind of 4Volt,3 Watt LED light. CAUTION: LIGHT MAY BE HOT,PLEASE ROTATE WHEN THELIGHT IS COOL! www.zuhne.com VENTUS 30 Kitchen Range Hood... - Page 11 , and motor runs on high speed. Push it again and the motor will stop. Whilst the cooker hood is in use, if you press the timer button once the hood will run for 5 minutes and then cut off. www.zuhne.com VENTUS 30 Kitchen Range Hood...
-
Page 12: Troubleshoot
The machine inclines The fixing screw not tight enough Tighten the hanging screw and make it horizontal The hanging screw not tight enough Tighten the hanging screw and make it horizontal www.zuhne.com VENTUS 30 Kitchen Range Hood...
