Elite 799 User Manual

Air pumps
Hide thumbs

Advertisement

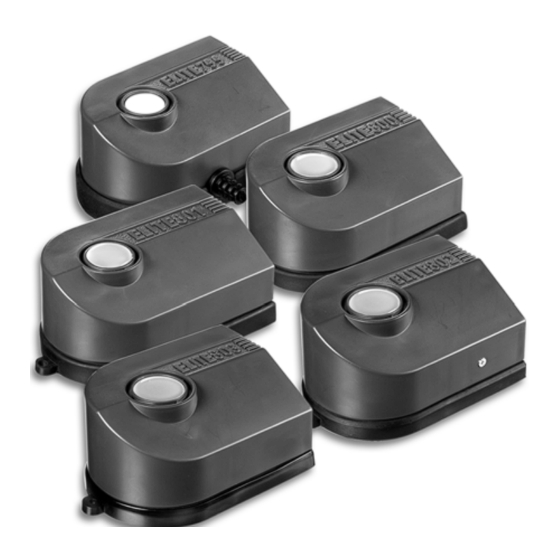

ELITE
AIR PUMPS
799 / 800 / 801 / 802 / 803
LISTED
85E3
E114229

Advertisement

loading

  Related Manuals for Elite 799

No related manuals

  Summary of Contents for Elite 799

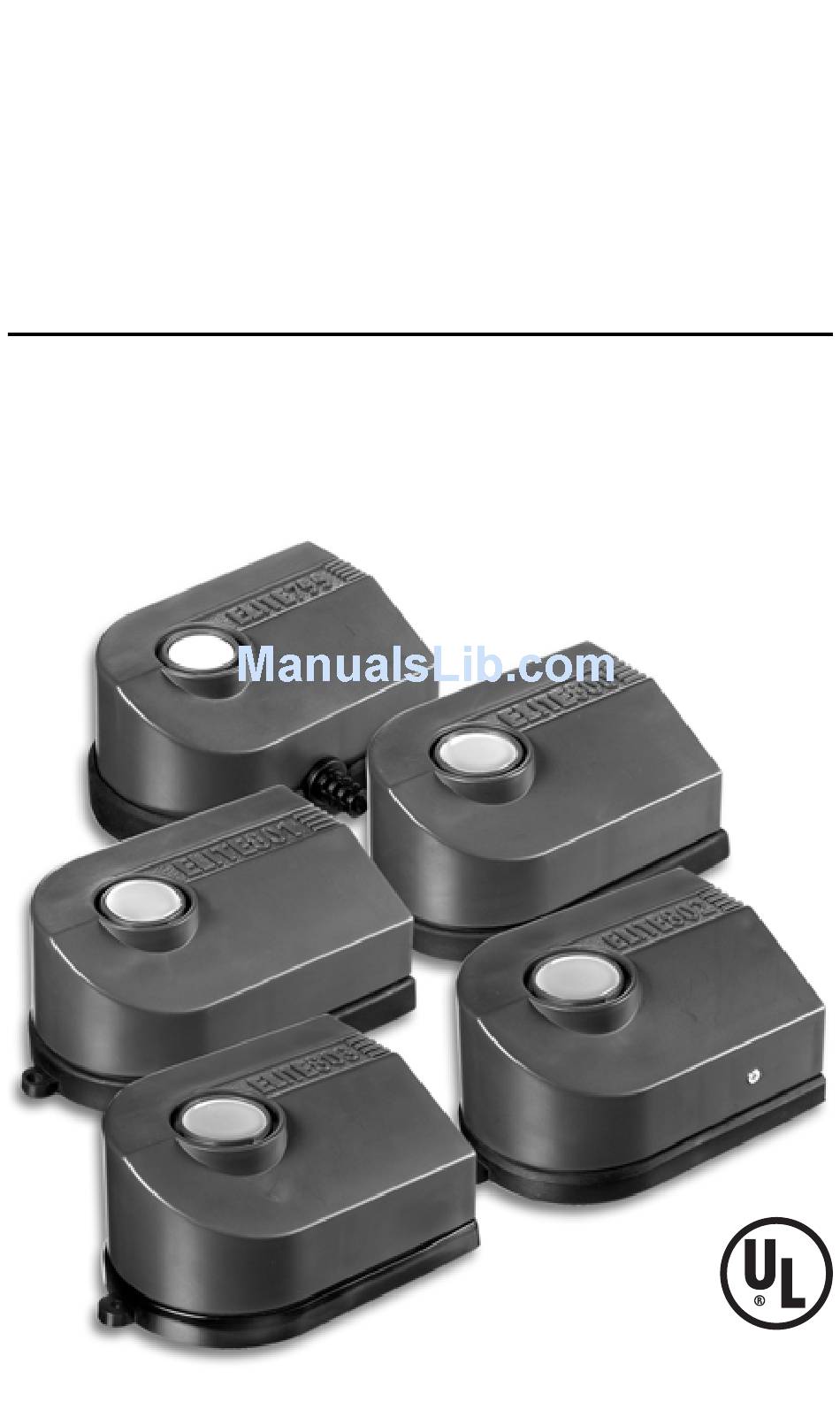

  • Page 1 ELITE AIR PUMPS 799 / 800 / 801 / 802 / 803 LISTED 85E3 E114229...
  • Page 2: Important Safety Instructions

    CONGRATULATIONS On your purchase of an ELITE air pump. So that you may enjoy your new air pump to the fullest, please take a few moments to read this instruction booklet to become familiar with the installation and operation procedures. Be certain to read the SAFETY INSTRUCTIONS before using your air pump.
  • Page 3 wall mounted receptacle to prevent water from dripping onto the receptacle or plug. The “drip-loop” (see illustration) should be arranged by the user for each cord connecting an aquarium appliance to a receptacle. A “drip-loop” is that part of the cord below the level of the receptacle, or the connector if an extension cord is used, to prevent water travelling along the cord and coming in...
  • Page 4: Installation

    INSTALLATION: The air pump should be installed by following either of the two recommended methods: 1. Place the air pump on a surface lower than the water level of the aquarium. To avoid damage from accidentally spilled water, do not place the air pump directly below the aquarium. Important: It is recommended to always use a Check Valve (sold separately) in the air line between...
  • Page 5: Air Flow Adjustment

    INSTALLATION TIPS: • The pump should be placed in a location which is dry and relatively free from dust . Do not place the air pump on carpet, as fibers might collect on the pump and clog free- flowing air from entering pump. This will reduce the air output and the service life of the pump.
  • Page 6 To regulate air volume using an air control valve with multiple outlets, it is recommended to have the last valve available to release excess air pressure build up (see BACK PRESSURE). In regulating the air pressure, it is best to work from the valve farthest from the input of the air valve.
  • Page 7: Maintenance

    to restricted air flow. This occurs when excess air is produced by the air pump, or when the air channels are inadvertantly blocked. Back pressure over time resulting from clogged air stones or other air system blockages and restrictions will cause the diaphragm to expand or rupture.
  • Page 8: Troubleshooting Tips

    TROUBLESHOOTING TIPS If the air pump fails to produce air, check the following: 1. Ensure that the air pump is plugged in. 2. Ensure that there are no blockages in the air hose assembly and that all valves allow air passage. If no air is produced by the accessories in the aquarium, remove the airline from the pump and ensure that air is being produced.
  • Page 9: Replacement Parts

    REPLACEMENT PARTS Repair kits for all wearable parts are available for all ELITE, MAXIMA, MAXIMA-R, and OPTIMA Air Pumps. These can be easily obtained at your local aquarium and pet supply store. Failure of the electric coil, or any other electrical part requires proper service, and should be returned to the manufacturer for repairs or replacement (see warranty for full details).
  • Page 10 Elite Air Control Valves Customize your aquarium set-up with Elite Air Control Valves. Art. #A-1178: Elite 2-way Air Control Valve Art. #A-1179: Elite 3-way Air Control Valve Art. #A-1180: Elite 4-way Air Control Valve Art. #A-1181:...
  • Page 11: Warranty

    Hagen (U.S.A.) Corp., Consumer Repair, 50 Hampden Road, Mansfield, MA. 02048 WARRANTY ELITE Air Pumps are guaranteed against defects in material or workmanship under normal aquarium usage and service for as long as you own your pump. We offer a Lifetime Limited Warranty on all non-rubber parts which means that the pump will be repaired or replaced at the manufacturer’s discretion, free of charge, when the...
  • Page 12: Warranty Registration Card

    State: Zip Code: Telephone: Date Purchased: Store: City: State: Was this a gift? Is this your first aquarium? Size of Aquarium: Type(s) of Fish: ELITE 799 MAXIMA (A-799) (A-805) ELITE 802 (A-802) ELITE 800 MAXIMA-R (A-800) (A-806) ELITE 803 (A-803)

This manual is also suitable for:

800801802803
