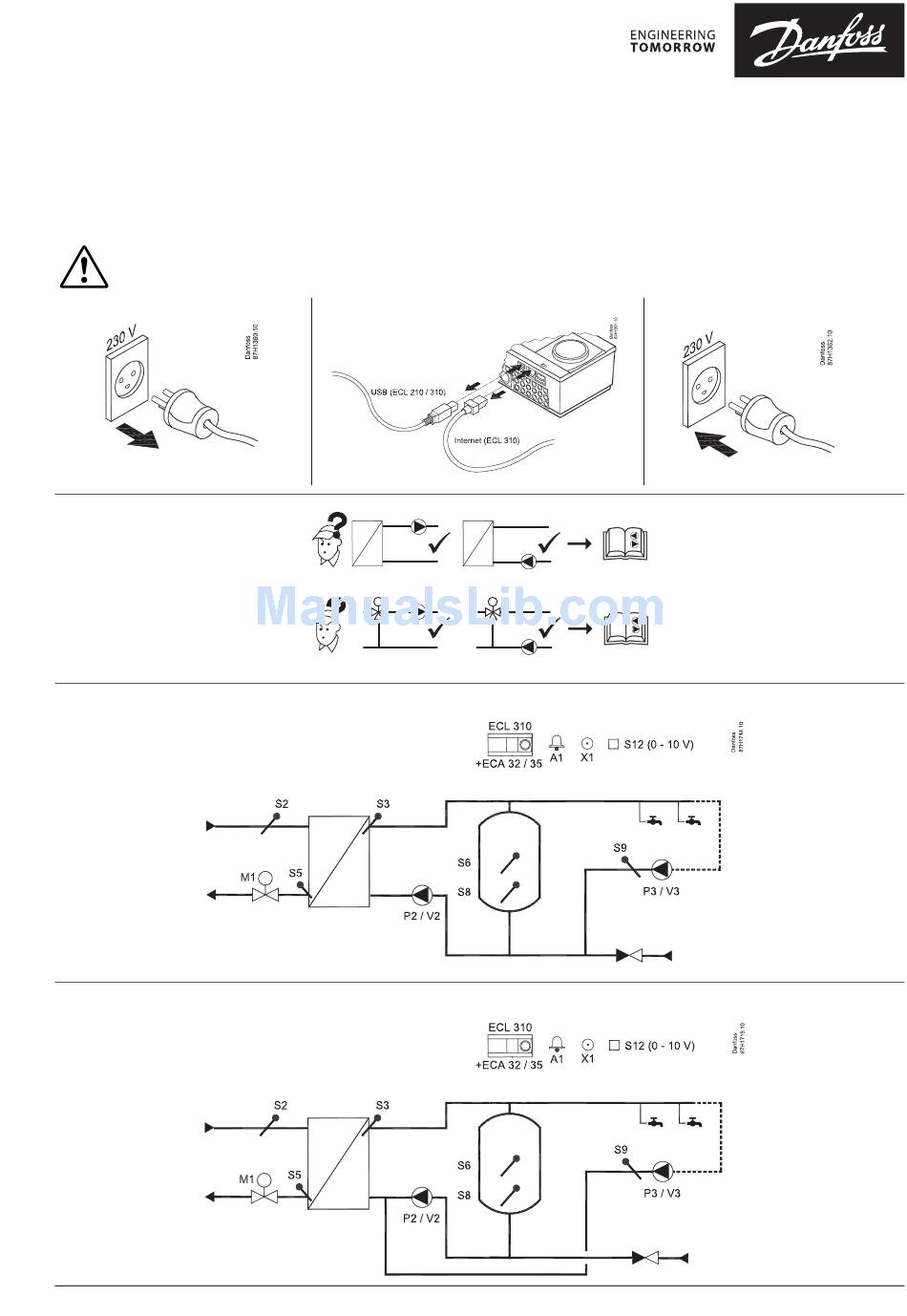

- Page 1 Installation Guide ECL Comfort 310, P318 (code no. 087H3835) P318.1, ex. a P318.1, ex. b VI.JM.O4.00 | 1 © Danfoss | 2016.12...
- Page 2 Installation Guide, ECL Comfort 310, P318 P318.1, ex. c P318.1, ex. d P318.1, ex. e VI.JM.O4.00 2 | © Danfoss | 2016.12...
- Page 3 Installation Guide, ECL Comfort 310, P318 P318.1, ex. f P318.10, ex. a P318.10, ex. b VI.JM.O4.00 © Danfoss | 2016.12 | 3...
- Page 4 Installation Guide, ECL Comfort 310, P318 P318.10, ex. c ECL 310, 230 V a.c. (R1) (R2) (R3) (R4) (R6) P318.1 P318.10 ECA 32: P1 / V1 P2 / V2 P3 / V3 (0 – 10 V) (0 – 10 V) (0 –...
- Page 5 Installation Guide, ECL Comfort 310, P318 ECL Comfort 310: 230 V a.c. 4 (2) A / 230 V a.c. 0,2 A / 230 V a.c. ECL Comfort 310: 230 V a.c. P318, 230 V a.c. VI.JM.O4.00 © Danfoss | 2016.12 | 5...
- Page 6 Installation Guide, ECL Comfort 310, P318 P318, 230 V a.c., ECA 32 / 35, X1 ECA 32/35 230 V a.c. P318, 230 V a.c., ECA 32 / 35, 0 - 10 V P318, 230 V a.c., ECA 35, PWM out VI.JM.O4.00...
- Page 7 Installation Guide, ECL Comfort 310, P318 P318, 230 V a.c., ECA 35, PWM out 230 V a.c. / 24 V a.c. , safety thermostat 1-step closing ECL 210 / 310 230 V a.c. / 24 V a.c. , safety thermostat...
- Page 8 Installation Guide, ECL Comfort 310, P318 230 V a.c. / 24 V a.c. , safety thermostat 1-step closing ECL 210 / 310 230 V a.c. / 24 V a.c. , safety thermostat 1-step closing ECL 210 / 310 230 V a.c. / 24 V a.c. , safety thermostat...
- Page 9 Installation Guide, ECL Comfort 310, P318 Pt 1000 (1000 Ω / 0 °C) ECL Comfort 210 / 296 / 310 ECL Comfort 210 / 296 / 310 230 V a.c. 230 V a.c. ECL 310 P318.1 P318.10 ECA 32 / 35 P318.1...
- Page 10 Installation Guide, ECL Comfort 310, P318 P318, S12 (0 - 10 V) P318 ECA 32 / 35 P318 ECA 32 / 35 VI.JM.O4.00 10 | © Danfoss | 2016.12...
- Page 11 Installation Guide, ECL Comfort 310, P318 P318 ECA 32 / 35 ECA 30 / 31 ECA 30 / 31 ECL 210 / 296 / 310 ESM-10 S.Gnd ECA 30 / 31 ESM-10 VI.JM.O4.00 © Danfoss | 2016.12 | 11...
- Page 12 Installation Guide, ECL Comfort 310, P318 Master / slave Modbus ECL 210 / 296 / 310 M-bus ECL 296 / 310 VI.JM.O4.00 12 | © Danfoss | 2016.12...
- Page 13 Installation Guide, ECL Comfort 310, P318 M-bus ECL 296 / 310 METER METER S.Gnd Pt 1000 (IEC 751B, 1000 Ω / 0 °C) Ω °C Ω 1600 1500 1400 1000 1300 1039 1078 1117 1200 1155 1194 1100 1232 1271...
- Page 14 Installation Guide, ECL Comfort 310, P318 VI.JM.O4.00 14 | © Danfoss | 2016.12...
- Page 15 Installation Guide, ECL Comfort 310, P318 ECA 30 VI.JM.O4.00 © Danfoss | 2016.12 | 15...
- Page 16 Installation Guide, ECL Comfort 310, P318 *087H9259* ECL Comfort 310, P318: www.heating.danfoss.com *VIJMO400* VI.JM.O4.00 16 | © Danfoss | DHS-SRMT/DK | 2016.12...
