Danfoss ECL Comfort 310, A361 Installation Manual

page of 12

/ 12
Bookmarks

Advertisement

Quick Links

Download this manual

Installation Guide

ECL Comfort 310, A361

(code no. 087H3804)

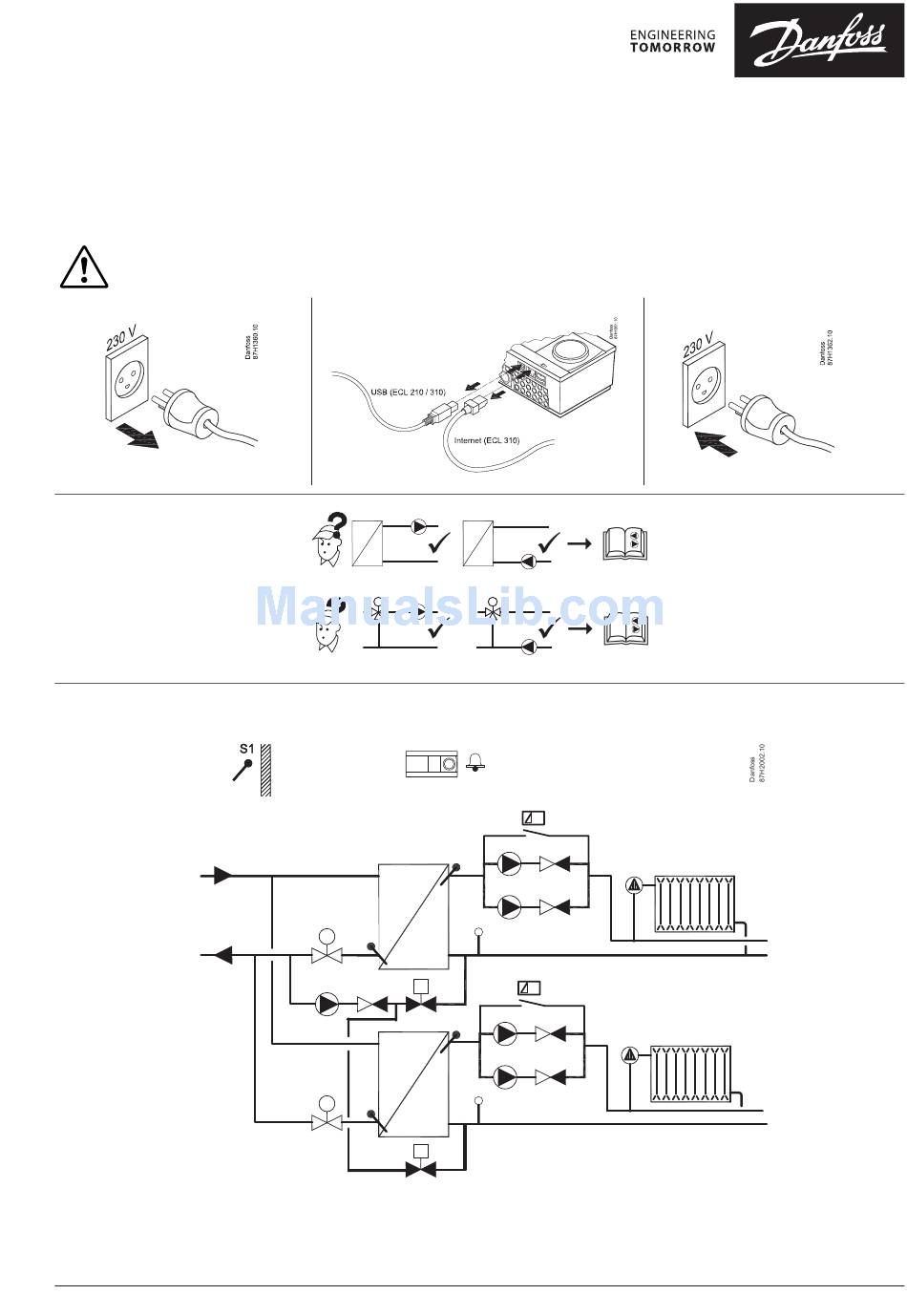

A361.1:

© Danfoss | 2017.02

P

P

ECL 310

R6

S3

S5

M1

V1

P4

S4

M2

S6

V2

P

P

P

P

P S7

P1

P2

S10

P S8

P3

P5

S9

VI.LG.N3.00 | 1
