Summary of Contents for Truen TR-B222R

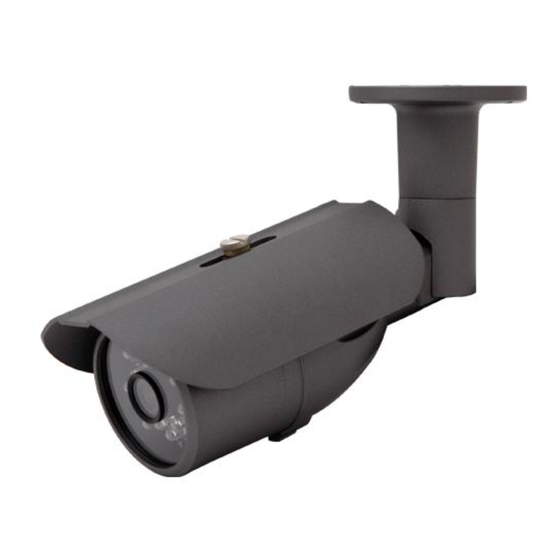

- Page 1 2 Megapixel IP Bullet Camera 1080P @30fps User Manual ver.1.0...
-
Page 2: Safety Precaution
TR-B222R user manual Safety Precaution We appreciate your purchasing TR series. Before installing the product, please read the following with care Make sure to turn off the power before installing TR-B222R Do not install under the direct sunlight or in dusty areas. - Page 3 TR-B222R user manual 1. Introduction About this manual This User Manual provides information on operating and managing the megapixel IP box camera. The Manual includes instructions of installation, operation and configuration of megapixel IP box camera as well as how to make troubleshooting.
-
Page 4: Quick Manual
TR-B222R user manual Product and Accessories TR-B222R Quick Manual 4/70 2 Megapixel IP Camera Manual... - Page 5 TR-B222R user manual Part Names and Functions Part names and Functions ○ 1 ○ Connector Function 1. Ethernet/802.3af Ethernet port/802.3af 2. Power IN DC 12V 5/70 2 Megapixel IP Camera Manual...
- Page 6 Remote Center (PC SW) One TR-B222R.is installed at a site where video images are transmitted. A PC or a decoder is installed at a central location to receive and view the video images on an analog monitor. Audio and serial data are transferred in either direction.
- Page 7 Multicast Mode If the network supports multicasting, a large number of decoders can be used to receive video effectively from a TR-B222R .using a single streaming of video and audio. However, multicast mode is possible only when network environment supports multicast.
- Page 8 TR-B222R user manual VMS (Video Monitoring System) Remote Center Site Site Remote Center (Decoder) VMS (Video Monitoring System) is a Window-based remote monitoring program in order to monitor or control video, audio, and events in real time from several IP cameras or video servers. Please refer to the VMS User Manual for more in detail.
- Page 9 TR-B222R user manual 2. Installation Connection Connecting Power Carefully check the voltage and current capacity of the rated power. The rated power is indicated in the back of main unit. After confirming the power source, connect power adaptor and connect the 12V DC connector to the...
- Page 10 TR-B222R user manual System Operation Remote Video Monitoring There are two ways to monitor video when the center system and IP camera are connected. In order for a proper operation, an IP address must be set accordingly. Please refer to True Manager Manual enclosed with product for further details.
- Page 11 TR-B222R user manual Video Select Select the Video stream to be viewed : Primary, Secondary, tertiary or quartic streaming. This camera is capable of dual streaming; primary streaming and secondary streaming..Video will be displayed according to the resolution set on video configuration. If dual streaming (“Use Dual Encode” Menu in Video page) is not activated, secondary video is not available ...
- Page 12 TR-B222R user manual buttons of PTZ control Panel (In order to use digital zoom, select Digital zoom ON in the Camera tab) Stop Stop on-going action Focus Near, Focus Far, Auto Focus Adjust the focus of the lens Select Preset Set preset position and move to the specific preset position.
- Page 13 TR-B222R user manual Recording to an AVI file on Live View page is available. AVI files are generated in the specified folder or in a specified file name on the PC where web browser is running. 1. Press “Set” button to select a folder or create a new folder. Enter the file name on a filename field.
- Page 14 TR-B222R user manual Remote Configuration Using Web Browser Remote setting is available by using web browser. Enter IP address of camera and then a live view screen appears as below. Press Setup button located in the upper right area of the monitoring screen to go to the server setup.
- Page 15 TR-B222R user manual Video & Audio Information The information provides current information regarding the settings for video and Audio 15/70 2 Megapixel IP Camera Manual...
- Page 16 TR-B222R user manual Encode Performance Display total performance for encoding Input Frequency User can select NTSC type or PAL type Resolution Select video encoding solution Framerate Determine the maximum number of frames per second for the video stream. 16/70 2 Megapixel IP Camera Manual...
- Page 17 TR-B222R user manual 1,2,3,4,5,6,8,10,15,20,25 and 30 frame rate can be selected. The actual frame rate of video can be less than the maximum frame rate set due to the network bandwidth limitation Preference Select encoding mode to control video quality or bitrate: Quality(VBR) or Bit rate(CBR). If ‘Bitrate’...
- Page 18 TR-B222R user manual used in some videoconferencing and mobile application. This profile includes all features that are supported in the constrained baseline profile, plus three additional features that can be used for loss robustness. Secondary Use Dual Encode Select ON to enable to use Secondary...
- Page 19 TR-B222R user manual Audio (Option) Algorithm Select the audio algorithm: G.711, AAC G.711, AAC from client to server direction are supported. Thus, bidirectional audio communication is supported. Bitrate Select the bitrate between 64Kbps and 128kbps when AAC is selected. The sampling rate is fixed to 8KHz and 32KHz for G.711 and AAC respectively.
- Page 20 TR-B222R user manual Output (Option) Audio Output Audio Output: The input audio is transmitted to the encoder Loopback: Does not transmit the audio to the encoder. Audio input and output at the camera. 20/70 2 Megapixel IP Camera Manual...
- Page 21 TR-B222R user manual Image General 21/70 2 Megapixel IP Camera Manual...
- Page 22 TR-B222R user manual Exposure Exposure Target Sets the target brightness of auto exposure operation. It can be adjusted in the range 0-100 and larger value means brighter image. Shutter Range Sets the range of shutter speed. MAX Gain AE MAX Gain can be used to increase the upper limit of automatically controlled gain value to get brighter image at night.
- Page 23 TR-B222R user manual Adjusts image saturation: the larger, the more colorful Noise filter Selects the noise filter to be used. Auto(2D) : 2DNR filter is used at night mode only. Auto (3D#1) :3DNR filter referring 1 frame is used at night mode only.
- Page 24 TR-B222R user manual Night: TDN is forced to night(BW) mode. Current Value Displays current value of CDS sensor. It becomes larger in brighter environment. This value can be used to transition threshold values appropriately. Day -> Night Transition Threshold The threshold is used to determine if current day mode is to be changed to night mode.
- Page 25 TR-B222R user manual Default settings Three default sets of settings are provided for convenience configuration. The following settings are modified by selecting one of Normal/Bright/Dark buttons. AE MAX Gain Gamma Index Brightness Contrast Normal strength Edge Filter 25/70 2 Megapixel IP Camera Manual...
- Page 26 TR-B222R user manual Schedule In order to allow different configurations of the camera according to time of a day, the feature of defining camera configurations and scheduling them is provided Configuration Set 4 different configuration sets can be configured by opening the page with Config Set#N buttons.
- Page 27 TR-B222R user manual Network IP & Port Local Select the IP mode: Fixed IP or DHCP Depending on the selected mode, further configuration items comes as follows, IP Mode Selection Description Local IP Fixed IP address Fixed IP...
- Page 28 TR-B222R user manual Obtain DNS server address automatically Get DNS server address automatically when IP mode is DHCP. Use the following DNS server address Enter the DNS server IP address; Primary or Secondary DNS server Domain Name System (DNS) is a database system that translates a computer's fully qualified domain name into an IP address.
- Page 29 TR-B222R user manual Discovery UPNP By the setting UPNP to ON, it allows the discovery by the clients according to UPNP (Universal Plug and Play) protocol. Zeroconf By setting Zerodonf to ON, it allows the discovery by the clients according to zeroconf protocol.
- Page 30 TR-B222R user manual One-way This IP camera provides two kinds of one-way (unidirectional) streaming based on UTP to clients; RTSP and MPEG-TS. Both are a kind of broadcasting where traffic from clients to a server is not generated at all.
- Page 31 TR-B222R user manual File Name : Enter the file name that will be used as the name of the SDP file. Then, it can be accessed through http://ServerAddress/filename MPEG-TS is a standard format for transmission and storage of audio, video, and data,[7] and is used in broadcast systems such as DVB and ATSC.
- Page 32 TR-B222R user manual SNMP Listen Port (0, 161, 1025 ~ 65535) The port is for connecting external device when system operates as a SNMP client. SNMP is not used by setting 0 value. SNMP Trap Destination IP Set the SNMP Trap Destination IP.
- Page 33 TR-B222R user manual TrueDNS True DNS service is used in the mode. Systems can be registered on the website for True DNS service, http://ns1.truecam.net. A system will get a domain name of xxx.truecam.net. Please refer to user guide document for True DNS service.
- Page 34 TR-B222R user manual IP filtering IP filtering is simply a mechanism that decides which types of IP datagrams will be processed normally and which will be discarded. 34/70 2 Megapixel IP Camera Manual...
- Page 35 TR-B222R user manual E-mail E-mail Specify the information to send event information, when E-mail is selected as an event action. Server Address Enter an address of mail (SMTP) server Port Specify a port for SMTP operation (Port 25 is the default port in SMTP operation. If a different port is configured in the SMTP server, this ports needs to be changed accordingly.)
- Page 36 TR-B222R user manual E-mail Test E-mail sending can be tested with this button. Please note that configured settings should be saved first by pressing Apply button before using E-mail Test function. One of the following messages will come as a result of the test.
- Page 37 TR-B222R user manual Specify the information to upload event information, when FTP is selected as an event action. Server Address Enter an address of an RTP server to receive video files Port Specify a port for FTP operation (port 21 is the default port in FTP operation. If a different port is configured in the FTP server, this port needs to be changed accordingly.)
- Page 38 TR-B222R user manual %MM : month %DD : day %hh : hour %mm : minute %ss : second %EVENT : event type (Sensor1, Motion, ...) %ADDR : address of the server (Domain name when DDNS is used. Otherwise IP address) “.avi”...
- Page 39 TR-B222R user manual Continuous upload ‘ON’ allows video clips to be transmitted regularly regardless of occurrence of event. When this mode is activated, FTP upload by event is suppressed. Upload Duration Specify recording duration of a video clip to be transmitted. (max 300 sec.) ...
- Page 40 TR-B222R user manual Upload Video Primary video and secondary, tertiary or quartic video (H.264 only), JPEG capture can be selected for uploading. Number of Frame Enter frame number of JPEG capture. (1 ~ 10) Capture Interval Select the interval of captured frame.
- Page 41 TR-B222R user manual VPN IP Address Set IP address on VPN VPN Port Set the port on VPN VPN IP Address Set IP address on VPN Connecting Client IP Addresses that are currently connected to system are listed. (1) Indicates...
- Page 42 TR-B222R user manual Event Notification Local When a decoder instead of a PC client is connected to an IP camera, one system becomes a Local system and the other a Remote system (Generally a system which is being used by the user is called as Local system).
- Page 43 TR-B222R user manual Configure the actions when the video input signal is lost. Multiple actions can be set for a single event. On Motion Configure the actions motion is detected. Multiple actions can be set for a single event.
- Page 44 TR-B222R user manual Audio Detection Silence Detection When silence is detected for a specified amount of time, it will work with event Sound Detection When sound is detected for a specified amount of time, it will work with event...
- Page 45 TR-B222R user manual Sensor Type There are two sensor input ports on video server. Each of the sensor ports can be configured to the followings; Function Operation Not used NO (Normally Open) The port is normally open and activated when closed.
- Page 46 TR-B222R user manual <General> Settings in General tag configures parameters of video analytics operation which are applied commonly to all functions: Line Crossing, Intrusion, and Tampering. Sensitivity Configures the sensitivity in object detection: the larger, the more sensitive. 46/70...
- Page 47 TR-B222R user manual Mode Configures where the target scene will be indoor or outdoor. Color check Configures if color property will be used in video analytics. Normally ‘On’ is recommended. Tracker type Configures internal algorithm of object detection and tracking. Due to performance issues, ‘Simple’...
- Page 48 TR-B222R user manual <Intrusion> Region for intrusion detection is drawn the configuration. When objects enter into the region, events are generated accordingly. Object size Defines the size of object to be detected. Size is defined as the percentage of object against the video size.
- Page 49 TR-B222R user manual When enabled, camera tampering such as covering the lens with a towel is detected and events are generated accordingly. Record General Use record Off : Recording function will not be used when “OFF” is selected.
- Page 50 TR-B222R user manual Max File Size option is for limiting the size of AVI file. If small file size is set, files of small size will be generated but numbers of the files will be increased. Max File Length option is for limiting the time length of AVI file.
- Page 51 TR-B222R user manual Schedule Event Type Three recording modes are supported: Continuous, Event, Disconnect. In case of Event recording, event types can be selected among several events. Selected event type is used for configuring the schedule table. Up to 4 event types can be...
- Page 52 TR-B222R user manual Schedule Table Actual recording mode is determined by Schedule Table, where recording mode configured by day (of a week) and hour. Each of recording modes configures the recording operation as follows: cord Off No Recording ...
- Page 53 TR-B222R user manual the system reads status of disk and initializes it. Once the initialization of a disk is finished, the status of disk is shown on Record page of web-based setup Refer to the chart for checking the status of disk.
- Page 54 TR-B222R user manual Search Page Recorded video and audio data can be saved as AVI format in the disk. In general, one AVI file is created for an event in case of event-based recording. However, it is possible that recorded data by serious of events happening continuously can be merged to a single AVI file depending on pre/post event time setting.
- Page 55 TR-B222R user manual Playback 1. Selecting an AVI file will show a dialog for opening or saving the file 2. Pressing Save button, the file will be stored in the PC. The AVI file can be played with Windows Media Player.
- Page 56 TR-B222R user manual Device Information The information delivers current serial communication status Serial Serial Protocol This camera supports one RS-485 serial port. Serial Port Configuration The serial ports can be configured as follows; Each of the serial ports configurations must be same as the connecting device.
- Page 57 TR-B222R user manual General PTZ Type Select the type of PTZ camera or receiver. PTZ ID Since it is possible to control multiple PTZ cameras or receivers over a single control line, each camera or receiver will be assigned with unique ID. Enter PTZ ID of a camera or receiver for control.
- Page 58 TR-B222R user manual Preset Max 128 preset positions can be defined. Select Preset Number: Select an entry in the list to be assigned to current camera position. Focus Mode: Select the focus mode after preset Goto is executed.
- Page 59 TR-B222R user manual Group This function is that the camera memorizes the combination of Presets, Pattern and/or Swings sequentially and runs Presets, Pattern and/or Swings repetitively on activation. Max 8 groups are programmable. Each group can have max 20 actions which are the combinations of Preset, Pattern and Swing.
- Page 60 TR-B222R user manual 3. Set Action, Dwell Time and Option and click Enable squares 4. Press Apply button and the Group can be used on the Live View Page Advanced 60/70 2 Megapixel IP Camera Manual...
- Page 61 TR-B222R user manual Advanced PTZ Max Position Move Speed : Power Up Action : AF Sensitivity : AF Area : Lens Offset Adjust : Auto Parking Auto parking is a function to return to the previous preset position or to resume operation such as Pattern, Swing or Group when a specified time expires after user stopped PTZ control.
- Page 62 TR-B222R user manual Range # - In: According to coordinate value, user can see specific OSD. Range # - On: regardless of coordinate value, user can see specific OSD. X - Coord: Position of horizontal Y - Coord: Position of vertical ...
- Page 63 TR-B222R user manual Admin All operations User ID = admin All operations except for user Manager configuration User Live viewing and PTZ control Guest Live viewing only Add User Press Add button. The following window will appear. Enter User ID and password (Up to 15 characters) and select Privilege Level.
- Page 64 TR-B222R user manual admin user. Login Policy Login Policy Skip Login provides for convenient access to the server when authentication is not required. When Skip Login is set to Enable, login step is skipped. The privilege level after login in this way is determined by the setting of Privilege Level After Login Skipped.
- Page 65 TR-B222R user manual System Information System information Followed network information is displayed (Read only) Model Display the model name. Version Display the current firmware version. Mac Address Display the MAC address of the camera. In case the camera is registered at DDNS server, the MAC address is used in DDNS registration.
- Page 66 TR-B222R user manual Upgrade&Reboot Firmware Version : Display the current firmware version Upgrade: To upgrade firmware; 1. Press Browse button to select a firmware file from PC. 2. Press Firmware Upgrade button to start upgrading. 3. A message for showing status (downloading / upgrading) will be displayed.
- Page 67 TR-B222R user manual button is pressed. Reboot Reboot the camera Do not press the Reboot button unless the server needs a reboot. Factory Reset All settings including user accounts and logs are cleared Factory Reset Except Network Settings All settings except for current network settings are changed to the default values.
- Page 68 TR-B222R user manual Time Zone Select time zone of where the camera is installed. Depending on the time zone, Daylight Saving Time will work automatically A time zone is a region of the earth that has uniform standard time, usually referred to as the local time.
- Page 69 TR-B222R user manual System ID Enter System ID that is used as a camera title. The set System ID is displayed with video image on a Web Browser. The System ID is also transferred to remote software, such as VMS, and displayed on it.
- Page 70 TR-B222R user manual Language Language Select the language to be used for web-based configuration. 70/70 2 Megapixel IP Camera Manual...
