Summary of Contents for Drive DeVilbiss HW007

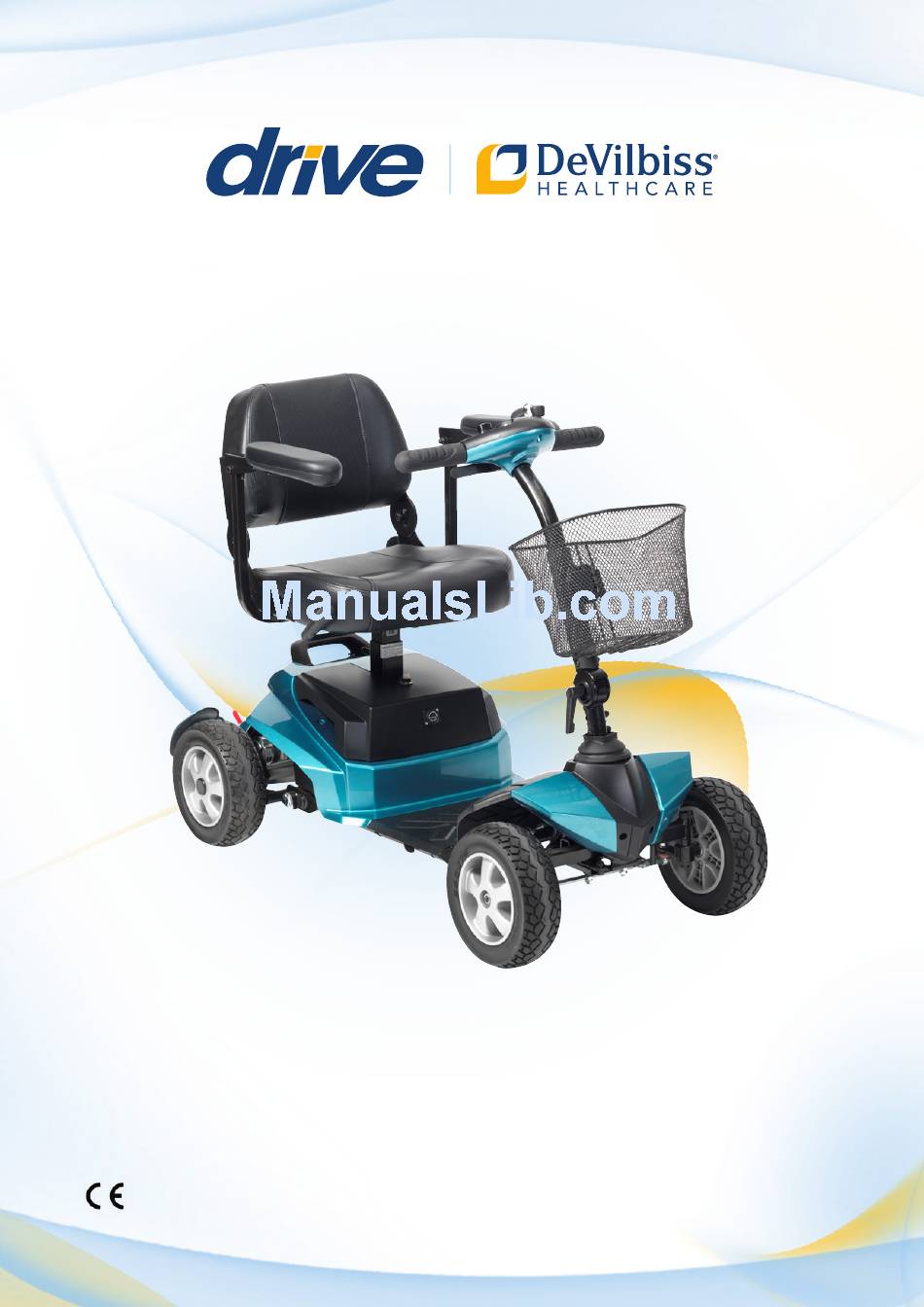

  • Page 1 HW007 User Manual...
  • Page 2: Table Of Contents

    HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 1...
  • Page 3 1. Do not modify your scooter in any way not the drive wheels. authorized by Drive DeVilbiss. Do not use 10. Consult your physician if you are taking accessories if they have not been tested prescribed medication or if you have any or approved for Drive DeVilbiss products.
  • Page 4 ELECTROMAGNETIC Be aware that adding accessories or components, or modifying the powered INTERFERENCE scooter, may make it more susceptible to HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 3...
  • Page 5 20 V/m which should protect against common sources of EMI. Warning: The scooter itself can disturb the performance of the electromagnetic fields such as emitted by an alarm system HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 4...
  • Page 6: Specifications

    107cm (42”) all reduce the maximum range and speed. Width 58cm (23”) Height 92cm (36”) Drive DeVilbiss Ltd reserves the right to change Seat Width 40cm (16”) specifications without prior notice. Specifications of the Seat Height 40cm (16”) Seat Depth 41cm (16”)
  • Page 7: Adjustment

    Assemble the rear part and front part carefully in order not to scratch the cover. Frame hook Lift up the front body Lower frame tube Easy-to-dismantle HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 6...
  • Page 8 The HW007 scooter has carbon steel frame and can be easily dismantled to fit in the car for transportation. It also has easy to use controls and adjustable tiller positioning. Distinctive stylish lightweight scooter Easy to use controls Sturdy Front basket...
  • Page 9 3) Lift up on the frame release lever until the frame hooks are no longer resting on the frame tubes and then carefully and slowly separate these two sections of scooter. 4) Put the tiller in to the lower position by loosening the quick release lever. HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 8...
  • Page 10: Control Panel Operation

    Step 4 Step 4-1 CONTROL PANEL OPERATION The scooter is simple to operate. However, we recommend that you read carefully the following instructions to become familiarized with your new vehicle. For Safety: HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 9...
  • Page 11 To stop, release the wigwag paddle and the brake will automatically apply. Press the left hand side of the wigwag paddle (marked “R”) to move backwards. The parking brake will automatically apply when the wigwag paddle is released and the scooter stops. HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 10...
  • Page 12 There is an automatic parking brake function included in the electromagnetic brake. The scooter will stop when the motor is engaged and the power switch is off or when the power switch is on and the wigwag is in the neutral HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 11...
  • Page 13 Lead-acid batteries should be charged as often as possible. Specification of the battery that we recommend for the HW007 scooter is Type: Deep –cycle sealed lead-acid or gel cell...
  • Page 14: Charging Instructions

    Charging the battery longer than necessary will not harm the battery. We recommend that you charge the batteries for 10 hours after daily use. HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 13...
  • Page 15: Scooter Maintenance And Repair

    Your scooter is designed for minimal maintenance. However, like any motorized vehicle it requires routine maintenance. To keep your scooter for years of trouble-free operation, we recommend you follow the following maintenance checks as scheduled. HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 15...
  • Page 16 If the inspection determines excessive motor bushes worn out, they must be replaced otherwise motor damage will result. HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 16...
  • Page 17: Troubleshooting And Fault Repair

    There is a comprehensive twelve-month warranty from the date on which your new scooter is delivered. The warranty covers the scooter for repairs or replacement during this period. For more detail, please see the Warranty Conditions below. Warranty Conditions: HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 17...
  • Page 18 Any work or replacement part installation must be carried out by an authorized Drive DeVilbiss dealer / service agent. 2. To apply the warranty should your scooter require attention please contact the designated service agent listed above. 3. Should any part of the scooter require repair or full or part replacement, as a result of a manufacturing or material defect within twelve months of receiving the scooter, replacement parts will be supplied free of charge.
  • Page 19 Forwards Wheels and Reverse Tyres Wear Emergency stop Pressure Left turn Bearings Right turn Wheel nuts Slope test Motors Over obstacles Wiring List Items repaired Noise Connections Brake Brushes Chassis Condition Steering HW007 Scooter Owner’s Handbook (HW007_IFU 08/15) Page 19...
  • Page 20 Our goal is to develop a range that will provide individuals with a chance to enjoy every day life. Dealer Stamp Drive DeVilbiss Healthcare Ltd, Heathfield Lane, Birkenshaw, West Yorkshire, BD11 2HW Tel: 0845 0600 333 Fax: 0845 0600 334 Email: info@drivedevilbiss.co.uk...
